Honeywell Pm45 Industrial Printers User Guide

PM45 AND PM65
INDUSTRIAL
PRINTERS
Accessories Guide

PRINTHEADS

50180236-001 PM45 Printhead 203 DPI 203 DPI printhead assembly, 4”	50180237-001 PM45 Printhead 300 DPI 300 DPI printhead assembly, 4”	50180238-001 PM45 Printhead 406 DPI 406 DPI printhead assembly, 4”
50180234-001 PM45 Printhead 600 DPI 00 DPI printhead assembly, 4”	PM65-TPH-203 PM65 Printhead 203 DPI 203 DPI printhead assembly, 6”	PM65-TPH-300 PM65 Printhead 300 DPI 300 DPI printhead assembly, 6”

CONNECTIVITY

50178327-001 Kit, PM45 Wireless LAN + Bluetooth, NA Customer-installable Wi-Fi Kit, includes internal card and antenna. IEEE 802.11 a/b/g/n/ac + V5.0 Bluetooth. Only for USA and Canada	50174832-001 Kit, PM45 Wireless LAN + Bluetooth, ROW Customer-installable Wi-Fi Kit, includes internal card and antenna, IEEE 802.11 a/b/g/n/ac + V5.0 Bluetooth, For countries outside of USA and Canada	PM65-WL-NA Kit, PM65 Wireless LAN + Bluetooth, NA Customer-installable Wi-Fi Kit includes internal card and antenna, IEEE 802.11 a/b/g/n/ac/ax + V5.2 Bluetooth. Only for USA and Canada
PM65-WL-ROW Kit, PM65 Wireless LAN + Bluetooth, ROW Customer-installable Wi-Fi Kit includes internal card and antenna, IEEE 802.11 a/b/g/n/ac/ax + V5.2 Bluetooth. Only for USA and Canada	PM45-PAR-01 Kit, Parallel Port Field-installable, parallel interface (IEEE 1284), for both PM45 and PM65	PM45-IND-01 KIT, Industrial Interface Field-installable, industrial interface – eight digital in/out, four analog relays, one RS232/422/485 port, for both PM45 and PM65
PM45-APPL-01 KIT, Applicator Interface Field-installable, applicator interface – Ext Error 8-pin mini-DIN, Z-style standard DB15 port, S-style standard 14-pin Centronics, Ext Power 6-pin mini-DIN, for both PM45 and PM65

MEDIA OPTIONS

50180235-001 Kit, PM45 Platen Roller Platen Roller Assembly	PM65-PR Kit, PM65 Platen Roller Platen Roller Assembly	50180192-001 Media Arm Edge Guide Prevents telescoping of media rolls, for both PM45 and PM65
203-972-001 3’’ Media Core Adapter for 3’’ diameter media cores, for both PM45 and PM65	50180221-001 PM45 Collapsible Core Enables coreless media rewinding, increases ribbon take-up capacity	PM65-CC PM65 Collapsible Core Enables coreless media rewinding, increases ribbon take-up capacity
50180196-001 PM45 Label Dispenser Making it easier to dispense labels with strong adhesive. Must use together with rewinder.	PM65-LD PM65 Label Dispenser Making it easier to dispense labels with strong adhesive. Must use together with rewinder.	50180206-001 PM45 Cutter Kit Media cutter

MEDIA OPTIONS

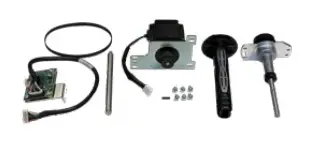

50180201-001 PM45c Cutter Kit Field-installable, Media Cutter	PM65-CUTTER PM65 Cutter Kit Media Cutter	50178326-001 PM45 Rewinder Field-installable, Internal Rewinder/Peel Off Kit
PM65-MR-001 PM65 Rewinder Field-installable, Internal Rewinder/Peel Off Kit

DOORS

PM45C-LD-KIT PM45c Long Door Kit Full door, completely covering media up to 5” in diameter	PM45C-SD-KIT PM45c Short Door Kit Short door, enabling open access to media	PM45C-MD-KIT PM45c Mega Door Kit Dome door, completely covering media rolls up to  8” in diameter

RFID

50180747-001 RFID Kit, NA Field-installable, RFID UHF, North America and Mexico For both PM45 and PM65	50180233-001 RFID Kit, EU Field-installable, RFID UHF, Europe For both PM45 and PM65	3009-1530-001 RFID Kit, CN Field-installable, RFID UHF, China For both PM45 and PM65

CABLES

321-576-004 USB Cable USB (USB-A to USB-B) cable, 6.5 ft. (2 m) length, RoHS compliant. For both PM45 and PM65	1-974024-018 Serial Cable RS-232 (DB9F to DB9M) cable, 5.9 ft. (1.8 m) length, RoHS compliant. For both PM45 and PM65	1-94022-018 Parallel Cable Parallel (IEEE 1284) cable, 5.9 ft. (1.8 m) length, RoHS compliant. For both PM45 and PM65
1-974028-025 US power cord For both PM45 and PM65	1-974027-025 EU power cord For both PM45 and PM65	1-974029-020 UK power cord For both PM45 and PM65
321-471-002 AUS power cord For both PM45 and PM65	32-2497-01 China  power cord For both PM45 and PM65	321-502-002 India power cord For both PM45 and PM65
321-501-002 Denmark power cord For both PM45 and PM65

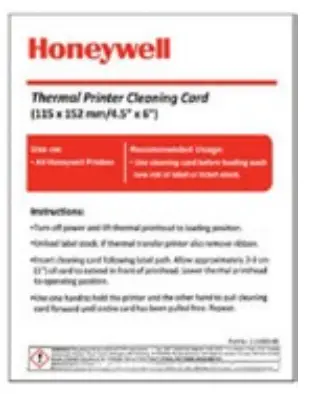

CLEANING CARDS

For more information
sps.honeywell.com
Honeywell Safety and
Productivity Solutions
855 S Mint St
Charlotte, NC 28202
800-582-4263
www.honeywell.com
PM45 PM65 Industrial Printers Accessories Guide | Rev B | 05/23
© 2023 Honeywell International Inc.
