INSTRUCTION GUIDE
S-TR A P

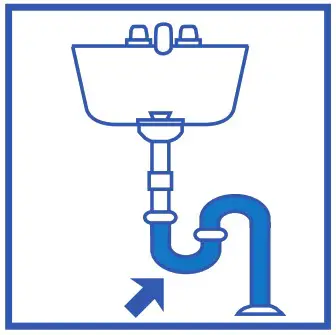

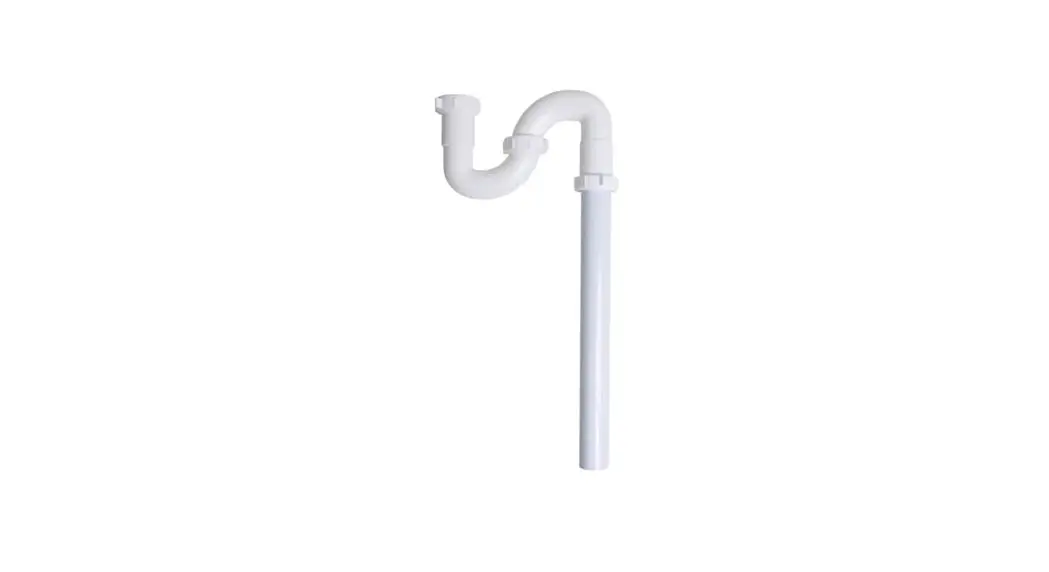

S-Trap 1-1-2 in. White Plastic Sink Drain
- Slide nut (A) and washer (B) on tailpiece.
- Slide J-bend (C) onto tailpiece and tighten nut (A).
- Measure and cut floor tube (D) to length. Floor tube (D) should go into fitting 1 in. minimum.
- Slide flange (F) on end of floor tube (D).
- Attach floor tube (D) and sink trap (H) to J-bend (C) using washer (B) and by tightening nut (E).
- Tighten nuts. CHECK FOR LEAKS.
