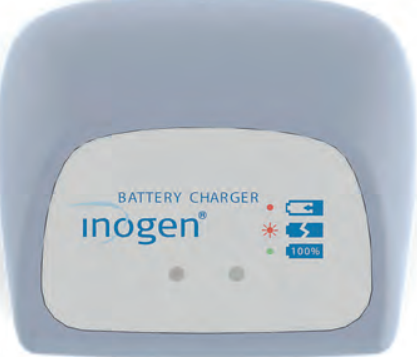

INOGEN BA-303 One G3 External Battery Charger
External Battery Charger
Your Inogen One G3 External Battery Charger (BA-303) will charge your Inogen One G3 single and double batteries. It takes approximately 3 hours to charge a fully depleted single battery, and approximately 6 hours to charge a fully depleted double battery. Note: the battery will also recharge in the Inogen One G3 when powered by the
AC Power Supply, or DC Power Cable.
- Plug the External Battery Charger AC power supply cord into the near-est electrical outlet.

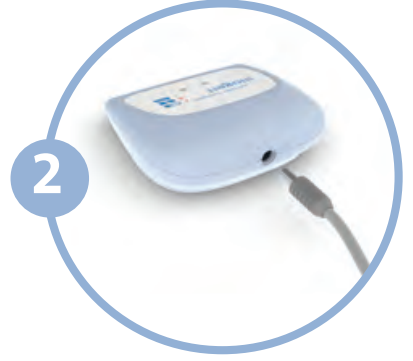

- Plug the External Battery Charger AC power supply into the battery charger.

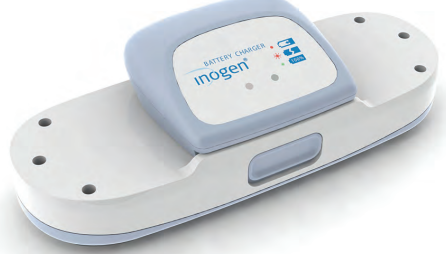

- Slide the charger onto the Inogen One G3 Battery by clicking and locking into the charger.

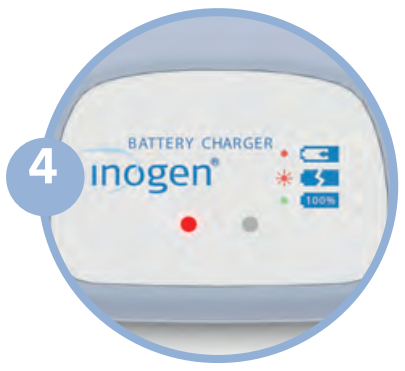

- When the battery is in the correct position, a solid red light will indicate that the battery is charging.

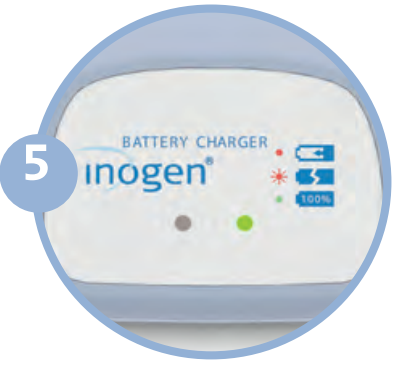

- When the green light illuminates, the battery is fully charged*.
- Press battery latch down and slide charger off battery.
*If the red light is flashing, unplug the unit and complete steps 2-3 again. If a red flashing light continues after these steps, contact your Equipment Provider.
©2021 Inogen. All rights reserved www.inogenone.com www.OxygeNation.com
Your Equipment Provider:
Your Physician:
- 301 Coromar Drive,
- Goleta, CA 93117
- 1-877-4-INOGEN (Toll Free)
- 1-877-446-6436 (Toll Free)
- 1-805-562-0515 (International) [email protected]
- www.inogenone.com
