EFFLUENT PUMPS
MENU
10EC SERIES – 1/2 HP
APPLICATIONS
Effluent wastewater removal, dewatering, water transfer
FEATURES
- Heavy-duty cast iron construction
- Permanent Split Capacitor (PSC)
- Designed for continuous duty
- Energy-saving low amp draw
- 1-1/2″ FNPT (38 mm) discharge
- Handles solids up to 1/2″ (12.7 mm) diameter
- Multiple switch options for automatic operation
- 140 °F (60 °C) liquid temperature rating
- cCSAus listed

SERIES SPECIFICATIONS
| Volts | Hz | Amps | Watts | Performance (GPM at Height in Feet) | Shut-Off (ft) | PSI | ||||
| 5′ | 10′ | 15′ | 20′ | 30′ | ||||||
| 115 | 60 | 6.5 | 750 | 67 | 57 | 52 | 47 | 28 | 36 | 15.6 |

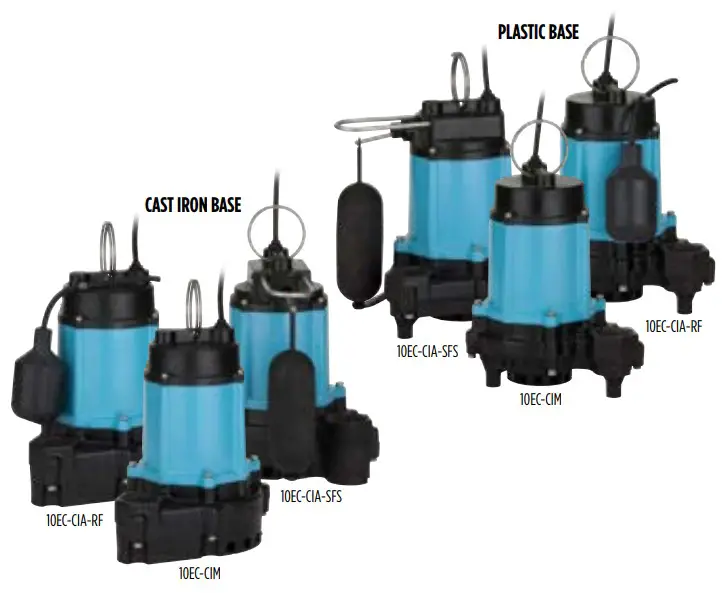

| Item | Model | HP | Volts | Base Material | Switch Type/ Operations | On Level | O ff Level | Cord | Weight |
| 510852 | 10EC-CIA-RF | 1/2 | 115 | Cast Iron | Piggyback Mechanical Float | 13″ – 15″ 33.2 cm – 381 cm | 6″- 8″ 15.2 cm – 20.3 cm | 20′ 6.1 m | 36.5 lbs 16.6 Kg |
| 510803 | 10EC-CIA-SFS | 1/2 | 115 | Polypropylene | Integral Snap-Action Float | 8″ – 11 20.3 cm – 27.9 cm | 2″- 5″ 5.1 cm – 12. 7 cm | 10′ 3 m | 29 lbs 13.5 Kg |
| 510802 | 1OEC-CIA-SFS | 1/2 | 115 | Polypropylene | Integral Snap-Action Float | 8″ – 11 20.3 cm – 27.9 cm | 2″- 5″ 5.1 cm – 12.7 cm | 20′ 61 m | 30 lbs 13.6 Kg |
| 510801 | IOEC-CIM | 1/2 | 115 | Polypropylene | Manual | — | — | 10′ 3 m | 27.5 lbs 12.5 Kg |
| 510800 | 10EC-CIM | 1/2 | 115 | Polypropylene | Manual | — | — | 20′ 6.1 m | 28.5 lbs 12.9 Kg |
ENGINEERING DATA

| Model | Base | A | B | C |
| 10EC-CIA-SFS | Polypropylene | 11.28″ (286.5 mm) | 10.66″ (270.8 mm) | 8.48″ (215.5 mm) |
| 10EC-CIA-RF | Cast Iron | 10.9″ (276.2 mm) | 8.79″ (223.4 mm) | 8.48″ (215.5 mm) |
| 10EC-CIM | Polypropylene | 11.08″ (281.5 mm) | 8.79″ (223.4 mm) | 8.48″ (215.5 mm) |

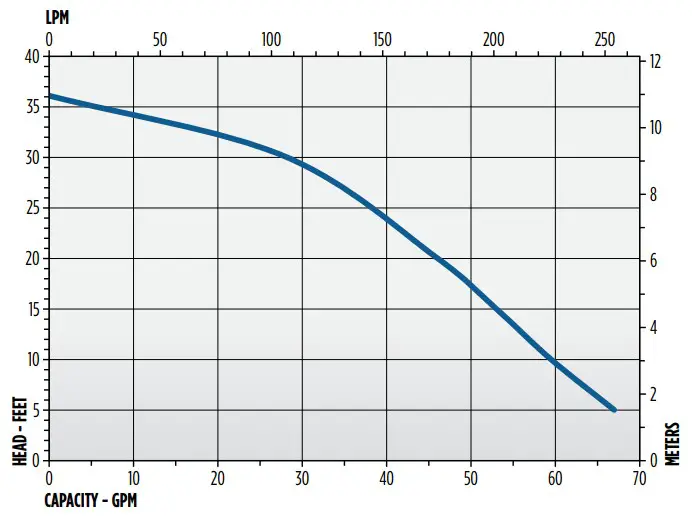

PERFORMANCE DATA

CONSTRUCTION
| Cover | Epoxy-coated cast iron |
| Motor Housing | Epoxy-coated cast iron |
| Impeller Material | Nylon |
| Volute | Epoxy-coated cast iron |
| Mechanical Shaft Seal | Nitrile with carbon and ceramic faces |
| Fasteners | Stainless steel |
| Shaft | Cold-rolled steel |
| Bearings | Upper and lower ball bearings |
| Power Cord | SJTW |
![]()
Hotline: 1.800.701.7894
www.littlegiant.com
Spec Sheet 996786
