Wallbox Pulsar Plus Installation Guide

PULSAR PLUS
Installation Guide

GETTING STARTED

INSTALLATION

Holster

Operating

GETTING STARTED Data Sheet

General specifications

Electrical specifications

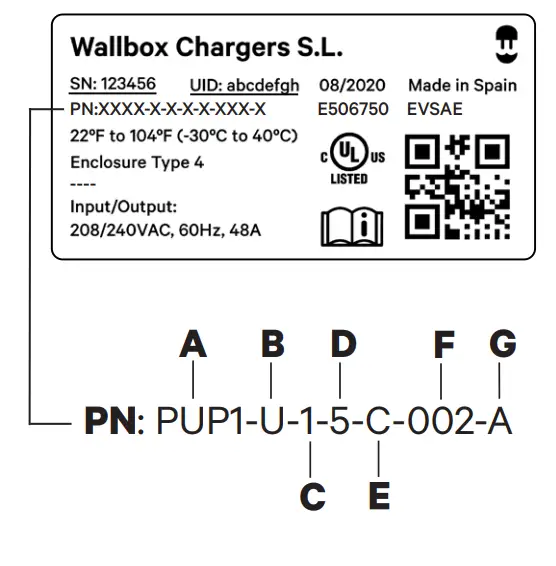

Part number structure

Safety instructions

SAVE THESE INSTRUCTIONS | INSTRUCTIONS PERTAINING TO RISK OF FIRE OR ELECTRIC SHOCK.
WARNING: When using electric products, basic precautions should always be followed, including those below. This manual contains important instructions that cover the safe installation, operation, and maintenance of the unit.

• Read all instructions before installing and using your Wallbox charger.
• Permanent (hardwired) connection of your charger and/or installation of electrical circuits, conduit, and NEMA receptacles must only be performed by a qualified electrician in accordance with all local electrical codes and ordinances. Unauthorized installation or modifications will void the manufacturer’s warranty.
• This device should be supervised when used around children.
• Do not put fingers into the electric vehicle connector.
• Do not use your Wallbox charger if the flexible power cord or EV cable is frayed, has broken insulation, or has any other signs of damage.
• Do not use your Wallbox charger if the enclosure or the EV connector is broken, cracked, open, or shows any other indication of damage.
• Do not operate your Wallbox charger in temperatures outside its operating range of -22°F to 104°F (-30°C to 40°C).
• Do not open your charger in rain or other inclement weather.
• Do not open the front cover of your charger while it is connected to the power
• Install your charger in a sufficiently ventilated location and avoid installation in areas with direct sunlight.
• Do not install your Wallbox charger near flammable, explosive, or combustible
• All documents can also be found online at wallbox.com/na
• In case of flooding, do not operate your charger while it or your vehicle is submerged in water.
• If your charger was submerged in water due to flooding, have a qualified electrician inspect your charger prior to energizing or using your charger again.

Warning for Wallbox AC plug-in products: Grounding instructions
Your Wallbox charger must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. Your charger is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate receptacle that is properly installed and grounded in accordance with all local codes and ordinances.
WARNING: Improper connection of the equipment-grounding conductor may result in a risk of electric shock. Check with a qualified electrician or service person if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product. If it does not fit the receptacle, have a proper receptacle installed by a qualified electrician.

Warning for Wallbox hardwired products: Grounding instructions

This product must be connected to a grounded, metal, permanent wiring system, or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment grounding terminal on the product.
See installation instructions.

WARNING: Consult a qualified electrician to ensure that the installation meets local regulations.

Legal notice

Any information in this manual may be changed without prior notice and does not represent any obligation on the part of the manufacturer.
Any resulting damage due to disregard or actions contrary to the instructions in this manual is excluded from the product warranty.
Images in this manual are for illustration purposes only and might differ from the delivered product.

Maintenance instructions

• Your Wallbox charger contains no user-serviceable parts. Do not attempt to repair or service any other part of the unit yourself. If the unit requires servicing, please contact Wallbox customer service.
• The installation, maintenance, and servicing of your Wallbox charger must only be performed by qualified personnel in accordance with applicable local
• Protect your Wallbox charger from any external impact.
• Take appropriate precautions with electronic medical implants.
• Disconnect the main service power to your charger before cleaning the unit. Do not use cleaning solvents to clean any part of your charger. Use a clean, dry cloth to remove accumulated dust and dirt.
• Under no circumstance should you over-tighten the connecting cable while it is connected to the vehicle?
• Ensure that the charging cable is positioned in such a way that it will not be stepped on, tripped over, or subjected to damage or stress. Do not close your garage door on the charging cord.

Moving and storage instructions

• Your Wallbox charger should never be lifted or carried by the power supply cord or by the EV cable. Always lift or carry your charger by lifting up the charger’s enclosure.
• The charger is only to be used for fixed installations and cannot be used as a portable device.
• Store your Wallbox charger in a dry location and within the storage temperature of -40°F to 158°F (-40°C to 70°C).

FCC Note
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try  to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna of the affected ratio or television.
• Increase the separation between the charger and any affected devices.
• Connect the charger to an outlet on a circuit different from the one to which any affected devices are connected.
• Consult the dealer or an experienced radio/TV technician for help.

Safety icons

Caution.	Sharp element, risk of injurious cuts.	Risk of a foot injury.
Risk of electric shock.	Ground earth connection required.	Flying debris, risk of eye injury.

Package contents

Components

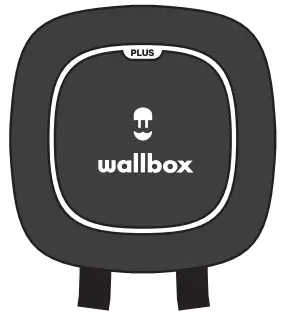

Wallbox Pulsar Plus with Charging Cable	Holster
Installation Guide	Amperage Reduction Labels

Included mounting parts

ø6 x 50mm Phillips Screws	ø5 x 40mm Phillips Screws	ø8 x 40mm Wall Anchors
Screw Plug (Plug-in version)	T20 4 x 10mm Torx Screws (Hardwire version)	ø3.5 x 9.5mm Phillips Screws

Required tools

Small, flat Screwdriver	Phillips Screwdriver or Bit	Measuring Tape
T20 Screwdriver or Bit	Torque Screwdriver(Hardwired version)	Electric Drill 3/8” (8 mm) bits
Stud Detector	Spirit Level	Pencil
NEMA 14-50P 240V outlet Ground facing down Or electrical material to hardwire

Before installing Pulsar Plus

Before installing your charger, be sure to obtain any required permits and/or approvals in accordance with applicable codes, regulations, and ordinances for electrical installations.

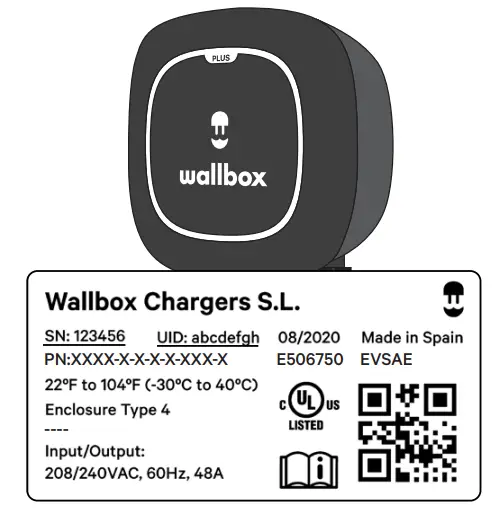

Prepare the charger for installation

Before getting started, carefully lift the charger from the packaging, remove the cardboard covering the cables, and carefully unfasten the plastic cable ties on the EV cable bundle. Leave the cables in the box until needed to ensure they do not get damaged during installation.

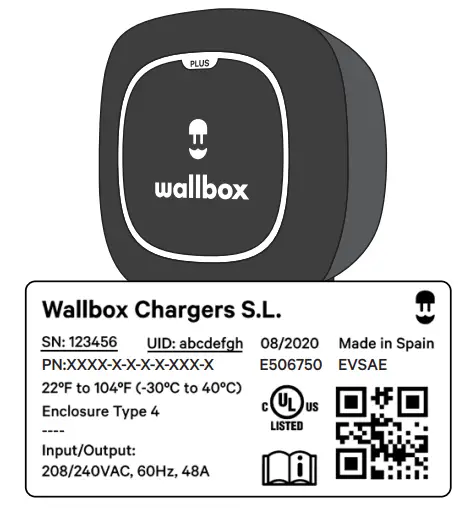

Check the product label to identify the model/ version of your charger. Make note of the serial number (SN) and unique identification number (UID) as you will need these to complete the registration of your charger.

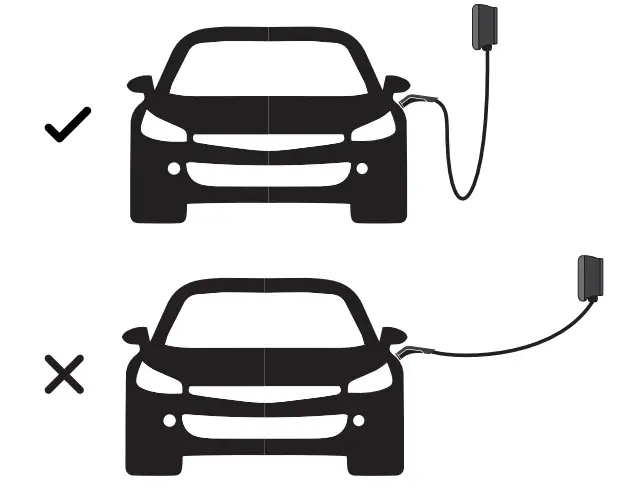

Location

For the placement of your charger, consider how you will normally park your car, the location of the vehicle’s charge port, and the length of the charging cable (25 feet/750cm).
NOTE: You should always have enough slack in the charging cable so as not to apply tension to the cable or the cable connections.
For secure mounting, you will want to install your charger on a vertical wall stud or on a solid wall with appropriate mounting anchors.

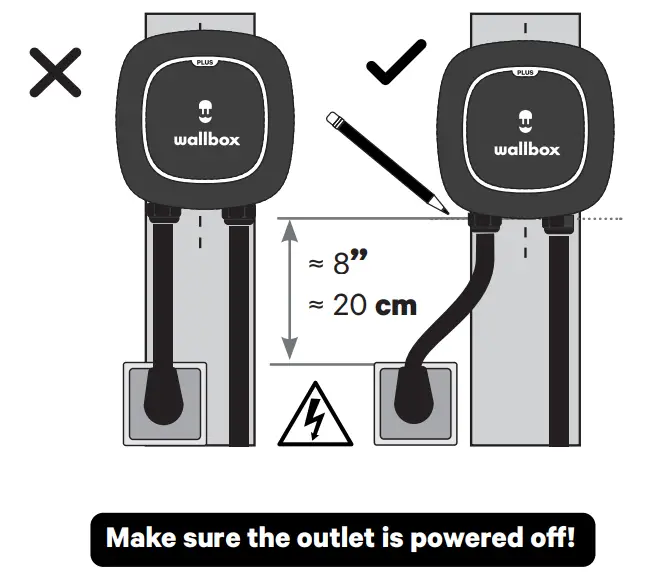

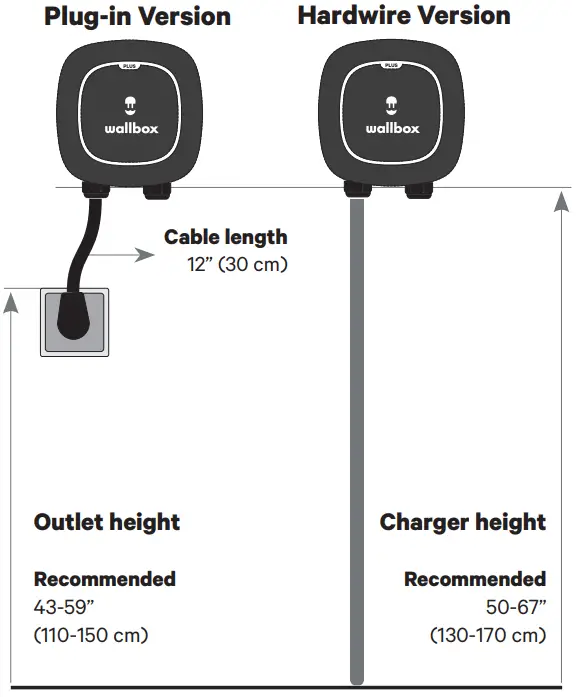

Positioning

We recommend installing your charger as shown in the diagram on the left. Note that the minimum installation height must be at least 18” (46cm), measured from the bottom of your charger. Wallbox recommends an installation height of 50-67” (130-170cm).
With NEMA cable installations, be sure to take into consideration the 12” (30cm) length of the NEMA cable when positioning your charger in relation to the NEMA receptacle. For hardwire installations, the wiring may use either the rear or bottom access ports in your charger. Be sure to note that the power supply wiring and conduit (if used) will need to be placed on the left side of your charger.

40A NEMA Plug-in installation: Page 9.
40A or 48A Hardwire installation: Page 12.

INSTALLATION NEMA plug-in installation

Refer to one of the corresponding sub-sections below for an existing NEMA outlet or for installing a new NEMA outlet.

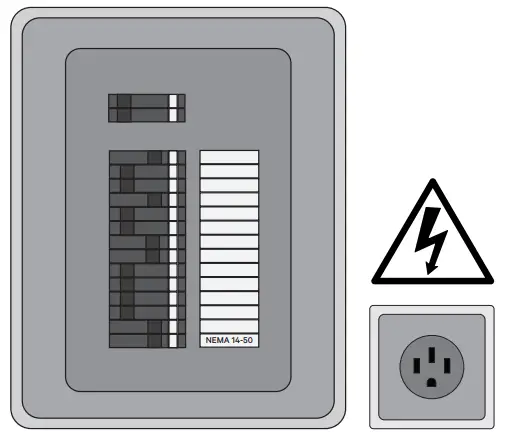

Existing NEMA outlet

If you already have a NEMA outlet, ensure that:

• It complies with local electrical codes.
• It has a designated circuit breaker and electrical wiring that are dimensioned appropriately.
  Switch off the circuit breaker of the electrical outlet before installing your charger.

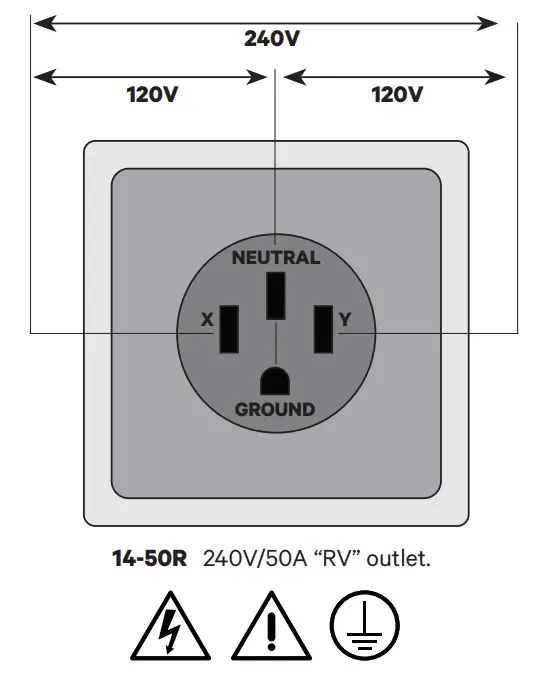

NEMA outlet installation

When installing a NEMA 14-50 outlet, be sure the ground pin is facing down as shown in the diagram on the left.
Important recommendations

• Ensure you have the correct permits for this electrical installation.
• Remember that the NEMA outlet must be placed on the left side of the charger as shown on Page 8.
• Keep in mind that the power supply cable length is limited to 12” (30cm).
• Ensure the electrical panel supports a 240V dedicated circuit with a new, dedicated two-pole circuit breaker.

CAUTION: To reduce the risk of fire, connect only to a circuit with a branch circuit overcurrent protection of 50A in accordance with ANSI/NFPA 70 (US) C22.2  NO.280-13 (Canada).

NEMA plug-in installation

Ensure the NEMA receptacle is correctly installed before connecting your charger. See instructions on Page 9.

Placement

1. Using a wall stud finder, find the wall stud nearest to the NEMA outlet. Mark a vertical line approximately 20” (50cm) in length in line with the wall stud.
   Alternately you may find a suitable location on a solid wall.
2. Ensure that the placement of the NEMA outlet and your charger will allow for an adequate connection of the 12” (30cm) NEMA cable.
3. Carefully lift the charger from the box, plug the NEMA cable into the outlet, and position the charger centered on the vertical line. Position the charger such that the  NEMA cable has a gentle curve and is not stretched. Mark a horizontal line at the bottom of the charger.
4. Unplug your charger and carefully place it back in the packaging box while you continue.

Installing the wallplate

1. Remove the tape from the wallplate to detach it from the charger.
2. Place the wallplate with the bottom edge aligned with the horizontal line and the center holes aligned with the vertical line. Mark the location of the holes.
   NEMA plug-in installation

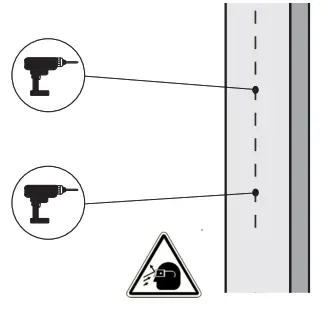

3. Drill two holes with an appropriate-sized bit.
   Place the wallplate in alignment with the holes.
   If you are mounting your charger on a solid wall, use the wall anchors provided with your charger.

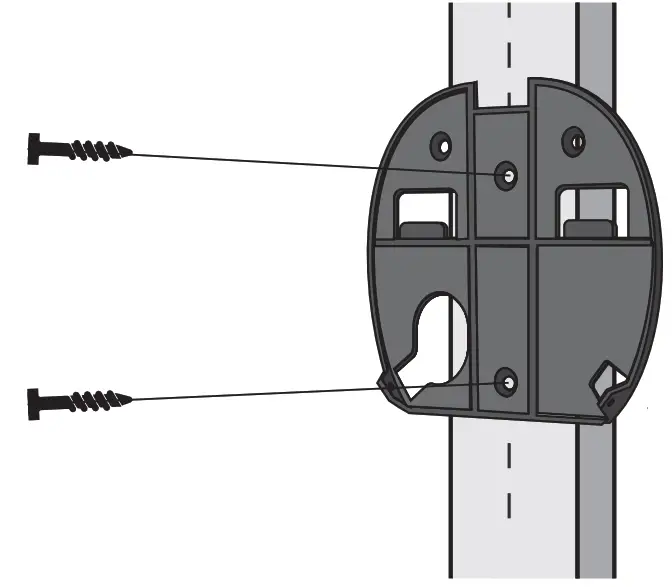

4. Firmly mount the wall plate using the provided wall screws. Do not over-tighten the screws.

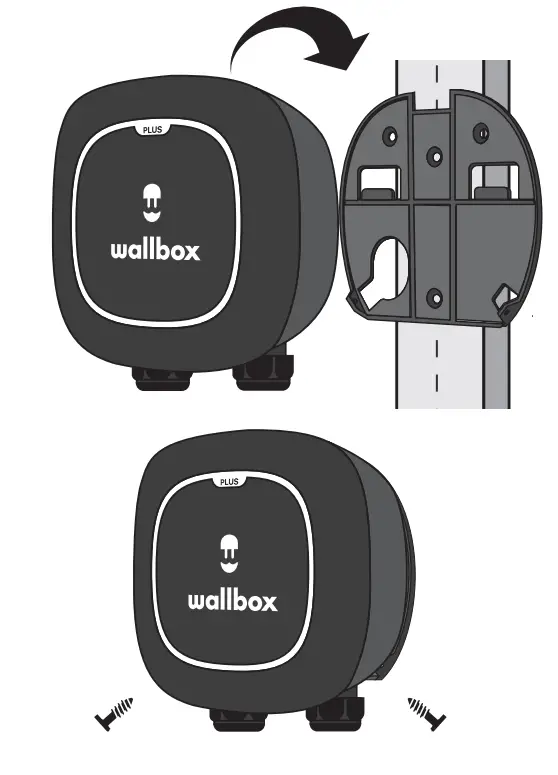

Mounting

1. Carefully remove your charger from the packaging box and hang your charger from the top of the wallplate.
2. Secure the charger to the wallplate using the provided wallplate screws. Do not overtighten.

Proceed to the instructions for installing the holster and operating your charger, pages 16-17.

Hardwired installation

Installation of your Wallbox charger with a permanent power supply.

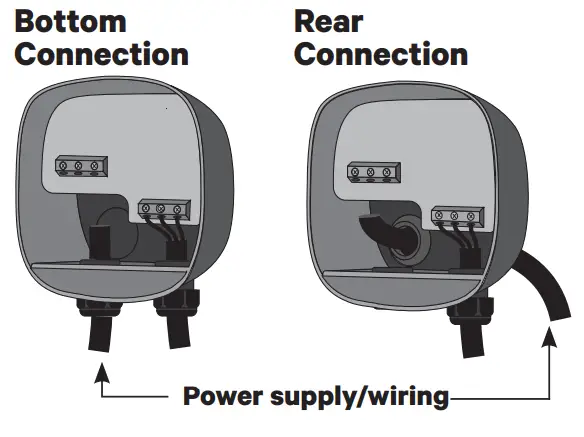

Determine wiring entry

Before hardwire installation, determine which entry port you will be using for your power supply wiring or conduit. Your charger can be connected from either the rear or bottom entry ports. Choose the most appropriate connection based on the placement of your wiring or conduit.
Be sure to note that the power supply entry for either port will be on the left side of your charger. Ensure that you locate your charger so that the power supply wiring or conduit is accessible on the left side of your charger.

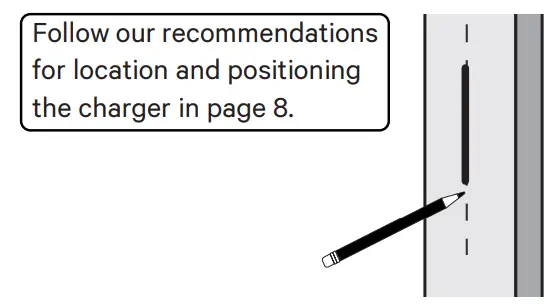

Placement

Using a wall stud finder, find the wall stud nearest to and on the right side of the power supply wiring.

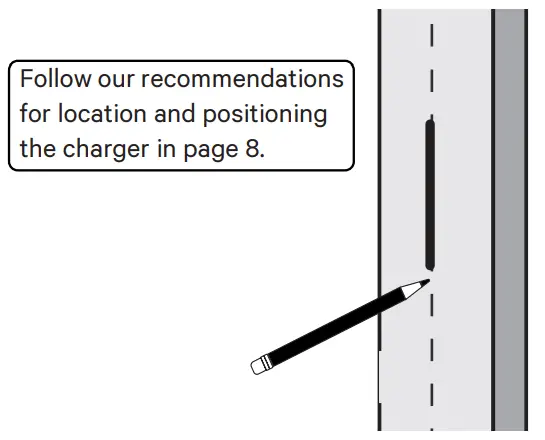

Mark a vertical line approximately 20” (50cm) in length in line with the wall stud at the approximate height of your mounting. Alternately you may find a suitable location on a solid wall.

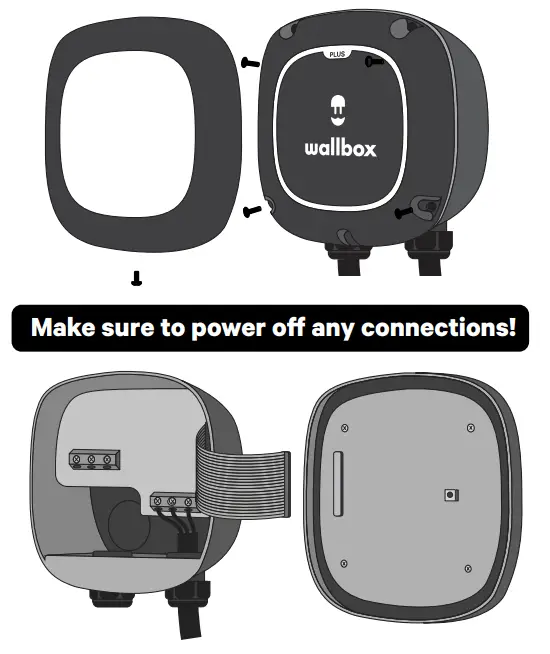

Preparing your charger

Hardwire installation requires opening your charger to access and connect the hardwire power supply connection.

• Remove the cover frame from the front of your charger by removing the bottom screw that affixes the frame to the cover.
• Remove the four corner screws on the cover and carefully lift the cover.
• From the cover, carefully detach the ribbon cable. Set the cover aside.

Hardwired installation

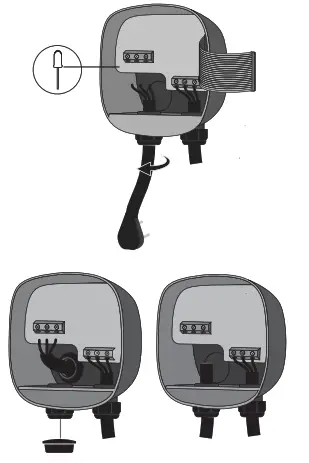

Removing the NEMA
14-50P cable
40A NEMA Model only

1. To disconnect the NEMA power cable wiring, unscrew the terminal screws as shown in the diagram on the left.
2. Loosen the left cable gland in a counterclockwise direction and pull down on the NEMA cable to release it from your charger.
   Safely store or dispose of the NEMA cable.

For rear wiring installations
Use a small screwdriver to cut a slit in the rubber grommet to create an opening for your power supply wiring. Alternately, if you are using a conduit for the rear attachment,  remove the grommet and attach the conduit fitting.

• For 40A model rear wiring installations, remove the bottom cable gland and attach the provided screw plug to cover the bottom port.

For bottom wiring installations
Remove the attached cable gland (40A model) or screw plug (48A model) to allow the attachment of the conduit fitting.

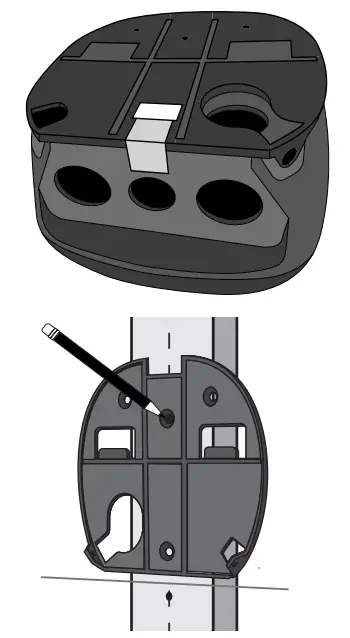

Installing the wallplate

For rear wiring installation, draw the power supply wiring through the hole in the wall and then through the rear port of the wallplate before mounting the wall plate.

1. Remove the tape from the wallplate to detach it from the charger.
2. Place the wallplate with the center holes aligned with the vertical line drawn earlier.
   Mark the location of the holes. For rear wiring installation, also mark the location of the rear power entry port.
3. Drill two holes with an appropriate-sized bit. Place the wallplate in alignment with the holes and firmly mount the wall plate using the provided wall screws. Do not over-tighten the screws.
   If you are mounting your charger on a solid wall, use the wall anchors provided with your charger.

Hardwired Installation

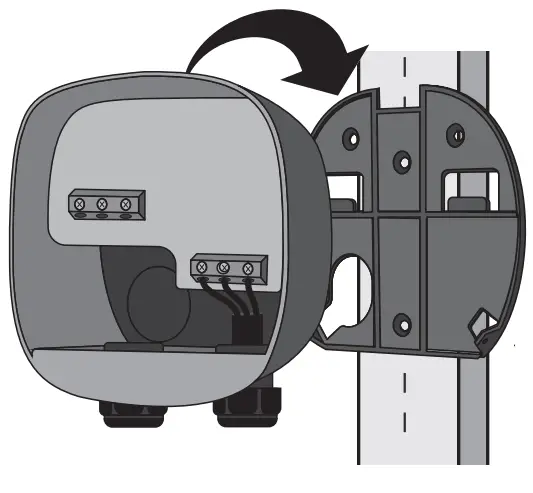

Mounting the charger

1. Carefully remove your charger from the packaging box and hang it from the top of the wallplate.
   For rear wiring installation, feed the power supply wires through the rear port (and through the rubber grommet, if not using a conduit) with enough length to easily connect the wires to the terminals.

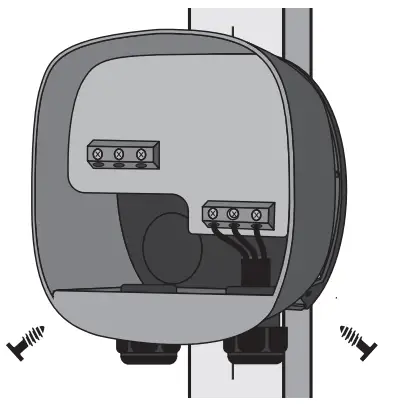

2. Replace the two wallplate screws to secure your charger to the wallplate. Do not over-tighten.

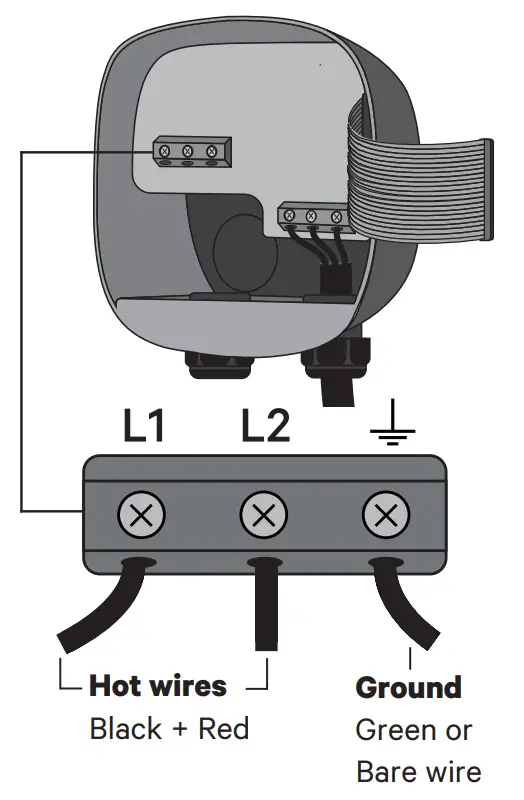

Electrical wiring

1. For bottom wiring installation, feed the power supply wires through the bottom port with enough length to easily connect the wires to the terminals.
   NOTE: If using a conduit connection, pull the wiring through before connecting the conduit.
2. Connect the electrical wires according to the diagram on the left.
   Ensure the electrical panel supports a 208/240V dedicated circuit with a new, dedicated two-pole circuit breaker, rated for the selected amperage (see the following section).  The voltage between the hot wires (L1 and L2) must be 208/240V.
3. Use copper conductors only within the wire size range of 10 to 6 AWG (6mm² to 16mm²).
4. Strip 1/2” (12mm) of insulation off each wire, insert the wires per the diagram and tighten each connector screw to 11.5in·lbs (1.3N·m).

Hardwired Installation

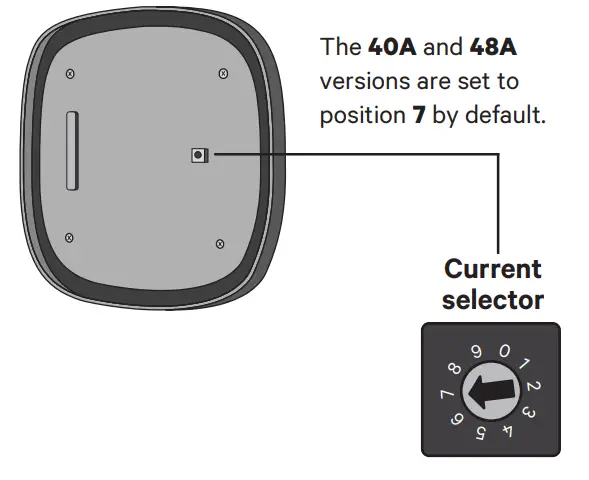

Rated current adjustment

Selecting a switch position exceeding the rated current will not exceed the rated current.
CAUTION To reduce the risk of fire, only connect your charger to a circuit with a branch circuit overcurrent protection of 125% of the selected max amperage setting of the device in accordance with ANSI/NFPA 70 (US) C22.2 NO 280 13 (Canada).

1. Both the 40A and 48A versions of Pulsar Plus can be adjusted from 16A to the maximum rated amperage of each model. If you are installing your charger on a circuit rated lower than the maximum rating for your charger, you can use the currency selector to manually set a lower maximum current.
   Hardwire installations
2. On your charger cover, locate the current selector and set the rotary switch to the appropriate setting per the chart below.

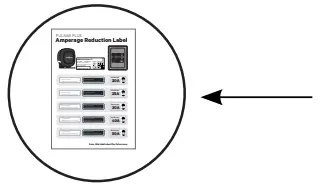

3. When setting your charger’s currently lower than the max. rating, use the label corresponding to your selected current value from the enclosed amperage reduction label sheet and affix it over the existing label on your charger.

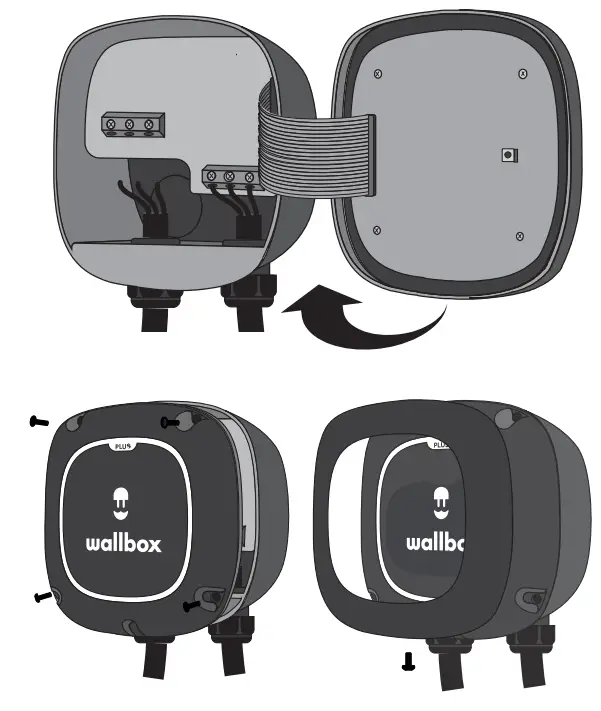

Closing the charger

Proceed to the instructions for installing the holster and operating your charger, pages 16-17.

1. Carefully reattach the communications cable to your charger cover and close the cover of your charger.
2. Insert the four corner screws to secure your charger cover. Do not over-tighten.
3. Make sure to properly align the bottom screw opening, place the cover frame on your charger and attach the frame with the screw. Do not over-tighten.

Holster

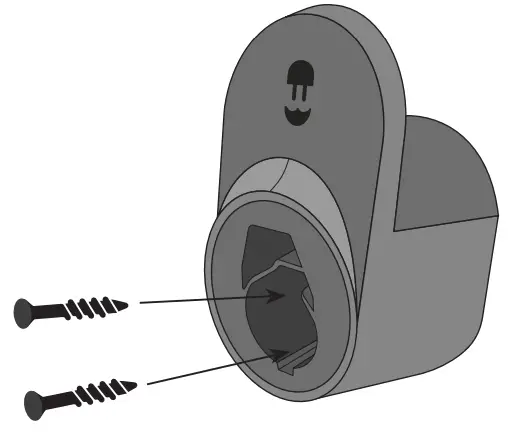

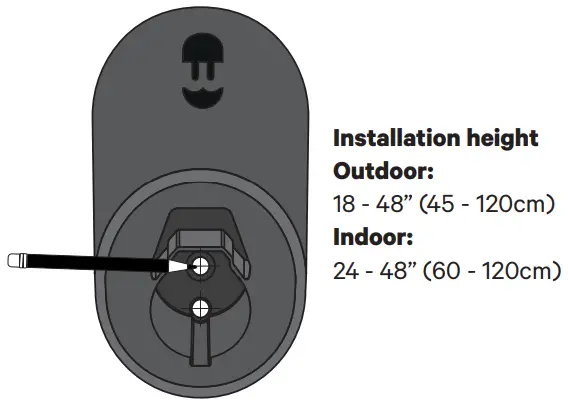

Installing the holster
The holster is used to store your EV connector when not in use. You may place the holster wherever it is most convenient, being sure that the location does not place any tension on the charging cable.

1. For secure mounting, locate the holster on a vertical wall stud or similar solid wall. Mark the two screw holes.

2. Drill two holes were marked with an appropriately sized drill bit, align the holster, and securely fasten the holster with the two provided screws. Do not over-tighten.

3. Drape the charging cable around your charger and dock your EV connector in the holster.
   • You may drape the charging cable on the holster, the charger, or both.
   Proceed to the instructions for operating your charger on page 17.

Operating

NOTE: Once you have powered on the connected circuit, your charger will be ready to charge your EV. To fully access your charger functions and control your charger  remotely, however, you will need to download the myWallbox app to a mobile device (smartphone or tablet) and register your charger following the directions below.

Powering on

If you have installed a NEMA plug-in model, insert the NEMA plug in the receptacle. For all models, once all electrical connections have been safely made, switch on the power  to the circuit from the circuit breaker. The charger LED ring should light up in a steady green. If the LEDs are not lighting, power off the circuit at the circuit breaker  and contact your electrician to ensure proper electrical installation.

Guide to LEDs

https://itunes.apple.com/es/app/wallbox/id1188288011?mt=8	https://play.google.com/store/apps/details?id=com.wallbox

Green: Ready.
Light blue: Connected to EV, ready for charge.
Dark blue (pulsing): Charging.
Yellow: Locked.
Red: Error (see troubleshooting section on page 18).

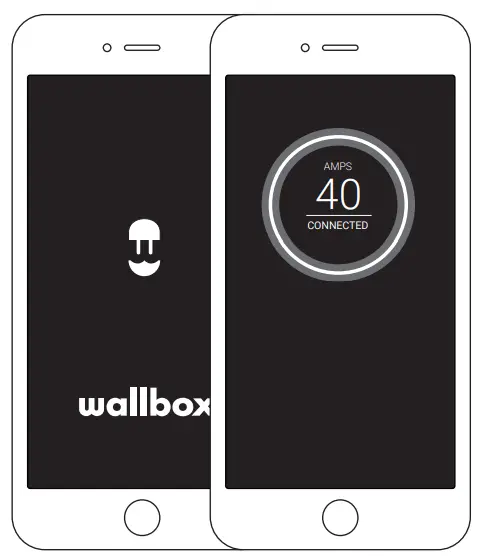

Registering and connecting your charger

Download the myWallbox app to your smartphone or tablet, log in and follow the on-screen instructions to create an account and register your charger. You will need to verify  your account with a valid email address. Once you have created your account, launch the app and follow the on-screen instructions for connecting to and registering your  charger. To connect your charger, you will need to enter the serial number (SN) and unique identification number (UID). This information may be found on your charger label.

Compatibility

This Wallbox charger can be used with any Battery or Plug-In Hybrid Electric Vehicle (BEV/ PHEV) that is compliant with SAE J1772 (Including Teslas using the Tesla  rovided adapter).

Charging

With your charger powered, connect the EV connector to your vehicle’s charge port/input. Connecting your charger will automatically initiate the charging process.
If you are using the myWallbox app and have either locked your charger or set a charging schedule, the charging process will not start until you use myWallbox to unlock your  charger or until the scheduled charging time.

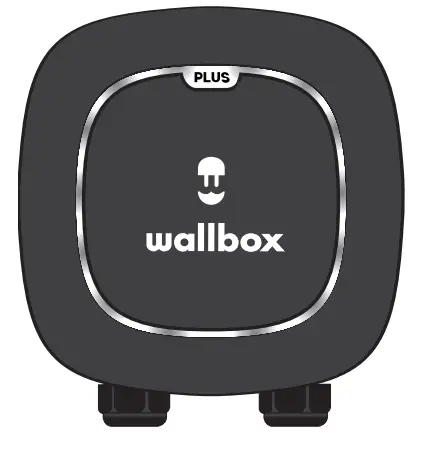

Troubleshooting

If the LED halo is red (error notification), it means your charger has detected a safety issue with your electrical connection or vehicle.
Note that some errors will initiate an automatic reset after 15 seconds if the detected fault is resolved.
If the error does not automatically reset, unplug the EV connector from the vehicle and cycle through a power off/power on sequence by switching off the circuit at the circuit  breaker and then switching it back on.
If the error persists, contact Wallbox customer service for additional instructions on how to resolve the error.

Service
Need more assistance? Contact Wallbox customer service:
(888) 787-5780
support.wallbox.com/na
[email protected]
www.wallbox.comsupport.wallbox.com/na
