EasyEast OTB00013 Touchless Infrared Thermometer

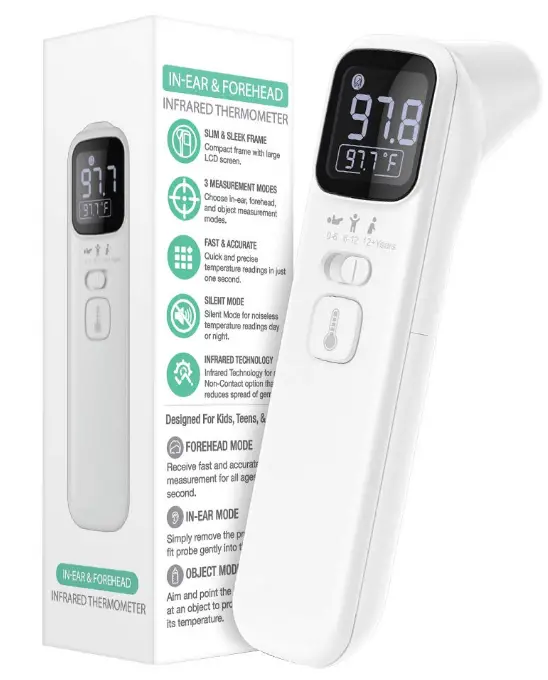

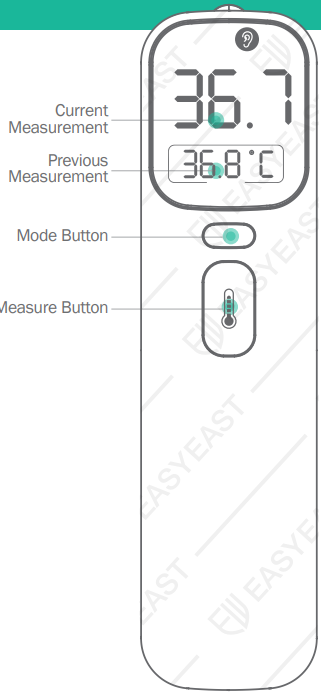

Product Overview
3 Modes To Measure Temperature
Forehead Mode
- Step 1: Press the Mode Button
- Step 2: Choose an Adult
or Child

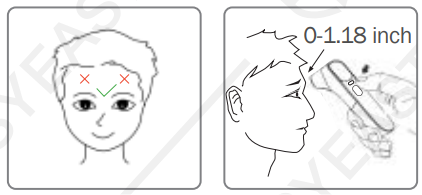

. - Step 3: Point the temperature probe at the CENTER of the forehead with a distance of 0-1.18 inch (0-3 cm).
- Step 4: Press and release the Measure Button to receive your temperature reading.
In-Ear Mode
- Step 1: Remove the magnetic probe cover and fit the probe gently into the ear canal.
- Step 2: Press and release the Measure Button to receive your temperature reading.
Object Mode

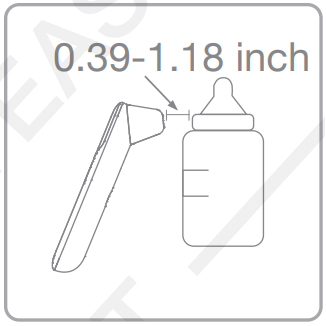

Point the temperature probe at the object with a distance of 0.39-1.18 inch (1-3 cm).
ATTENTION
- ALWAYS keep the Infrared Sensor and the LCD Display CLEAN.
- For In-Home Use ONLY.
- WAIT at least 10 seconds between each measurement.
- The user and thermometer should be in the same room for 30 minutes before use.
MEASURING TIPS

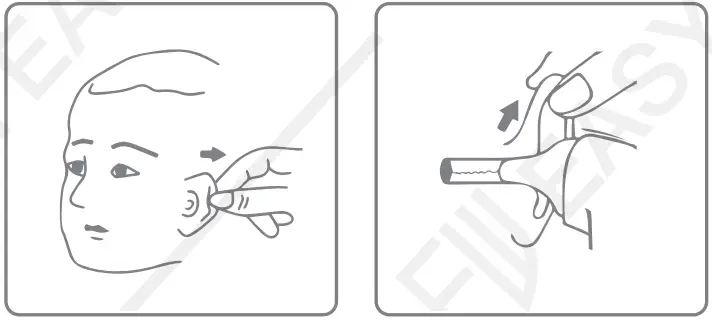

- Children UNDER age 1: Gently pull the ear straight back.
- Children age 1 to Adult: Gently pull the ear up and back.

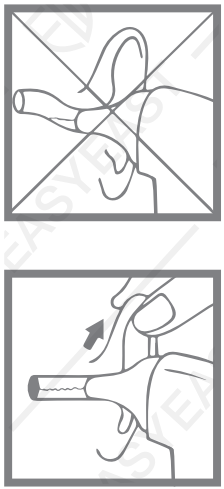

- NEVER force the thermometer into the ear canal.
- Pull the ear up and back. Then, guarantee the ear canal is straight. Finally, allow the infrared sensor ray to read the temperature.

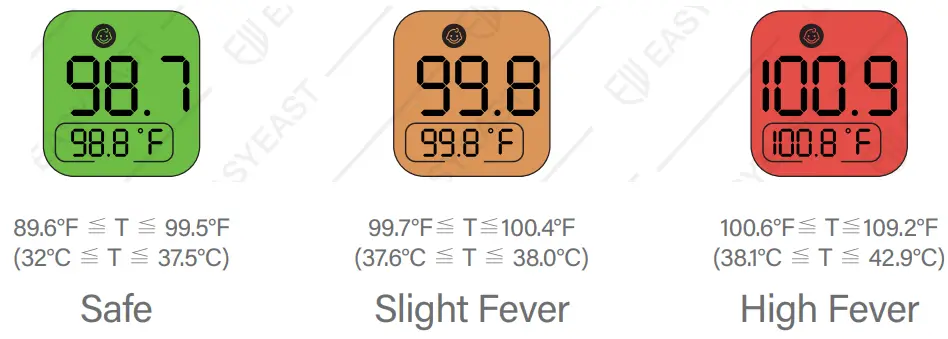

3-Colored LED Fever Indicator
Using The Thermometer
Silent Mode
Press and hold the Measure Button for 5 seconds to switch to Mute/Un-mute (Silent Mode).
Memory Recording Data
Press and hold the Mode button for 5 seconds to enter Memory Recordings Mode. Press this button again to go through all 40 previously recorded temperature Memory Recordings one-by-one. If there is no value, a display will show “-”.
°C & °F Conversion

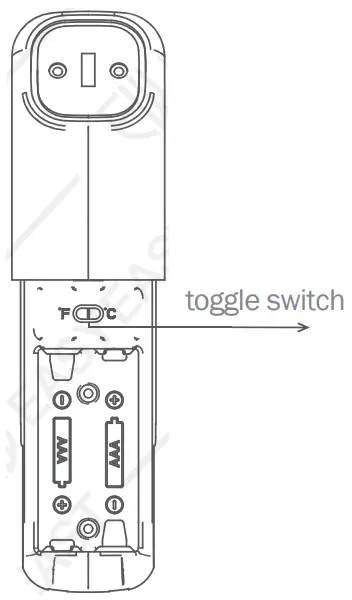

Open the Battery Cover and flip the toggle switch to change between °C and °F.
Batteries
Requires 2x AAA batteries to operate. However, batteries are NOT included.
Memory Recording DataMeasure In-Ear Temperature
- Ear must be clean (no earwax).
- Always take a temperature in the same ear.
- If the eyebrow or forehead is covered with hair, dirt, or sweat, you must clean it properly for a correct measurement.
Measure Forehead Temperature
- If the eyebrow or forehead is covered with hair, dirt, or sweat, you must clean it properly for a correct measurement.
- Do not hold the thermometer for a prolonged period of time since it is sensitive to ambient temperature.

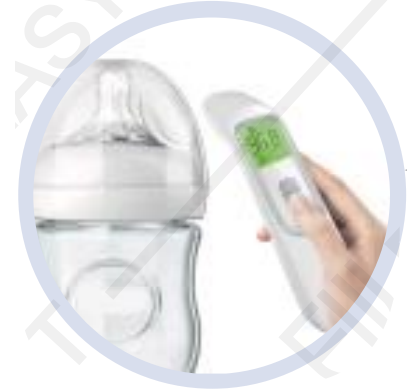

Measure Object Temperature
- Simply point the infrared sensor at an object to accurately measure its temperature.
FAQs
The infrared thermometer beeps when the temperature reading is above 99.5°F (37.5°C).
Make sure the battery is installed correctly.
Make sure you are in an area where there are no direct sunlight or strong heat sources.
Make sure you are in an area where there are no direct sunlight or strong heat sources.
If your infrared thermometer has been dropped, please contact our customer service department for assistance.
The accuracy and dependability of infrared (IR) thermometers are on par with those of rectal or oral thermometers. It’s crucial to realise that the accuracy of these thermometers relies on how and where they are used. To ensure correct use, always refer to the manufacturer’s recommendations and instructions.
All people, including infants, kids, and adults, can safely use clinical infrared thermometers as long as the laser is kept away from their eyes. These non-contact tools also enable safe remote human body temperature measurement.
Aim the thermometer’s probe at the centre of the forehead and keep your distance from the subject under 1.18 inches (3 cm) (the ideal distance will be the width of an adult finger). Do not immediately touch the forehead.
The non-contact thermometer has a sensitivity and specificity of 97%. The negative predictive value is 99%, which is particularly crucial to exclude fever and prevent pointless laboratory testing.
Before taking a reading, the thermometer should remain in the same environment for at least 10 minutes. temperatures for ten minutes at least before getting a reading.
You must add 0.5 to 1 degree to your temperature to get the reading it would have given if taken orally since a temporal thermometer would often read 0.5 to 1 degree lower than an oral thermometer.
Any steady temperature can be used to use a comparator to assess the accuracy of an infrared thermometer. However, it is more accurate at 22°C, ambient room temperature, to lessen the likelihood of a temperature difference between the interior surface and the base test hole.
The best forehead thermometer we tested was the Braun Digital No-Touch Forehead Thermometer. This thermometer conveniently has instructions printed right on the front of the thermometer that walk you through the full temperature-taking procedure.
The most popular type of touch thermometer records body temperature using electrical heat sensors. These thermometers can be applied to the rectum, armpit, forehead, and mouth.
The thermometer is made for industrial thermometry applications with a wide temperature range if it lacks the adjustable mode. The discrepancy between skin and body core temperatures causes a reading that is approximately 3 °C (5.4 °F) low if you don’t have this adjusted setting.
