Momax Technology Bt11 True Wireless Earbuds User Manual

Momax Technology BT11 True Wireless Earbuds User Manual

Thank you for choosing our product, hope the fashionable appearance and high quality stereo can enrich your life.

Note: Please fully charge it with the charging case before the first use when you receive the product.

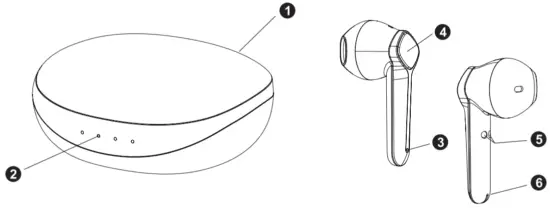

Identification Key Parts

1. USB-C Charging Port
2. LED Indicator
3. Charging Pin
4. Charging Box Battery Indicator
5. Touch Multi-function Button(MFB)
6. Microphone

Charging

When charging, the light on the side of the charging case will flicker in a circle, and the light will stay on constantly after being fully charged.

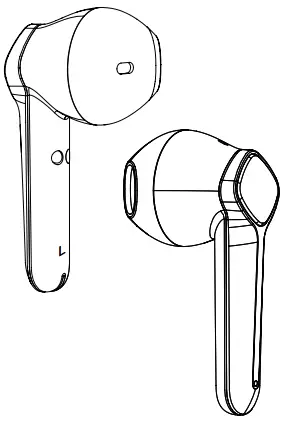

Getting Starts

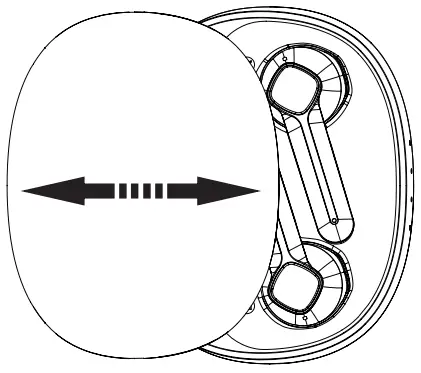

1. Slide charging case out and take out both of earbuds , they will turn into pairing mode automatically

   (Note: When take out both of earbuds, you will hear of POWER ON, TWS CONNECTED, it means these two earbuds connect to each other and waiting for pairing of smartphone.)
2. Active your Bluetooth on your smartphone, search for “BE62” and click for pairing

The earbuds turn off automatically if:

1. You put earbuds back to the charging case
2. When earbuds leave the charging case, but haven’t connect to any devices within 5 minutes

   For above situation, please press and hold the MFB for 6 second to Power ON

Functions

You can operate MFB to get certain functions as below

1. Play / Pause /Resume
   When standby, click MFB(R or L)to get music play, click again to pause, resume it with press.
2. Previous Track /Next Track
   When playing music, press and hold MFB(L) for 3 seconds to next track, press and hold MFB(R) for 3 seconds to previous track.
3. Volume Increase Or Decrease
   When playing music, double-click the MFB(R) to increase the volume; double- click the MFB(L) to decrease the volume.
4. Start voice assistant (Siri)
   In the Bluetooth connection state, quickly three click the MFB(L or R) to activate the voice assistant (Siri).
5. ANSWERYEND A CALL
   When there’s an incoming call, click MFB once to answer ,you can end it by click MFB again.
6. Reject An Incoming Call
   When there’s an incoming call press and hold the MFB for 3 seconds to reject.

Safety Rules

• Avoid dripping and dropping
• Use original or certified cables
• Never disassemble or modify your earbuds for any reasons to avoid any damages and dangers
• Keep the earbuds dry and do not submerge it in water
• Keep out of reach of children, small parts included may be a choking hazard, and avoid using the LED indicator close to the eyes of children or animals
• Do not use this headphone during a thunderstorm to avoid irregular function and increased risk of the electric shock.
• Clean with a dry, soft lint-free cloth, do not use harsh chemicals or strong detergents to clean
• The product shall not be exposed to excessive hot or wet

Hearing Safety

• To avoid hearing damage, do not listen for long time at high volume
• Do not turn the volume so high that you’re unable to hear your surroundings
• Do not use earbuds while driving
• You should use with caution or temporarily discontinue using in potentially hazardous situations

Basic Parameters

Customer Service

12-Month Limited Warranty
Lifetime Technical Support

Packing list

Charging case 1pc
Earbuds 2pcs
Charging cable 1pc
User manual 1 pc

FAQs/Trouble Shooting

Q: The earbuds didn’ t responsive when I get them from the charging case, it can’t turn on automatically
A: Please check the power of charging case, if there is no power the earbuds can’t turn on automatically or you can manually turn it on (long touch MFB for 2 seconds)

Q: I have established connection with my smartphones, but I am not hearing any sound?
A: Please make sure that you have turned up the volume of both devices Smartphone requires you to set up the Bluetooth earbuds as an audio output devices before transimition of sound. Please check the instruction of your smartphone for details. If you are using a music player or other Bluetooth devices, please make sure it supports A2DP stereo music profile

Q: Why the connection is not stable and cuts out intermittently?
A: Please make sure there are no obstacles between the earbuds and your Bluetooth device; please make sure there is no radio or WIFI interference nearby.

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a
particular installation. if this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.
