Valore Bti47 True Wireless Earbuds User Manual

True Wireless Earbuds (BTi47)

Thank you for purchasing the Valore True Wireless Earbuds (BTi47).

BTi47 True Wireless Earbuds

• USB-C charging
• IPX5 waterproof earbuds
• Touch controls
• Zinc alloy charging case

Important: Please read the user manual thoroughly before using your wireless earbuds.

Specifications:

• Wireless range: 10m
• Battery capacity: Built-in 300mAh lithium battery (Charging case) : Built-in 30mAh lithium battery (Earbuds)
• Charging time: Approximately 1 hour
• Standby time: Up to 100 hours
• Playback time: Up to 4 hours
• Power input: DC 5V/1A
• Supports: A2DP, HFP, HSP, AVRCP, AAC
• Material: Zinc alloy + ABS

Package Contents:

• True wireless earbuds
• USB-C charging cable
• Ear tips x 3 pairs

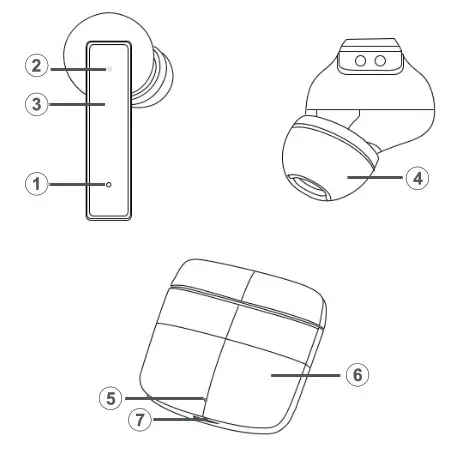

UNDERSTANDING THE PRODUCT

START USING THE WIRELESS EARBUDS

1. Charging
   a) Charge the earbuds Put the earbuds in the charging case to charge.
   b) Charge the charging case Charge the charging case with USB-C charging cable provided.
2. Power on/off
   Open the charging case and take out the earbuds, it will automatically turn on or long press touch area for 3 seconds to power on.
   Put the earbuds into the charging case, it will power off automatically or long press touch area for 4 seconds to power off.
3. Pairing both wireless earbuds (switched off)
   Earbuds will connect to each other automatically. The earbuds LED will be flashing blue.
   Step 1: Activate Bluetooth function on your mobile device to begin pairing with earbuds.
   Step 2: Remove earbuds from charging case and wait for earbuds to pair with each other.
   Step 3: Connect to the earbuds by selecting `Valore BTi47″ under the device list.
   Step 4: Connection successful
   If the pairing is not successful, please turn off wireless earbuds first, and then re-pair again. For subsequent connection, when earbuds are removed from charging case, they will connect to device automatically. If you want to pair the wireless earbuds with other devices, please turn off Bluetooth function of existing source device, and pair the wireless earbuds with the new device according to steps 1-4 mentioned above.
4. Function description
   Voice assistant
   Touch the left or right earbuds three times gently.
   Call


   Answer a call:	Touch the left or right earbuds once gently.
   Hang up:	Touch the left or right earbuds twice gently.
   Reject a call:	Press and hold the left or right earbuds for 2 seconds.

   Listen to the music


   Play/Pause:	Touch the left or right earbuds twice gently.
   I Previous:	Press and hold the touch area of the left earbuds for 2 seconds.
   INext:	Press and hold the touch area of the right earbuds for 2 seconds
   I volume+:	Touch the right earbuds once gently.
   Ivolume- :	Touch the left earbuds once gently.

   Reset
   1) Delete the bluetooth name which you got connected before from your phone.
   2) Touch the left and right earbuds for 5 times respectively. You will see red and blue light flash for 2 seconds at the same time. The earbuds will turn on. At the meantime, the earbuds are waiting for pairing. Within 10 minutes, it will finish connecting and the earbuds will flash blue light.
   3) Reconnect the bluetooth with your phone

5. LED indicator


   Earbuds indicator
   Status	Indicator light
   No pairing	Red and blue lights flash quickly
   The earbuds are paired with each other	Blue light flashing
   Successfully paired with the phone	The indicator light is off
   Power on	Red and blue light up quickly for 1 second
   Power off	Indicator light off
   Play	The indicator light is off
   Pause	The indicator light is off
   Standby	The indicator light is off
   Incoming call	Blue light flashes twice every 3 seconds
   Calling	The indicator light is off
   Charging	Red light is always on
   End of charging	The indicator light is off

TECHNICAL SUPPORT & WARRANTY

• For Technical Support, email us at [email protected].
• For Warranty Registration, visit www.valore.sg.

Cautions:
Read all the instructions and warnings carefully prior to using this product.

• Do not store the earbuds in a high temperature environment.
• Do not place the earbuds near a fire or other excessively hot environments.
• Do not expose this speakerto moisture or submerge it in liquid. Keep earbuds dry at all times.
• Do not attempt to charge the earbuds using any other method or connection other than the headset’s provided charging cable.
• Do not disassemble this earbuds or attempt to repair or modify it in any manner.
• Be cautious of excessive drops, bumps, abrasions or other impacts to this headset. If there is any damage to the earbuds such as dents, punctures, tears, deformities or corrosion, stop using the earbuds and contact us immediately via email at [email protected], or return this product to the store where you have purchased it from.
• If the product produces an abnormal smell, high temperature (low temperature during normal use), discolours or changes shape abnormally, stop using the product and contact us immediately via email at [email protected].

DISCLAIMER & TRADEMARKS

All information, trademarks, logos, graphics, and images (“Materials”) provided on this user manual are copyrighted or trademarked and are the property of Valore Lifestyle Pte Ltd. Any unauthorized use of any material contained on the instruction manual may violate copyright laws, trademark laws, laws of privacy and communications statutes.
The trademarks, service marks and logos used and displayed in the Materials are registered and unregistered trademarks and service marks of Valore and others. All other registered and unregistered company names, product names and marks mentioned herein the (“Materials”) are the property of their respective owners and may be trademarks or registered trademarks.
Inspired by Valore Singapore For full range of Valore products visit www.valore.sg

Complies with
IMDA Standards DA102803
