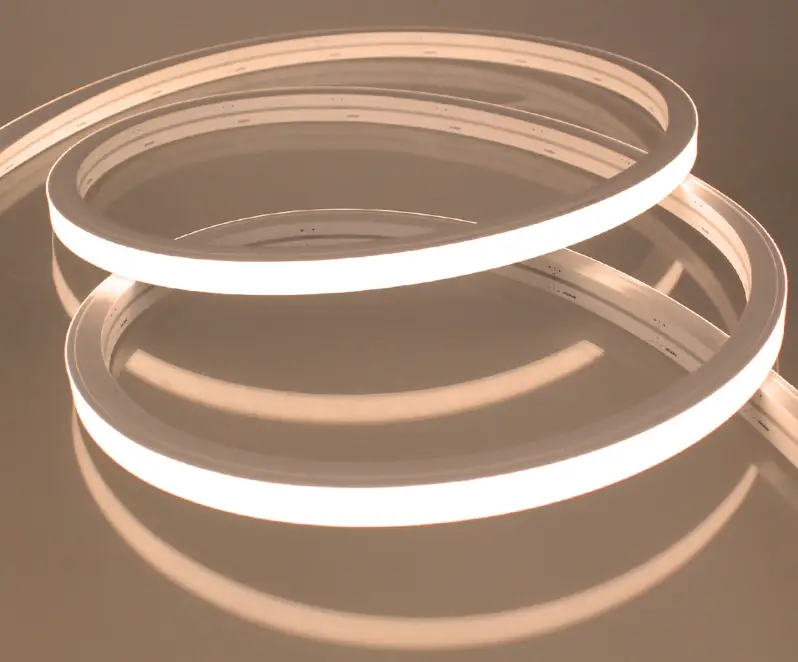

LEDYI S1220T LED Neon Flex Datasheet

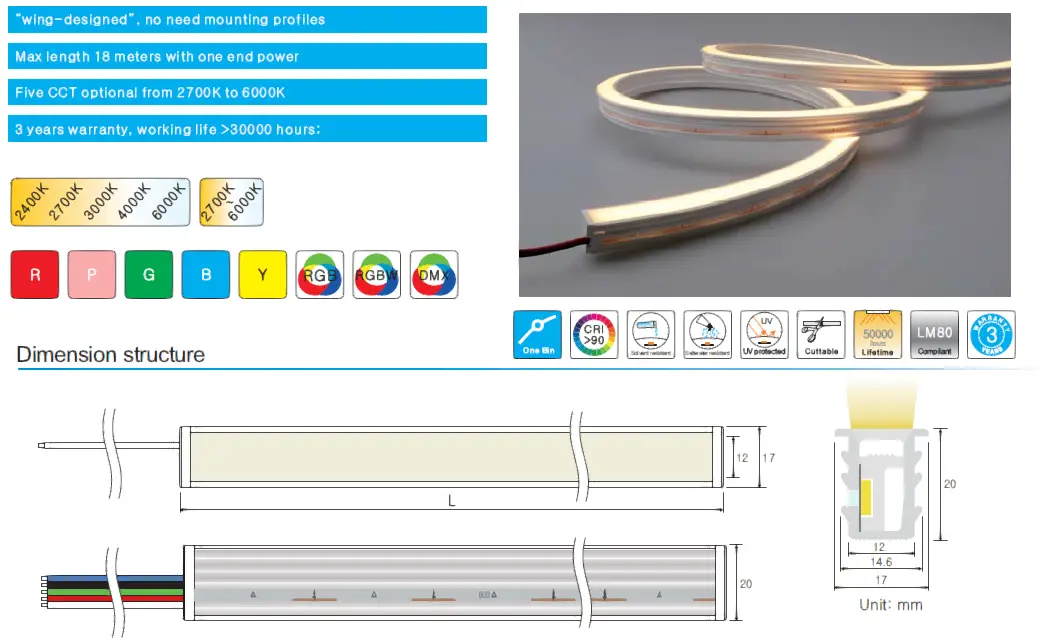

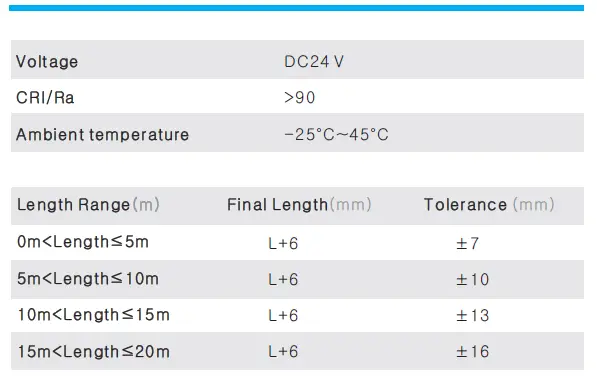

Product specification

White color color parameters

Part Number	CCT	Power	Efficiency	Lumen	Unit Length	Max Run Length
	(K)	(w/m)	(lm/w)	(lm/m)	(mm)	(m)
NS-S1220T-W24	2350-2550K	10	37.4	374	50	17
NS-S1220T-W27	2600-2800K	10	36.5	365	50	17
NS-S1220T-W30	2850-3150K	10	37.0	370	50	17
NS-S1220T-W40	3800-4200K	10	40.7	407	50	17
NS-S1220T-W60	5600-6100K	10	37.8	378	50	17

Single color parameters

Part Number	Color	Power	Efficiency	Lumen	Unit Length	Max Run Length
	(nm)	(w/m)	(lm/w)	(lm/m)	(mm)	(m)
NS-S1220T-R	Red(620-625nm)	10	16.9	169	50	18
NS-S1220T-G	Green(515-525nm)	10	42.7	427	50	17
NS-S1220T-B	Blue(460-465nm)	10	9.8	98	50	17
NS-S1220T-Y	Yellow(585-595nm)	10	12.6	126	50	18
NS-S1220T-O	Orange	10	16.7	167	50	17
NS-S1220T-P	Pink	10	34.6	346	50	17

RGBWRGBW color color parameters parameters(RGB+2400K)(RGB+2400K)

Color	CRI	Power	Efficiency	Lumen	Unit Length	Max Run Length
(nm)		(w/m)	(lm/w)	(lm/m)	(mm)	(m)
Red	N/A	2.5	13.6	34.0	83.33	5
Green	NA/	2.5	52.4	131.0	83.33	5
Blue	N/A	2.5	11.6	29.0	83.33	5
2400K	>90	2.5	42.4	106.0	83.33	5
RGB	N/A	7.5	25.7	193.0	83.33	5
RGBW	N/A	10	30.0	300.0	83.33	5

RGBWRGBW color color parameters parameters(RGB+2700K)(RGB+2700K)

Color	CRI	Power	Efficiency	Lumen	Unit Length	Max Run Length
(nm)		(w/m)	(lm/w)	(lm/m)	(mm)	(m)
Red	N/A	2.5	14.0	35	83.33	5
Green	NA/	2.5	55.2	138	83.33	5
Blue	N/A	2.5	12.0	30	83.33	5
2700K	>90	2.5	44.4	111	83.33	5
RGB	N/A	7.5	26.9	202	83.33	5
RGBW	N/A	10	31.4	314	83.33	5

RGBWRGBW color color parameters parameters(RGB+3000K)(RGB+3000K)

Color	CRI	Power	Efficiency	Lumen	Unit Length	Max Run Length
(nm)		(w/m)	(lm/w)	(lm/m)	(mm)	(m)
Red	N/A	2.5	13.6	34	83.33	5
Green	NA/	2.5	52.8	132	83.33	5
Blue	N/A	2.5	11.6	29	83.33	5
3000K	>90	2.5	42.8	107	83.33	5
RGB	N/A	7.5	26.0	195	83.33	5
RGBW	N/A	10	30.2	302	83.33	5

RGBWRGBW color color parameters parameters(RGB+4000K)(RGB+4000K)

Color	CRI	Power	Efficiency	Lumen	Unit Length	Max Run Length
(nm)		(w/m)	(lm/w)	(lm/m)	(mm)	(m)
Red	N/A	2.5	13.6	34	83.33	5
Green	NA/	2.5	53.6	134	83.33	5
Blue	N/A	2.5	11.6	29	83.33	5
4000K	>90	2.5	46.8	117	83.33	5
RGB	N/A	7.5	26.4	198	83.33	5
RGBW	N/A	10	31.6	316	83.33	5

RGBWRGBW color color parameters parameters(RGB+6000K)(RGB+6000K)

Color	CRI	Power	Efficiency	Lumen	Unit Length	Max Run Length
(nm)		(w/m)	(lm/w)	(lm/m)	(mm)	(m)
Red	N/A	2.5	12.8	32	83.33	5
Green	NA/	2.5	50.8	127	83.33	5
Blue	N/A	2.5	11.2	28	83.33	5
6000K	>90	2.5	42.4	106	83.33	5
RGB	N/A	7.5	24.9	187	83.33	5
RGBW	N/A	10	29.5	295	83.33	5

DMX512 RGB / RGBW color parameters

Color	IC Model	Power	Efficiency	Lumen	Pixel	Unit Length	Max Run Length
(nm)		(w/m)	(lm/w)	(lm/m)	(pcs/m)	(mm)	(m)
RGB	SM17512	12	25.3	304	8	125	5
RGBW	SM17512	16	30.1	483	8	125	5

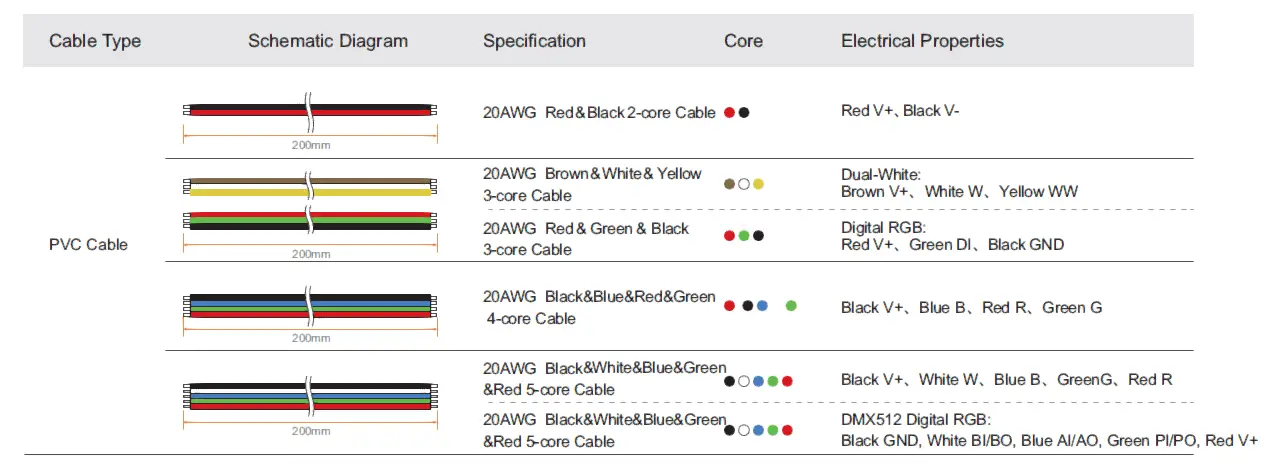

Cable specification

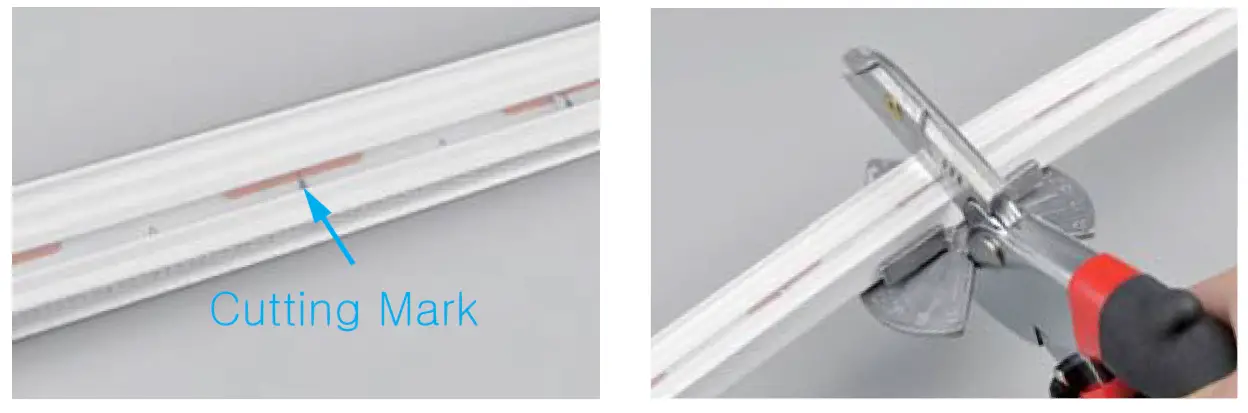

Cutting

Remark:

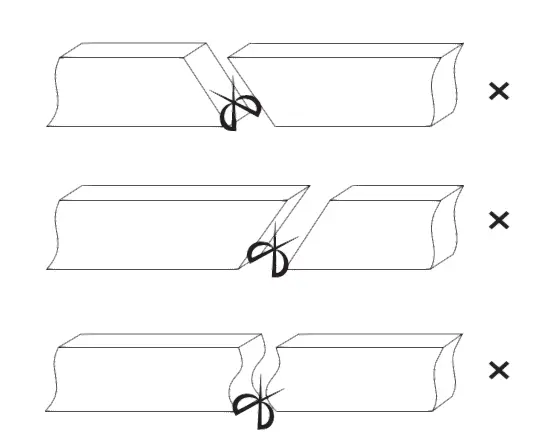

The bottom of the led strip has transparent window, the black marker is the cutting position
Use professional scissors
to cut vertically at the cutting mark

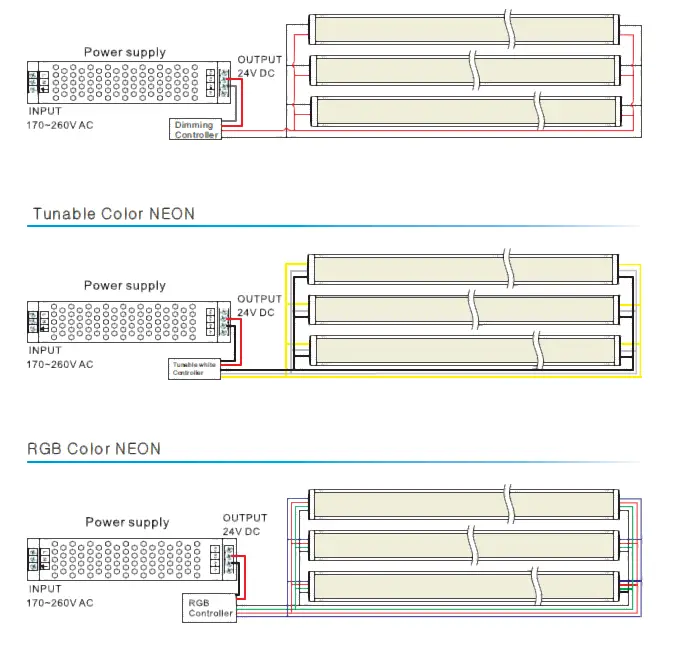

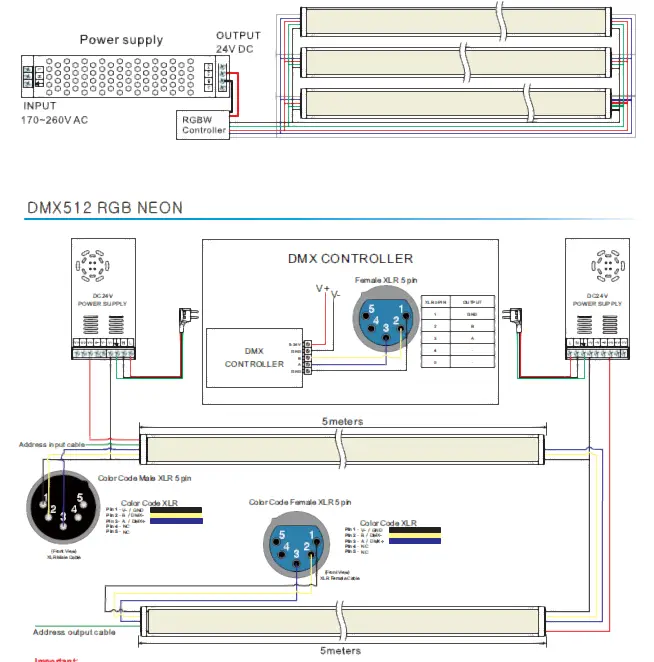

Connection Diagram

Single Color NEON

RGBW Color NEON

Important:

Regular DMX512 LED Strip not include the XLR connector, if need XLR connector, extra cost will be added.
If you want to change the starting address, you will need a DMX Address Editor, available on our website.

Installation

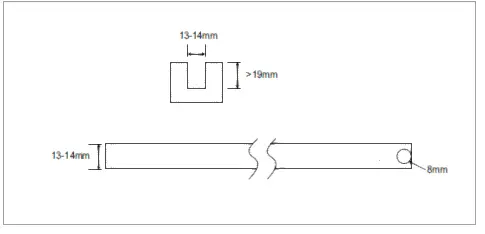

Make grooves and outlet holes according to the dimensions shown in the picture.

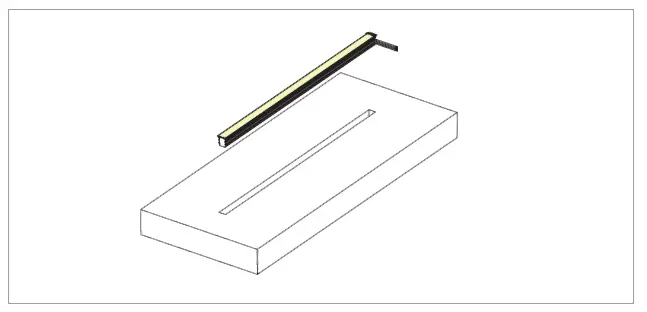

Pass the cable of the light through the reserved hole as shown in the ﬁgure.

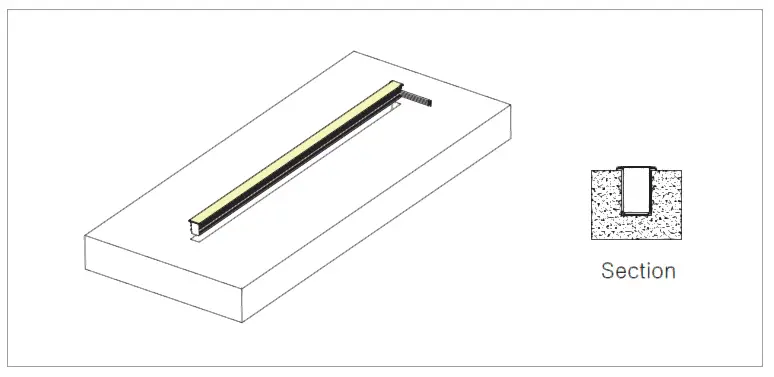

Align the light to the groove, press the glowing surface of the light, and fully embed the light into the groove.

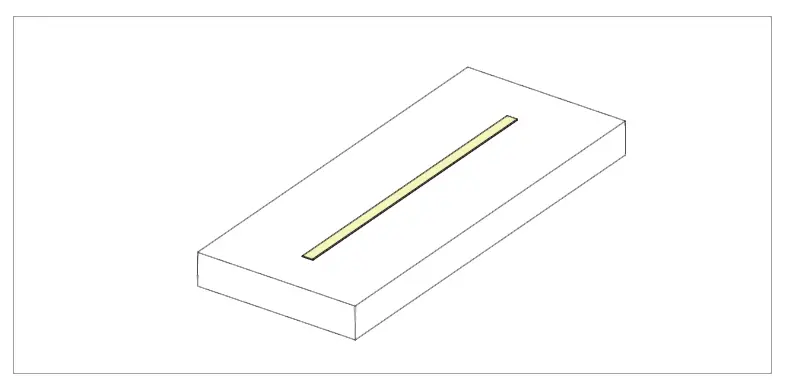

Completed.

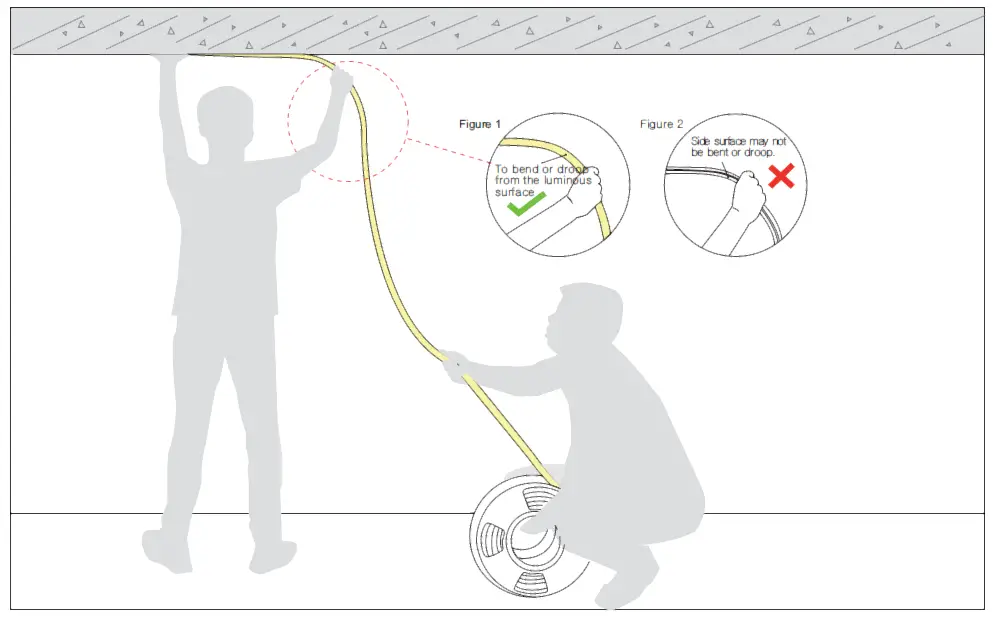

Installer:
- Press the light with the palm of the left hand to slowly load it into the slot. Straighten the light with right hand so that it droop it in the direction of your hand. See Figure 1.
- Side surface may not be bent or droop See Figure 2.
Assistant:
- Cooperate with the installer to lift the reel of the light, and then slowly deliver the light to installer. Do not pull or twist the light during the installation.

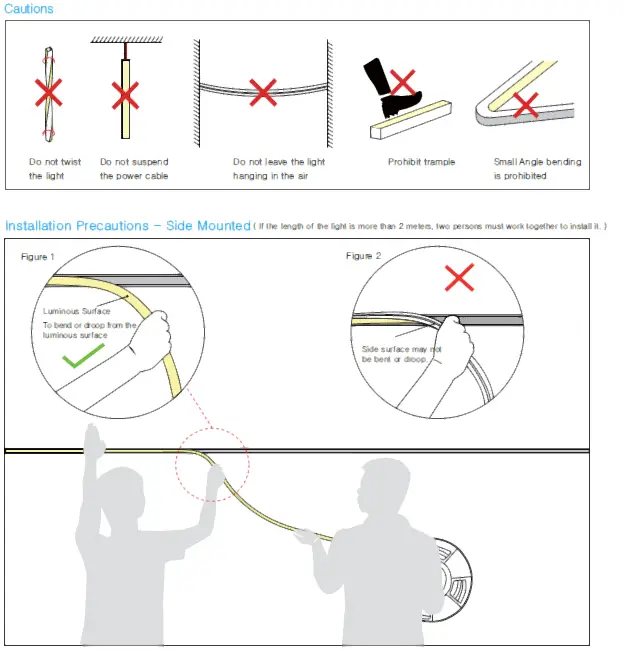

Installation Precautions – Side Mounted (If the length of the light is more than 5 meters, two persons must work together to install it.)

Installer:
1. Press the light with the palm of the left hand to slowly load it into the slot. Straighten the light with right hand so that it droop it in the direction of your hand. See Figure 1.
2. Side surface may not be bent or droop See Figure 2.
Assistant:
1. Cooperate with the installer to slowly deliver the light to installer. Do not pull or twist the light during the installation.

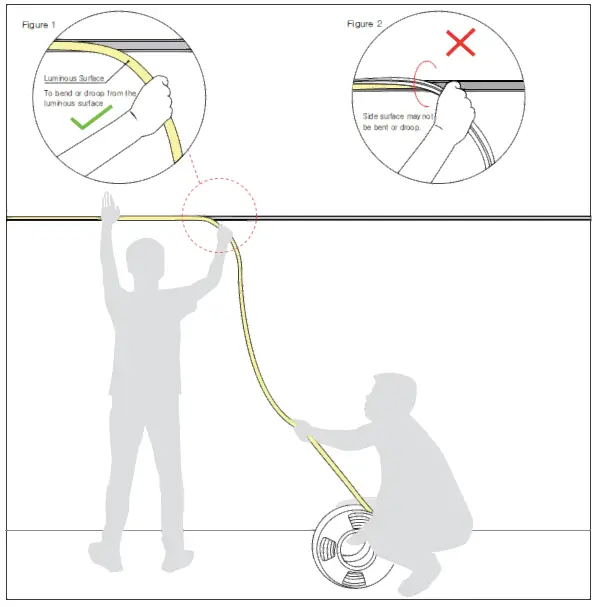

Installer:
1. Press the light with the palm of the left hand to slowly load it into the slot. Straighten the light with right hand, hold it and rotate it 90° to droop it in the direction of your hand. See Figure 1.
2. Side surface may not be bent or droop ，See Figure 2.
Assistant:
1. Cooperate with the installer to slowly deliver the light to installer. Do not pull or twist the light during the installation.

Notes
Cooperate with the installer to slowly deliver the light to installer. Do not pull or twist the light during the installation.

Current	Speciﬁcations of the cable
of the light	L=1M	L=2M	L=4M	L=6M	L=8M	L=10M	L=12M	L=14M	L=16M

1A	AWG26	AWG23	AWG21	AWG18	AWG18	AWG17	AWG16	AWG15	AWG15
2A	AWG23	AWG21	AWG18	AWG16	AWG15	AWG14	AWG13	AWG12	AWG12
3A	AWG22	AWG18	AWG16	AWG14	AWG13	AWG12	AWG11	AWG11	AWG10
4A	AWG21	AWG18	AWG15	AWG13	AWG12	AWG11	AWG10	AWG9	AWG9
5A	AWG20	AWG17	AWG14	AWG12	AWG11	AWG10	AWG9	AWG9	AWG8
6A	AWG18	AWG16	AWG13	AWG11	AWG10	AWG9	AWG8	AWG8	AWG7
7A	AWG18	AWG15	AWG12	AWG11	AWG9	AWG8	AWG8	AWG7	AWG6
8A	AWG17	AWG15	AWG12	AWG10	AWG9	AWG8	AWG7	AWG7	AWG6
9A	AWG17	AWG14	AWG11	AWG10	AWG8	AWG7	AWG7	AWG6	AWG5
10A	AWG16	AWG14	AWG11	AWG9	AWG8	AWG7	AWG6	AWG6	AWG5

The unused light should be sealed with the packaging bag to avoid prolonged exposure.
Please use DC24V isolated constant voltage power supply with ripple voltage less than 5%. Using other types of power supply may damage the light or cause other safety risks.
In practical application, 20% allowance should be reserved for power supply to ensure the stability of power supply.
It is recommended that professionals connect the power supply. Do not connect the power supply with live power to avoid electric shock.
Please conﬁrm whether the voltage of the power supply is consistent with the voltage of the light; Pay attention to the positive and negative poles of the power cord, do not connect wrong, so as not to cause product damage;
When multiple power supplies are used, ensure that the positive poles of the power supply are not connected in parallel. Otherwise, the power supply system may be unstable or damaged after long-term operation.
If the actual application length exceeds the speciﬁed length, it will lead to overload, heating and uneven brightness of the light.
During installation, please do not scratch, twist, or bend the light irregularly. Otherwise, the light may be damaged beyond repair.
To ensure the life and reliability of the light, please do not over bend the light, which will damage the product itself.
To protect your eyes, please avoid staring at the glowing surface of the light for a long time.
Non-professionals are forbidden to install, disassemble and maintain the product.
Do not use any acid or alkaline adhesive to ﬁx the light (including but not limited to glass glue, etc.)
Because of the difference in structure, even if the same color temperature value, different sizes of light will look slightly different colors.

Please conﬁrm it before use.

Tests showed that methanol and benzenes will have yellowing effects on silicone. In the newly decorated interior environment, epoxy ﬂoor paint, wall paint, wallpaper adhesive, various decoration materials or new furniture, they are likely to release of methanol and benzenes. It is recommended to remove methanol and benzenes ﬁrst, or ventilate for a period of time in the newly decorated interior environment before install the silicone neon light, to avoid affecting the silicone body.
