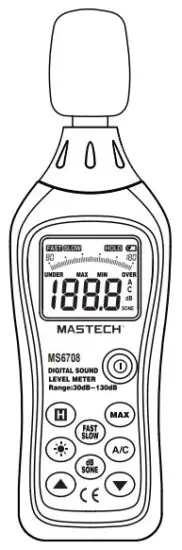

MS6708 Digital Sound Level Meter
User Guide
700019274 June 2021 Rev. 1
Specifications are subject to change without notification.
Special attention should be paid when using the test and measurement instrument because the improper usage may cause electric shock and damage to the equipment.
- Use proper measurement category (CAT), voltage, and amperage-rated probes, test leads, and adapters for the measurement.
- Do not use or store the device around explosive gas, vapor, or under high temperature and humidity.
- When handling the test probes and crocodile clips, keep your fingers behind the physical guard.
- Examine the measuring test leads (if present) before use. Any element in which the insulation deteriorates (even partially), replace them with proper functional test leads.
- Connect the common test lead before the live test lead and remove the live test lead before the common test lead.
- Before measuring the current, make sure the instrument fuses available and disconnect the power supply to the circuit test
- Remove the batteries if the device is not used for an extended period of time, or if stored in temperatures above 45 °C. If the batteries are not removed, battery leakage can damage the device.

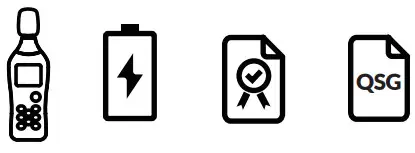

Contents
Specifications
Range
Resolution
Accuracy
Sound Pressure
| 30dB~80dB | 0.1dB | ±1.5dB |
| 40dB~90dB | 0.1dB | ±1.5dB |
| 50dB~100dB | 0.1dB | ±1.5dB |
| 60dB~110dB | 0.1dB | ±1.5dB |
| 70dB~120dB | 0.1dB | ±1.5dB |
| 80dB~130dB | 0.1dB | ±1.5dB |

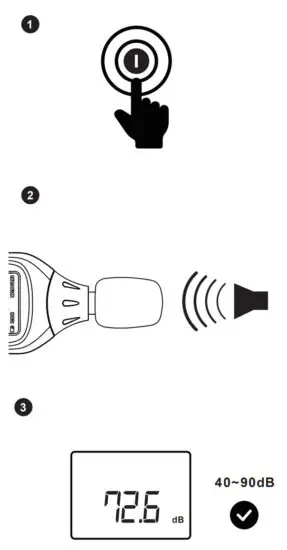

Power on

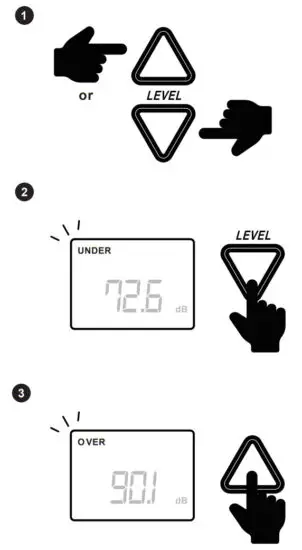

RANGE
MODE
USA
MGL AMERICA, INC.
2810 Coliseum Centre Drive,
Ste. 100 Charlotte,
North Carolina 28217 USA
Tel: +1 833-533-5899
Email: [email protected]
UNITED KINGDOM
MGL GROUP U.K. LIMITED
14 Weller St, London, SE1 1QU, UK
Tel: +34 985-08-18-70
Email: [email protected]
SKU Number: MS6708CBGLO
