T S B-0805 Series Metering Faucets Instruction Manual

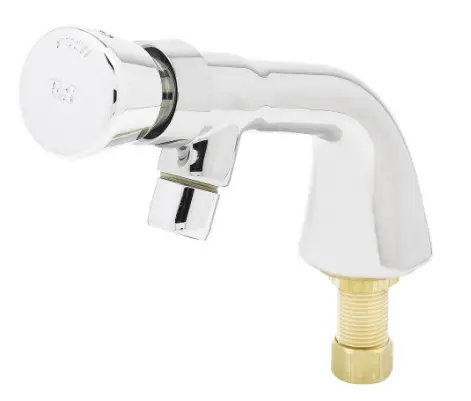

T S B-0805 Series Metering Faucets

Exploded View

Metering Faucet Assembly

1. Asm, Push Bu on Metering Cartridge & Cap 238AB
2. Asm, Push Bu on Cap – Blank 014193-40
3. Push Bu on Metering Cartridge 238A
4. Aerator, 2.2 GPM, Adapter & Washer B-0199-02
5. Aerator, 2.2 GPM B-0199-01
6. Adapter, 3/8” to Aerator 044A
7. Washer 001043-45
8. Body, Faucet N/A
9. Washer, Brass Lock 000999-45
10. Locknut, Shank 002954-45
11. Nut, Nipple Coupling (B-0805/B-0806 Series) 000958-20
    Parts Applicable to the B-0807/B-0808 Series Only
12. Asm, Mixing Valve with 3/8” Compression Female Inlets 019806-40
13. Coupling, 1/2” NPSM Swivel Coupling 017506-45
14. Mechanical Mixing Valve 5EF-0006
15. Hoses, Flexible Connector (Qty 2) 5EF-0005

Installation: B-0805/B-0806 Series

1. Turn off water supply and drain lines. Flush lines thoroughly of debris.
2. Drill a 1” diameter hole through sink or countertop in desired location.
3. Remove no.11, no.10 and no.9 from no.8. Place no.8 through the opening in sink.
4. Replace no.9, no.10 and no.11 with no.8 and tighten against the bottom of the sink. Hold no.8 fl at against sink while tightening no.10.
5. Connect water supply to no.11 and check for leaks.
   Note: Flow is adjustable from instantaneous shut-off to extended fl ow by external adjustment:
   Note: Each metering cartridge is preset for approximately 10 seconds at the factory. They may be reset at installation. If water pressure varies, the cycle time will also vary.
   Note: See installation instruction 098-014733-45 for cartridge adjustment.

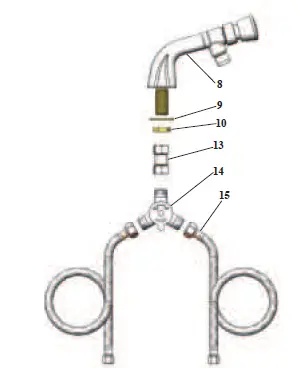

Installation: B-0807/B-0808 Series

1. Turn off the water supply and drain lines. Flush lines thoroughly of debris.
2. Drill a 1” diameter hole through sink or countertop in the desired location.
3. Remove no.10 and no.9 from no.8. Place no.8 through an opening in sink.
4. Replace no.9 and no.10 onto no.8 and tighten against the bottom of the sink. Hold no.8 fl at against sink while tightening no.10.
5. Place no.13 on no.8 and tighten.
6. Place no.14 on no.13 and tighten.
7. Place both no.15’s on each side of no.14 and tighten.
8. Connect water supply to no.15’s and check for leaks.
