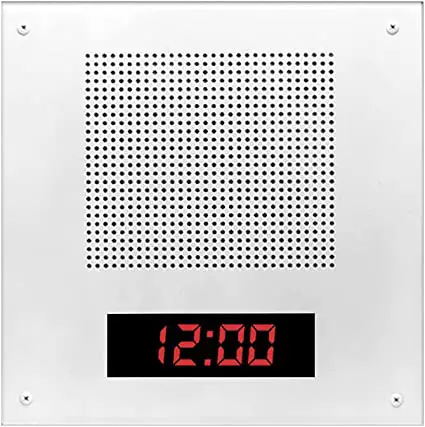

Lowell DC802 Center for Digital Clock Speaker Center Owner’s Manual
Introduction
The DC802 grille series provides a simple solution for installing an 8″ paging speaker and digital clock in a single unit. The compact dual-function design provides a small architectural footprint, reducing fixture and labor costs—ideal for classrooms, sports complexes, medical and professional buildings
Note: Order back box, speaker, and clock separately.
FEATURES
CONSTRUCTION: Grille is formed from single piece of 18-gauge steel with white powder epoxy finish.
DIMENSIONS: 12.688″ square
CUTOUT: Sized for a digital clock face (see chart below)
MOUNTING AIDS:
- Welded studs to mount a standard 8″ speaker
- White screws
COUNTRY OF ORIGIN: Made in U.S.A.
COMPATIBLE COMPONENTS
(order separately):
SPEAKER: 810
RECESSED ENCLOSURE: RE1175
SURFACE-MOUNT ENCLOSURE: SE1275
DIGITAL CLOCK: Source from clock supplier.
A&E SPECIFICATIONS
The grille for the digital clock/speaker center shall be Lowell model which shall be formed from 18-gauge steel and given a white powder epoxy finish. The grille shall measure 12.688″ square. It shall feature a rectangular perforation area, welded studs to mount a standard 8″ speaker, and a cutout to mount the specified digital clock. Speaker, clock, and back box shall be ordered separately.
COMPATIBILITY CHART
| Grille Model Digital Clock | Surface Backbox** | Recessed Backbox** | Speaker*** |
| DC802-DD3 Dukane 24D20 | SE1275 | RE1175 | 810 |
| Dukane 24D20A | SE1275 | RE1175 | 810 |
| DC802-DF Faraday 2363-24 | SE1275 | RE1175 | 810 |
| DC802-DR2 Rauland 2520 | SE1275 | RE1175 | 810 |
| DC802-SAP1 Sapling SBD 2.5″ 4 digits | SE1275 | RE1175 | 810 |
| Sapling SBP 2.5″ 4 digits | SE1275 | RE1175 | 810 |
- Order clock from clock manufacturer or distributor.
- Open backbox (not divided). If a 110V clock is used the installer will need to isolate the clock to meet local code.
- Fits standard 8″ EIA speaker. Lowell offers many models, including some with a mounted transformer.
Dimension

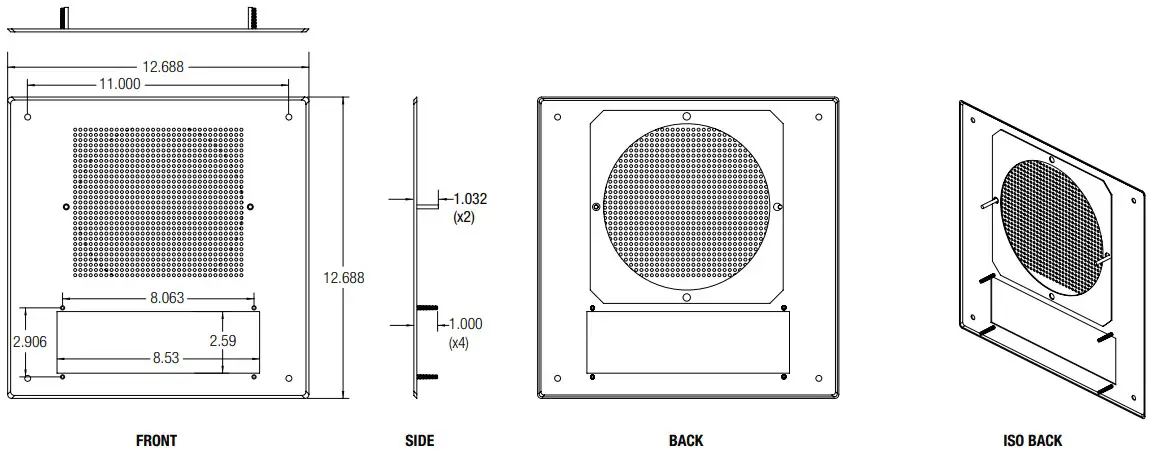

DC802-DD3

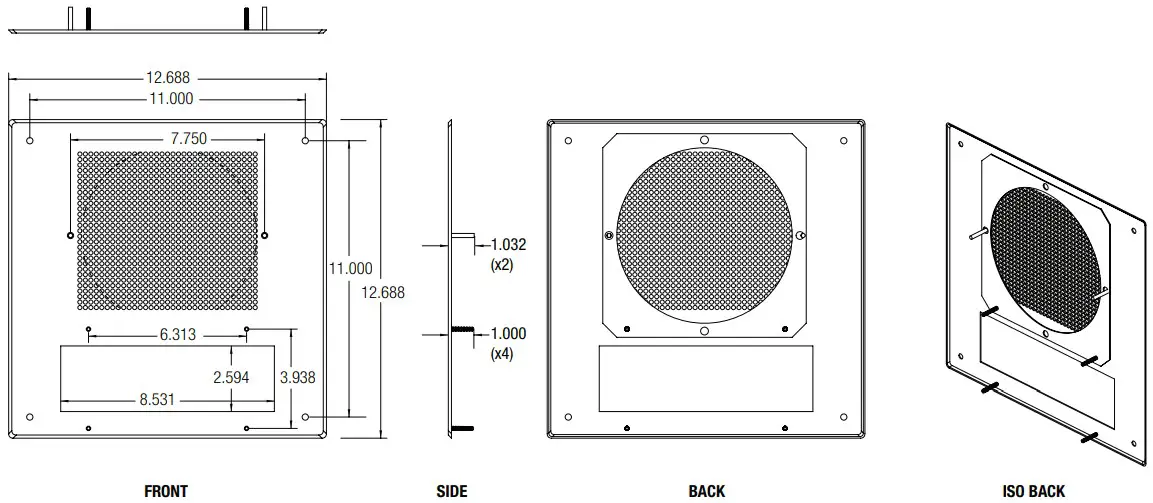

DC802-DF

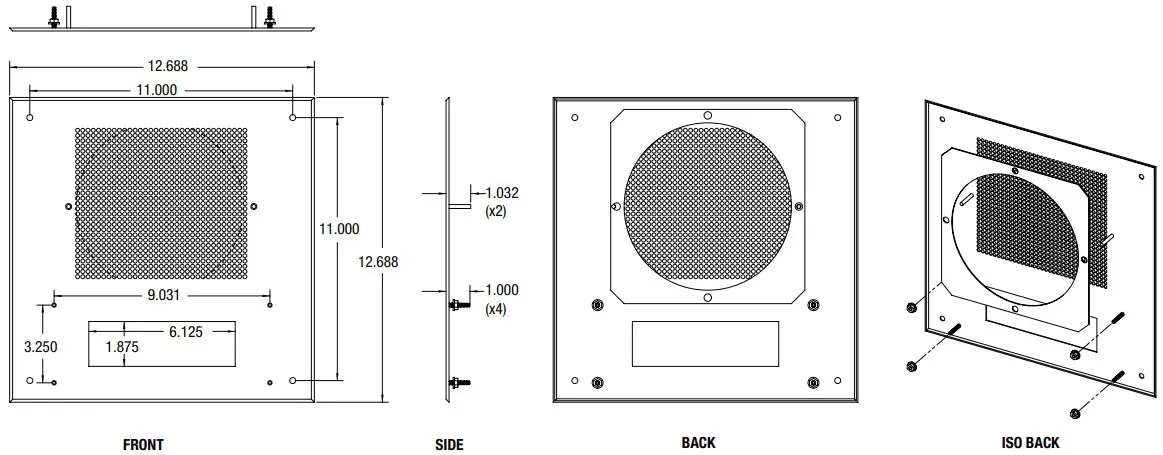

DC802-DR2

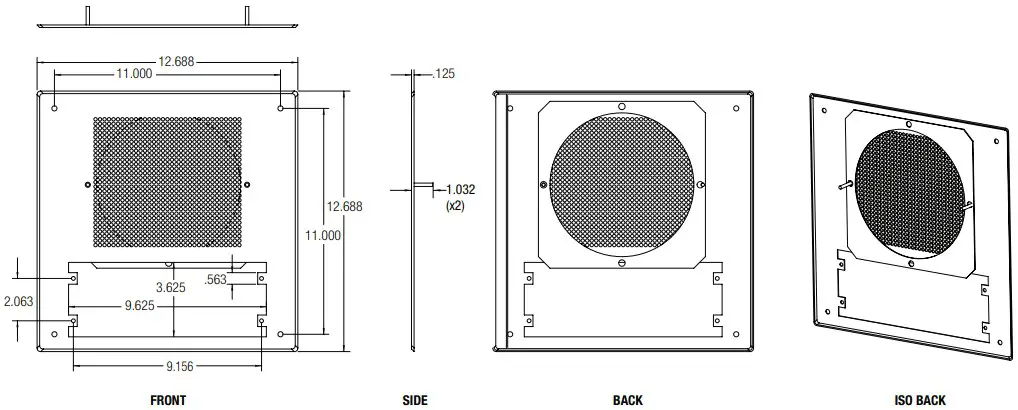

DC802-SAP1
Support
Lowell strives to provide accurate information while reserving the right to change specifications and/or improve manufacturing methods without prior notification.
