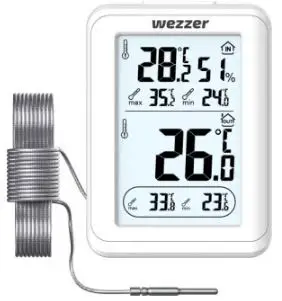

levenhuk Wezzer SN10 Sauna Thermometer

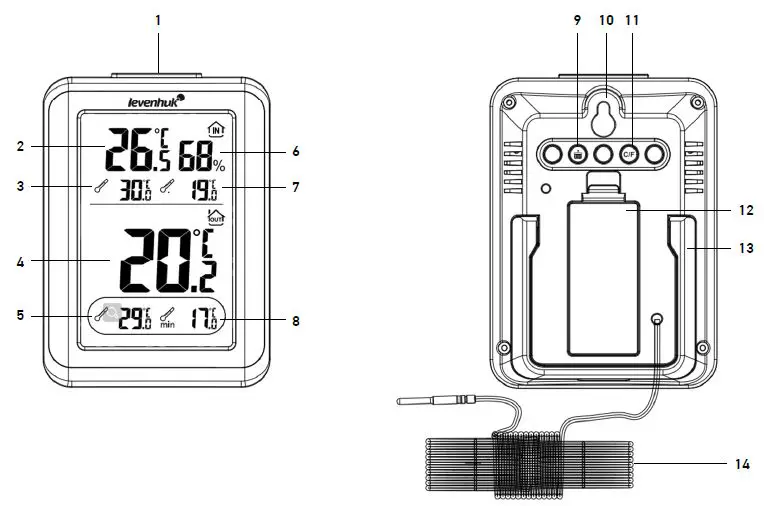

Parts overview and screen interface

Backlight button
Temperature (main unit)
Max. temperature (main unit)
Temperature (wired probe)
Max. temperature (wired probe)
Humidity (main unit)
Min. temperature (main unit)
Min. temperature (wired probe)
CLEAR button
Wall mount hole
°C/°F button
Batter
compartment
Table stand (foldout)
Probe

The kit includes: sauna thermometer, user manual, and warranty.

Getting started

Open the battery compartment cover (12) and insert 2 AAA batteries according to the correct polarity. Close the cover.
Extend the wired probe (14) into the sauna room to measure its temperature. Attention! The main unit should be installed in a place where a maximum temperature of +70°C (+158°F) is not exceeded.

Backlight setting
Press the backlight button (1) to turn on the backlight. The backlight lasts 8 s.

History record
To clear the min/max. temperature and humidity records, press and hold the CLEAR button (9).

Temperature units
Press the °C/°F button (11) to switch between °C and °F.

Specifications

Air humidity, units of measurement % (RH)
Operating humidity range (main unit) 10… 99%
Temperature, units of measurement °F, °C
Operating temperature range (main unit) –40… +70°C (–40… +158°F)
Operating temperature range (wired probe) –40… +150°C (–40… +302°F)
Probe length, m 3
Power supply 2 ААА batteries

The manufacturer reserves the right to make changes to the product range and specifications without prior notice.

Care and maintenance

The base station should be placed in a room within the manufacturer’s recommended humidity and temperature ranges. Take the necessary precautions when using the device with children or others who have not read or who do not fully understand these instructions. Do not try to disassemble the device on your own for any reason. For repairs and cleaning of any kind, please contact your local specialized service center. Protect the device from sudden impact and excessive mechanical force. Store the device in a dry cool place. Only use accessories and spare parts for this device that comply with the technical specifications. Never attempt to operate a damaged device or a device with
damaged electrical parts! If a part of the device or battery is swallowed, seek medical attention immediately. Children should use the device under adult supervision only.

Battery safety instructions
Always purchase the correct size and grade of battery most suitable for the intended use. Always replace the whole set of batteries at one time; taking care not to mix old and new ones, or batteries of different types. Clean the battery contacts and also those of the device prior to battery installation. Make sure the batteries are installed correctly with regard to polarity (+ and –). Remove batteries from equipment that is not to be used for an extended period of time. Remove used batteries promptly. Never short-circuit batteries as this may lead to high temperatures, leakage, or explosion. Never heat batteries in order to revive them. Do not disassemble batteries. Remember to switch off
devices after use. Keep batteries out of the reach of children, to avoid risk of ingestion, suffocation, or poisoning. Utilize used batteries as prescribed by your country’s laws.

Levenhuk International Lifetime Warranty

All Levenhuk telescopes, microscopes, binoculars, and other optical products, except for their accessories, carry a lifetime warranty against defects in materials and workmanship. A lifetime warranty is a guarantee on the lifetime of the product on the market. All Levenhuk accessories are warranted to be free of defects in materials and workmanship for six months from the purchase date. The warranty entitles you to the free repair or replacement of the Levenhuk product in any country where a Levenhuk office is located if all the warranty conditions are met.

For further details, please visit: www.levenhuk.com/warranty
If warranty problems arise, or if you need assistance in using your product, contact the local Levenhuk branch.

Levenhuk Inc. (USA): 928 E 124th Ave. Ste D, Tampa, FL 33612,USA, +1-813-468-3001, [email protected]
Czech Republic, +420 737-004-919, [email protected]
Levenhuk®, Wezzer® are registered trademarks of Levenhuk, Inc.
© 2006–2023 Levenhuk, Inc. All rights reserved.
www.levenhuk.com
20221207
