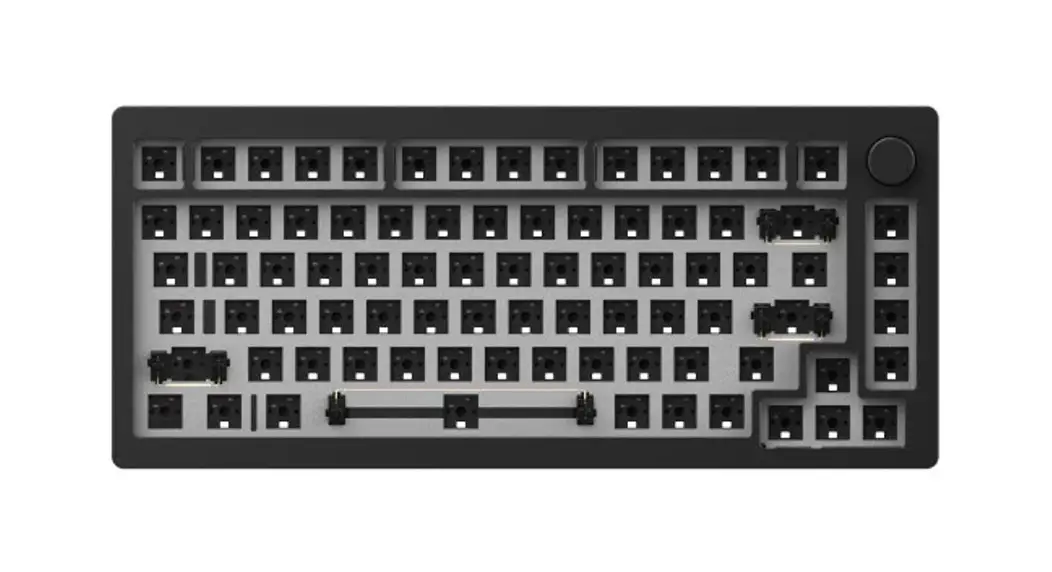

M1 Aluminium Gasket Keyboard Kit
User Manual
QMK

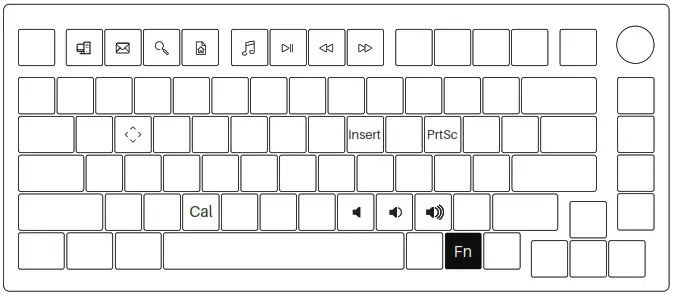

M1 HotKeys
| Fn+ | F1 | = | File Explorer |
| F2 | |||
| F3 | Windows Search | ||
| F4 | Browser Homepage | ||
| F5 | Media |
| Fn+ | F6 | = | Pause /Playback |
| F7 | Previous Song | ||
| F8 | Next Song | ||
| I | Insert | ||
| P | Print Screen |
| Fn+ | C | = | Calculator |
| M | Mute | ||
| < | Decrease Volume | ||
| > | Increase Volume | ||
| w | Swap W A S D with ↑↓ ← → |
M1 System Commands(Windows)
| Lock Windows Key | Press Fn and left Win key |
| Restore Factory Settings | Hold down Fn and press ∼ key for 3S |
Windows (default)  Mac OSX | Hold down Fn and press O key |

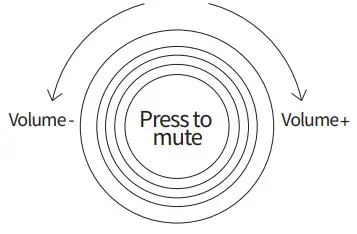

Rotary Knob: Volume Control

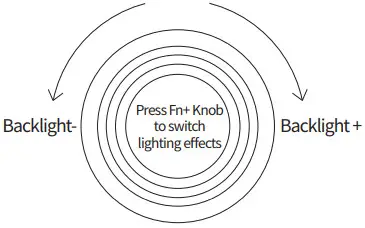

Rotary Knob: Lighting Effects Switch

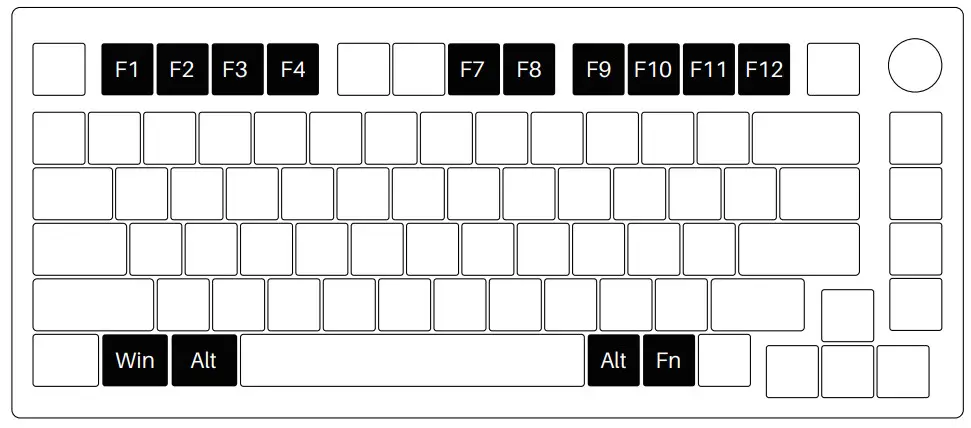

M1 System Commands(Mac)
| F1 | Decrease display brightness |
| F2 | Increases display brightness |
| F3 | Open mission control |
| F4 | Activate Siri |
| F7 | Skip back (Audio) |
| F8 | Pause/Play (Audio) |
| F9 | Skip forward (audio) |
| F10 | Mute |
| F11 | Volume down |
| F12 | Volume up |
| Left Win | Left Option |
| Left Alt | Left Command |
| Right Alt | Right Command |
Fn + (F1∼ F12)
F1 ∼ F12

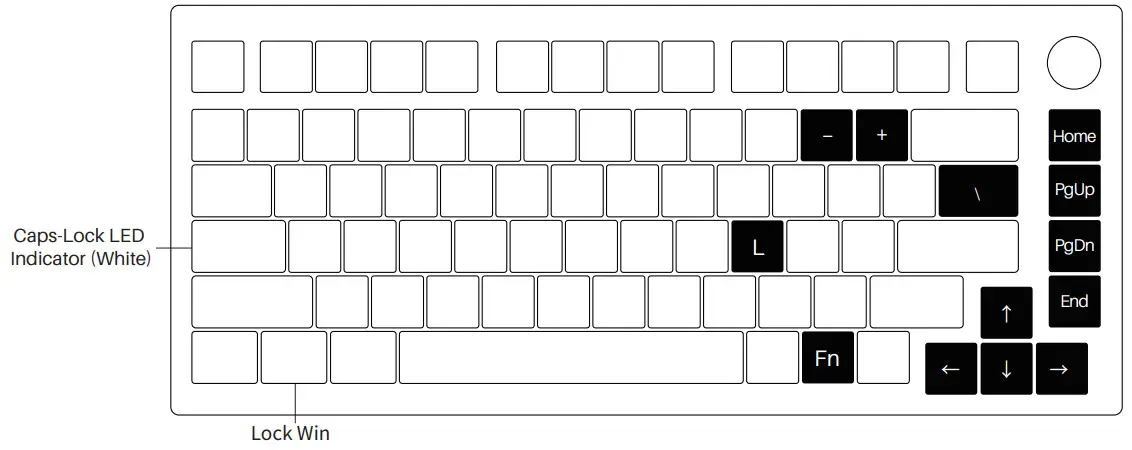

M1 Backlight Settings
| Fn+ | \ | = | 18 different lighting effects will be changed in order: NONE、SOLID_COLOR、BREATHING、CYCLE_ALL CYCLE_LEFT_RIGHT、CYCLE_UP_DOWN RAINBOW_MOVING_CHEVRON、CYCLE_OUT_IN CYCLE_OUT_IN_DUAL、CYCLE_PINWHEEL CYCLE_SPIRAL、DUAL_BEACON、RAINBOW_BEACON RAINDROPS、TYPING_HEATMAP、 OLID_REACTIVE_SIMPLE SOLID_REACTIVE、MATRIX_MULTISPLASH |
| Fn+ | ↑ | = | Bright |
| ↓ | Dim | ||
| ← | Light Saturation – | ||
| → | Light Saturation + | ||
| – | Slower Animation | ||
| + | Faster Animation | ||
| L | Light On/Off |
Customization Instruction
- The rotary knob/ key/ lighting effects and other advanced customization can be realized in the VIA program.
- Please visit monsgeek.com/download to download the VIA program.
MONSGEEK Warranty and Service Statement
- MONSGEEK provides One-Year warranty for customers in mainland China. For other regions, please contact your seller (MonsGeek distributor) for specific warranty policy.
- If the warranty window expires, customers need to pay for repairs. MONSGEEK will also provide instructions if users prefer to repair the keyboard by themselves. However, users shall take full responsibility for any loss happenedduring self-repair.
- Dissembling the keyboard without manufacturer/seller’s instruction will immediately void the warranty.
- The return and warranty policy may vary in different platforms and are subject to the specific distributor at the time of purchase.
Precautions: Man-made damage is not limited to immersion, falling off, and pulling off the wires with excessive forces, etc.
