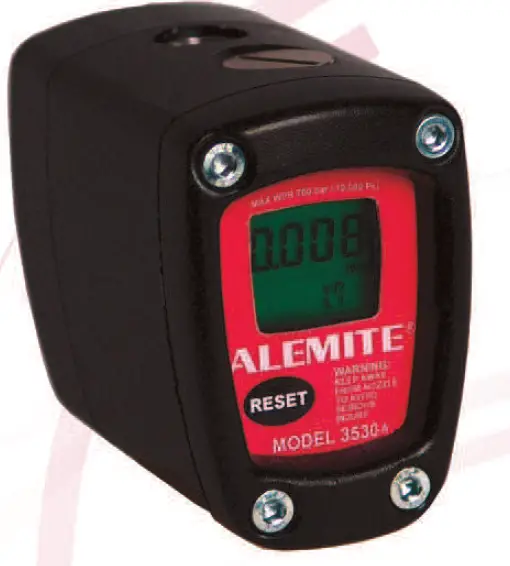

ALEMITE Electronic Grease Meter
Alemite’s in-line Grease Meter works with virtually any type of grease-dispensing valve or gun as well as air operated equipment, taking the guesswork out of bearing lubrication. Accurate, reliable grease dispensing means lower lubricant consumption and increased bearing, component, and machine life. The result is greater efficiency and significantly less downtime.
Features
- Easy-to-read, resettable LCD electronic display indicates batch cumulative totals

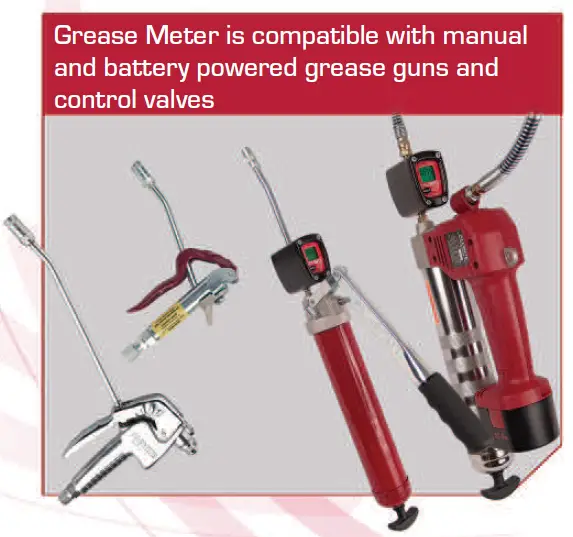

- Lightweight, in-line design allows use with virtually any grease-dispensing valve
- Oval-gear technology
Benefits
- Accurately dispense grease without guesswork
- Lubrication points receive manufacturer-recommended amount of lubricant
- Decreases lubricant waste due to over lubrication
- Excellent for preventive maintenance programs
Markets/Applications
- Off Road/Construction Equipment
- Steel and Metals Processing
- General Manufacturing
- Automotive Plants
- Power Production
- Quick Lubes
- Pulp and Paper
- Garages
- Mining
Technical Specifications
| Operating Pressure (Max.) | 10,000 psi / 700 bar |
| Flow Rate | 0.2-5.5 lbs/minute (0.1-2.5 kg/minute) |
| Thread Sizes | 1/8″ NPTF(f) in and out |
| Battery Size | (2) 1.5V Alkaline |
| Weight | 1.3 lbs (0.6 kg) |
| Accuracy | ± 3% |
| Operating Temp. | 14 to 140°F (-10 to 60°C) |
Meters, Adapters & Kits
| Product # | Description | Units Current Cumulative | Flow Rate | Inlet/ Outlet | DIM “A” | DIM “B” | Weight | |
| 3530 | Meter Only | oz. | lb. | 0.2 to 5.5 lbs./min. | 1/8 NPTF | 3.16 | 1.08 | 1.17 lb. |
| 3530-K | Meter & Adapter Kit | oz. | lb. | 0.2 to 5.5 lbs./min. | 1/8 NPTF | 3.16 | 1.08 | 1.17 lb. |
| 3530-A | Meter Only | gr. | kg. | 0.2 to 5.5 lbs./min. | 1/8 NPTF | 3.16 | 1.08 | 1.17 lb. |
| 3530-AK | Meter & Adapter Kit | gr. | kg. | 0.2 to 5.5 lbs./min. | 1/8 NPTF | 3.16 | 1.08 | 1.17 lb. |
| 3530-B | High Volume Meter & Adapter Kit* | oz. | lb. | 0.4 to 11 lbs./min. | 1/4 NPTF | 3.51 | 1.20 | 1.30 lb. |
| 3530-C | High Volume Meter & Adapter Kit* | gr. | kg. | 0.4 to 11 lbs./min. | 1/4 NPTF | 3.51 | 1.20 | 1.30 lb. |
Adapters Only
| For Use with Product Type | Compatible with Product # | Required Adapter if Purchased Separately |
| Grease Guns | 500, 525, 550 | 41531 |
| 1056 and 4015 Series | 327899-6 | |
| 575 and 585 Series | 340062 | |
| Competitive Gun | 340180 | |
| Control Valves | 6320-3 | 327899-3 |
| 7421-3 | 327899-6 |
*Adapter Kit include all above adapters
