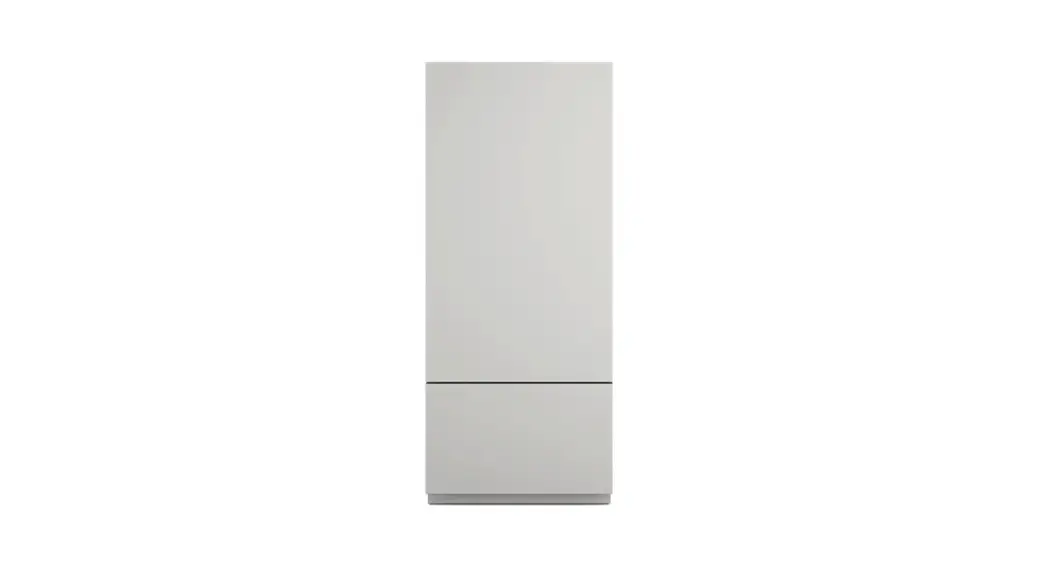

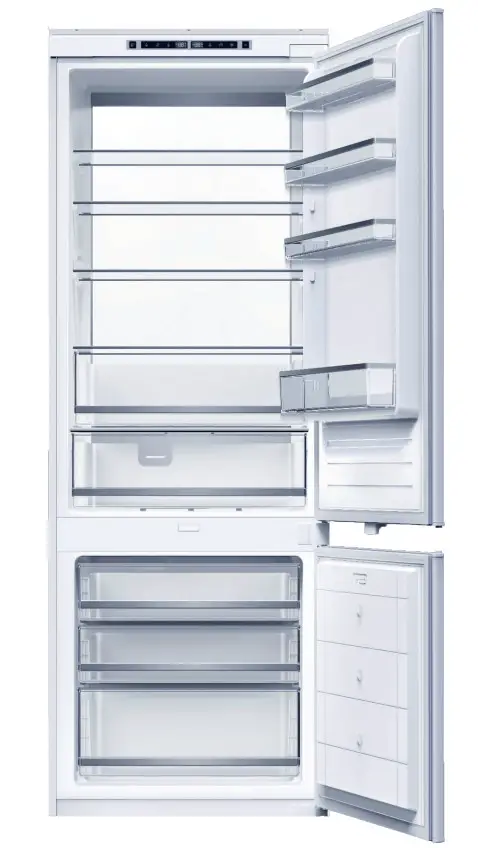

Milano 28” OVERLAY BUILT-IN FRIDGE
User Guide
 | LED lighting |
 | Total No Frost |
 | Noise Level 43 (dB) |
 | Deep-freezing |
 | Active cooling |
 | Integrated Installation |
 | Extended Preservation Mode |
SPECIFICATIONS
Contemporary European design
115°/90° opening flush hinge, allowing truly integrated install
Large and legible digital display
Soft-close crisper
Soft-close large pantry drawer, adjustable temperature
Sabbath mode
Height adjustable cantilever shelves
Spill-proof glass shelves
LED lighting
Field reversible doors
3D door adjustment, for easy door panel alignment
Ultra quiet 43 dB(A)
Appliance leveling from the front
| CODE ID | 28″ BUILT-IN FRIDGE FM4BM28FBI | |
| Finish | Panel Ready | |
| PERFORMANCES/CAPACITY | ||
| Cooling system | Dual Evaporator / Frost Free | |
| Control system | Electronic | |
| Energy Star Qualified | Yes | |
| Refrigerant | R600a | |
| Noise Level dB(A) | 43 | |
| Total net volume, cu. ft. (liters) | 12.1 (342) | |
| Refrigerator net volume, cu. ft. (liters) | 9.1 (257) | |
| Freezer net volume, cu. ft. (liters) | 3 (85) | |
| FEATURES | ||
| Fridge Compartment | ||
| Control Display | LED | |
| Automatic Defrost | Yes | |
| Interior Lighting | LED – Side walls, ceiling | |
| Spill-proof Shelves | 3 | |
| Crispers | 1 | |
| Extended preservation drawer | 1 | |
| Door Bins | 3 (2+1 gallon rack) | |
| Compressor | Variable speed with inverter (VCC) | |
| Fan Assisted Cooling | Yes | |
| Freezer | ||
| Automatic Defrost | Yes | |
| Large Freezer Drawer | 1 | |
| Metal Interior Freezer Drawer | 1 | |
| DIMENSIONS/WEIGHT | ||
| Width | 27 – 11/16″ | 690 mm |
| Height | 76 – 1/4″ | 1937 mm |
| Depth | 21 – 5/8″ | 550 mm |
| Product Weight | 496 lbs | 225 kg |
| RECOMMENDED PANEL DIMENSIONS | ||
| Fridge Panel | ||
| Height | 51 – 1/16″ | 1297 mm |
| Width | 29 – 3/4″ | 756 mm |
| Thickness | Min 3/4″ Max 1 – 1/4” | Min 19 mm Max 32 mm |
| Maximum Weight | 34.6 lbs | 15.7 kg |
| Freezer Panel | ||
| Height | 28 – 11/16″ | 729 mm |
| Width | 29 – 3/4″ | 756 mm |
| Thickness | Min 3/4″ Max 1 – 1/4” | Min 19 mm Max 32 mm |
| Maximum Weight | 19.4 lbs | 8.8 kg |
| POWER / RATINGS | ||
| Dedicated Circuit, V/Amps | 120 V – 15 A | |
| Supply voltage, V/Hz | 120 V – 60 Hz | |
| Rated Current, Amps | 2 | |
