DTGOR6 Upright Open Front Fridge
User Guide
DTGOR USER GUIDE
Thank you for purchasing a Cossiga food display cabinet

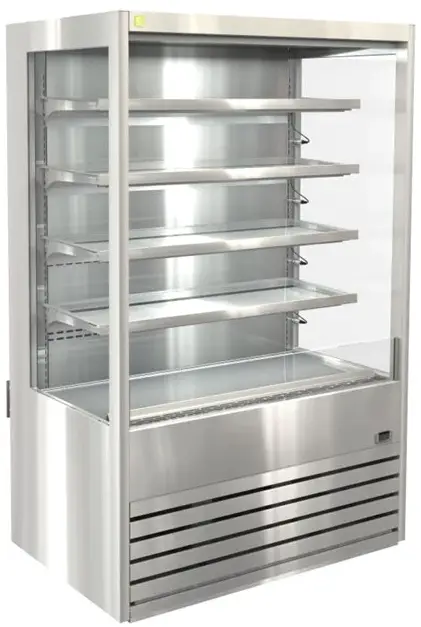

DTGOR6 Upright Open Front Fridge
This is a guide only. If you are unsure of any aspects of the installation or operation, please contact us or visit our website www.cossiga.com
The appliance is not to be used by persons (inclusing children) with reduced physical, sensory or mental capabilities, or lack of experince or knowledge, unless they have supervision or instruction.
Children should be supervised so they do not play with the appliance
The applicance is intended to be used for comercial applications, but not for the continuous mass production of food.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or simmilarly qualified persons in order to avoid hazard.
Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
No hot water on glass.
Appliance shall not be cleaned with a water jet or a steam cleaner.
SAFETY
Always disconnect this appliance before cleaning and servicing
Servicing should only be carried out by an approved service agent, registered electrician or refrigeration engineer
Do not use a multi-box or overload your power supply
Risk of fire / flammable materials
WARNING: Keep clear of obstruction all ventilation openings in the appliance enclosure or in the structure for building-in.
WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

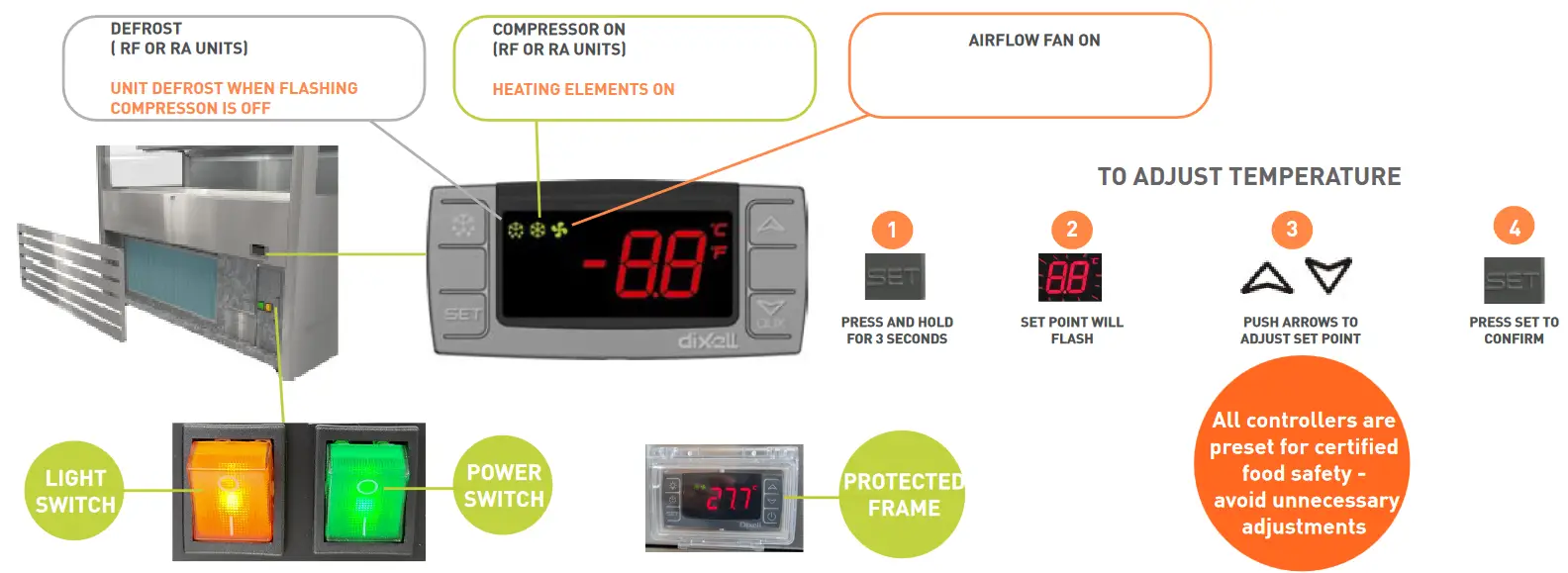

CONTROLLER INSTRUCTIONS
SHELVES
Adjustable:
– Height
– Flat or Angled

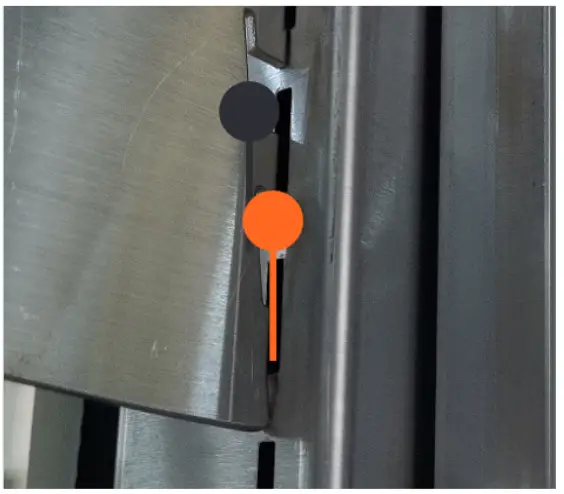

To Adjust:
– Remove Racks
– LIFT up from back of
shelf arms at either end

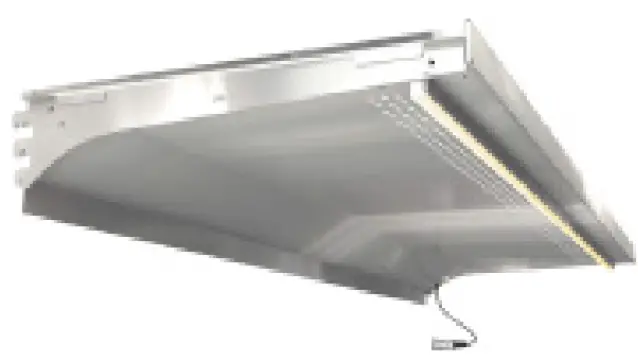

LED LIGHTING
LED are easily replaced:
– Slide old LED out and slide new one in

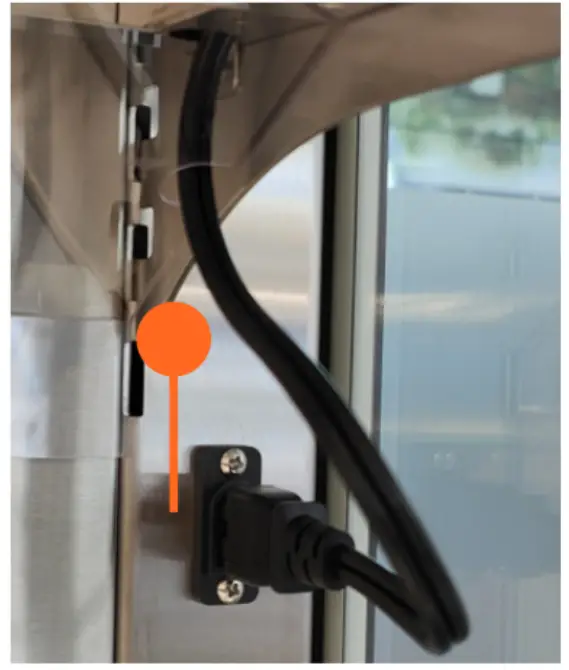

Can be disconnected from rear pillar by unplugging socket
VENTILATION
key to the efficient running and long life

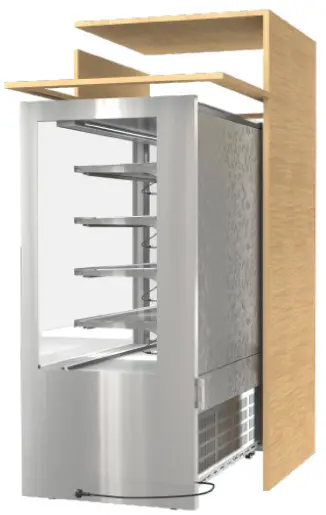

A separation gap of 30mm to a wall is required.
Air IN must be separated from Air OUT
A 200mm gap above the unit is also required to ensure proper hot air extract.
ALL SPECIFIC MODEL VENTILATION DRAWINGS ARE AVAILABLE ON OUR WEBSITE VENTILATION MUST BE CORRECT FOR WARRANTY TO BE VALID

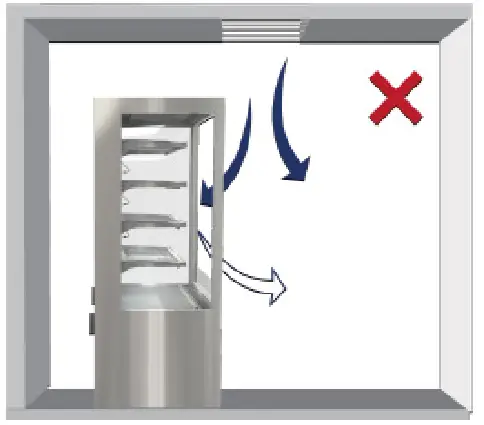

Mechanical airflow
Mechanical air flows, such as diffusers and fans can disturb the air curtain on open fronted units causing failure

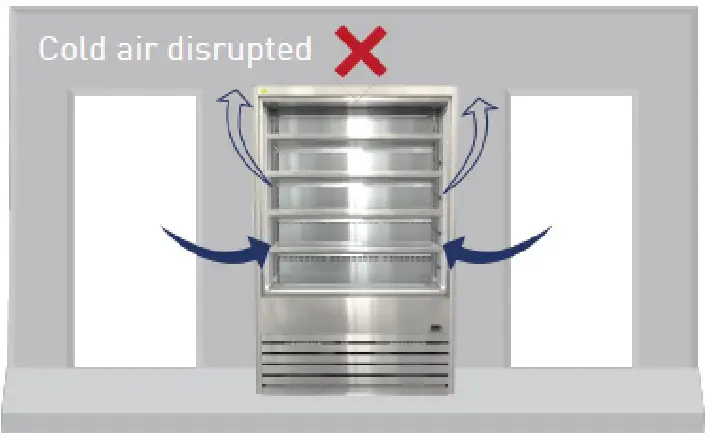

Locations to avoid
Close to shop front exterior
In an outside location
In direct sunlight
In a high wind
Near any source producing excessive heat
Service units more frequently in dusty or polluted areas

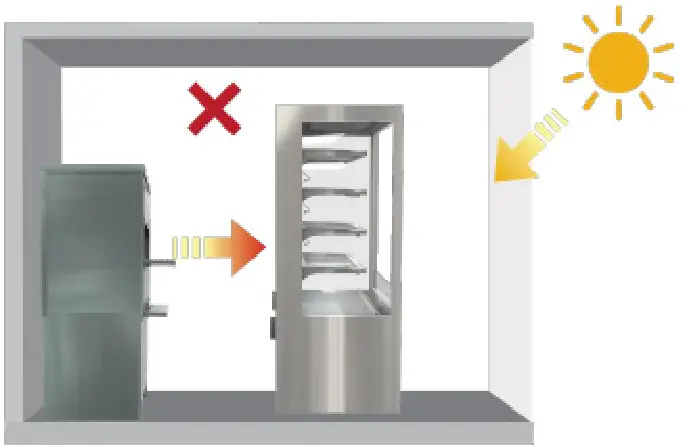

Environmental conditions
Heat from other equipment and natural conditions, such as direct sunlight straight on units, can cause cooling to fail
A night blind is recommended to help the unit keep cool outside of operation hours.
DRAINAGE OPTIONS

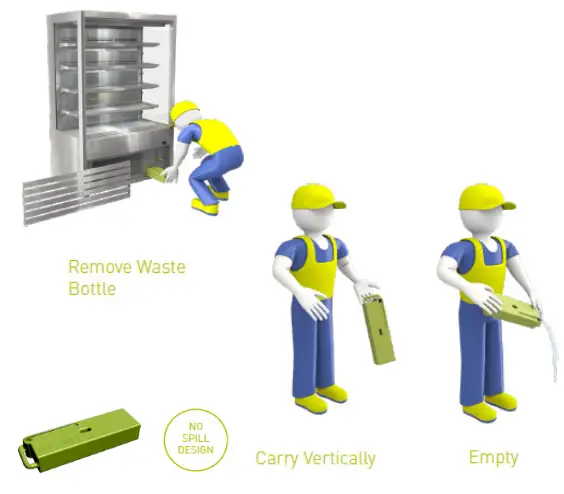

1. DRAIN TO BOTTLE – Manual

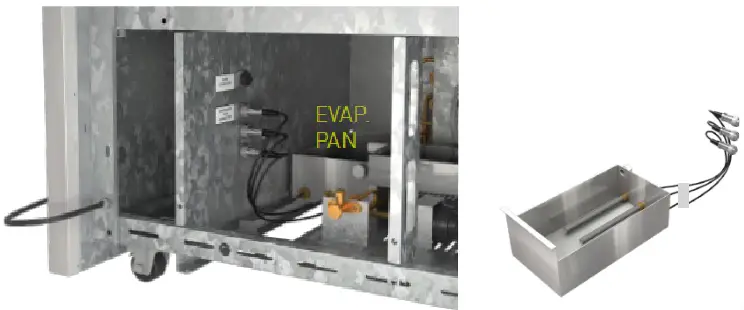

2. ELECTRONIC EVAPORATOR PAN

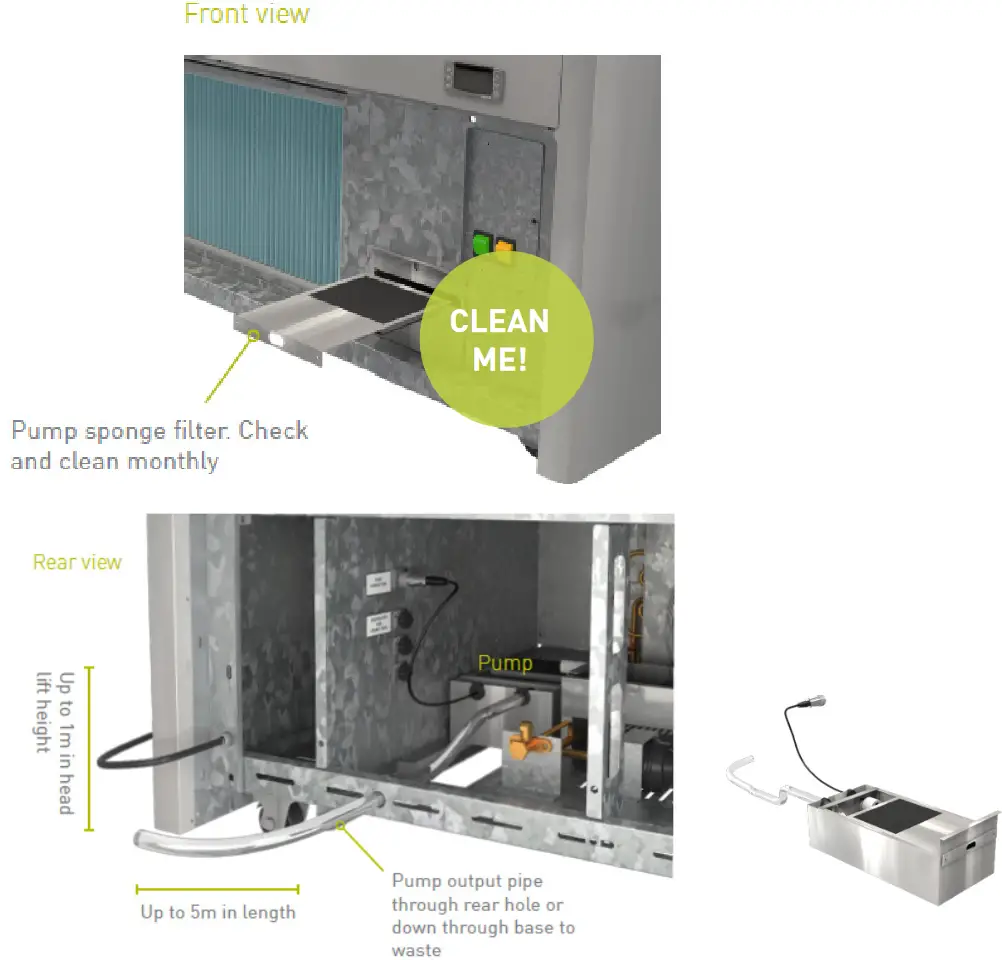

3. PUMP TO WASTE – UP TO 5 METRES
INSTALLATION
For more details, please visit our website.
Your cabinet has been delivered fully assembled. Please check nothing has moved during transit.
Extreme care required due to toppling risk!

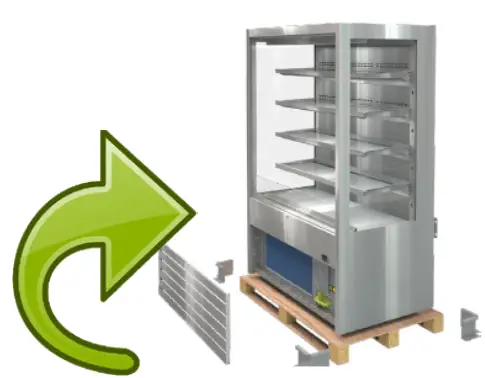

REMOVE corner brackets. Remove front grill.

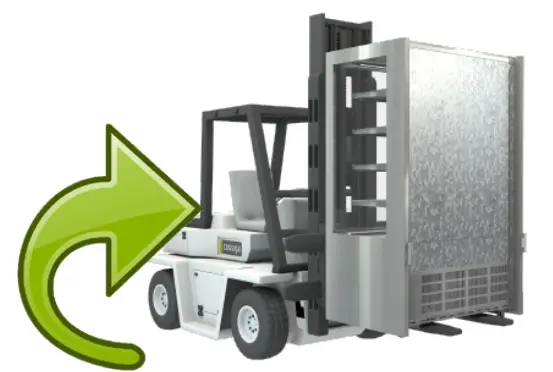

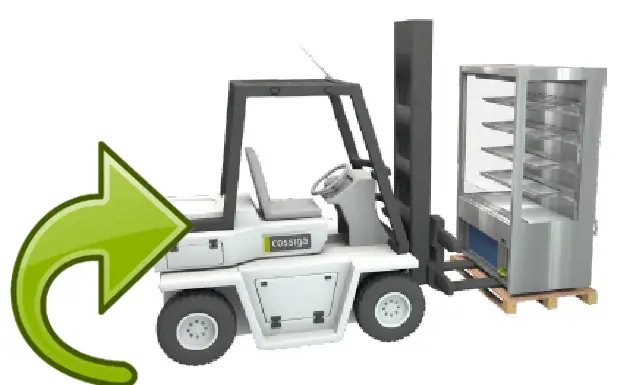

LIFT with forks under centre of frame. Check span of forks under unit to avoid
TRANSPORT to required locationany damage to components.

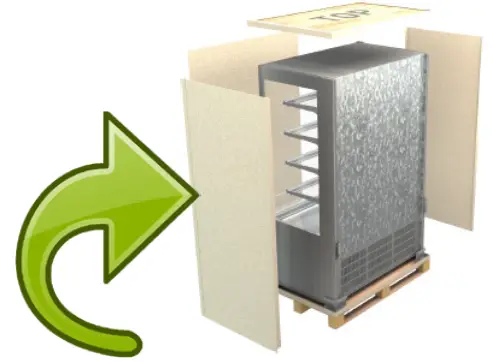

REMOVE front, side and corner pieces and discard.

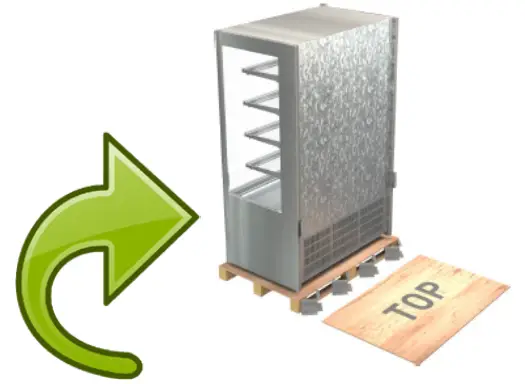

PLACE corner braets and plywood to form a ramp.

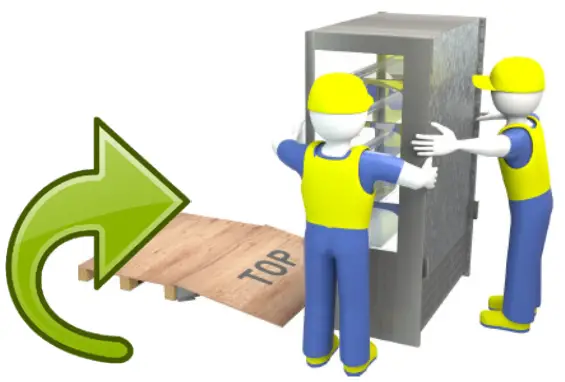

ROLL the unit off the pallet down the ramp. Two or more people may be required depending on the size of the unit.

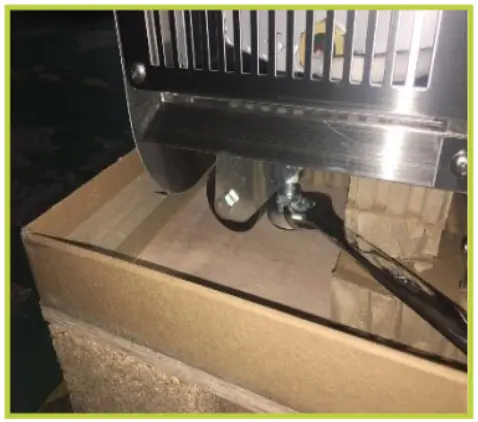

Adjust feet using spanner to level your cabinet
Ensure cabinet is level (door operation and drainage can be affected )
No Multiboxes

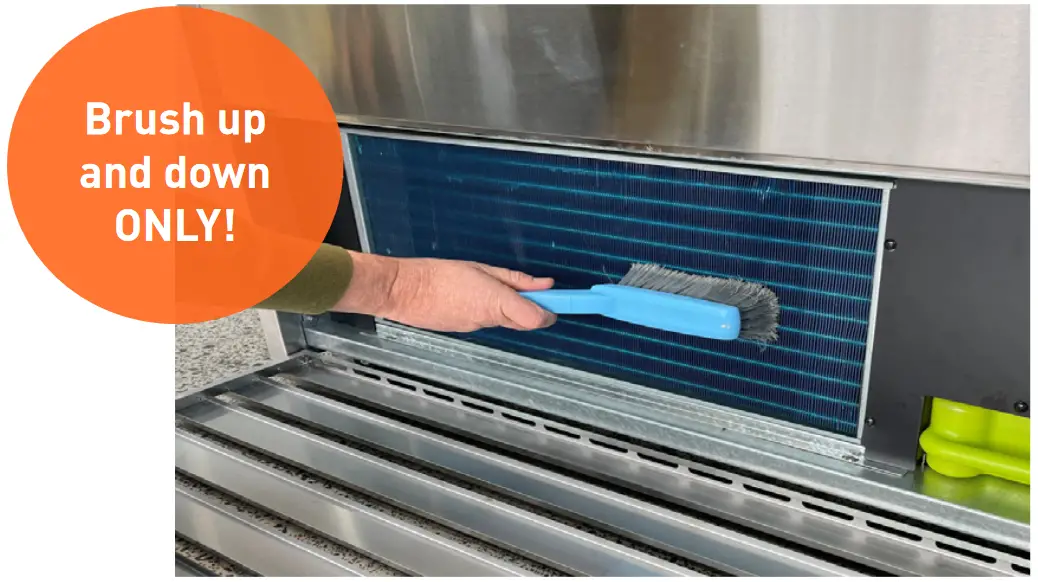

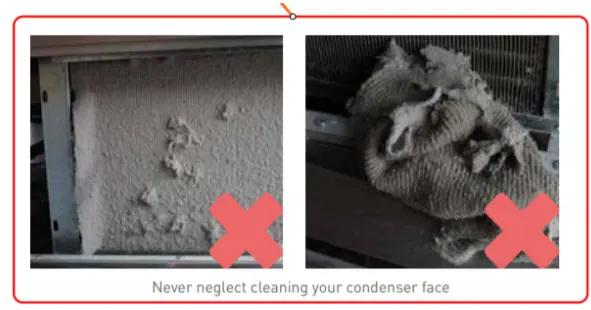

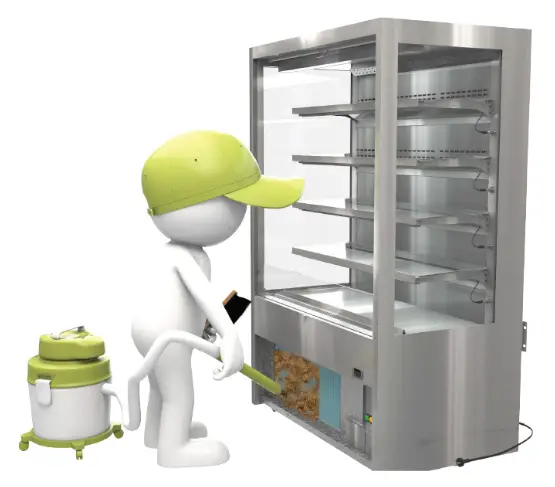

CONDENSER CLEANING
Better Performance Lower Power Consumption Longer Cabinet Life
R290 REFRIGERANT
The key to maintaining your cabinets
R290 (Propane) is refrigerant grade propane with high purity and low Global Warming Potential (GWP).

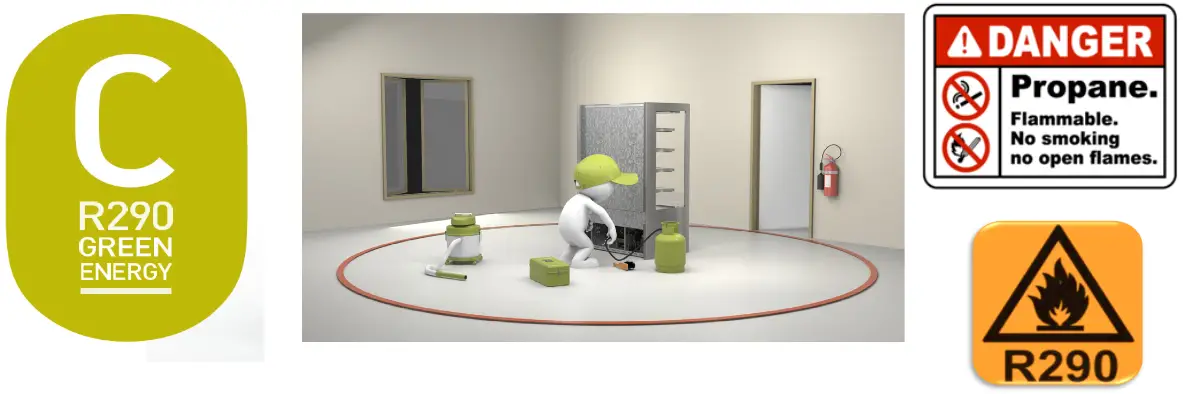

Propane is highly flammable. Please observe caution and follow the safety maintenance requirement when servicing equipment with R290.

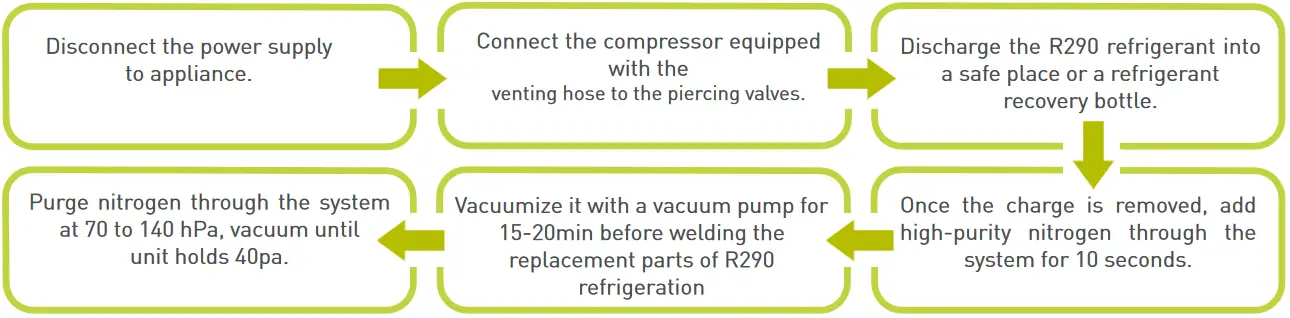

Before the maintenance of R290 refrigeration products, safety inspection must be carried out to ensure that the risk of ignition is minimized.
The maintenance area must be ventilated. Fire extinguishing equipment (dry powder or carbon dioxide fire extinguisher) shall be provided in the maintenance site There should be enough space in the maintenance site. Open fire, electric spark and ≥470 ℃ heat source are prohibited within 2m.
SERVICING GUIDELINES
ALWAYS DISCONNECT CABINET BEFORE SERVICING
An electrical wiring diagram can be located under the hood of electrical box LED driver and electrics can be located in the hood or electrical box
To access fans for service or repair:
Remove deck tray in cabinets and lift out
Remove stainless cover with screw drivers
This will allow access to fans and coil
Operation ambinet temperature ( Climate 4 ): 43 °C
Electrical diagrams
Exploded spare parts
Refrigerated parameters
Can be found on our website:
www.cossiga.com
