FULGOR MILANO F7IRC36O1-R 36 Inch Fridge Column

Features

Our overlay column refrigerators are as beautiful as they are functional. Custom panels can be installed to provide a completely integrated look with adjacent cabinets and feature a brilliant white aluminum interior with brushed aluminum and stainless accents. Food preservation is the name of the game, by combining elegant design and commercial quality to ensure the highest performance preserving the organoleptic qualities of your precious ingredients. A dedicated compressor and evaporator provide consistent and precise temperatures throughout.

RIGHT HINGE
Left door LEFT HINGE
No Frost Total No Frost
rumination
LED LED lighting
Collezione
Slot-In Integrated Installation
Mode Holiday Modee
SPECIFICATIONSMaker Ice Maker abbath Mode

SPECIFICATIONS

Panel Ready Exterior
Microbeaded stainless steel crisper drawers with
soft closing
Height-adjustable glass shelves
Luminous white interior
Multilevel LED lighting

OPTIONAL ACCESSORIES

REFHANDPROCOL
Sofia Professional Handle Kit
REFHANDISCOL
Distinto Handle Kit

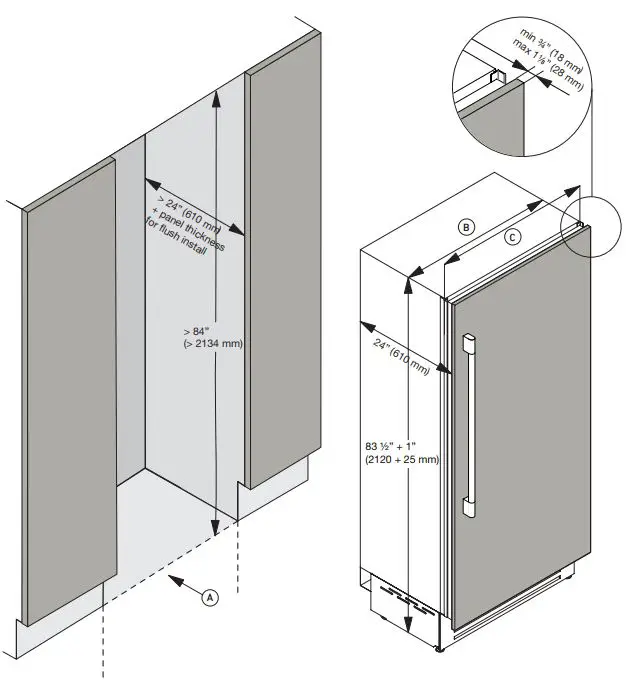

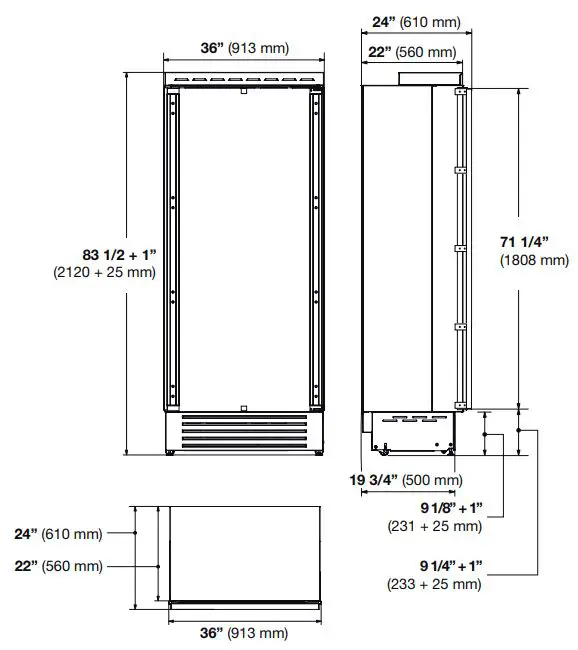

DIMENSION

SPECIFICATION

CODE ID	36” OVERLAY BUILT-IN FRIDGE F7IRC36O1-L (LEFT HINGE) F7IRC36O1-R (RIGHT HINGE)
Finish	Panel Ready Exterior
PERFORMANCES/CAPACITY
Annual Energy Usage	355 kWh/yr
Interior capacity (cbft)	21.54
FEATURES
Shelves	3
Adjustable Door Bins	3
Crisper Drawers	3
LED lighting	•
No Frost	•
DIMENSIONS/WEIGHT
Width in	36″	913	mm
Height in	83 – 1/2”	2120 mm
Depth without handle in	24”	610	mm
Minimum niche height in	84 – 1/2”	2145 mm
Door clearance in	58 – 5/8”	1489 mm
Door opening angle	100°
Net Weight	370 lbs	168	kg
POWER / RATINGS (115 V, 60 HZ)
Watts / Amps	218W – 2A
Power Cable	Nema 5-15P
INSTRUCTIONS FOR USE
Use & Care Manual / Installation Manual	English / French / Spanish
