RS3084SLHK1 30 Inch Integrated Column Refrigerator
User Guide
Series 11 | Integrated
Panel Ready | Left hinge
RS3084SLHK1 30 Inch Integrated Column Refrigerator
Install it separately or pair with another Column for seamless integration – this model is left hinge with stainless steel interior.
- Active Smart™ technology helps keep food fresher for longer by constantly maintaining the ideal temperature
- Two separate Variable Temperature Zones. Choose from Fridge, Pantry or Chill
- Internal water dispenser for convenient access to fresh, chilled water
- Customize with your own kitchen cabinetry or purchase our stainless steel door panel accessory

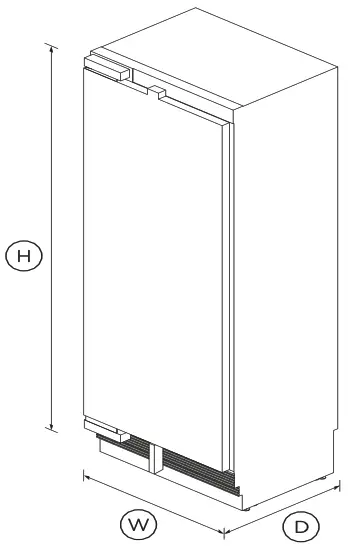

DIMENSIONS
| Height | 84″ |
| Width | 29 3/4″ |
| Depth | 24″ |
FEATURES & BENEFITS
VARIABLE TEMPERATURE ZONES
Create the perfect climate by storing food at their optimal temperature. Change a compartment to Fridge, Pantry or Chill.
INTERNAL WATER DISPENSER
This integrated model features a slimline water dispenser, located on the inside for an uninterrupted exterior. The flush-fit design of the water dispenser maximizes internal storage space, allowing the shelves to be adjusted to suit your needs. Enjoy a continuous flow of temperature-controlled chilled water to fill almost any size or shape of vessel.
APPEALING ILLUMINATION
Bright LEDs light up the ceiling, shelves, bins and trays in both refrigerator and freezer, creating a welcoming glow in your kitchen at night and using less power than comparable halogen lights.
MIX & MATCH
Integrated Column Refrigeration gives you the freedom to mix and match refrigerators and freezers based on your needs – or install separately. They can be customized with your kitchen cabinetry for a seamless look, or finished with one of our stainless steel door panels.
CLEVER ENERGY
Active Smart™ makes your refrigerator more energy efficient – adapting to daily use and cooling and defrosting only when needed. This means it uses the energy it needs without compromising on food care.
DESIGN QUALITY
The premium design and quality finish includes a white or stainless steel interior lining, as well as full-extension metal shelf runners for easy access and robust glass shelving.
PERFECT FIT
Create an understated and clean look in any kitchen. You can hide our Integrated Column models seamlessly behind your cabinetry, fitting flush with only a ⅛” gap and no visible hinges or grilles.
SPECIFICATIONS
| Accessories | |
| 30″ Stainless steel toe kick | AKRS3004 |
| 48″ Stainless steel toe kick | AKRS4804 |
| 54″ Stainless steel toe kick | AKRS5404 |
| 60″ Stainless steel toe kick | AKRS6004 |
| 66″ Stainless steel toe kick | AKRS6604 |
| 72″ Stainless steel toe kick | AKRS7204 |
| 78″ Stainless steel toe kick | AKRS7804 |
| 84″ Stainless steel toe kick | AKRS8404 |
| Contemporary round handle | AHS-RD84 |
| Contemporary square handle | AHD3-RD84 |
| Hinge change (from left hinge | 848190 |
| Hinge change (from right hinge | 848189 |
| Joiner kit | AJ-RS84LR |
| Matching Replacement Water | FWC3 |
| Professional round flush handle | AHP3RDSF |
| Professional round handle kit | AHC-RD84 |
| Professional square handle kit | AHV2-RD84 |
| Square fine aluminium handle | AHD5RDSF |
| Square fine black handle kit | AHD5RDSFB |
| Stainless steel door panel | 30″ Left hinge RD3084L4D |
| Capacity | |
| Volume | 16.3cu ft |
| Volume refrigerator | 16.3cu ft |
| Consumption | |
| Energy rating | Energy star |
| Features | |
| Adjustable glass cantilevered | • |
| Adjustable glass shelves | 2 |
| Covered door shelves | 1 |
| Door alarm | • |
| Gallon door shelves | 1 |
| Internal water dispenser | • |
| LED bin lighting | • |
| LED ceiling lighting | • |
| LED side lighting | • |
| SmartTouch interface at | • |
| Soft-close fruit and vegetable | • |
| Stackable bottle holders | 4 |
| Performance | |
| ActiveSmart™ Foodcare | • |
| Dual evaporator | • |
| Humidity control system | • |
| Inverter controlled compressor | • |
| Sabbath mode | • |
| Variable food modes lower | Pantry; Fridge; Chill |
| Variable food modes upper | Pantry, Fridge |
| Variable temperature zones | 2 |
| Power requirements | |
| Rated current | 10A |
| Supply frequency | 60Hz |
| Supply voltage | 115V |
| Product dimensions | |
| Depth | 24″ |
| Height | 84″ |
| Width | 29 3/4″ |
| Product information | |
| Packaged weight | 309lbs |
| Unpack aged weight | 294lbs |
| Warranty | |
| Parts and labor | 2 years |
| Sealed system parts and labor | additional 3 years |
| SKU | 26168 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
