Date: 15.11.2022 >
QUICK REFERENCE GUIDE > RS3084SL1

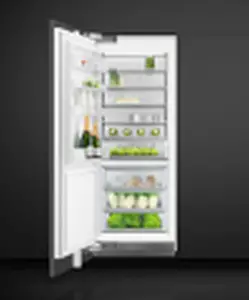

Integrated Column Refrigerator, 30″
Series 9 | Integrated
Panel Ready | Left hinge
Install it separately or pair with another Column for seamless kitchen integration – this model is left hinge with white interior.
- ActiveSmart™ technology helps keep food fresher for longer by constantly maintaining the ideal temperature
- Two separate Variable Temperature Zones: each with Fridge, Pantry or Chill
- Customize with your own kitchen cabinetry or purchase our stainless steel door panel accessory

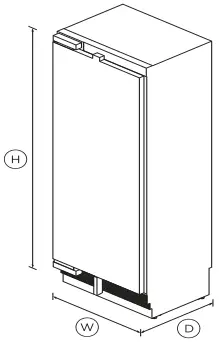

DIMENSIONS
Height 84″
Width 29 3/4″
Depth 24″
FEATURES & BENEFITS
VARIABLE TEMPERATURE ZONES
Food is stored in two separate zones. You have the choice of three food modes: Fridge 32°F to 44°F, Pantry 52°F to 56°F and Chill 29°F to 32°F.
MIX & MATCH
Integrated Column Refrigeration gives you the freedom to mix and match. Different sized Column Fridges and Freezers can be installed separately or paired. Finish them with our stainless steel door panels or customize to match your own kitchen cabinetry.
CLEVER ENERGY
Our Energy Star-certified ActiveSmart™ Refrigerators & Freezers adapt to daily use by cooling and defrosting only when needed. This means your refrigerator uses the energy it needs without compromising on food care.
APPEALING ILLUMINATION
Bright LEDs light up the ceiling, shelves, bins and tray in both refrigerator and freezer, making it easy to find your food and creating a welcoming glow in your kitchen for those midnight snacks.
DESIGN QUALITY
The premium design and quality finish includes a white or stainless steel interior lining, as well as full-extension metal shelf runners for easy access and robust glass shelving.
EASY INSTALL
Integrated Column Refrigerators and Freezers have been developed to make their installation easy. The joiner kit is included when pairing refrigerator and freezers. All models come with front adjustable levelling feet and they’ve been designed to easily slide into place as separate units.
PERFECT FIT
These models fit flush and have only ” gaps around them with no visible hinges or grilles. Our Integrated Column models can be seamlessly hidden behind your cabinetry or you can purchase our stainless steel door panel.
SPECIFICATIONS
Accessories
30″ Stainless steel toe kick AKRS3004
48″ Stainless steel toe kick AKRS4804
54″ Stainless steel toe kick AKRS5404
60″ Stainless steel toe kick AKRS6004
66″ Stainless steel toe kick AKRS6604
72″ Stainless steel toe kick AKRS7204
78″ Stainless steel toe kick AKRS7804
84″ Stainless steel toe kick AKRS8404
Contemporary round handle AHS-RD84
Contemporary square handle AHD3-RD84
Hinge change (from left hinge 848190
Hinge change (from right hinge 848189
Joiner kit AJ-RS84LR
Matching Replacement Water FWC3
Professional round flush handle AHP3RDSF
Professional round handle kit AHC-RD84
Professional square handle kit AHV2-RD84
Square fine aluminium handle AHD5RDSF
Square fine black handle kit AHD5RDSFB
Stainless steel door panel 30″ Left hinge RD3084L4D
Capacity
Volume 16.3cu ft
Volume refrigerator 16.3cu ft
Consumption
Energy rating Energy star
Energy usage 247kWh/year
Features
Adjustable door shelves 4
Adjustable glass cantilevered •
Covered door shelves 1
Door alarm •
Fruit and vegetable bins 4
LED bin lighting •
LED ceiling lighting •
LED side lighting •
SmartTouch interface at •
Soft-close fruit and vegetable •
Stackable bottle holders 4
Performance
ActiveSmart™ Foodcare •
Dual evaporator •
Humidity control system •
Inverter controlled compressor •
Sabbath mode •
Variable food modes Pantry; Fridge; Chill
Variable temperature zones 2
Power requirements
Rated current 10A
Supply frequency 60Hz
Supply voltage 115V
Product dimensions
Depth 24″
Depth (including handles) 24″
Height 84″
Width 29 3/4″
Product information
Packaged weight 309lbs
Unpackaged weight 294lbs
Safety and compliance
ADA compliant •
Warranty
Parts and labor 2 years
Sealed system parts and labor additional 3 years
SKU 26127
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
