K 1973 LED Front Light for E-Bikes
User Manual
SEW Headlight Series
User Installation Guide
E-Bike headlight for speeds up to 25 km/h (Pedaled)
This headlight for DC power source 9~16V only. Do not use it to an AC power source (e.g. a dynamo)!
Connecting over voltage power may cause the lamp to be destroyed!
Lights without switch function on it. Light on and off control by e-bikes system.

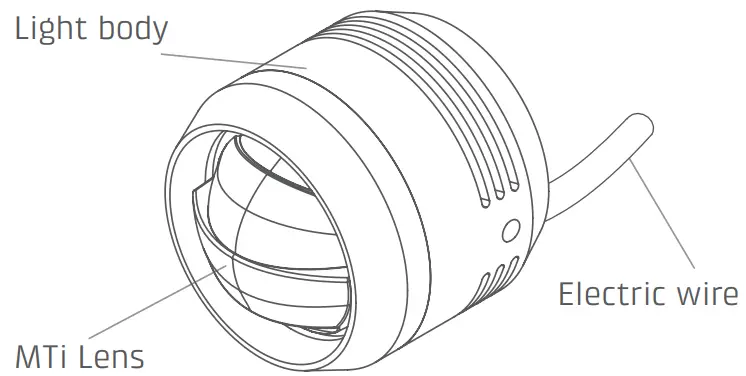

Product Overview
Product Include
1 x Headlight with electric wires
Accessories
Optional accessories, depending on drive system and mounting position.
| Handlebar bracket Model No. PHB31850 | Headlight rear adapter Model No. AP2 | K-reflector+ adapter (w/machine screw) Model No. RFD |
 |  |  |

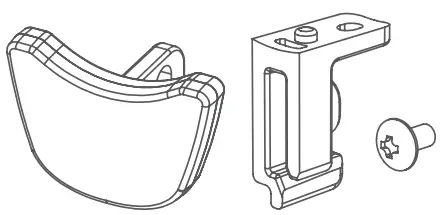

| 1 x Handlebar bracket 1 x spacer 1 x M4 12mm bolt 1 x M4 25mm bolt 1 x M4 Washer 1 x M4 nut 2 x 0.5mm pad 2 x 2.5mm pad | 1 x Rear adapter 1 X Spacer 2 x M4 8mm bolt | 1 x Reflector 1 x Reflector adapter 1 x M3 6mm Philips bolt |
Installation Guide

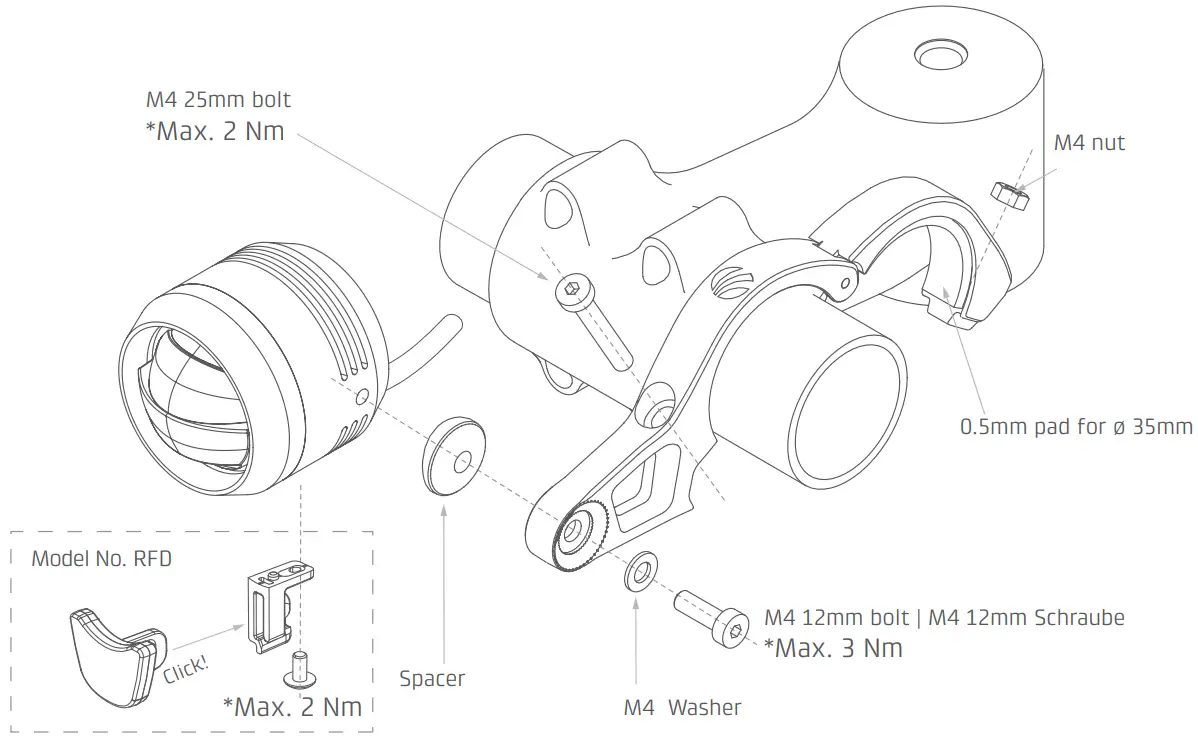

Handlebar bracket/mount for Ø 31.8 / 35mm
Model No. PHB31850

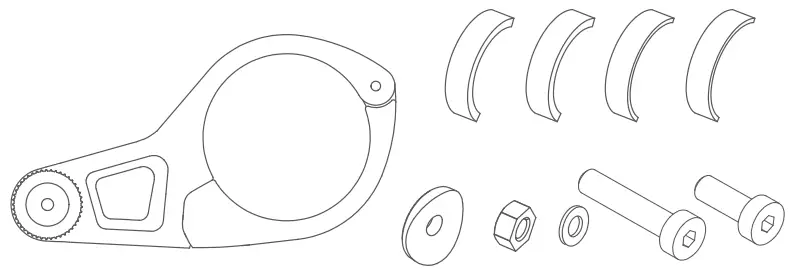

Include
1 x Handlebar bracket/mount
1 x M4 12mm bolt
1 x M4 25mm bolt
1 x spacer
2 x 0.5mm pad
2 x 2.5mm pad
1 x M4 Washer
1 x M4 nut

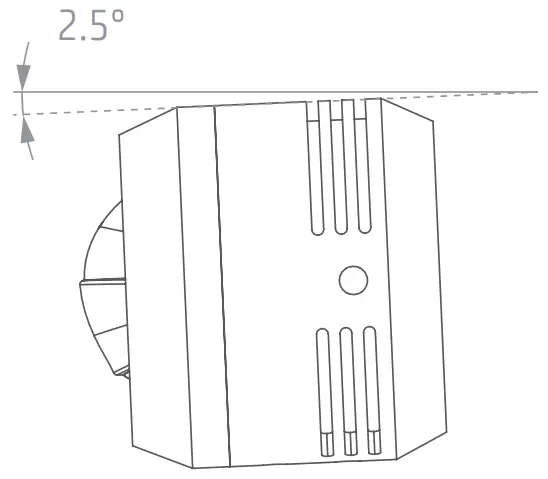

IMPORTANT! 2.5 DEGREES DOWNWARD INSTALLATION.

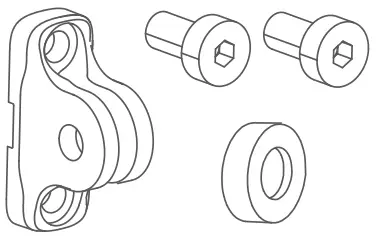

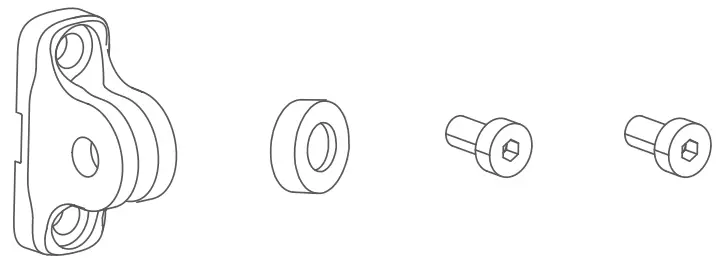

Headlight rear adapter
Model No. AP2
Include
1 x Rear adapter
1 X Spacer
2 x M4 8mm bolt
The stem or GoPro mount is not included in the package. Please check the compatibility of the stem or GoPro mount.

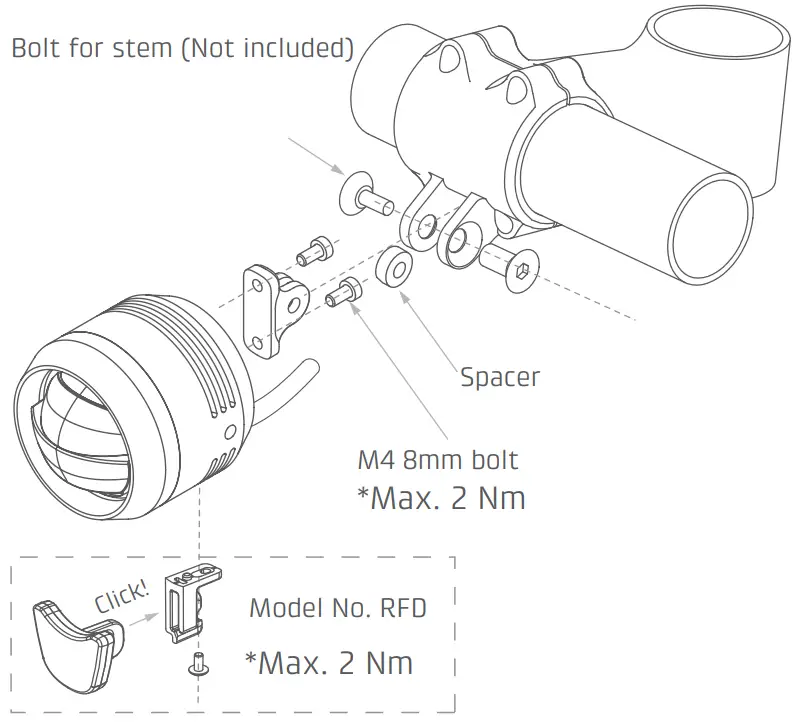

Mount on stem

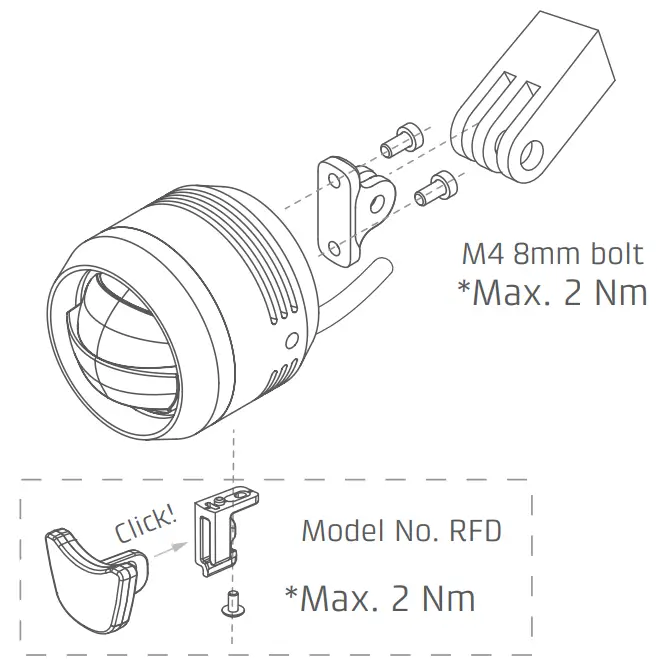

Mount on GoPro mount
Applying friction paste is recommended for installing on Gopro mount made of plastic.
IMPORTANT! 2.5 DEGREES DOWNWARD INSTALLATION.
Technical Data
These headlights have been developed for use on E-Bikes with speeds up to 25 km/h (Pedelec).
| Model name / Model no. | SEW-170 / HKSEW170 |
| Light output | 170 lux / 550 Lumens |
| Optical technology | MTi PRO |
| Light source | LED*2 |
| Input voltage (DC) | 9 ~ 16V |
| Power consumption | 7.3W |
| Cable diameter / Cable length | ø 4 mm / 1400mm |
| IP rating | IP56 |
| Operating temperature (°C) | -25 ~ +70 |
| Material | Aluminum |
| Weight (ext. cable) | 120g |
| Dimension (W x H x L) | ø 46 x 45.8 mm |
| Reflector (optional) | RFD |
| Compliance | RoHS / CE / Prop 65 |
| Type of approval / Approval number | StVZO-K / ~ K 1973 |
Technical modification reserved.
Caution
- When mounting the lite move lights, please use the original screws and rubber from the bracket in the package.
- Please take care to tighten the screws with the right torque shown on each model.
- Never use a high-pressure hose or alcohol-containing fluids to clean. Do not use aggressive cleaning agents (also no alcohol!)
- According to German StVZO §67, the light needs to be mounted properly ready for use.
- Prior to every ride, a secure and sturdy connection of the light to its mounting bracket and of the mounting bracket to the bicycle must be checked and ensured.
- Mounting height of the headlight should be at least 400 mm and maximum 1200 mm above the ground.
- If an LED has failed, the headlight must be replaced accordingly.
