LED BIKE LIGHT SET
Quick start guide
LED Bike Light Set
Introduction
This quick start guide is a fixed part of the operating instructions. Keep both this and the operating instructions in a safe place. When passing this product on to third parties, please be sure to include all documentation. Read the operating instructions before use, and pay particular attention to the safety instructions included in the operating instructions. Scan the QR code, or download the complete operating instructions at www.lidl-service.com.
Safety notes
WARNING! DANGER TO LIFE AND RISK OF AC-CIDENT FOR INFANTS AND CHILDREN! Never leave children unsupervised with the packing material due to the suffocation hazard posed by swallowing parts thereof. Children frequently underestimate the dangers.- Always keep the product out of the reach of children. This product is not a toy!
- This product may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities or lacking experience and knowledge when supervised or instructed in safe product use and they understand the associated risks. Do not allow children to play with the product. Cleaning and user maintenance must not be performed by children without supervision. Please note, damages caused by incorrect handling, non-compliance with the instructions for use or interference with the device by unauthorised individuals are excluded from the warranty.
- Never take the product apart. Improper repairs may result n considerable danger to the user. Always have repairs performed by a professional. The LED lights cannot be replaced.
WARNING! DANGER TO LIFE AND RISK OF ACCIDENTS! Using an incorrect charger can result in headlight 1 and tail light 9 damage, overheating and even explosion. This will void the warranty.
Rechargeable battery safety notes
CAUTION! DANGER OF EXPLOSION! Keep rechargeable batteries away from children, do not throw rechargeable batteries into fire, do not short-circuit and do not take apart.
Failure to observe this may discharge the rechargeable battery beyond their end voltage. This poses a risk of leaking. Avoid contact with the skin, eyes and mucous membranes if fluid has leaked from the rechargeable batteries. In the event of contact with battery acid, thoroughly flush the affected area with clean water and seek immediate medical attention. Note: If the red LED on the battery monitor 2 on the headlight 1 or the blue LED on the battery monitor 11 on the tail light 9 lights up, recharge the batteries promptly.
Installation

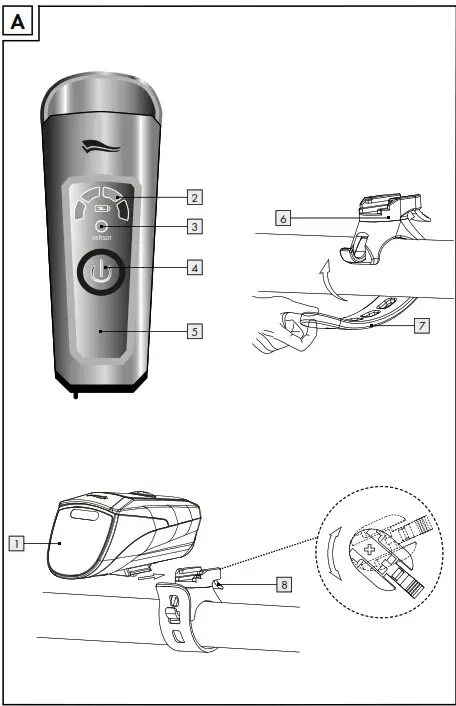

Installing the headlight (see Fig. A)
Attach the headlight 1 as shown in Fig. A.

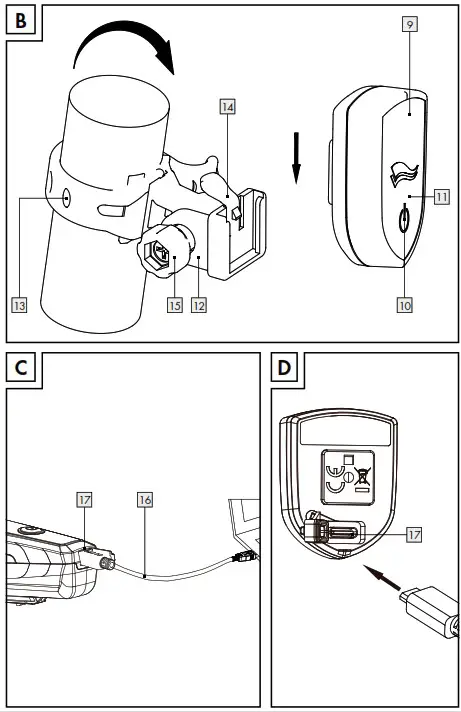

Installing the tail light (see Fig. B)
Attach the tail light 9 as shown in Fig. B.
ATTENTION! The tail light must be installed and adjusted so the reference axis is parallel to the median longitudinal plane of the bicycle and parallel to the road.
Operation
Switching on/off
The headlight 1 has three brightness settings.
On/Off switch 4
| press once | Auto mode: The headlight 1 is equipped with a sensor 5 which automatically adjusts the brightness of the headlight 1 to the surrounding brightness. When the sensor is active 5 (auto-mode), the sensor control light 3 flashes green. |
| press twice | Power mode (70 Lux) for riding in unlit areas |
| press three times | Standard mode (30 Lux) for riding in lit areas |
| press four times | Eco mode (15 Lux) for riding in well-lit areas |
| press five times | Power off |
| Battery status: | Operating mode of the battery monitor |
| 100 % – 75 % | 4 green LEDs light up |
| 75 % – 50 % | 3 green LEDs light up |
| 50 % – 25 % | 2 green LEDs light up |
| 25 % – 10 % | 1 green LED lights up |
| 10 % – 0 % | 1 red LED flashes |
When the battery monitor 2 for the headlight comes on, it will continue to emit light for at least 30 minutes.
Tail light 9
| On / Off switch 10 | |
| press once | Power on |
| press twice | Power off |
When the battery monitor 11 for the tail light comes on, it will continue to emit light for at least 30 minutes.
Charging the headlight/tail light (see Fig. C + D)
Charge the headlight 1 and the tail light 9 as shown in Figures C and D.
KLB GmbH
Diekbree 8 48157 Münster GERMANY
Last Information Update 11 / 2020 · Ident.-No.: 14177112020-8
IAN 362150_2007
Item No. 14177
