Oras Swea Dishwasher Valve Kitchen Faucet

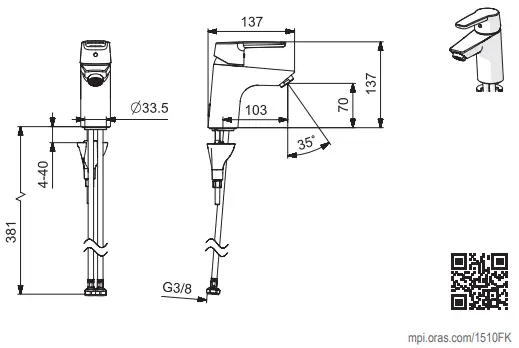

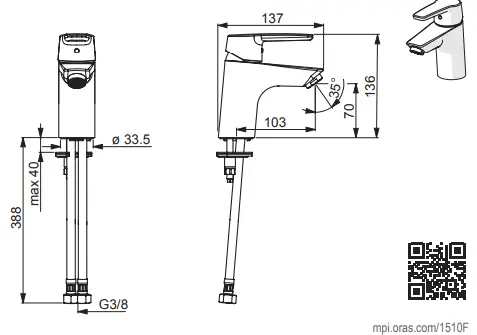

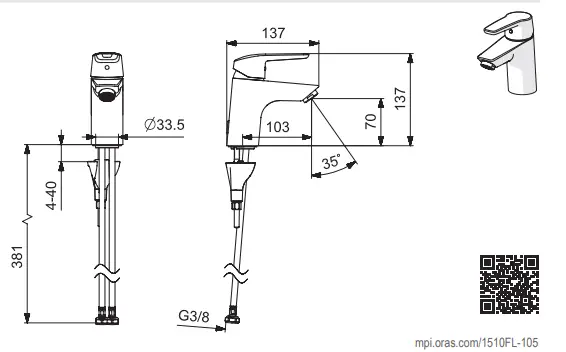

DIMENSIONS
1510F , 1510FK , 1510F-105
I (ISO 3822) Oras lab,
EN 817
50 – 1000 kPa
0.068 l/s (Eco)
0.05 l/s (Eco) 1510F-105
0.1 l/s (300 kPa w/Controller)
0.07 l/s (300 kPa w/Controller) 1510F-105 200 kPa (0.1 l/s)
max. +70°C
1511F
I (ISO 3822) Oras lab,
EN 817
50 – 1000 kPa
0.068 l/s (Eco)
0.1 l/s (300 kPa w/Controller) 200 kPa (0.1 l/s)
max. +70°C

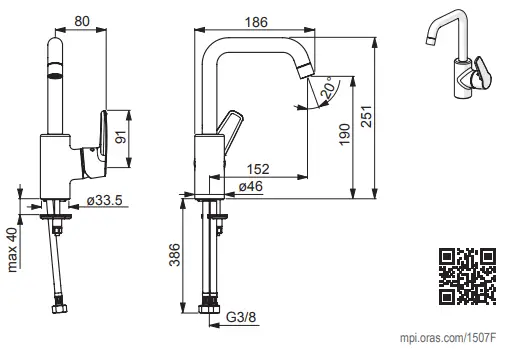

1507F
I (ISO 3822) Oras lab,
EN 817
50 – 1000 kPa
0.068 l/s (Eco)
0.1 l/s (300 kPa w/Controller) 200 kPa (0.1 l/s)
max. +70°C
1510FL-105
I (ISO 3822) Oras lab,
EN 817
50 – 1000 kPa
0.05 l/s (Eco)
0.07 l/s (300 kPa w/Controller) max. +70°C
1510FK
EN 817
50 – 1000 kPa
0.068 l/s (Eco)
0.1 l/s (300 kPa w/Controller) max. +70°C

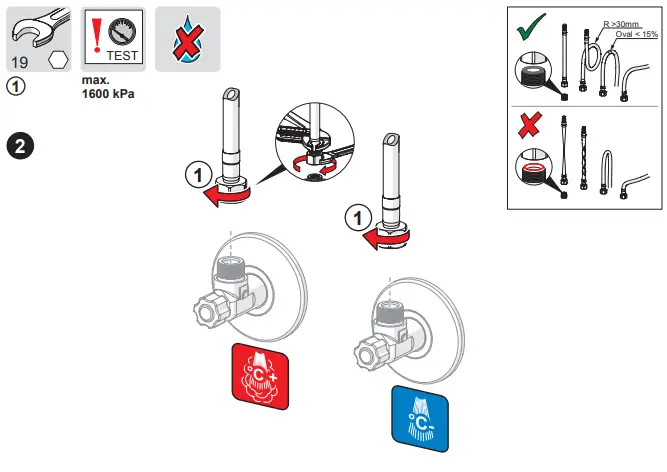

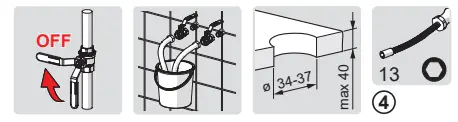

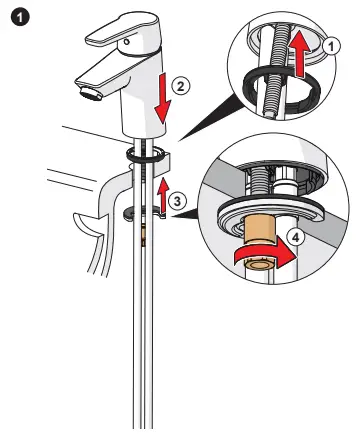

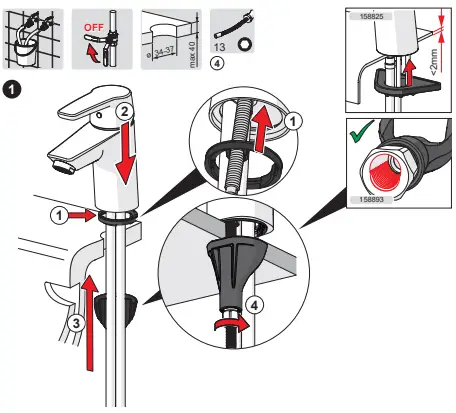

INSTALLATION

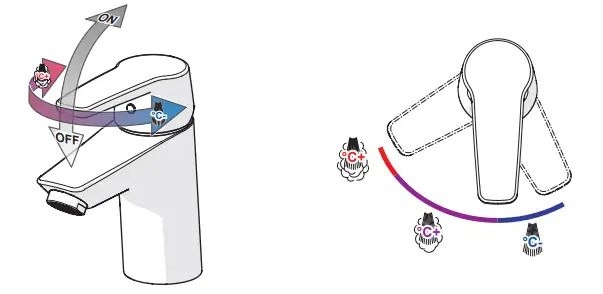

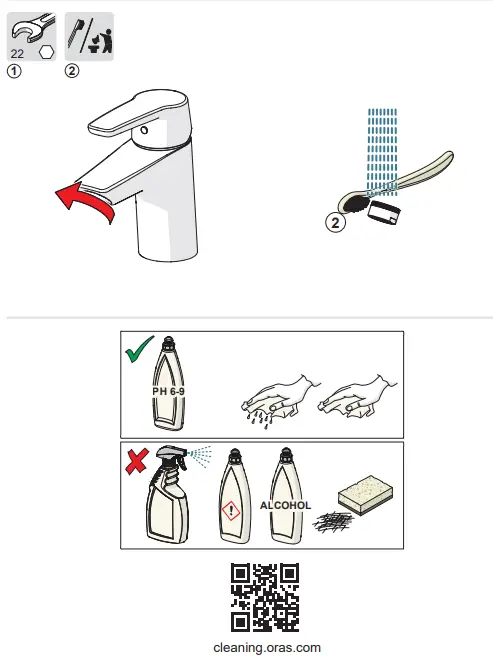

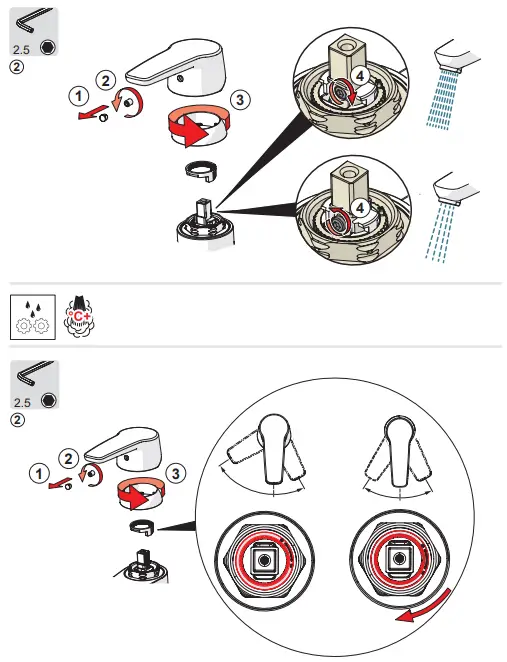

HOW TO USE
Oras Group is a powerful European provider of sanitary fittings: the market leader in the Nordics and a leading company in Continental Europe. The company’s mission is to make the use of water easy and sustainable and its vision is to become the European leader of advanced sanitary fittings. Oras Group has two strong brands: Oras and Hansa. The Group’s head office is located in Rauma, Finland, and the Group has three manufacturing sites: Kralovice (Czech Republic), Olesno (Poland) and Rauma (Finland). Oras Group employs approximately 1,200 people in twenty countries. Oras Group is owned by Oras Invest, a family company and an industrial owner.
