Installation and maintenance guide

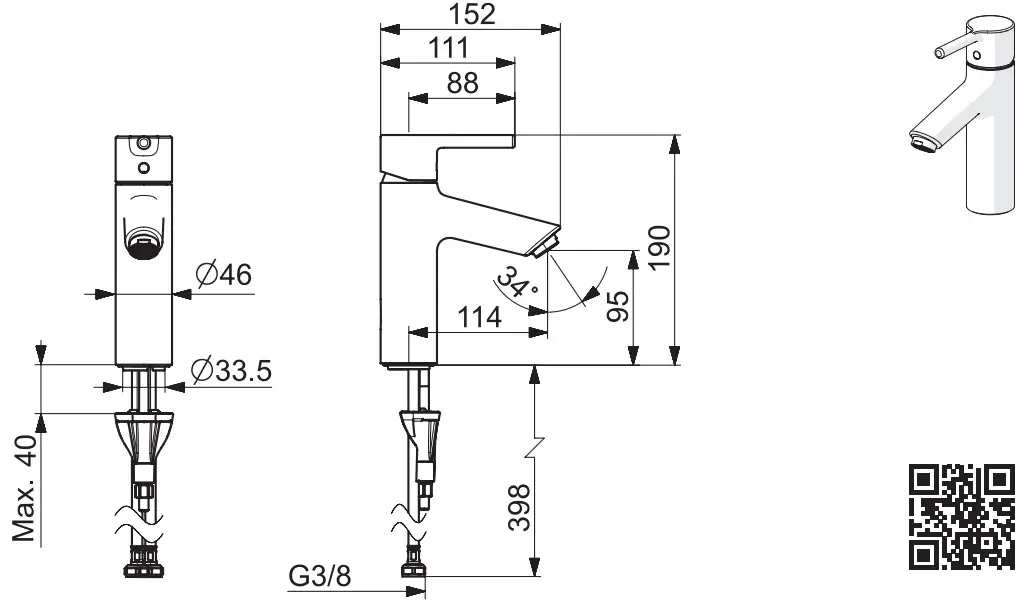

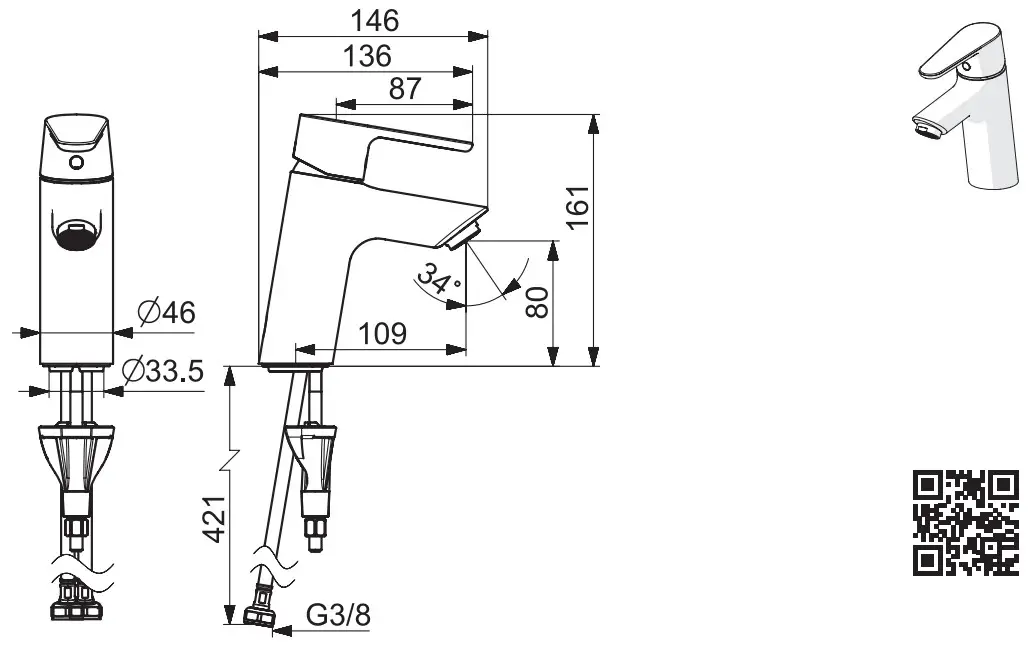

2605F Optima Sink faucet

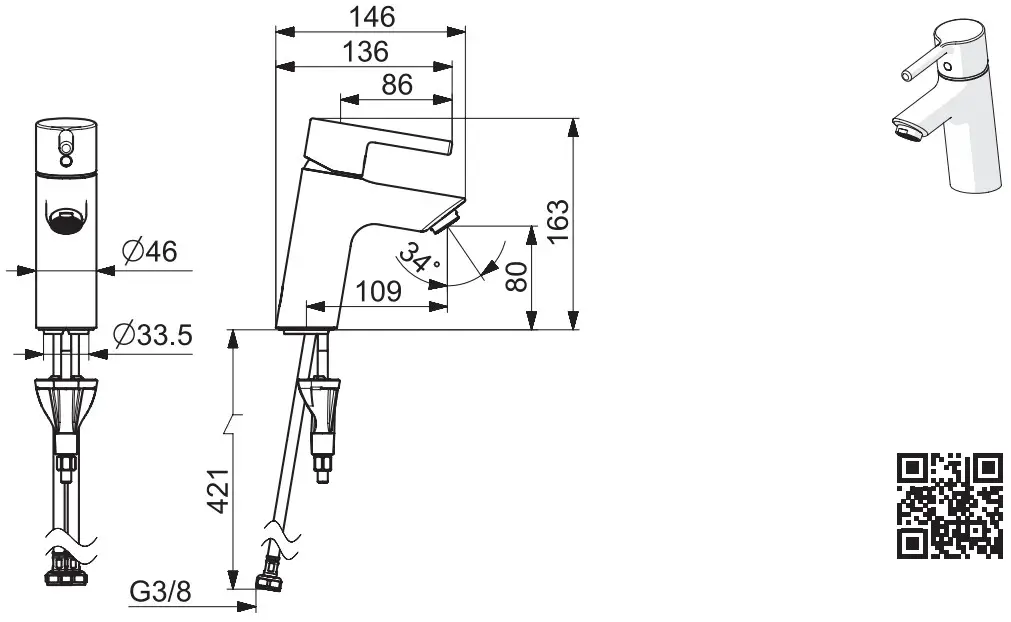

2605F
EN 817
50 – 1000 kPa
0.1 l/s (300 kPa w/Controller)
max. +70°C
2605AF
EN 817
50 – 1000 kPa
0.1 l/s (300 kPa w/Controller)
max. +70°C
2605FH
EN 817
50 – 1000 kPa
0.1 l/s (300 kPa w/Controller)
max. +70°C
2610F
EN 817
50 – 1000 kPa
0.1 l/s (300 kPa w/Controller)
max. +70°C
2610AF
EN 817
50 – 1000 kPa
0.1 l/s (300 kPa w/Controller)
max. +70°C
2606AF
EN 817
50 – 1000 kPa
0.1 l/s (300 kPa w/Controller)
max. +70°C
2601FH
I (ISO 3822)
EN 817
50 – 1000 kPa
0.1 l/s (300 kPa w/Controller)
150 kPa (0.1 l/s)
max. +70°C
2602FH
EN 817
50 – 1000 kPa
0.1 l/s (300 kPa w/Controller)
max. +70°C
mpi.oras.com/2602FH
2606FH
EN 817
50 – 1000 kPa
0.1 l/s (300 kPa w/Controller)
max. +70°C
2612F
I (ISO 3822)
EN 817
50 – 1000 kPa
0.1 l/s (300 kPa w/Controller)
150 kPa (0.1 l/s)
max. +70°C
2611AF
EN 817
50 – 1000 kPa
0.1 l/s (300 kPa w/Controller)
max. +70°C
2611FH
EN 817
50 – 1000 kPa
0.1 l/s (300 kPa w/Controller)
max. +70°C
mpi.oras.com/2611FH

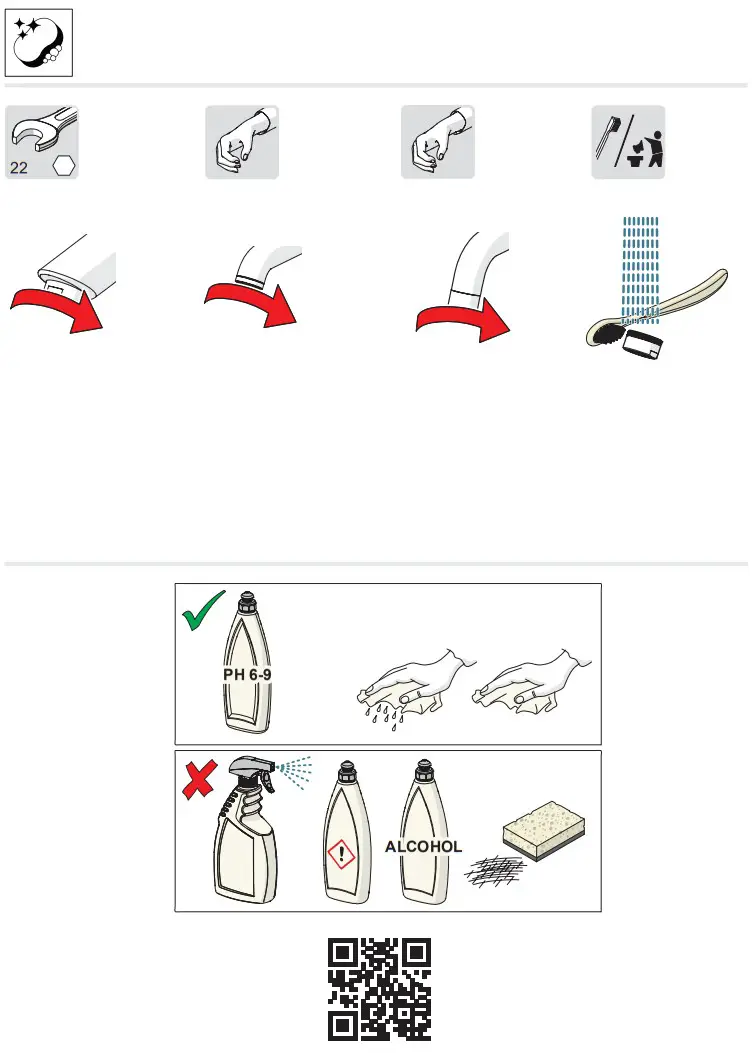

cleaning.oras.com
