GIMA Rex Trolley User Manual
INTRODUCTION
In accord with Regulation (EU) 2017/745, this product is part of the CLASS I MEDICAL DEVICES. You should carefully read this manual before using this medical device
DESCRIPTION

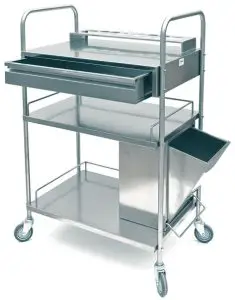

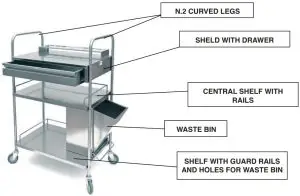

This product is a medication trolley for hospital use, entirely made of stainless steel with 3 shelves equipped with waste basket and bottle holder. Suitable for dressing in hospitals, clinics and doctor’s surgeries.
COMPONENTS

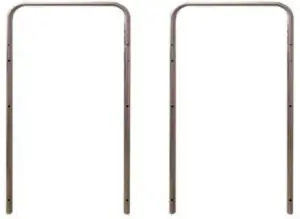

N.2 Curved legs |  |
N. 2 wheels Ø 100 mm without brakes |  |
| N. 2 wheels Ø 100 mm with brakes |  |

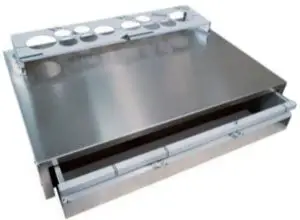

N.1 shelf with drawer and support for bottles |  |

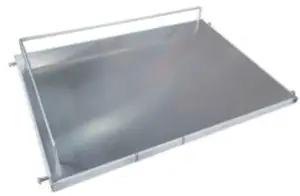

| N.1 central shelf with guard rails |  |

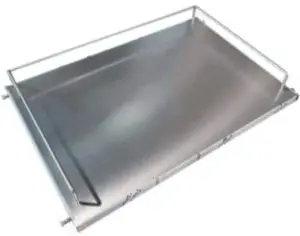

N.1 bottom shelf with guard rails and n.4 holes for waste bin |  |

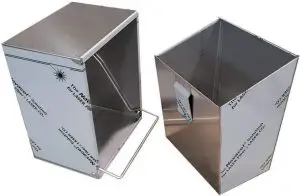

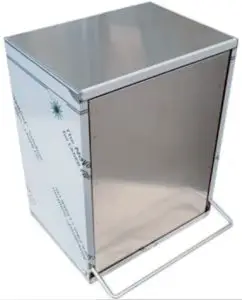

N.1 Waste bin |  |
ASSEMBLY MATERIAL

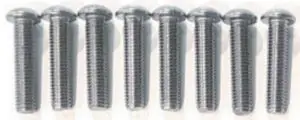

8 TBE 8X35 (shelf with drawer and support for bottles) |  |
| 8 washers M8 (shelf with drawer and support for bottles) |  |
4 TSPE 6X18 (for waste bin) |  |
| 4 nut M6 (for waste bin) |  |
4 washers M6 (for waste bin) |  |

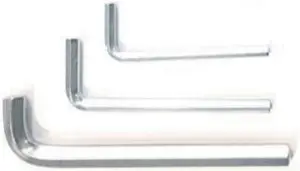

| 1 key M6M10 1 allen key ø 4 1 allen key ø 5 1 allen key ø 8 (for wheels) |  |
ASSEMBLY INSTRUCTION
Prepare a sufficiently large shelf to work on.

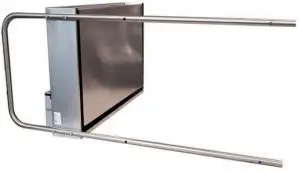

Take one leg and the upper shelf with drawer and place it on a work surface.

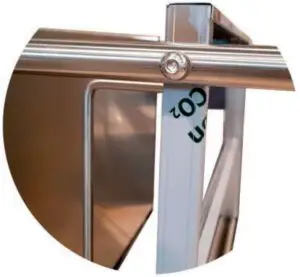

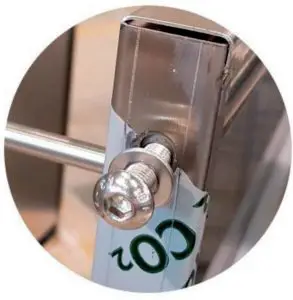

- Take a leg and put together a side of the shelf with n. 4 TBE 8×35 screws supplied.

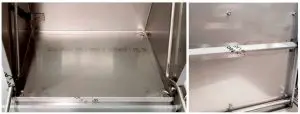

- Unscrew the screws that keep the central shelf to the beam.
- Restart to fix the central shelf to the leg.
- Unscrew the screws that keep the third shelf to the beam and restart to fix it to the leg.

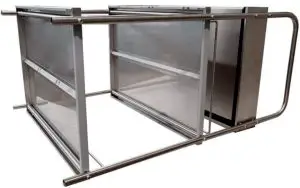

- One side is completed, proceed in the same way with the second leg
- By pressing the pedal lever, tilt the basket backwards and remove it.
- Insert n.4 TSPE 6×18 screws on the bottom of the shelf and keep relative washer and nut to fix the basket to the shelf.

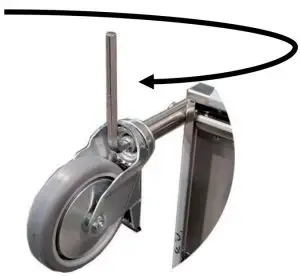

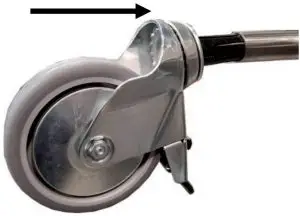

- Insert the wheels with brake (drawer side) and insert one by one into the leg tube terminal.
- Finally, take the Allen key and wrench and screw it in until finished.
TECHNICAL DATA
| Measurement | Maximum dimension cm 83 x 51,5 x 119,5 h Trash bin capacity 26 L external container: cm 33,3x25x43h internal container: cm 25x30x41 pedal: cm 33×8 Box cm 114 x 54 x 39 |
| Weight | 33 kg (with box 36,7 kg) |
| Max capacity | 15 kg/shelf |
WARNINGS!
- Fasten the screws with the allen key supplied.
- Check the locking nuts are tightened.
- Observe the maximum flow rates indicated in the data sheets.
- Avoid direct contact with open wounds.
- Not for use in open environments.
MAINTENANCE AND CLEANING
- Use only original spare parts.
- Periodically check all fixing points.
- To preserve at best, it is recommended to avoid prolonged exposure to sunlight, to contact and deposit in saline and very humid environments.
- Wash the stainless steel surfaces with soapy water and use appropriate disinfectants.
- Rinse with a damp cloth and dry thoroughly.
- Do not spill on the surface cleaners containing chlorine or ammonia, fatty and oily substances.
- Do not use cleaning utensils containing iron. If necessary disinfection only use suitable non-corrosive products.
 | Keep away from sunlight |  | Medical Device compliant with Regulation (EU) 2017/745 |  | Keep in a cool, dry place |
 | Product code |  | Consult instructions for use |  | Manufacturer |
| Caution: read instructions (warnings) carefully |  | Lot number |
| Medical Device |
GIMA WARRANTY TERMS
The Gima 12-month standard B2B warranty applies.
