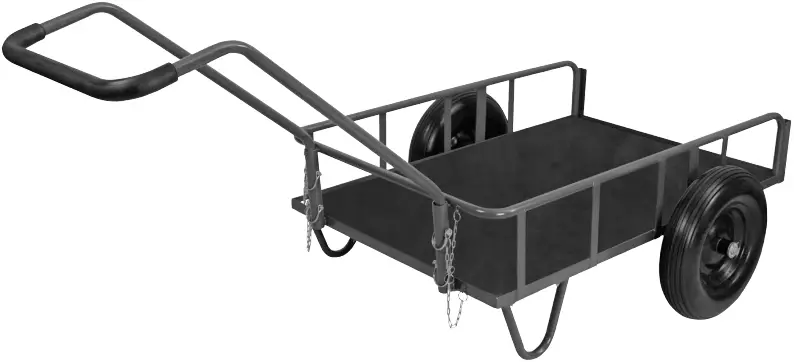

TRANSPORT TROLLEY
TRANSPORT TROLLEY
OPERATING INSTRUCTIONS
Jula AB reserves the right to make changes to the product. Jula AB claims copyright on this documentation. It is not allowed to modify or alter this documentation in any way and the manual shall be printed and used as it is in relation to the product. For the latest version of operating instructions, refer to the Jula website.
© JULA AB 2022-09-19
JULA AB
BOX 363, 532 24 SKARA, SWEDEN
1
SAFETY INSTRUCTIONS
Read the instructions carefully before use!
SYMBOLS
| Read the instructions. |
TECHNICAL DATA
| Max. load | 200 kg |
| Hole diameter | 20 mm |
| Tyre size | 4.300-8″ |
| Load surface | 115×74 cm |
| Wheel size | 16″ |
| Hub depth | 99 mm |
| Dimensions | L 195 x W 102.5 x H 75 cm |
| Weight | 28 kg |

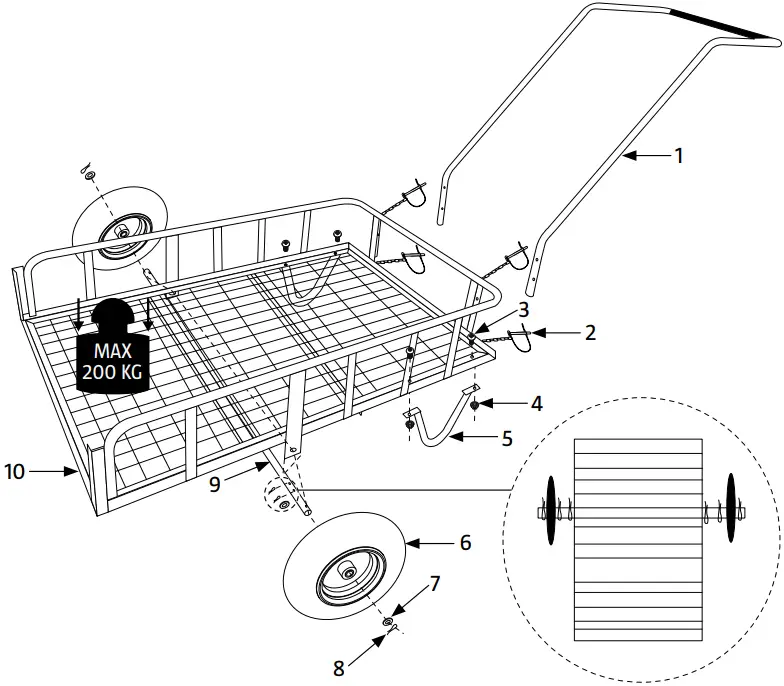

PARTS LIST
| Part no. | Description | Qty |
| 1 | Handle | 1 |
| 2 | Lock pin | 4 |
| 3 | Screw M8 | 4 |
| 4 | Nut M8 | 4 |
| 5 | Leg | 2 |
| 6 | Wheel | 2 |
| 7 | Washer | 4 |
| 8 | Cotter pin | 6 |
| 9 | Axle | 1 |
| 10 | Frame | 1 |

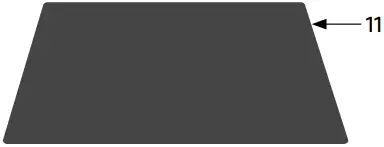

| 11 | Non-slip mat | 1 |
MOUNTING
FIG. 1
