Elevate Your Sensing Control Options

Occupancy/Vacancy Sensing | Dimming or Switching Control | Partial-ON and Partial-OFF

Commercial Devices Required in Non-Residential Applications

Ensure high quality installations and reduce callbacks by using the right sensors in the right applications.
Install commercial grade sensors in commercialm applications

Non-residential energy code compliance for IECC, ASHRAE 90.1, and 2019 Title 24, Part 6
Occupancy (auto-ON/auto-OFF) and vacancy (manual-ON/auto-OFF) operation
Timeouts for auto-OFF requirements

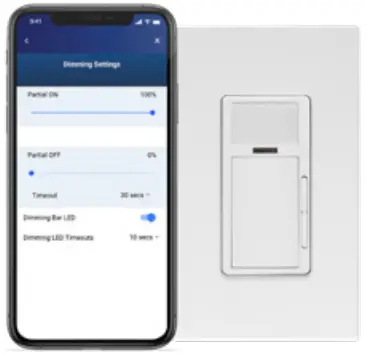

Partial-ON, partial-OFF (dimming models only)
Daylighting hold-OFF
Receptacle control
Higher input voltage and ratings to meet commercial requirements
Antimicrobial models support cleaning protocols in commercial spaces

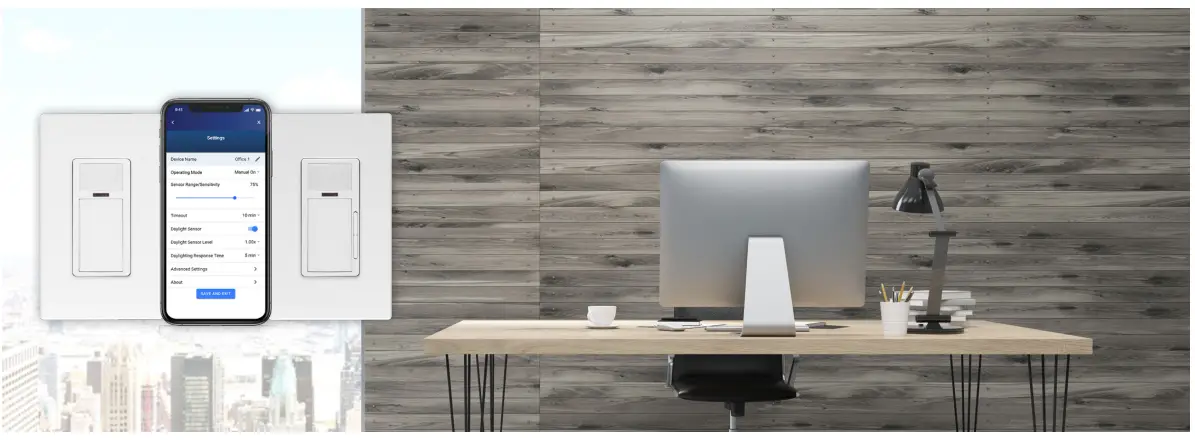

Smart Wallbox Sensors provide a simple sensing and dimming or switching control solution for energy savings, local control, and code compliance. Packed with features and a variety of configuration options, Smart Wallbox Sensors make it easy to meet the unique lighting control needs of multiple commercial applications with just a few models. Commercial grade features include partial-ON, partial-OFF, daylighting hold-OFF, and receptacle control.

Target Applications

Spaces less than 1,100 SF
Offices
Meeting rooms
Lobbies

Key Benefits

	Distributors	Contractors	Specifiers
Key Benefits	More standard features Fewer SKUs to meet multiple applications	Commercial grade quality Easy setup and customer handoff	Meets national and local energy codes Easy to specify

Smart Wallbox Sensors Cross Reference

Leviton	Legrand/ WattStopper	Lutron	Sensor witch/ Acuity	Hubbell

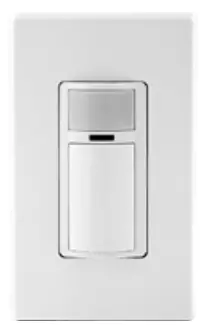

ODD10-IDx	PW311	MS-Z101	WSX D	LightHawk LHDMIRS
ODD24-IDW	–	–	–	LightHawk LHDMIRS
ODP10-I1x	PW-101D	MS- CL-OP153M	–	–
ODS15- ODS15-GDx	IDxPW301	OPS6M2U-DV	WSX	LightHawk LHDMIRS

	Commercial Grade				Residential Grade
	ODD10-IDx	ODD24-IDW	ODP10-I1x	ODS15-IDx/ ODS15-GDx/ ODS15-I1x	DOS02/DVS02	DOS05/DVS05

Input Voltage	120-277 VAC, 50/60Hz	12-24 VDC	120 VAC, 60Hz	120-277 VAC, 50/60Hz (ODS15-IDx, ODS15-GDx) 120 VAC, 60Hz (ODS15-I1x)	120 V
Ratings	0-10V Dimming; General Purpose: 10A LED: 8A	0-10V Dimming; Requires use of Power Pack for switching loads, ratings based on Power Pack	Phase Cut Dimming LED, CFL, Electronic Ballast: 1000W	ON/OFF Switching General Purpose: 20A LED: 10A	150W LED 250W Inc	300W LED 600W Inc 1/4 HP
Coverage + FOV	1,100 sq ft, 180° field-of-view				900 sq ft, 180° field-of-view
Applications	Non-residential and commercial spaces up to 1,100 sq ft including offices, meeting rooms, lobbies				Residential spaces including bedrooms, bathrooms, laundry rooms, closets, pantry, mud rooms	Residential spaces including bathrooms, garages, basements, stairways, motor loads, hallways, larger rooms
Energy Codes	IECC, ASHRAE 90.1, and 2019 Title 24, Part 6 occupancy/vacancy sensing and dimming requirements				2019 Title 24, Part 6 vacancy control device requirements
Timeouts	30 sec to 60 min, Partial-OFF (30s-Always ON)			30 sec to 60 min	1 min to 20 min
Sensitivity	25% to 100%				50%, 75%, 100%

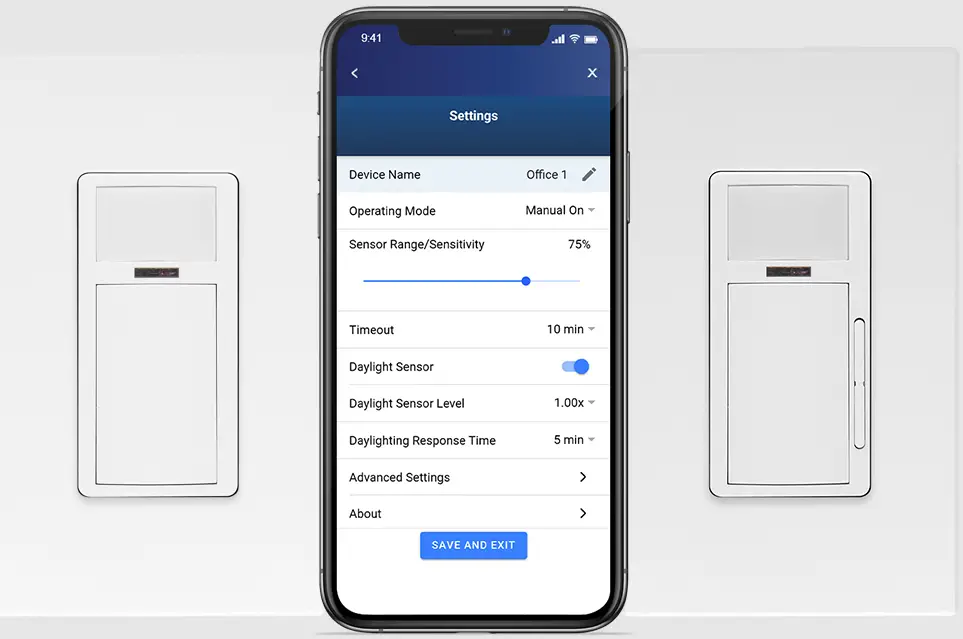

App-configurable	Yes				–
Partial-ON, Partial-OFF	Yes			–	–
Daylighting Hold-OFF	Yes, enable w/App				Yes (occupancy only)
Receptacle Control	Yes w/Power Pack and Controlled Receptacles				–
Multi-Way	Yes, up to 5 devices				Yes, up to 3 devices
Antimicrobial	Yes	–	–	Yes	–

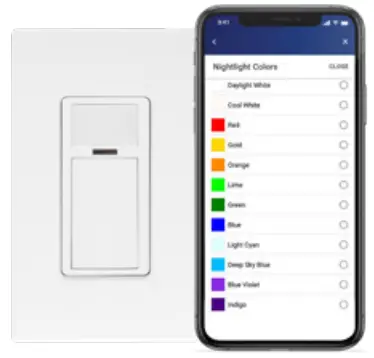

Nightlight	Yes w/Selectable Colors, enable w/App				–
Security Password Protected	Yes, enable w/App				–
Pushbutton Configuration	Yes w/8 Common Room Settings				Yes
Integrated Photocell	Yes				Yes (occupancy only)
Default Mode	Yes				Yes
Tamper-Resistant PIR Lens	Yes				Yes
Selectable Operating Modes	Yes				Yes
