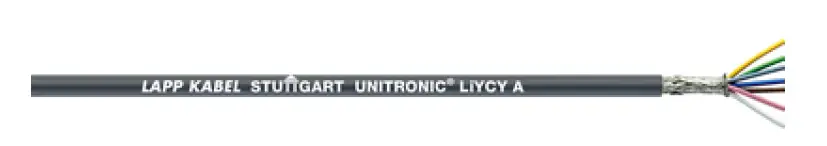

LAPP 0044602 Screened Data Transmission Cable
Product Make-up
Multi-wire strand made of tinned copper wires Core insulation made of PVC Tinned-copper braiding
Outer sheath made of special PVC compound Outer sheath colour: Dark grey
Technical Data
- Classification ETIM 5: ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
- Classification ETIM 6: ETIM 6.0 Class-ID: EC000104
- ETIM 6.0 Class-Description: Control cable
- Core identification code: DIN 47100 without colour repetition, refer to Appendix T9
- Conductor stranding: AWG conductor sizes, 7 or 19 wires
- Minimum bending radius: Occasional flexing: 15 x outer diameter
- Fixed installation: 6 x outer diameter
- Nominal voltage: UL/CSA: 300 V
- Test voltage: 1500 V
- Temperature range: Occasional flexing: -5°C up to +70°C (UL: +80 °C)
- Fixed installation (IEC): -40°C bis +80°C
- UL: max. +80°C
Note
Unless specified otherwise, the shown product values are nominal values. Detailed values (e.g. tolerances) are available upon request.
Copper price basis: EUR 150/100 kg. Refer to catalogue appendix T17 for the definition and calculation of copper-related surcharges.
Please find our standard lengths at: www.lappkabel.de/en/cable-standard lengths
Packaging size: Coil 152 m; Drum 305 m
Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Prices are net prices without VAT and surcharges. Sale to business customers only.
SPECIFICATION
| Article number | Number of cores and AWG per conductor | Outer diameter [mm] | Copper index [kg/km] | Weight [kg/km] |
| UNITRONIC® LiYCY A | ||||
| 0044602 | 2 x AWG26/7 | 4.3 | 15.6 | 25 |
| 0044604 | 4 x AWG26/7 | 4.7 | 18 | 30 |
| 0044652 | 2 x AWG24/7 | 4.7 | 17.6 | 29 |
| 0044655 | 5 x AWG24/7 | 5.5 | 28.5 | 44 |
| 0044658 | 8 x AWG24/7 | 6.4 | 31.1 | 61 |
| 0044662 | 12 x AWG24/7 | 7.3 | 51.8 | 96 |
| 0044702 | 2 x AWG22/7 | 5.5 | 17.6 | 44 |
| 0044703 | 3 x AWG22/7 | 5.7 | 21.2 | 49 |
| 0044704 | 4 x AWG22/7 | 6.1 | 27.3 | 59 |
| 0044705 | 5 x AWG22/7 | 6.6 | 30.8 | 63 |
| 0044707 | 7 x AWG22/7 | 7.1 | 46.4 | 87 |
| 0044712 | 12 x AWG22/7 | 8.9 | 66.8 | 120 |
| 0044716 | 16 x AWG22/7 | 9.8 | 83.9 | 145 |
| 0044721 | 21 x AWG22/7 | 11.3 | 109.4 | 204 |
| 0044732 | 2 x AWG20/7 | 6 | 24.4 | 41 |
| 0044733 | 3 x AWG20/7 | 6.3 | 29.9 | 47 |
| 0044735 | 5 x AWG20/7 | 7.3 | 49.2 | 91 |
| 0044738 | 8 x AWG20/7 | 9.1 | 70.8 | 102 |
| 0044746 | 2 x AWG19/19 | 6.3 | 27.9 | 66 |
| 0044850 | 7 x AWG18/19 | 8.9 | 93.2 | 160.8 |
| 0044851 | 10 x AWG18/19 | 11.5 | 130.9 | 200 |
Last Update (06.12.2021)
©2021 Lapp Group – Technical changes reserved
Product Management www.lappkabel.de
You can find the current technical data in the corresponding data sheet. PN 0456 / 02_03.16
