LAPP 0035810 Unitronic Liycy Signal and Control Cable
Screened data transmission cable with colour code acc. to DIN 47100 and twisted pairs

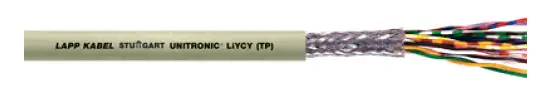

UNITRONIC® LiYCY (TP): Low-frequency PVC data cable, DIN 47100 coded, 0.34² Maxi TERMI-POINT®, Twisted pairs,Flame retardant, Screened, Instrumentation Control
PRODUCT INFORMATION
Info
TP = twisted pair
Further dimensions/colours on request
CPR: Article number choice under www.lappkabel.com/cpr
Interference signals
Benefits
Decoupling of circuits by means of twisted-pair (TP) design (crosstalk effects)
Overall braid minimises electrical interference
Application range
Can be used multifunctional in electronics of computer systems, electronic control equipment, office machines, balances, etc.
Dry or damp rooms
Product features
Good protection against capacitive interference from electric fields (e.g. power cable)
Flame-retardant according IEC 60332-1-2
Norm references / Approvals
Based on VDE 0812
Product Make-up
Fine-wire strand made of bare copper wires
Core insulation made of PVC
TP structure
Tinned-copper braiding
Outer sheath made of PVC
Outer sheath colour: grey (similar to pebble grey/ RAL 7032)
Technical Data
- Classification ETIM 5: ETIM 5.0 Class-ID: EC000104
ETIM 5.0 Class-Description: Control cable - Classification ETIM 6: ETIM 6.0 Class-ID: EC000104
ETIM 6.0 Class-Description: Control cable - Core identification code: DIN 47100, refer to Appendix T9
- Mutual capacitance: C/C: approx. 120 nF/km
C/S: approx. 160 nF/km - Inductivity: approx. 0.65 mH/km
- Conductor stranding: Fine copper wire strands
- Minimum bending radius: Occasional flexing: 15 x outer diameter
Fixed installation: 6 x outer diameter - Temperature range: Occasional flexing: -5°C to +70°C
- Fixed installation: -40°C to +80°C
Note
Unless specified otherwise, the shown product values are nominal values. Detailed values (e.g. tolerances) are available upon request.
Copper price basis: EUR 150/100 kg. Refer to catalogue appendix T17 for the definition and calculation of copper-related surcharges.
Please find our standard lengths at: www.lappkabel.de/en/cable-standardlengths
Packaging size: coil ≤ 30 kg or ≤ 250 m, otherwise drum
Please specify the preferred type of packaging (e.g. 1 x 500 m drum or 5 x 100 m coils).
Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Prices are net prices without VAT and surcharges. Sale to business customers only.
UNITRONIC® LiYCY (TP)
| Article number | Dimension and cross section in mm2 | Outer diameter [mm] | Copper index [kg/km] | Weight [kg/km] |
| UNITRONIC® LiYCY (TP) | ||||
| 0035131 | 2 x 2 x 0.14 | 5.3 | 18.5 | 39 |
| 0035141 | 3 x 2 x 0.14 | 5.8 | 23 | 48 |
| 0035132 | 4 x 2 x 0.14 | 6.2 | 26.6 | 54 |
| 0035133 | 6 x 2 x 0.14 | 7.1 | 48.5 | 85 |
| 0035150 | 8 x 2 x 0.14 | 8.2 | 53.7 | 97 |
| 0035134 | 10 x 2 x 0.14 | 8.7 | 59 | 110 |
| 0035135 | 12 x 2 x 0.14 | 8.9 | 66 | 142 |
| 0035136 | 16 x 2 x 0.14 | 10.2 | 79 | 154 |
| 0035142 | 20 x 2 x 0.14 | 11.3 | 97 | 184 |
| 0035137 | 25 x 2 x 0.14 | 12.5 | 113 | 238 |
| 0035800 | 2 x 2 x 0.25 | 6.3 | 28 | 54 |
| 0035801 | 3 x 2 x 0.25 | 7.1 | 39.6 | 68.5 |
| 0035802 | 4 x 2 x 0.25 | 7.6 | 44.9 | 81 |
| 0035803 | 6 x 2 x 0.25 | 8.5 | 69.5 | 115 |
| 0035804 | 8 x 2 x 0.25 | 10.3 | 76.9 | 130 |
| 0035805 | 10 x 2 x 0.25 | 11 | 102 | 158 |
| 0035806 | 12 x 2 x 0.25 | 11.3 | 120 | 190 |
| 0035807 | 16 x 2 x 0.25 | 12.5 | 146.5 | 238 |
| 0035808 | 25 x 2 x 0.25 | 16.1 | 205 | 344 |
| 0035810 | 2 x 2 x 0.5 | 7.9 | 48.1 | 93 |
| 0035811 | 3 x 2 x 0.5 | 8.7 | 73.7 | 116 |
| 0035812 | 4 x 2 x 0.5 | 9.4 | 82 | 127 |
| 0035813 | 6 x 2 x 0.5 | 11.1 | 110 | 198 |
| 0035814 | 8 x 2 x 0.5 | 13.1 | 139 | 259 |
| 0035816 | 12 x 2 x 0.5 | 14.9 | 198.3 | 354 |
| 0035817 | 16 x 2 x 0.5 | 16.5 | 240 | 459 |
| 0035820 | 2 x 2 x 0.75 | 8.5 | 58 | 106 |
| 0035821 | 3 x 2 x 0.75 | 9.4 | 84 | 140 |
| 0035822 | 4 x 2 x 0.75 | 10.7 | 108 | 179 |
| 0035827 | 5 x 2 x 0.75 | 11.1 | 126 | 215 |
| 0035823 | 6 x 2 x 0.75 | 12.1 | 146 | 246 |
| 0035824 | 8 x 2 x 0.75 | 14.7 | 180 | 305 |
| 0035825 | 12 x 2 x 0.75 | 16.2 | 261 | 456 |
| Copper index [kg/km] | 84 | 96 | 121 | 161 |
| Outer diameter [mm] | 9 | 10 | 11.3 | 11.8 |
| Dimension and cross section in mm2 | 2 x 2 x 1.0 | 3 x 2 x 1.0 | 4 x 2 x 1.0 | 5 x 2 x 1.0 |
| Article number | 0035830 | 0035831 | 0035832 | 0035836 |
Last Update (05.05.2021) ©2021 Lapp Group – Technical changes reserved
Product Management www.lappkabel.de
You can find the current technical data in the corresponding data sheet.
PN 0456 / 02_03.16
CPR declaration of performance
