TRIPP LITE P580-010 DisplayPort Cable
Product Information

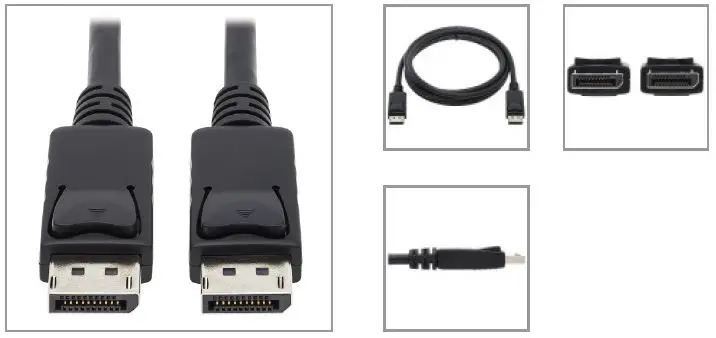

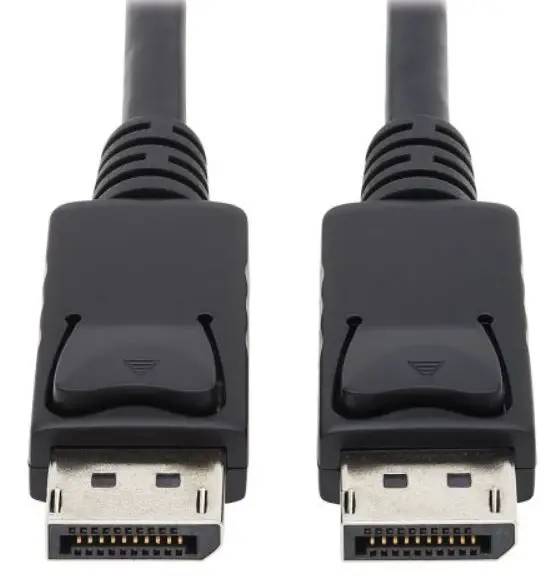

The DisplayPort Cable with Latching Connectors is a high-quality digital video and audio cable that supports Ultra High Definition (UHD) 4K x 2K video resolutions up to 3840 x 2160 @ 60Hz, including 1080p. It is the future standard for digital video and audio connections and supports Displayport v1.2, High Definition Content Protection (HDCP), and bidirectional signal transmission.
The cable comes with latching connectors that ensure a secure connection and prevent accidental disconnections. It has a small footprint compared to VGA or DVI cables and supports both video and audio in one cable. The cable’s outer jacket is made of PVC material and has a VW-1 rating. It is 10 feet (3.05 meters) long and has a minimum bend radius of 60mm.
The DisplayPort Cable with Latching Connectors is RoHS, REACH,and WEEE compliant and comes with a lifetime limited warranty.
Product Usage Instructions
- Connect one end of the DisplayPort Cable to your computer’s DisplayPort output port.
- Connect the other end of the DisplayPort Cable to your display device’s DisplayPort input port.
- Ensure that you have a secure connection by pressing the latches on the connectors until they click into place.
- Power on your computer and display device.
- Select the DisplayPort input on your display device.
- Your computer’s video and audio output should now be displayed on your display device.
Note: If you encounter any issues with the connection or display quality, ensure that your computer’s graphics card supports the desired resolution and refresh rate and that you have the latest graphics driver installed.
MODEL NUMBER: P580-010
Package Includes
- DisplayPort to DisplayPort Cable 4K with Latches (M/M),10 ft.
Highlights
- Digital Video and Audio in one cable
- Small footprint compared to VGA or DVI
- Supports Ultra High Definition (UHD) 4K x 2K video resolutions up to 3840 x 2160 @ 60Hz, including 1080p
Features
- The future standard for Digital Video and Audio connections
- Supports Displayport v1.2
- The future standard for Digital Video and Audio connections
- Supports Displayport v1.2
Specifications
| OVERVIEW | |
| UPC Code | 037332145956 |
| Technology | DisplayPort |
| Cable Type | Passive |
| VIDEO | |
| Max Supported Video Resolution | 3840 x 2160 @ 60Hz |
| Max Supported Color Depth | 24-bit True Color |
| HDR Support | No |
| 3D Video Supported | Yes |
| Chroma Sub Sampling | 4:2:0; 4:2:2 |
| Signal Transmission | Bidirectional |
| PHYSICAL | |
| Color | Black |
| Cable Jacket Color | Black |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | VW-1 |
| Cable Outer Diameter (OD) | 6.0 mm |
| Wire Gauge (AWG) | 30 |
| Cable Length (ft.) | 10 |
| Cable Length (m) | 3.05 |
| Ferrite Core | No |
| Minimum Bend Radius | 60mm |
| Shipping Dimensions (hwd / in.) | 9.00 x 7.00 x 0.50 |
| Shipping Dimensions (hwd / cm) | 22.86 x 17.78 x 1.27 |
| Shipping Weight (lbs.) | 0.35 |
| Shipping Weight (kg) | 0.16 |
| ENVIRONMENTAL | |
| Operating Temperature Range | 32 to 113 F (0 to 45 C) |
| Storage Temperature Range | -40 to 158 F (-40 to 70 C) |
| Operating Humidity Range | 10% to 85% RH, Non-Condensing |
| Storage Humidity Range | 5% to 90% RH, Non-Condensing |
| COMMUNICATIONS | |
| EDID Compatible | Yes |
| Consumer Electronics Control (CEC) Supported | No |
| CONNECTIONS | |
| Side A – Connector 1 | DISPLAYPORT (MALE) |
| Side B – Connector 1 | DISPLAYPORT (MALE) |
| Connector Plating | Nickel |
| Contact Plating | Gold |
| Connector Style | Straight |
| Latching or Gripping Connector | Yes |
| FEATURES & SPECIFICATIONS | |
| EMI/RFI Line Noise Protection | No |
| MST Support | Yes |
| Antibacterial | No |
| IP68 Rated | No |
| Armored Cable | No |
| Ethernet Support | No |
| Displayport Specification | 1.2 |
| HDCP Specification | 2.2 |
| STANDARDS & COMPLIANCE | |
| Product Compliance | RoHS; REACH; WEEE |
| WARRANTY & SUPPORT | |
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
