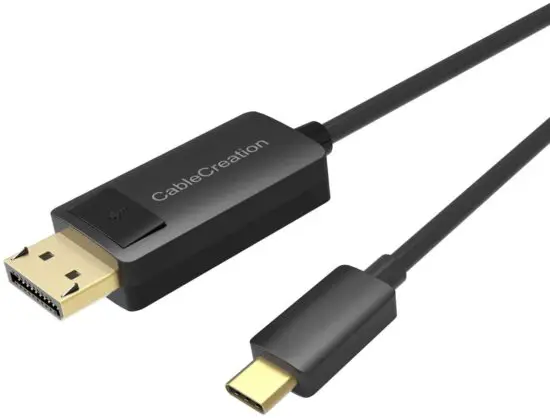

CD0749 USB-C to DisplayPort Cable
User Manual
DEAR CUSTOMER
Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or using this product. Please keep this manual for future reference.
INTRODUCTION
This is a USB-C male to DisplayPort Male adapter with 6ft cable which allows you to transmit signals from your Type-C host (PC,tablet, mobile phone) to a DisplayPort display. Besides, there is no need for you to connect the source display to the sink display with a DisplayPort cable as it is equipped with 6ft cable. With this product, you can watch videos or slideshows together on the big screen. It can work on all DP Alt mode supported Type-C or Thunderbolt Host.
FEATURES
Upstream:
- Type-C Malex1(Connect to host)
- Support DP1.2 Alt mode
Downstream:
- DisplayPort Malex1
- Support DisplayPort1.2 with max 4K/60Hz resolution
- Support RGB/YCbCr 4:4:4/ YCbCr 4:2:2/ YCbCr 4:2:0 Support Deep Color format: 6bit，8bit，10bit
- HDR bypass
- HDCP bypass
- Max Distance: 6ft
SPECIFICATIONS
| Input/Output Connector | |
| Input | Type-C Male x1 |
| Output | DisplayPort Male x1 |
| Resolution | |
| Resolution | Max 4K@60Hz |
| Power | |
| Standby Power Consumption | 10mW |
| Working Consumption | Voltage: 4.75-5.25V |
| Current: 100mA-300mA | |
| Warranty | |
| Limited Warranty | 1 Year |
| Environmental | |
| Operating Temperature | OC to +45•C’ |
| Operating Humidity | 10% to 90 % RH (no condensation) |
| Storage Temperature | -10t: to +70t |
| Storage Humidity | 100/0 to 90 % RH (no condensation) |
| Power Supply | |
| Power Source | Bus Power |
| Warranty | |
| Limited Warranty | 1 Year |
| Regulatory Approvals | |
| Certifications | FCC, CE |
PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:
- Main unit x1
- User Manual x1

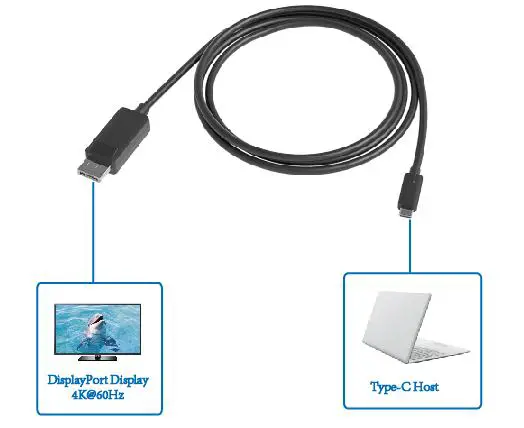

CONNECTION DIAGRAM
