Harley-Davidson Audio 50S
MOTORCYCLE BLUETOOTH®
COMMUNICATION SYSTEM WITH MESH INTERCOM™
QUICK START GUIDE
RIDE CONNECTED
The Harley-Davidson Audio 50S takes a trusted design and makes major upgrades in both hardware and software. With Mesh Intercom™ technology, it’s time for an all-new experience of riding connected.
 | Bluetooth® 5.0 |
 | Multi-Way Intercom |
 | Mesh Intercom™ up to 2 km (1.2 mi)* |
 | Intercom up to 2 km (1.2 mi)* |
 | Audio Multitasking™ |
 | • Multi-Language Voice Command • Support Siri and Google Assistant |
 | Fast Charging |
GETTING STARTED
Icon Legend
Tap button/Jog Dial the specified number of times
Press and Hold button/Jog Dial for the specified amount of time
Rotate Jog Dial clockwise (right) or counterclockwise (left).
Rotate while Pressing Jog Dial clockwise (right) or counterclockwise (left).
“Hello” Audible prompt

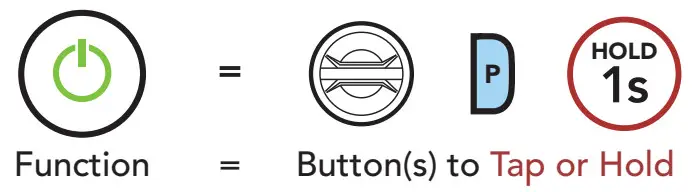

How to Use This Guide
The legend and callouts are here to help you read the illustrations.
New technology can be confusing, but we’ve created a simple way to perform actions using illustrations.

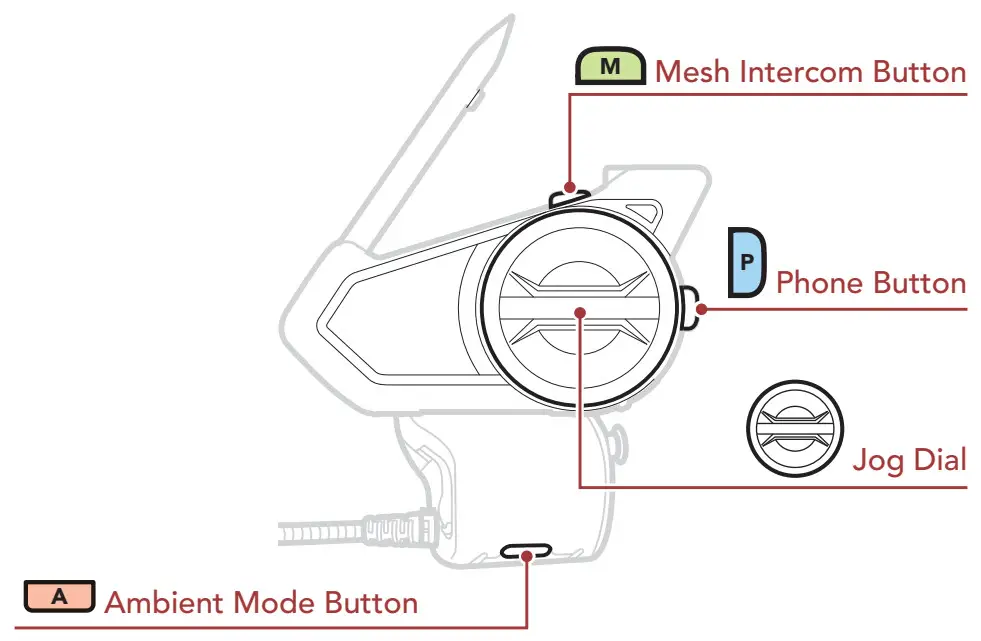

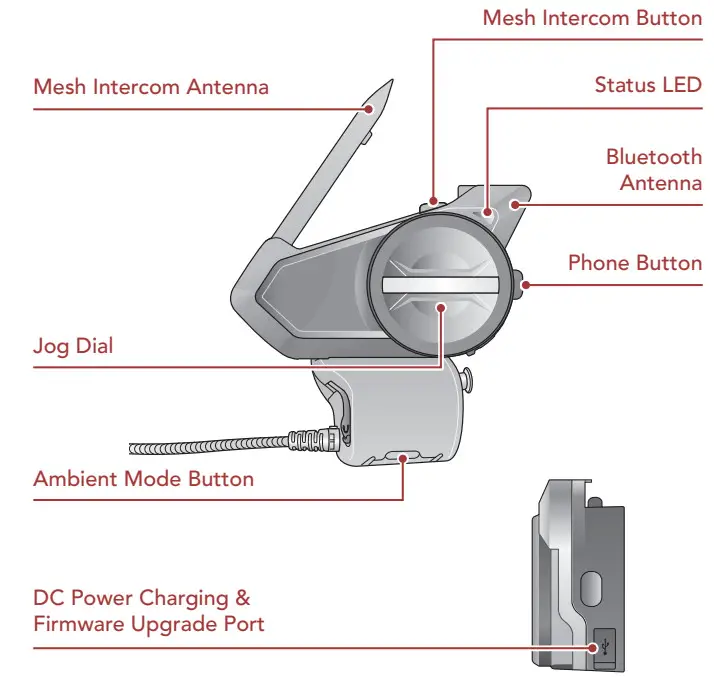

Buttons
QUICK START GUIDE
Product Details

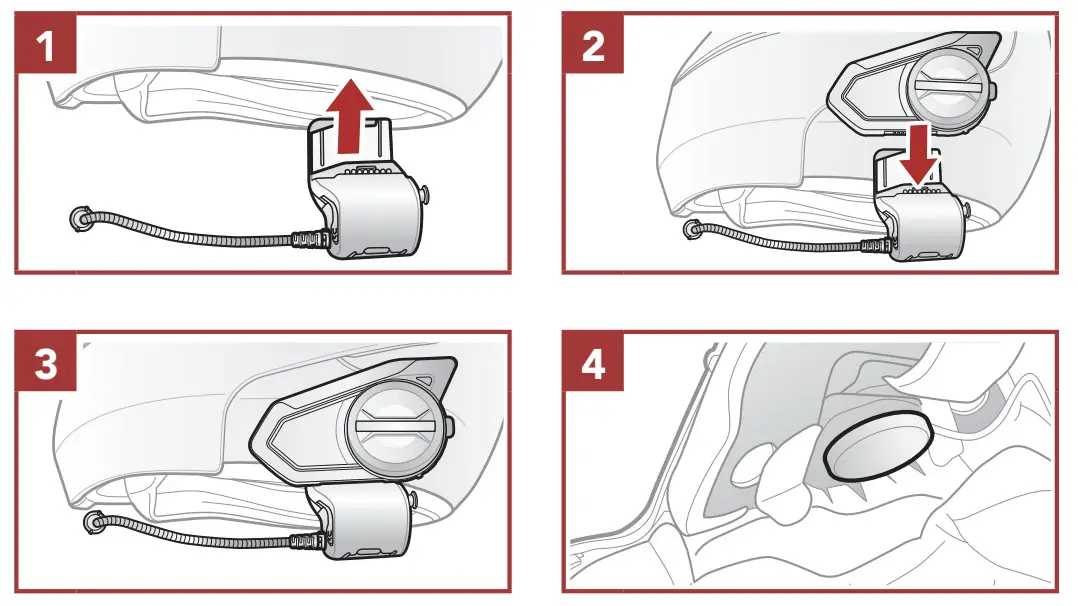

Installation

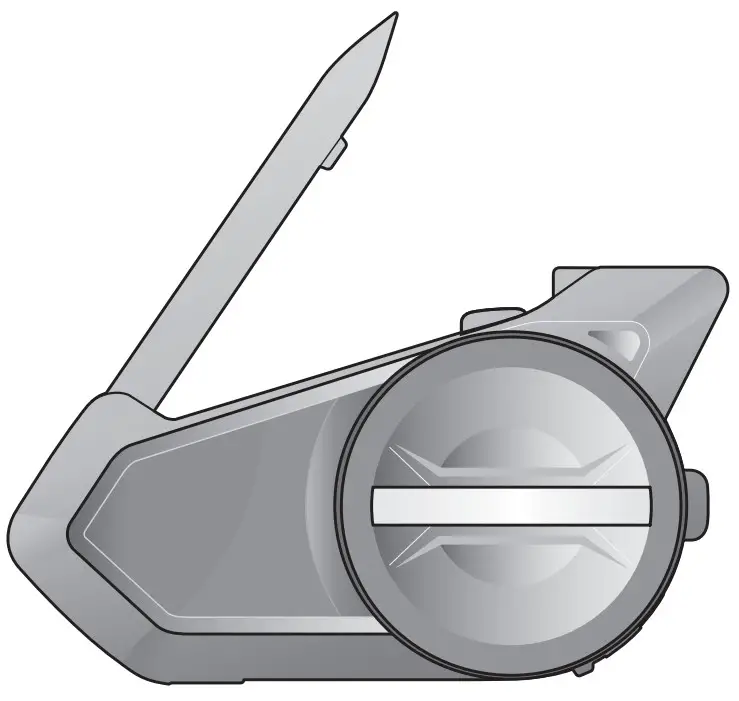

Mesh Intercom Antenna
Pull the Mesh Intercom Antenna outwards slightly to unfold it.
Downloadable Software
Download the SENA MOTORCYCLES App at Google Play Store or App Store.
SENA MOTORCYCLES
- Device configuration setting
Download the following items at www.H-D.com/infotainment-support.
Boom Audio Bluetooth Device Manager
- Firmware download and upgrade
- Device configuration setting
Quick Start Guide, User’s Guide
NOTICE
- This Quick Start Guide (Version 2.0) explains how to operate the Harley-Davidson Audio 50S with firmware version 2.0 or higher.
- For the operation of the Harley-Davidson Audio 50S with a firmware version lower than 2.0, refer to the Harley-Davidson Audio 50S Quick Start Guide (Version 1.1.0).

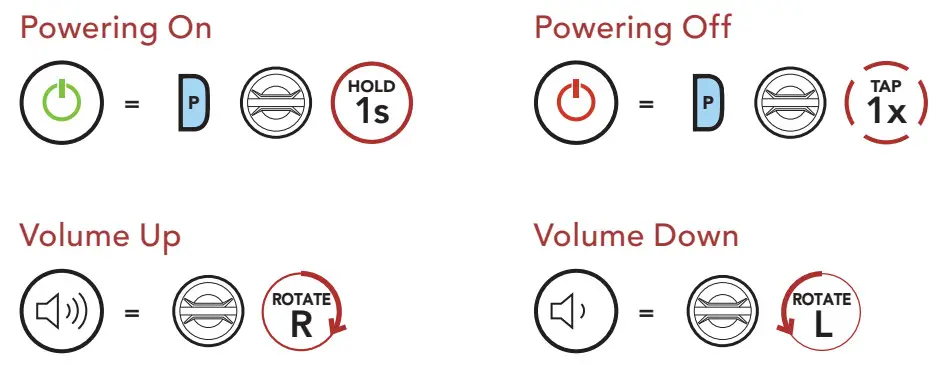

Basic Operations
Checking the Battery Level
Instructions are for when powering the headset on.

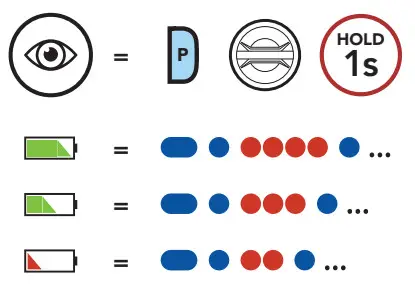

Visual Method

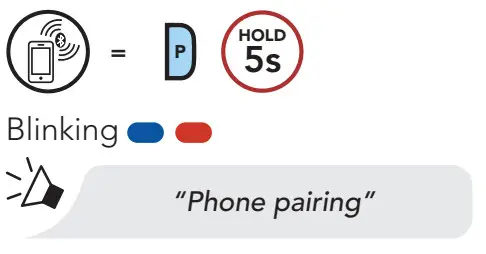

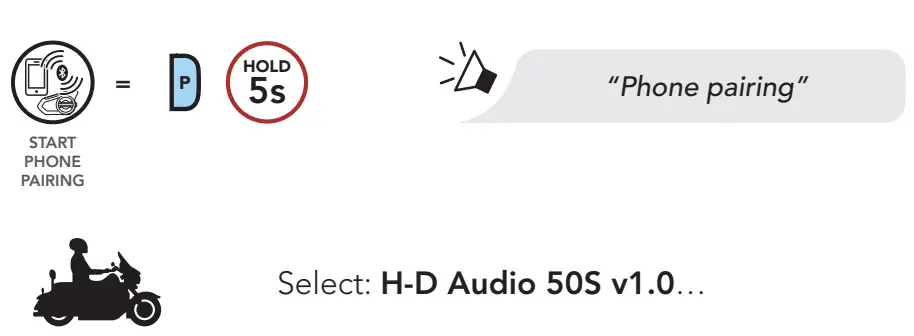

Phone Pairing

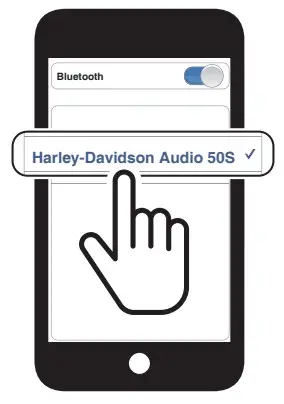

- Select Harley-Davidson Audio 50S in the list of Bluetooth devices detected.
• The headset will enter the pairing mode automatically when you initially turn on the headset.
• For more information on phone pairing, refer to the User’s Guide.
Bluetooth Pairing with WHIM
Pairing with WHIM
Boom! Box radio go to: Home > Setup > Wireless Headset Setup > Pair Rider (select)

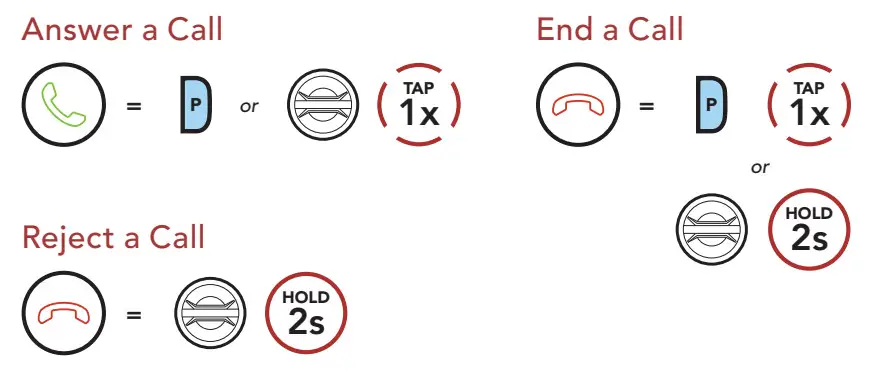

Mobile Phone

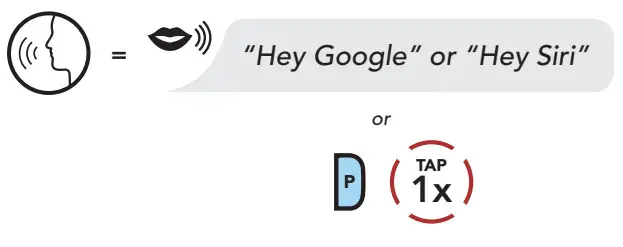

Siri and Google Assistant
Activate the Siri or Google Assistant Installed on Your Smartphone

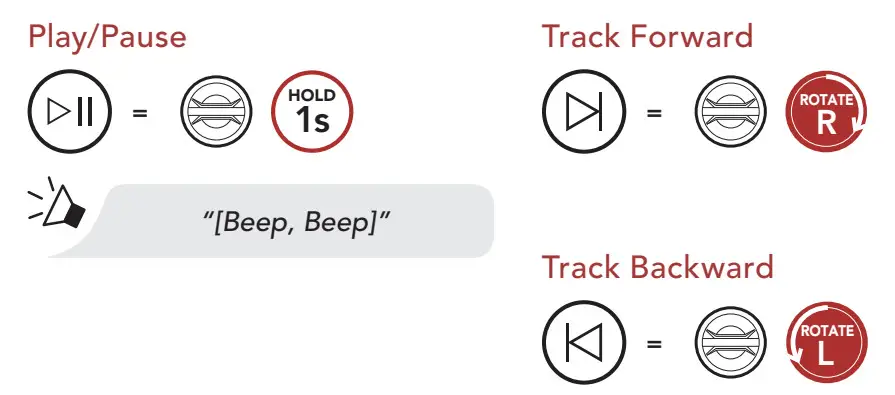

Music Controls

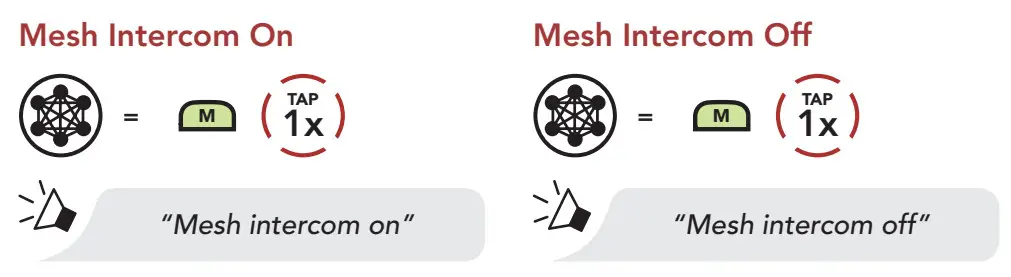

Mesh Intercom™
When Mesh Intercom is enabled, the Harley-Davidson Audio 50S will automatically connect to nearby Harley-Davidson Audio 50S users and allow them to talk to each other by pressing the Mesh Intercom Button.

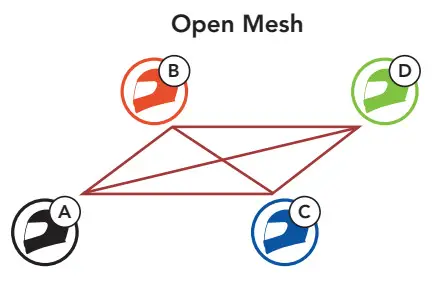

Open Mesh™
When Mesh Intercom is enabled, the headset will be in Open Mesh (default: channel 1) initially. Users can freely communicate with each other in the same Open Mesh channel.
Channel Setting (Default: channel 1)
If the Open Mesh communication experiences interference because other groups are also using channel 1 (default), change the channel.
You can select from channels 1 to 9.

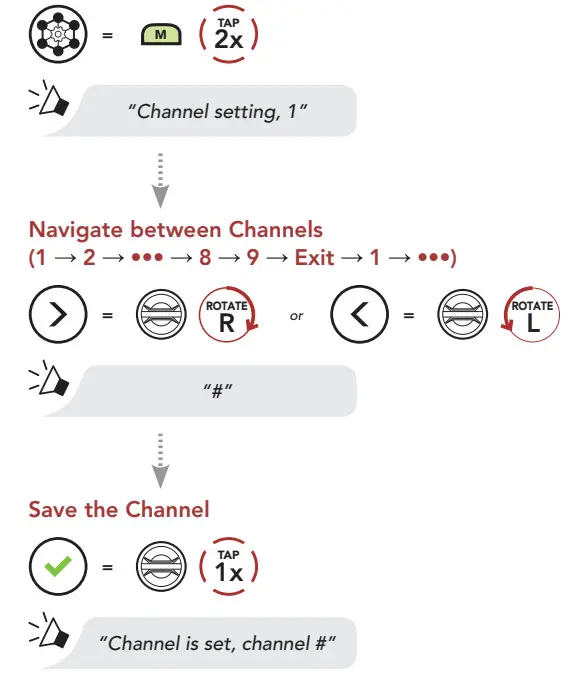

Enter into the Channel Setting
Note: To exit the Channel Setting, rotate the Jog Dial clockwise or counterclockwise until you hear a voice prompt, “Exit”, and tap the Jog Dial.
Group Mesh™
Group Mesh is a closed group intercom function that allows users to join, leave, or rejoin a group intercom conversation without pairing each headset. Up to 24 users can all be connected in each private group.

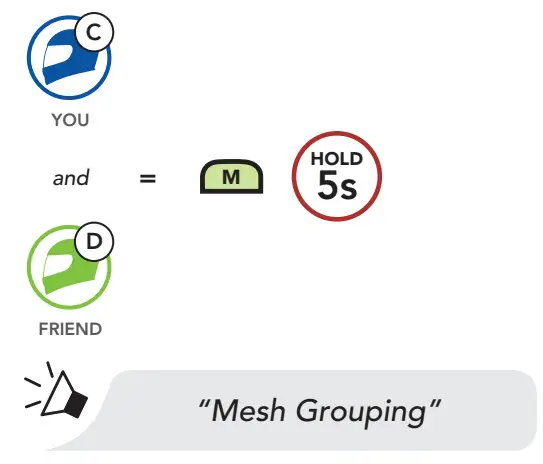

Creating a Group Mesh
Creating a Group Mesh requires two or more Open Mesh users.
- Enter into Mesh Grouping to create a Group Mesh.
- The headsets complete Mesh Grouping and automatically switch from Open Mesh to Group Mesh.

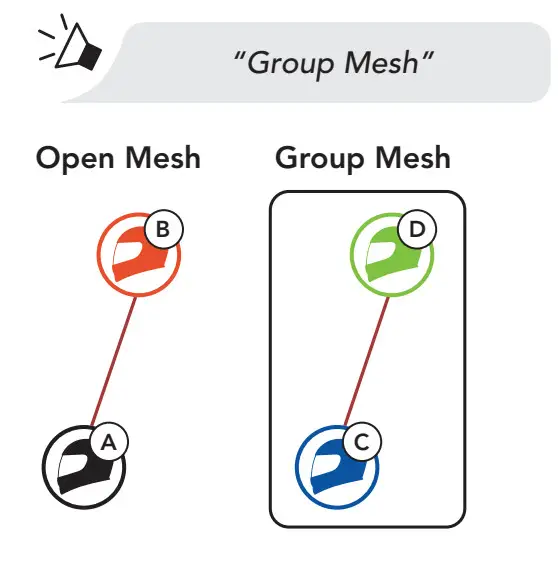

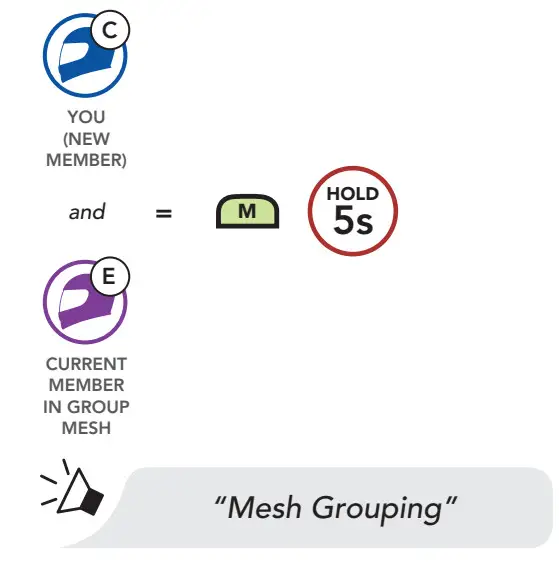

Joining an Existing Group Mesh
One of the members in an Existing Group Mesh can allow new members in Open Mesh to join the Existing Group Mesh.
- One of the current members and a new member enter into Mesh Grouping to join the Existing Group Mesh.
- The headsets complete Mesh Grouping. The new members will hear a voice prompt as their headsets automatically switch from Open Mesh to Group Mesh.

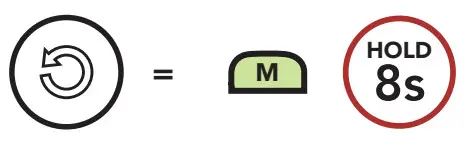

Reset Mesh
If a headset in an Open Mesh or Group Mesh resets the Mesh, it will automatically return to Open Mesh (default: channel 1).
Enable/Disable Mic (Default: Enable)
Users can enable/disable the microphone when communicating in a Mesh Intercom.
Enable/Disable the Microphone
Bluetooth Intercom

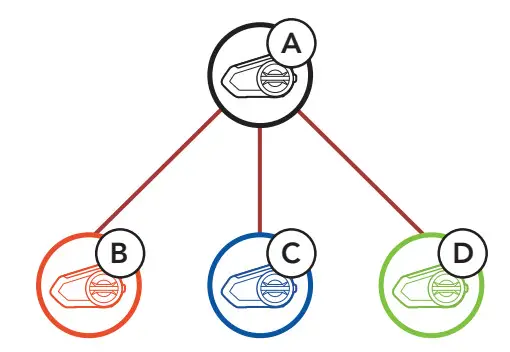

Up to three other people can be paired with the headset for Bluetooth intercom conversations.
Intercom Pairing
There are two ways to pair the headset.

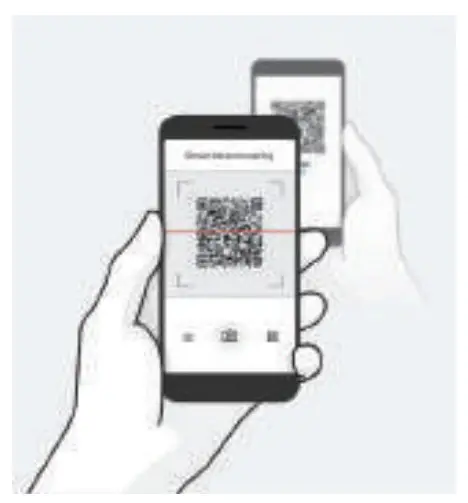

Using the Smart Intercom Pairing (SIP)
SIP allows you to quickly pair with your friends for intercom communication by scanning the QR code on the SENA
MOTORCYCLES App without remembering the button operation.
- Pair the mobile phone with the headset.
- Open the SENA MOTORCYCLES App and tap
(Smart Intercom Pairing Menu). - Scan the QR code displayed on your friend (B)’s mobile phone.
• Your friend (B) can display the QR code on the mobile phone by tapping > QR code (
) on the SENA MOTORCYCLES App.
- Tap Save and check that your friend (B) is paired with you (A) correctly.
- Tap Scan (
) and repeat steps 3-4 to pair with Intercom Friends (C) and (D).
Note: The Smart Intercom Pairing (SIP) is not compatible with Harley-Davidson products that use Bluetooth 3.0 or below.

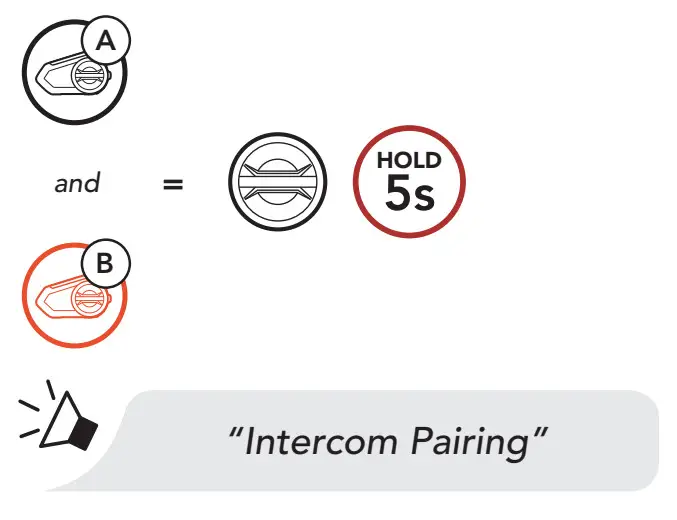

Using the Button
The Harley-Davidson Audio 50S will automatically pair with a Harley Davidson headset.
= Flashing blue LED confirms intercoms are paired.

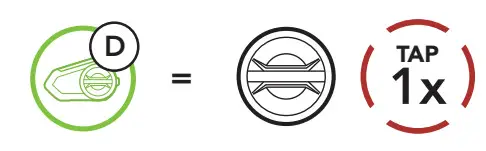

Note: Repeat the step above to pair with Intercom Friends C & D.

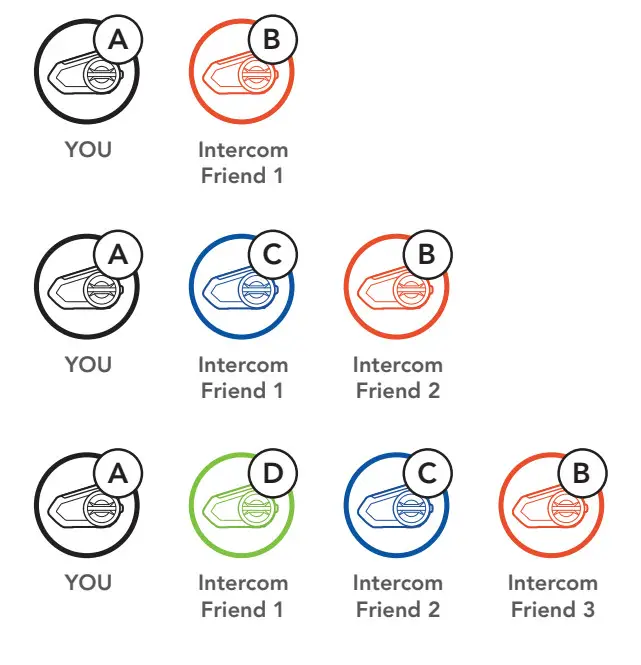

Two-Way Intercom
Last-Come, First-Served
Start/End with Intercom Friend 1

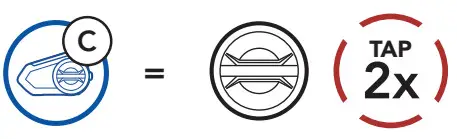

Start/End with Intercom Friend 2

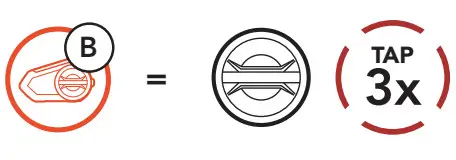

Start/End with Intercom Friend 3

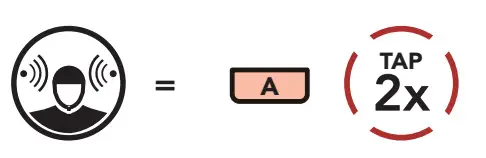

Ambient Mode
FM Radio
Configuration Menu

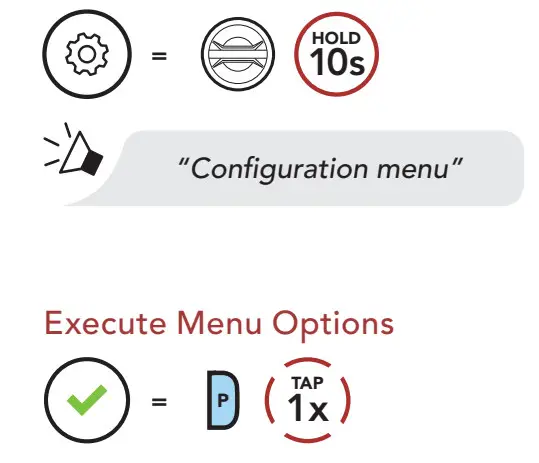

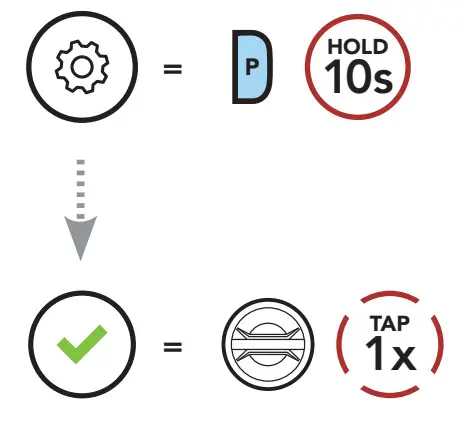

Accessing the Headset Configuration Menu

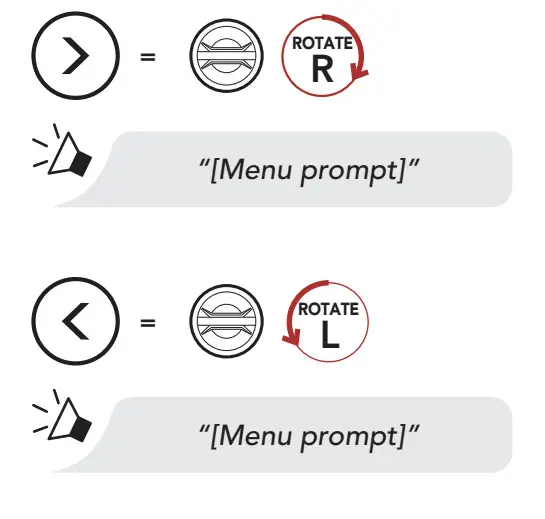

Navigating Between Menu Options
Troubleshooting
Factory Reset

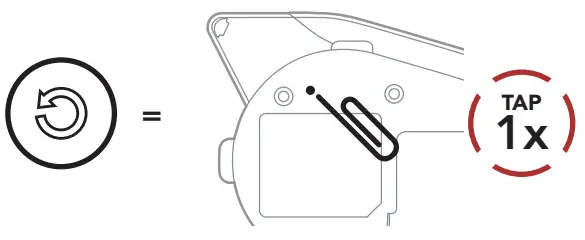

Fault Reset
Note: Fault Reset will not restore the headset to factory default settings.
QUICK REFERENCE
| TYPE | OPERATION | BUTTON COMMANDS |
 Basic Operations | Power on /Power off |  |
| Ambient Mode |  | |
 Mobile Phone | Answer phone call |  |
| End phone call |  | |
| Reject phone call |  | |
| Speed dial |  | |
| Siri and Google Assistant | Activate the Siri or Google Assistant |  |
| Music | Play/Pause music |  |
| Track forward |  | |
| Track backward |  | |
| FM Radio | FM radio on/off |  |
| Select preset |  | |
| Seek forward/backward |  | |
| Scan up FM band/stop scanning |  | |
| Mesh Intercom™ | Mesh Intercom on/off |  |
| Channel setting |  | |
| Mesh Grouping |  | |
| Reset Mesh |  | |
| Enable/Disable Mic |  | |
| Intercom | Intercom pairing |  |
| Start/End intercom |  |
