Sena 5s Motorcycle Bluetooth Communication System User Guide

5S
MOTORCYCLE BLUETOOTH® COMMUNICATION SYSTEM
HD SPEAKERS
QUICK START GUIDE

RIDE CONNECTED

Blast your favorite tunes, talk over the intercom with your buddies, hear directions from your GPS and more, all through your Sena 5S headset. With built-in Bluetooth® capabilities, HD speakers and a microphone using Advanced Noise Control™, technology has never felt so minimal or freeing.

	Bluetooth® 5.1
	Two-way Intercom
	Intercom up to 700 m (0.4 mi)*
	HD Speakers
	Audio Multitasking™

* in open terrain

GETTING STARTED

1. This product comes with a Quick Start Guide, which is a basic version of the User’s Guide. A FULL VERSION OF THE USER’S GUIDE CAN BE DOWNLOADED AT SENA.COM.
2. Update this product for free with the latest firmware to fully enjoy the new advanced features built into this product. Visit sena.com to see how to update your product.
3. Users can follow Sena on Facebook, YouTube, Twitter and Instagram to receive the most up to date information on products, helpful tips and all other announcements regarding Sena products.

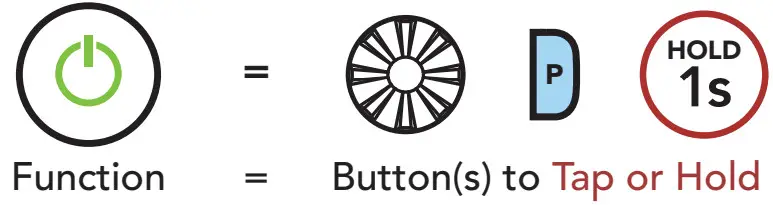

How to Use This Guide
The legend and callouts are here to help you read the illustrations.
New technology can be confusing, but we have created a simple way to perform actions using illustrations.

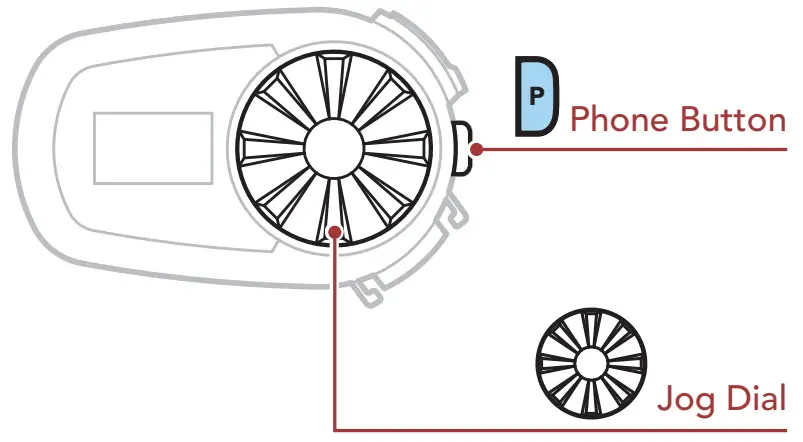

Buttons

Icon Legend

	Tap button/Jog Dial the specified number of times
	Press and Hold button/Jog Dial for the specified amount of time

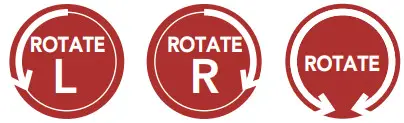

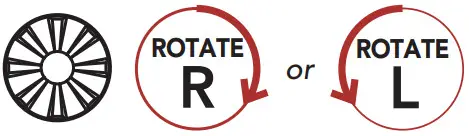

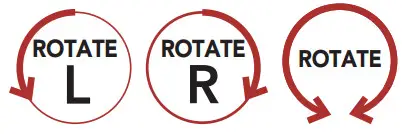

	Rotate Jog Dial clockwise (right) or counterclockwise (left).
	Rotate while Pressing Jog Dial clockwise (right) or counterclockwise (left).

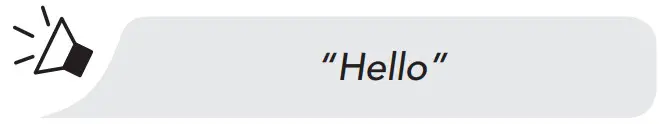

Audible prompt

QUICK START GUIDE

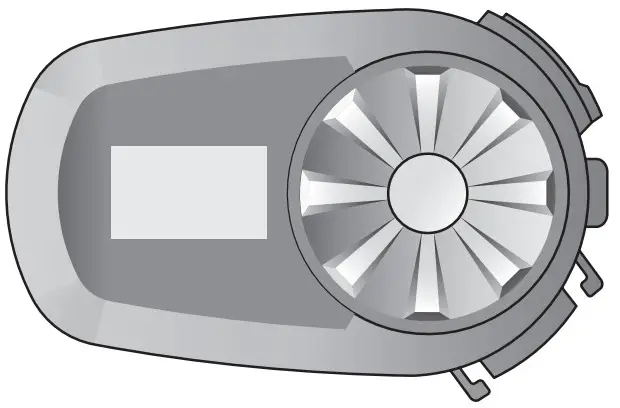

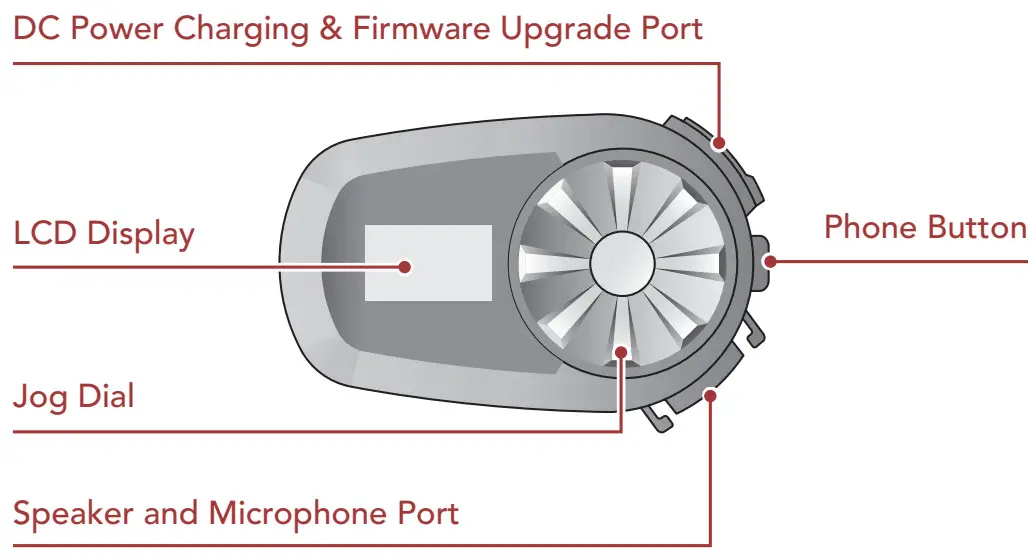

Product Details

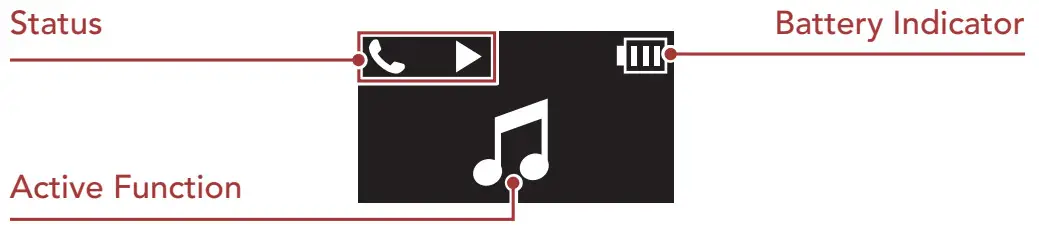

LCD Display

Installation

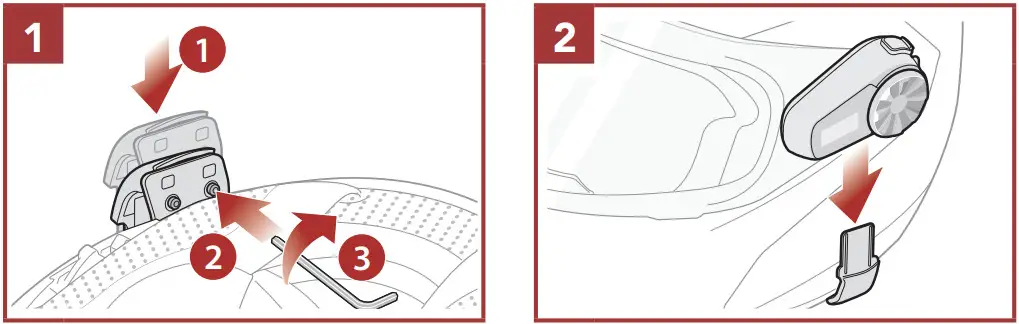

Using the Clamp Unit

Using the Glued Surface Mounting Plate

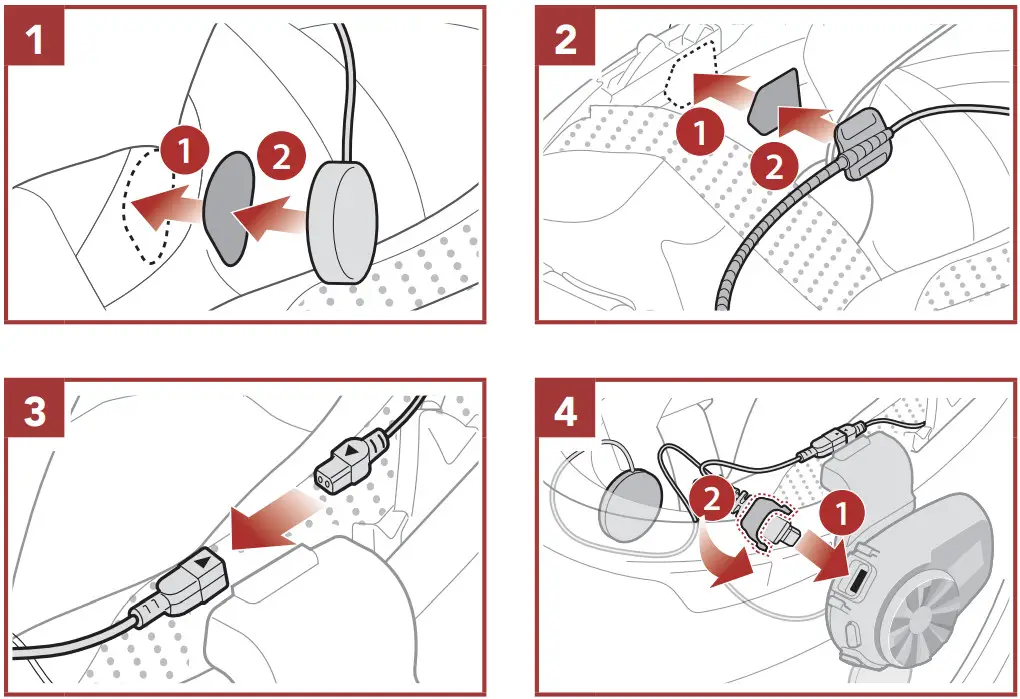

Installing the Speakers and the Microphone

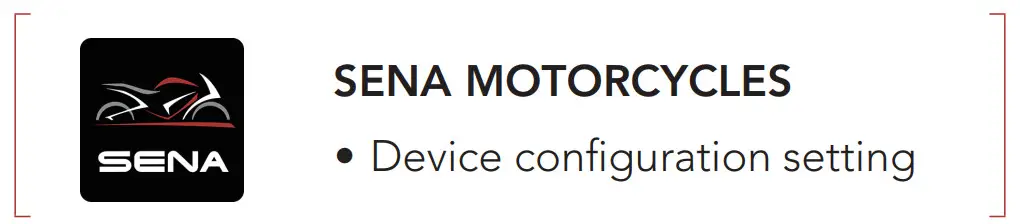

SENA MOTORCYCLES App
Download the SENA MOTORCYCLES App on Google Play Store or App Store.

Sena Device Manager
The Sena Device Manager allows you to upgrade the firmware  and configure its settings directly from your PC or Apple computer.
Download the Sena Device Manager from sena.com.

NOTICE

• This Quick Start Guide (Version 2.0) explains how to operate the 5S with firmware version 2.0 or higher.
• For the operation of the 5S with a firmware version lower than 2.0, refer to the 5S Quick Start Guide (Version 1.0.0).

Basic Operations

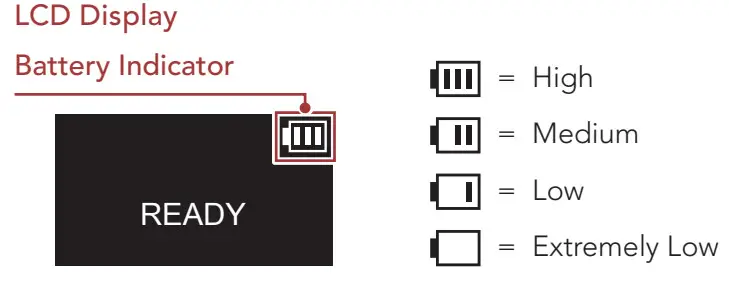

Checking the Battery Level

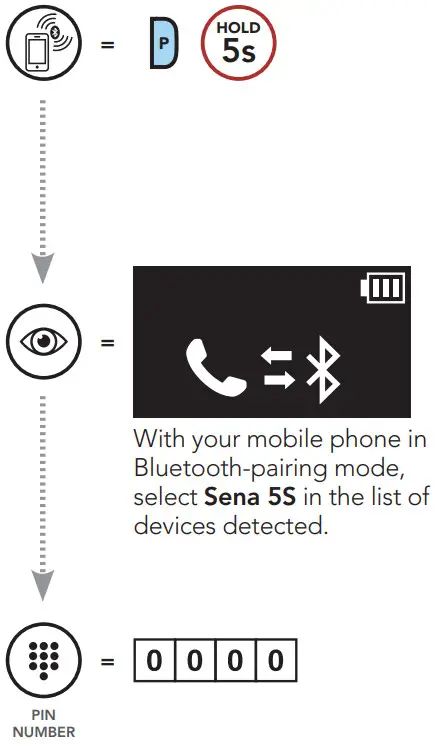

Phone Pairing

• For more information on phone pairing, refer to the User’s Guide.

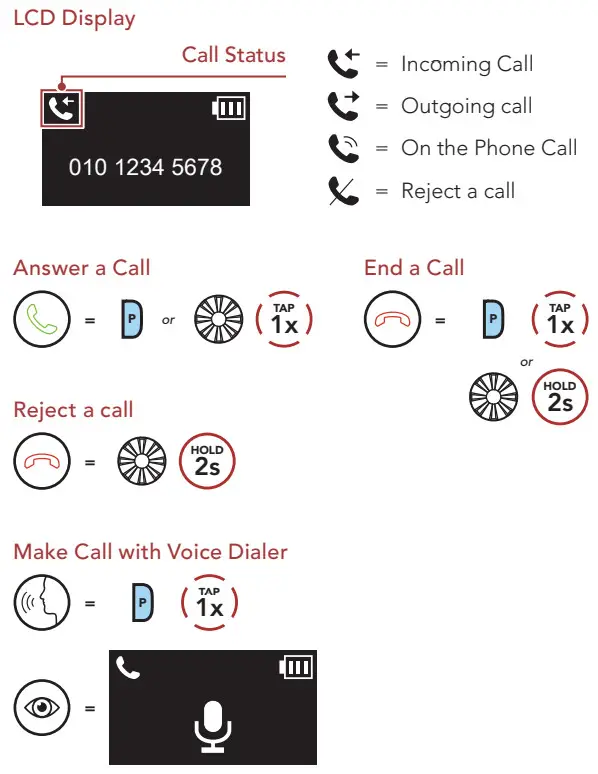

Mobile Phone

Music Controls

Bluetooth Intercom

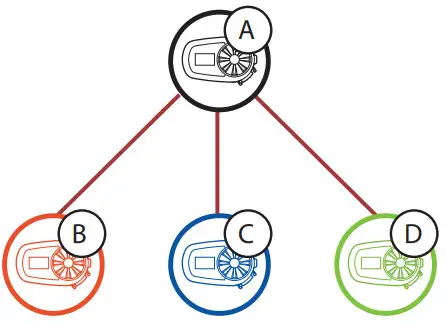

Up to three other people can be paired with the headset for Bluetooth intercom conversations.

Intercom Pairing
There are two ways to pair the headset.

Using the Smart Intercom Pairing (SIP)

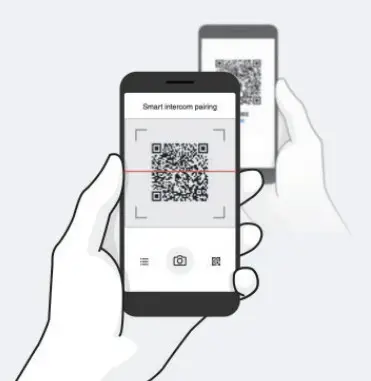

SIP allows you to quickly pair with your friends for intercom communication by scanning the QR code on the SENA MOTORCYCLES App without remembering the button operation.

1. Pair the mobile phone with the headset.
2. Open the SENA MOTORCYCLES App and tap (Smart Intercom Pairing Menu).

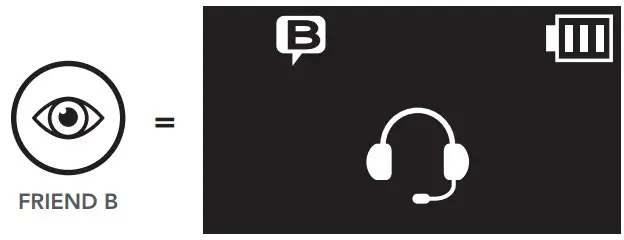

3. Scan the QR code displayed on your friend (B)’s mobile phone.
   • Your friend (B) can display the QR code on the mobile phone by tapping > QR code ( ) on the SENA MOTORCYCLES App.
4. Tap Save and check that your friend (B) is paired with you (A) correctly.
5. Tap Scan ( ) and repeat steps 3-4 to pair with Intercom Friends (C) and (D).

Note: The Smart Intercom Pairing (SIP) is not compatible with Sena products that use Bluetooth 3.0 or below.

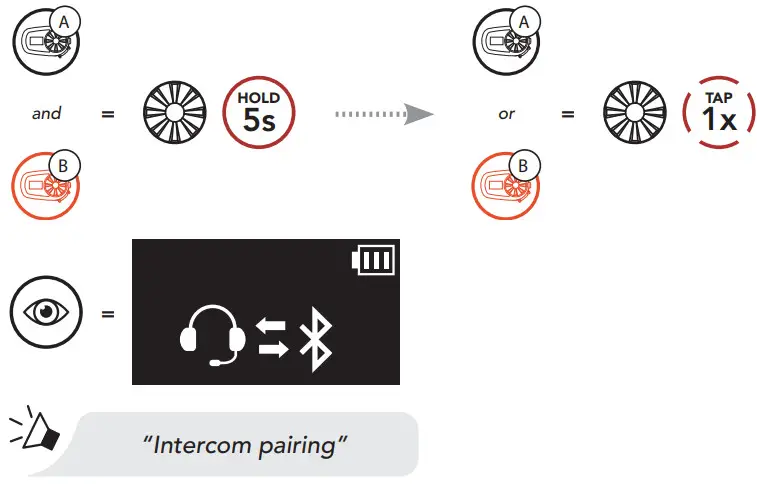

Using the Button

Note: Repeat the step above to pair with Intercom Friends C & D.

Last-Come, First-Served

Intercom Conversation with Intercom Friend

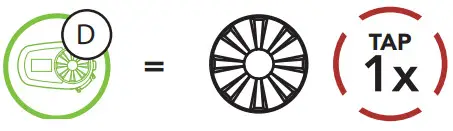

Start/End with Intercom Friend 1

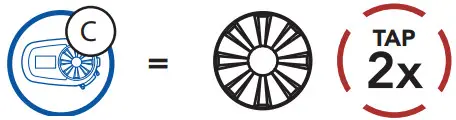

Start/End with Intercom Friend 2

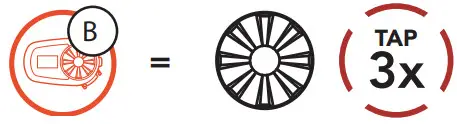

Start/End with Intercom Friend 3

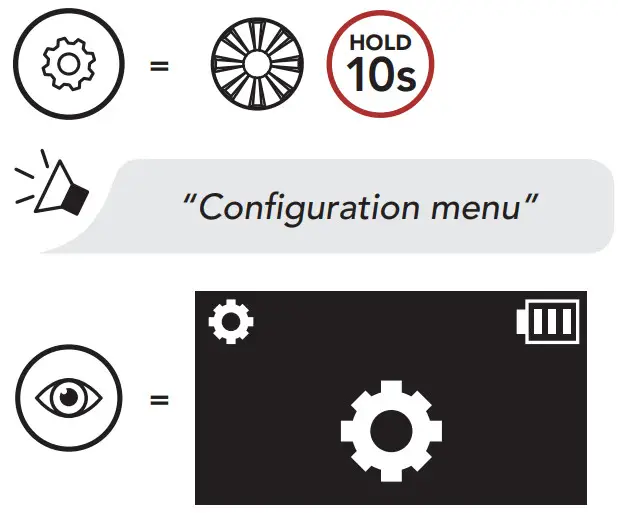

Configuration Menu

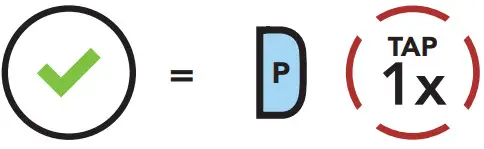

Execute Menu Options

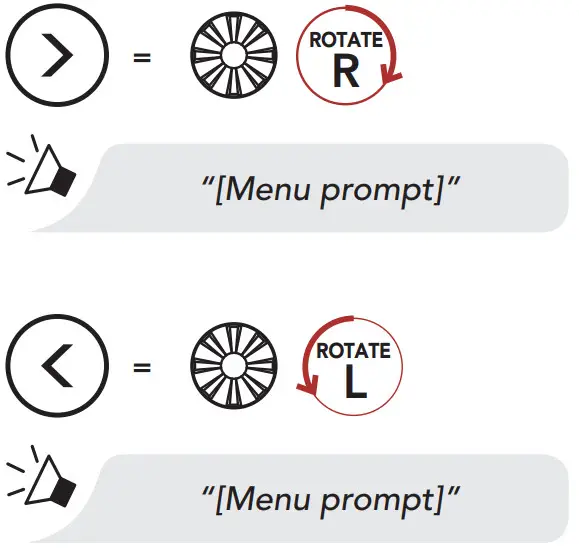

Navigating Between Menu Options

Troubleshooting

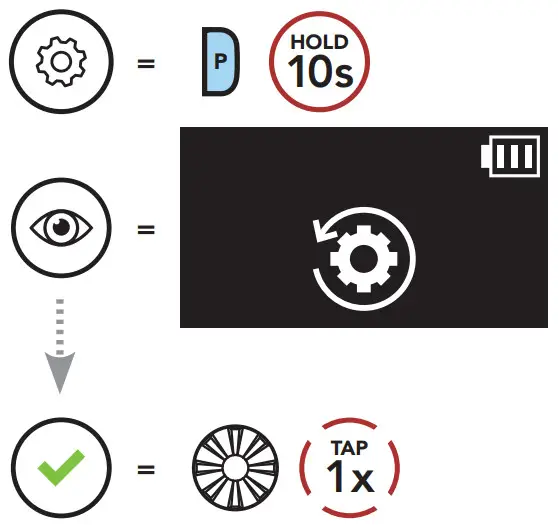

Factory Reset

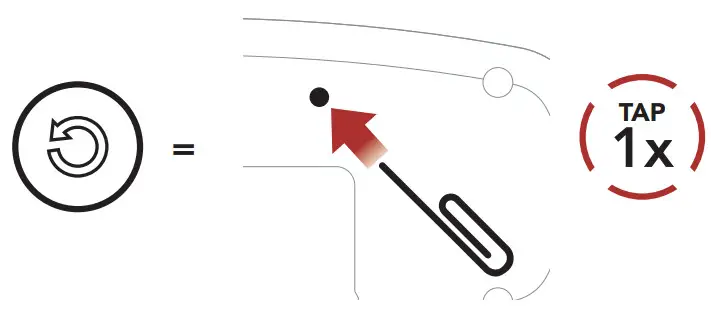

Fault Reset

Note: Fault Reset will not restore the headset to factory default settings.

QUICK REFERENCE

TYPE	OPERATION	BUTTON COMMANDS
Basic Operations	Power on /Power off
	Volume up / Volume down
Mobile Phone	Answer phone call
	End phone call
	Reject phone call
	Speed dial
	Make Call with Voice Dialer
Music	Play/Pause music
	Track forward
	Track backward
Intercom	Intercom pairing
	Start/End intercom

SENA Technologies, Inc.
Customer Support: sena.com
