Quickstart Guide
4K/60 4:2:0 HDR Extender with
USB 2.0, Audio Passthrough & PoH
EX-100-H2
WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the installation process.
IMPORTANT! Installation Requirements
- Visit the product page to download the latest firmware, document versions, additional documentation, and configuration tools.
- Read through the Wiring and Connections section for important wiring guidelines before creating or choosing premade cables.
- While this product supports CEC, WyreStorm cannot guarantee compatibility with all forms of CEC communication.
In the Box
1x EX-100-H2 Transmitter
1x EX-100-H2 Receiver
1x 12V DC 2A Power Supply (US/UK/EU/AU)
4x Mounting Brackets with screws
2x 3-pin Terminal Blocks
1x QuickStart Guide (this document)

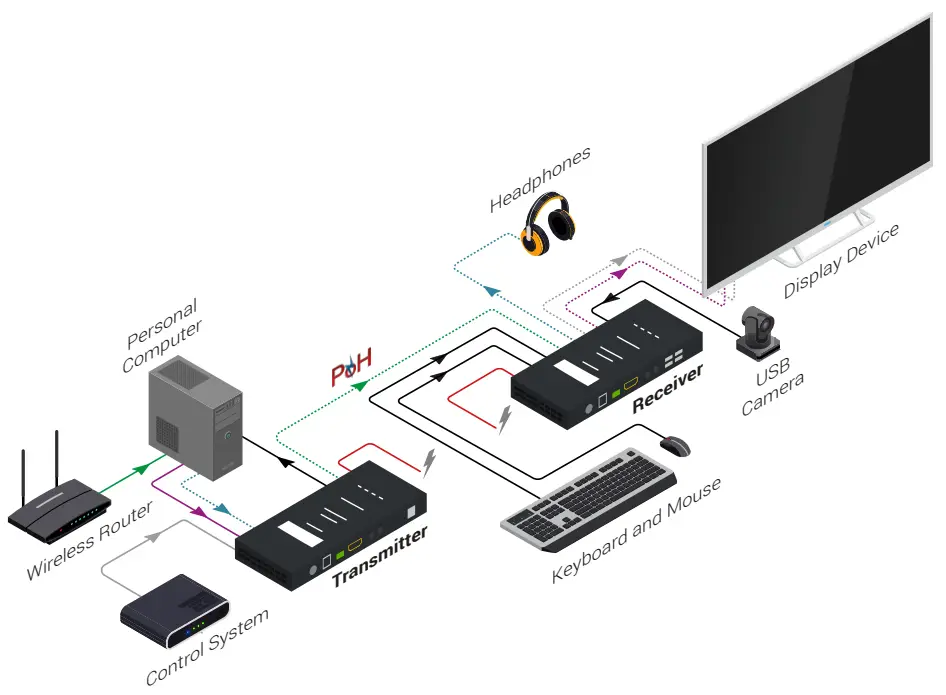

Basic Wiring Diagram
KEY
 | HDMI |  | Ethernet/HDBaseT |
 | Control |  | Analog Audio |
 | Power |  | USB |
Wiring and Connections
WyreStorm recommends that all wiring for the installation is run and terminated prior to making connections to the switcher. Read through this section in its entirety before running or terminating the wires to ensure proper operation and to avoid damaging equipment.
IMPORTANT! Wiring Guidelines
- The use of patch panels, wall plates, cable extenders, kinks in cables, and electrical or environmental interference will have an adverse effect on the signal transmission which may limit performance. Steps should be taken to minimize or remove these factors completely during installation for best results.
- WyreStorm recommends the use of shielded category cable to minimize signal noise and interference.
- WyreStorm recommends using pre-terminated HDMI cables due to the complexity of these connector types. Using pre-terminated cables will ensure that these connections are accurate and will not interfere with the performance of the product.
RS-232 Wiring

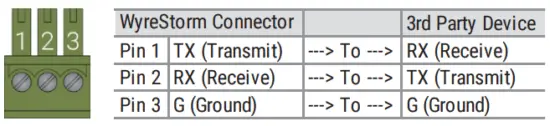

The EX-100-H2 uses a 3-pin RS-232 with no hardware flow control. Most control systems and computers are DTE where pin 2 is RX, this can vary from device to device. Refer to the documentation for the connected device for pin functionally to ensure that the correct connections can be made. Refer to RS-232 Mode Settings for details on setting RS-232 modes.

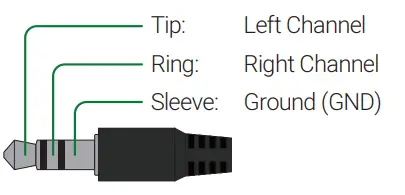

Audio Connections
Troubleshooting
No or Poor Quality Picture (snow or noisy image)
- Verify that power is being supplied to the transmitter and receiver.
- Verify that the HDBaseT cable is properly terminated following the EIA568B standard.
- Verify that the output resolution of the source and display is supported by this extender.
- If transmitting 4K, verify that the HDMI cables used are 4K rated.
- Verify that all source and HDBaseT connections are not loose and are functioning properly.
No or Intermittent 3rd party Device Control
- Verify that the IR and RS-232 cables are properly terminated following the Wiring and Connections section.
- Verify that RS-232 modes are properly selected for the desired operation. Refer to RS-232 Mode Settings for details.
Troubleshooting Tips:
- WyreStorm recommends using a cable tester or connecting the cable to other devices to verify functionality.
Warranty Information
WyreStorm Technologies LLC warrants that its products be free from defects in material and workmanship under normal use for a period of five (5) years from the date of purchase. Refer to the Product Warranty page on wyrestorm.com for more details on our limited product warranty.
Specifications
| Audio and Video | |||||
| Transmitter | Receiver | ||||
| Inputs | 1x HDMI In 19-pin type A lx Audio In: 3.5mm (1/bin) TRS Stereo | lx HDBT In: 8-pin RJ-45 Female lx Audio In: 3.5mm (1/bin) TRS Stereo | |||
| Outputs | lx HDBT Out: 8-pin RJ-45 Female lx Audio Out: 3.5mm (1 /bin) TRS Stereo | 1 x HDMI Out: 19-pin type A lx Audio Out: 3.5mm (1 /bin) TRS Stereo | |||
| Output Video Encoding | HDBaseT Class C | ||||
| Encoding Data Rate | 10.2Gbps | ||||
| End to End Latency | lOps (micro seconds) | ||||
| Audio Formats | 2ch Analog/PCM I Multichannel: LPCM up to DTS-X and Dolby Atmos | ||||
| Video Resolutions (Max) | Video Resolution | HDMI | Cat6 | Cat6a/7 | |

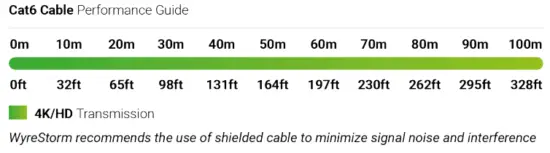

| 1920x1080p @60Hz 12bit | 7m/23ft | 70m/230ft | 100m/328ft | ||
| 3840x2160p @30Hz 8bit 4:4:4 | 15m/49ft | 70m/230ft | 100m/328ft | ||
| 3840x2160p @30Hz 12bit 4:2:2 HDR | 5m/16ft | 70m/230ft | 100m/328ft | ||
| 3840x2160p @60Hz 8bit 4:2:0 HDR | 7m/23ft | 70m/230ft | 100m/328ft | ||
| Note: WyreStorm recommends the use of shielded category cable | to minimize signal noise and | interference. | |||
| Supported Standards | DCIIRGBIHDRIHDR101Dolby Vision up to 30Hz I HLG I BT.20201B12100 | ||||
| Maximum Pixel Clock | 340MHz | ||||
| Communication and Control | |||||
| HDMI | HDMI I HDCP 2.2 I EDID I CEC Pass-through I DVI/D supported with adapter (not included) | ||||
| HDBaseT | HDMI I HDCP 2.2 I EDID I Line Audio I 1-way PoH (TX powers RX) I Bidirectional RS-232 I CEC | ||||
| RS-232 | lx RS-232: 3-pin Phoenix (Transmitter and Receiver) | ||||
| USB | lx Type B (host) I 4x Type A (device) Maximum uplink speed: 190Mbps | ||||
| Power | |||||
| Power Supply | 12V DC 2A | ||||
| Max Power Consumption | 12W | ||||
| Environmental | |||||
| Operating Temperature | 32°F — 113°F (0°C — 45°C)110% — 90%, non-condensing | ||||
| Storage Temperature | -4°F to — 158°F (-20°C — +70°C) 110% — 90%. non-condensing | ||||
| Maximum BTU | 41 BTU/hr | ||||
| Dimensions and Weight | |||||
| Rack Units I Wall Box | <1 U | ||||
| Height | 21mm/0.83in | ||||
| Width | 250mm/9.84in | ||||
| Depth | 90.2mm/3.55in | ||||
| Weight | 0.9kg/1.98Ibs | ||||
| Regulatory | |||||
| Safety and Emission | CE 1 FCC 1 RCM I EAC I RoHS | ||||
