Sunpower Invisimount Components Tool And Torque Values Job Aid User Guide

• 15 mm deep socket
• 266 +20/-0 in-lb

• 10 mm deep socket
• 85 +5/-0 in-lb

• 10 mm deep socket
• 85 +5/-0 in-lb

• 10 mm deep socket
• 40 +5/-0 in-lb

• 10 mm deep socket
• 85 +5/-0 in-lb

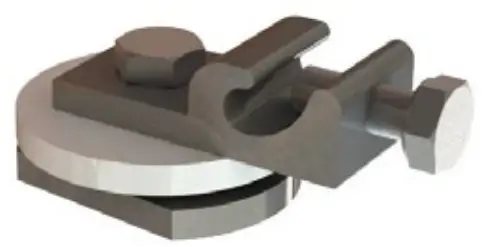

For lug screw:

• 1/2” socket
• 35 +5/-0 in-lb

• #2 square-drive torque screwdriver
• 16 in-lb

• 10 mm deep socket
• 85 +5/-0 in-lb

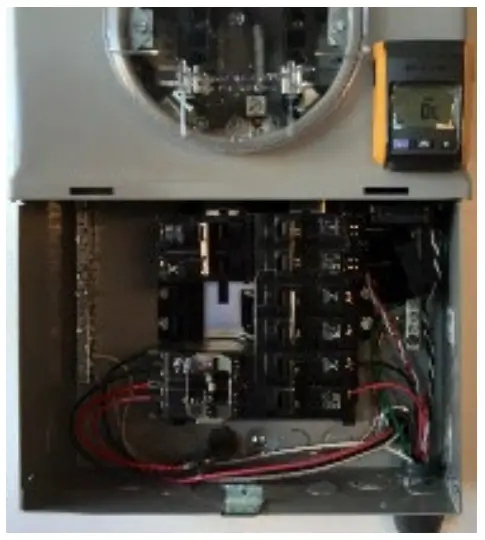

• As per manufacturer’s specifications

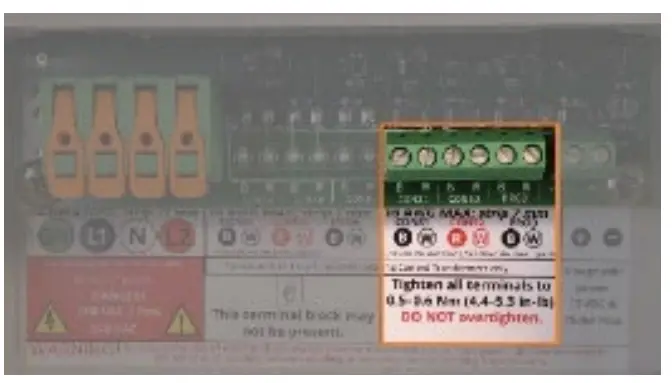

• Flathead torque screwdrive
• 4.4 – 5.3 in-lb
