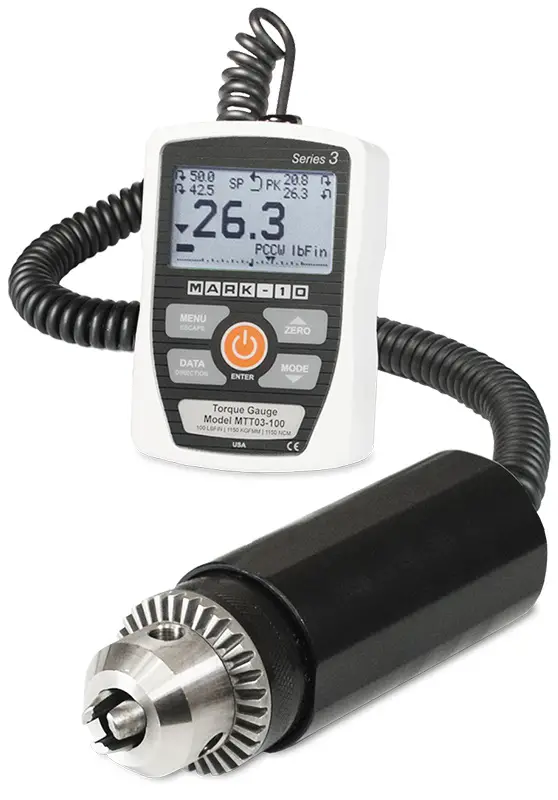

MARK-10 TT03 Digital Torque Gauges User Guide
A full line of force and torque measurement products and related items, including force gauges, torque gauges, force and torque test stands, sensors, grips, software, and more.
Force and torque measurement engineered better
Thank you!
Thank you for purchasing a Mark-10 Series TT03 digital torque gauge. We are confident that you will get many years of service from this product.
The TT03 is designed for clockwise and counter-clockwise torque testing applications in virtually every industry.
Please read through this Quick Start Guide and the complete User’s Guide before using the gauge.
IMPORTANT SAFETY CONSIDERATIONS
Force and torque measuring instruments are sensitive and must be treated with care. Please review the safety information provided in the User’s Guide prior to operating the indicator.
LIST OF INCLUDED ITEMS
| Qty | Part No. | Description |
| 1 | 12-1049 | Carrying case |
| 1 | – | Chuck key |
| 1 | AC1030 / AC1031 / AC1032 / AC1035 | AC adapter w/US, EU, UK, or AUS prong |
| 1 | 08-1026 | Rechargeable NiMH battery (inside gauge) |
| 1 | – | Certificate of calibration |
| 1 | 09-1165 | USB cable |
POWER
To power on the gauge, press the
button. Press and hold to power off.
The gauge may be powered either by the internal rechargeable battery or an AC adapter/charger. The battery will last approximately 7 hours with the backlight turned on, and 24 hours with the backlight turned off before recharging is necessary
LITERATURE & SOFTWARE DOWNLOADS
Download at: www.mark-10.com/downloads
- User’s guides (PDF)
Provided for all Mark-10 instruments. Locate the user’s guide for this product and read it thoroughly before use. - USB driver
For Mark-10 instruments and the model RSU100 RS-232 to USB converter.
Required for communication with a PC. Follow the installation instructions provided in the user’s guide. - MESUR® family of software – see below
INSTALLING MESUR® SOFTWARE
Mark-10 offers three data collection applications:
MESUR® Lite
Free basic data acquisition application, for data tabulation and exporting to Excel. Compatible with gauges only, not test stands.
MESUR®gauge / MESUR®gauge Plus
Data tabulation, graphing, analysis, and reporting, with user-configurable start and stop triggers and other tools. Compatible with gauges and test stands for load vs. time or load vs. travel. MESUR®gauge Plus adds test stand motion control coordination. Both applications can be evaluated for 90 days.
PC requirements
Compatible with PCs running Microsoft Windows 7 or later. Minimum monitor resolution is 1108 x 758. A USB or RS-232C serial port is required. If USB communication is required, install the Mark-10 USB driver.
