PPI ScaneX Programmable Multi Channel Temperature Scanner
CONFIGURATION PARAMETERS
Parameters | Settings (Default Value) |

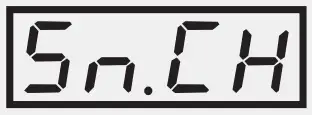

Actual Numbers of Channels to Scan | 1 to Max. Available (Default : 4/8/12/16) |

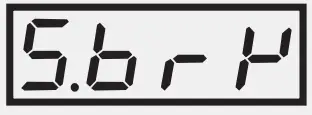

Sensor-break PV Status | Up Scale |

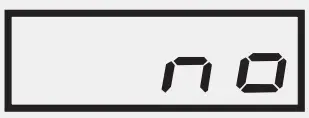

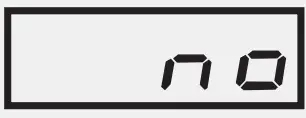

Common Input | No |
Select Channel for | 1 to Actual no. of |

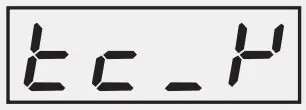

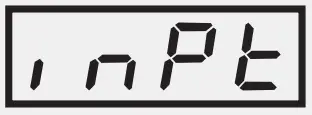

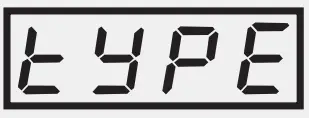

Input Type | Refer Table 1 |
Resolution | 1 or 0.1 |

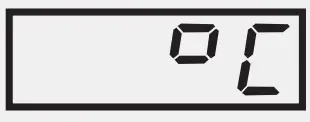

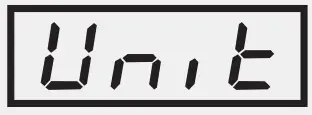

Temperature Units | ºC |

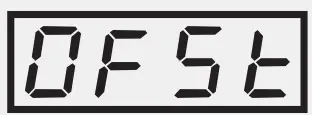

Offset | 1999 / 3000 or |

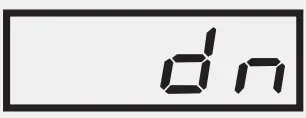

Down Scale
(Default : Up Scale)

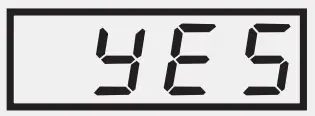

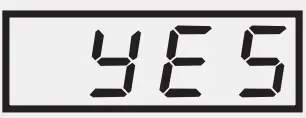

Yes
(Default : Yes)

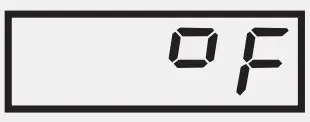

ºF
(Default : ºC)
ALARM CONFIGURATION PARAMETERS

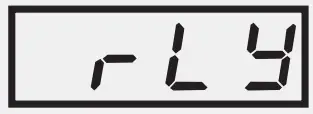

| Parameters | Settings (Default Value) |
Number of Alarms Per Channel | For COMMON Relay O/P 1 to No. of Alarms/channel (Max. 4) |
Select Output Relay Number | Normal |

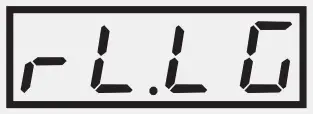

Relay Latch | No |
Yes
(Default : No)ALARM SETTING PARAMETERS
| Parameters | Settings (Default Value) |

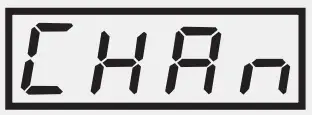

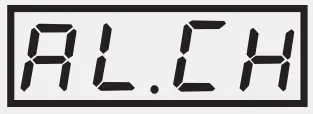

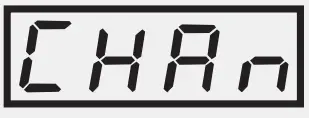

Channel Number | 1 to Max. Channels (Default : NA) |
Alarm Number | 1 to User Selected Alarm (Default : NA) |

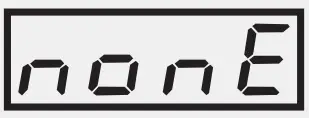

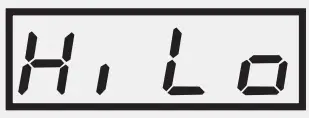

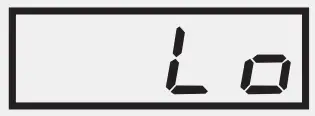

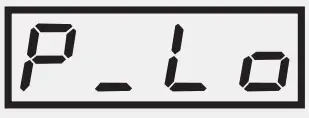

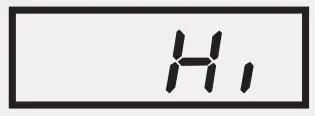

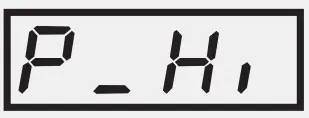

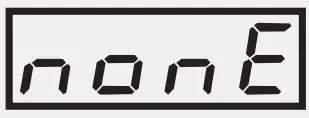

Alarm Type | None Process Low  Process High(Default : None)  |

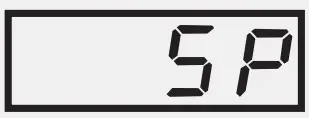

Alarm Setpoint | Min. to Max. of selected input type range (Default : 0) |

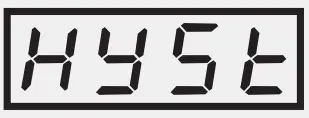

Alarm Hysteresis

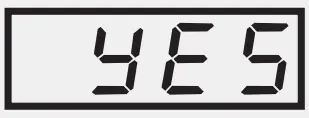

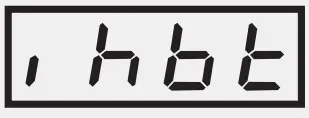

| 1 to 3000 or 0.1 to 3000.0 (Default : 2 or 2.0) |
Alarm Inhibit | No Yes (Default : No) |
UTILITY PARAMETERS

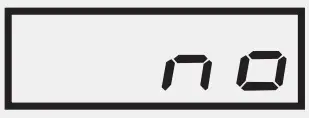

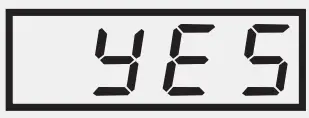

| Parameters | Settings (Default Value) |
Enable Min/max Monitoring | No Yes (Default : No) |

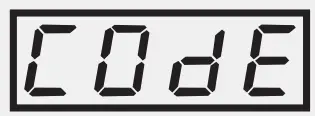

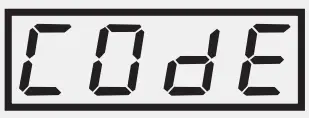

Password For Resetting Min/max Values | 0 to 250 (Default : 0) |

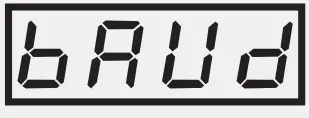

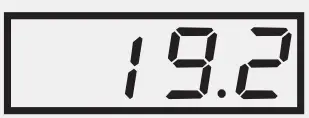

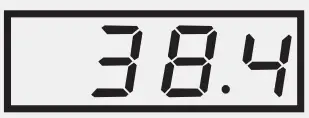

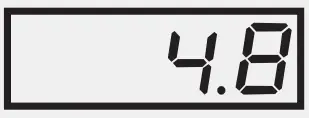

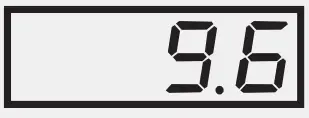

Baud Rate | 4800 9600  19200  38400  57600 (Default : 9600)  |

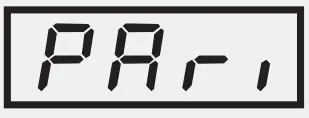

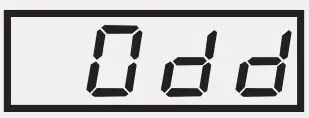

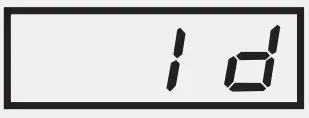

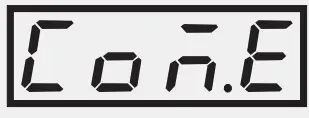

Parity | None Even Odd  Default : Even  |
Serial Id | 1 to 127 |
Serial Write Permission | No Yes (Default : No)  |
OPERATOR PARAMETERS
| Parameters | Settings (Default Value) |

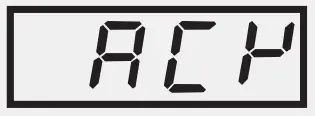

Alarm Acknowledge | No Yes |

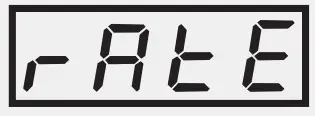

Scan Rate | 1 Sec. to 99 Sec. (Default : 3 Sec.) |
Maximum PV | View Only (Default : NA) |
Minimum PV | View Only (Default : NA) |

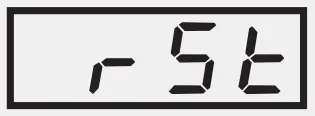

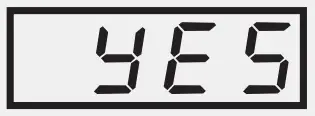

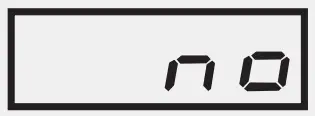

Reset Command | No Yes (Default : NA)  |
Reset Command | 0 to 250 (Default : 0) |
TABLE- 1
Option | What it means | Range (Min. to Max.) |

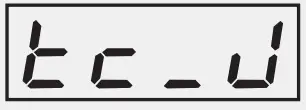

 | Type J Thermocouple | 0.0 to + 960.0ºC / |
 | Type K Thermocouple | -200.0 to + 1376.0ºC / |

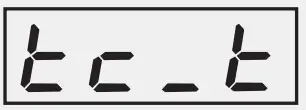

 | Type T Thermocouple | -200.0 to + 387.0ºC / |

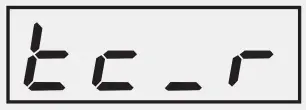

 | Type R Thermocouple | 0.0 to + 1771.0ºC / |

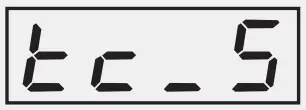

 | Type S Thermocouple | 0.0 to + 1768.0ºC / |

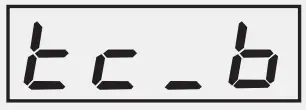

 | Type B Thermocouple | 0.0 to + 1826.0ºC / |

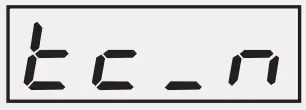

 | Type N Thermocouple | 0.0 to + 1314.0ºC / |

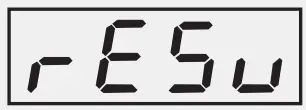

 | Reserved for custom use (Default Type J) | Reserved for custom use |

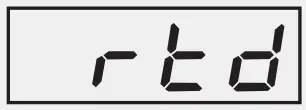

 | 3-wire, RTD Pt100 | -200.0 to + 600.0ºC / |

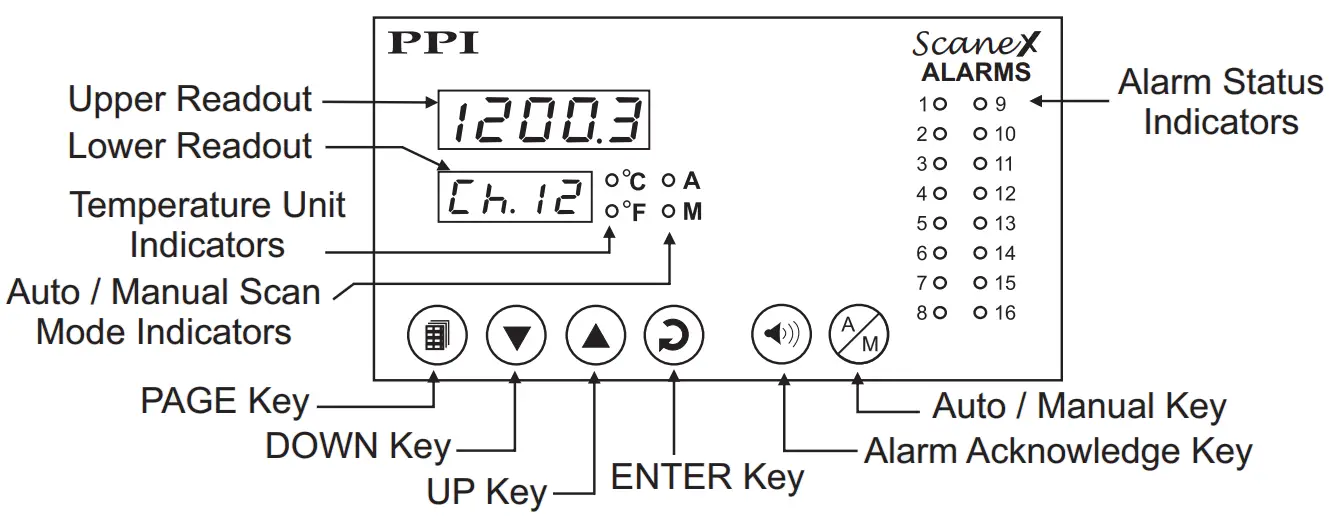

FRONT PANEL LAYOUT
Front Panel
Keys Operation
Symbol | Key | Function |
 | PAGE | Press to enter / exit Set-up Mode |
 | DOWN | Press to decrease the parameter value. Pressing once decreases the value by one count; holding the key pressed speeds up the change. |
| UP | Press to increase the parameter value. Pressing once increases the value by one count; holding the key pressed speeds up the change. |
 | ENTER | Press to store the set parameter value and to scroll to the next parameter. |
 | ALARM ACK | Press to Acknowledge any pending Alarm(s) |
 | AUTO / MANUAL | Press to toggle between Auto and Manual Scan Mode. In Manual Scan Mode, Use UP / DOWN keys to the desired channel. |
PV Error Indications

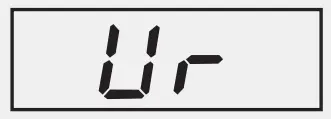

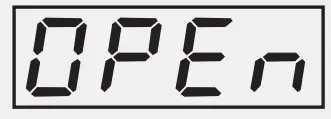

Message | PV Error Type |
 | Over-range |
 | Under-range |
 | Open |
ELECTRICAL CONNECTIONS
Old Connections Version

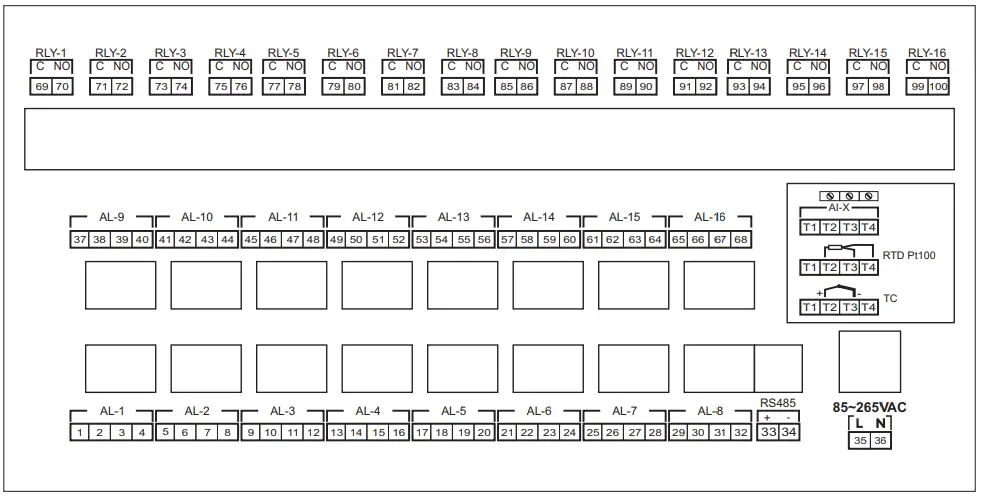

New Connections Version
