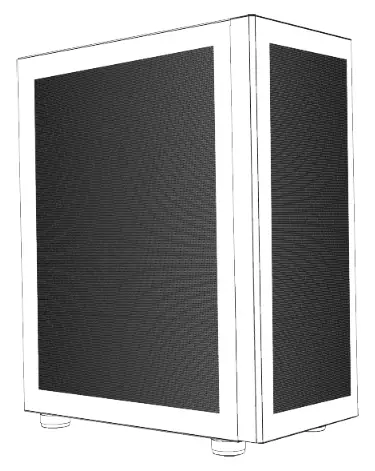

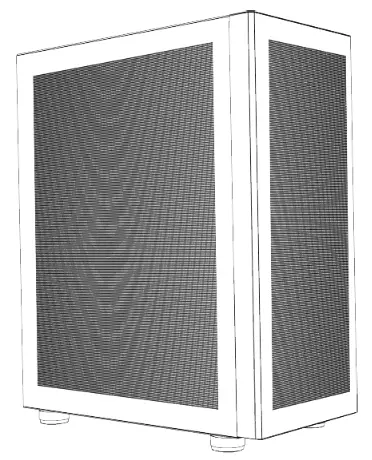

Full Mesh Luxury PC Chassis
TEMPERED GLASS SIDE PANEL
Installation Guide
29 Full Mesh Luxury PC Chassis

SPECIFICATIONS
| Case Type | ATX |
| Material | 0.6mm SPCC |
| Motherboard | ATX / M—ATX / ITX |
| Hardware Size | 352*210*465mm( W*H*D ) |
| Case Size | 385*210*478mm( W*H*D ) |
| HDD | 2 / 1 |
| SSD | 4 / 5 |
| PCI Slots | 9 Slots |
| Max. VGA card | 330mm |
| Max. CPU Cooler | 165mm |

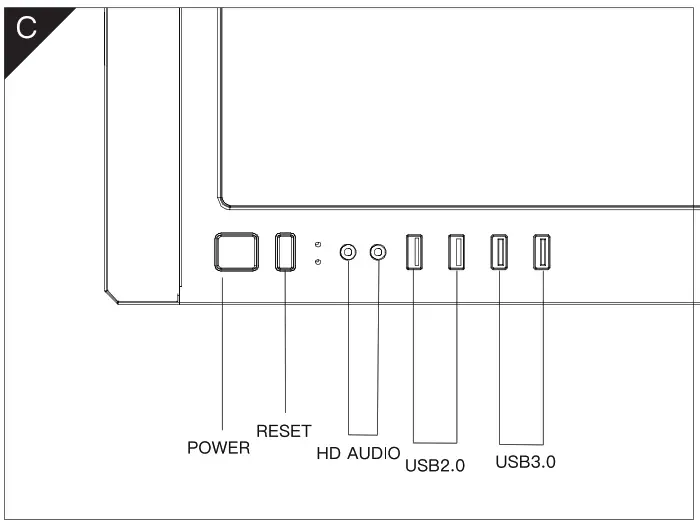

| I/O | Power / Reset / USB3.0*2 /USB2.0*2 /HD AUDIO |

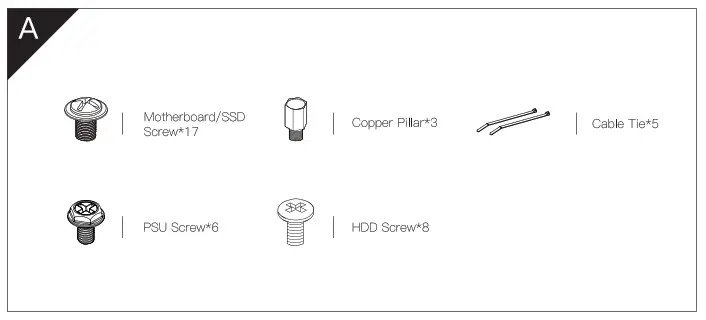

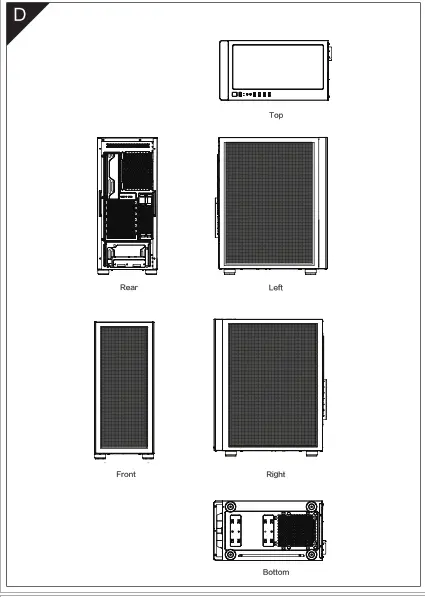

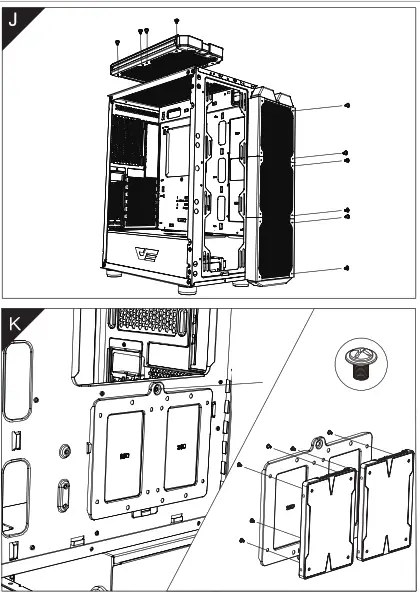

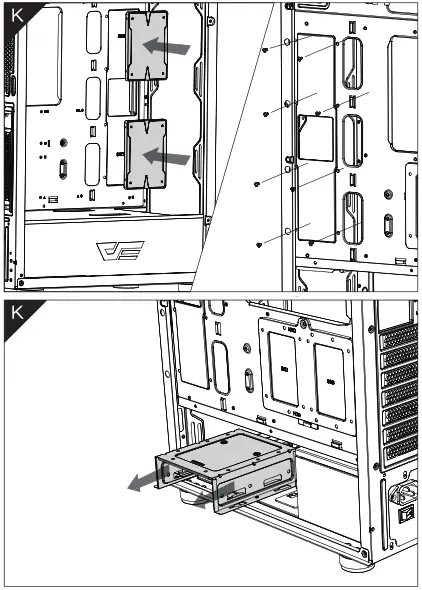

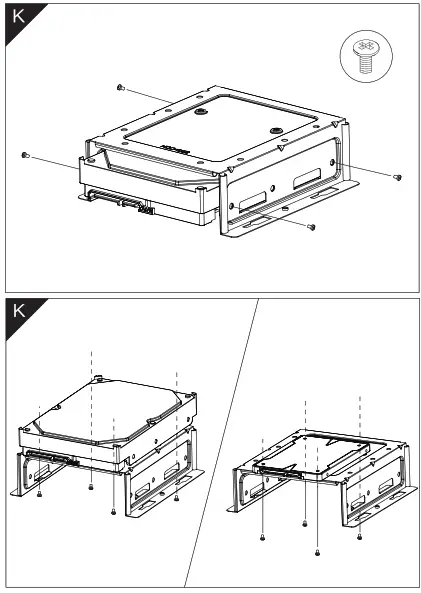

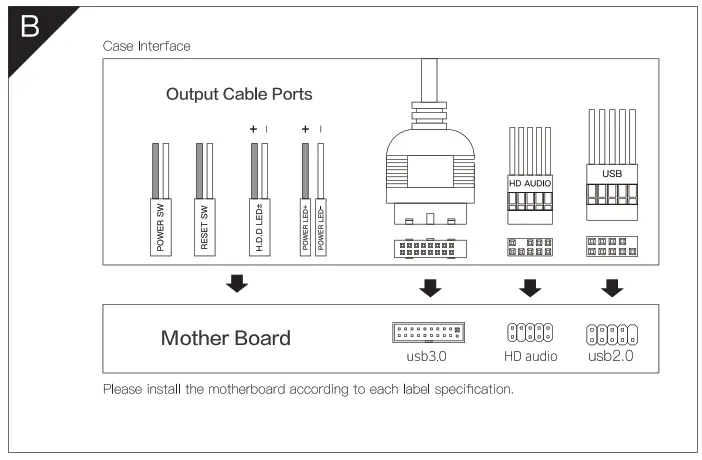

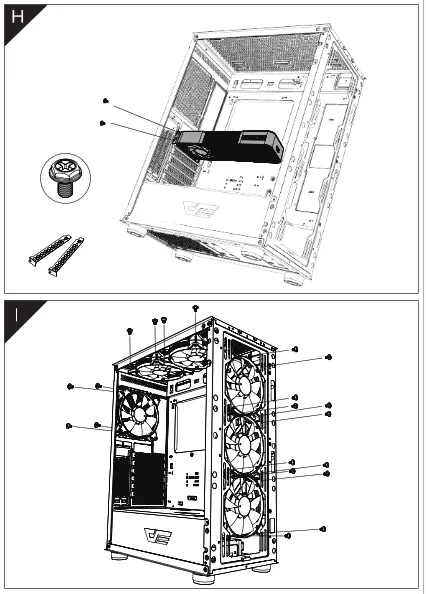

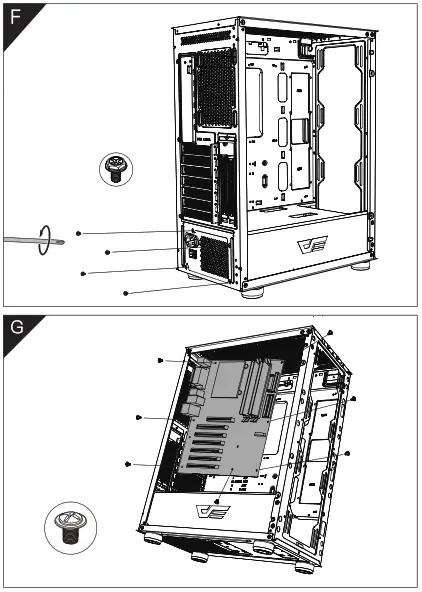

| A. Parts B. Cable C. |/O Interface D. Product Plan E, Pre—Build Preparation F. Power Supply Installation | G. Motherboard Installation H. VGA Installation |, Fan Installation J. Cooling Installation K. Hard Drive Installation |
![]() | ![]() |
![]() | ![]() |
![]() | ![]() |
![]() | ![]() |
![]() | ![]() |
