Silver Series 7G
Quick Start Guide
https://www.monitoraudio.com/en/support/
Silver Series 7G Floorstanding Speakers
| Frequency Response | Sensitivity (2.83v @ 1m) | Nominal Impedance | Maximum SPL (Single) | Power Handling R.M.S | Recommended Amp Requirements R.M.S | Crossover Frequency | External Dimensions (inc. out-rigger plates, grille and feet + spikes where fitted) (H x W x D) | Weight | |
| Silver 50 | 47 Hz – 35 kHz | 86dB | 8 Ohms | 104dB | 100 W | 40 – 100 W | 2.6 kHz | 284 x 165 x 272 mm11 7/64 x 6 1/2 x 10 3/8 ” | 5.6 kg 12 lb 6 oz |
| Silver 100 | 35 Hz – 35 kHz | 87.5dB | 8 Ohms | 106dB | 120 W | 40 – 120 W | 2.3 kHz | 377 x 230 x 332 m 14 3/4 x 9 1/16 x 13 5/64 ” | 9.4 kg 20 lb 12 oz |
| Silver 200 | 34 Hz – 35 kHz | 87.5dB | 8 Ohms | 108dB | 150 W | 60 – 150 W | 2.7 kHz | 930 x 254 x 329 mm36 39/64 x 10 x 12 61/64” | 13.7 kg 30 lb 3 oz |
| Silver 300 | 31 Hz – 35kHz | 87.5dB | 8 Ohms | 110dB | 200 W | 80 – 200 W | 750Hz & 2.8 kHz | 1045 x 274 x 389 mm 41 9/64 x 10 25/32 x 15 5/16” | 19.3 kg 42 lb 9 oz |
| Silver 500 | 27 Hz – 35 kHz | 90.5dB | 8 Ohms | 111dB | 250 W | 80 – 250 W | 800Hz & 2.7 kHz | 1095 x 319 x 389 mm43 7/64 x 12 9/16 x 15 5/16” | 22.5 kg 49 lb 9 oz |
| Silver C250 | 65 Hz – 35 kHz | 88.5dB | 8 Ohms | 110dB | 150 W | 80 – 200 W | 650 Hz & 3.3 kHz | 206 x 481 x 272 mm8 7/64 x 18 15/16 x 10 45/64” | 10.6 kg 23 lb 6 oz |

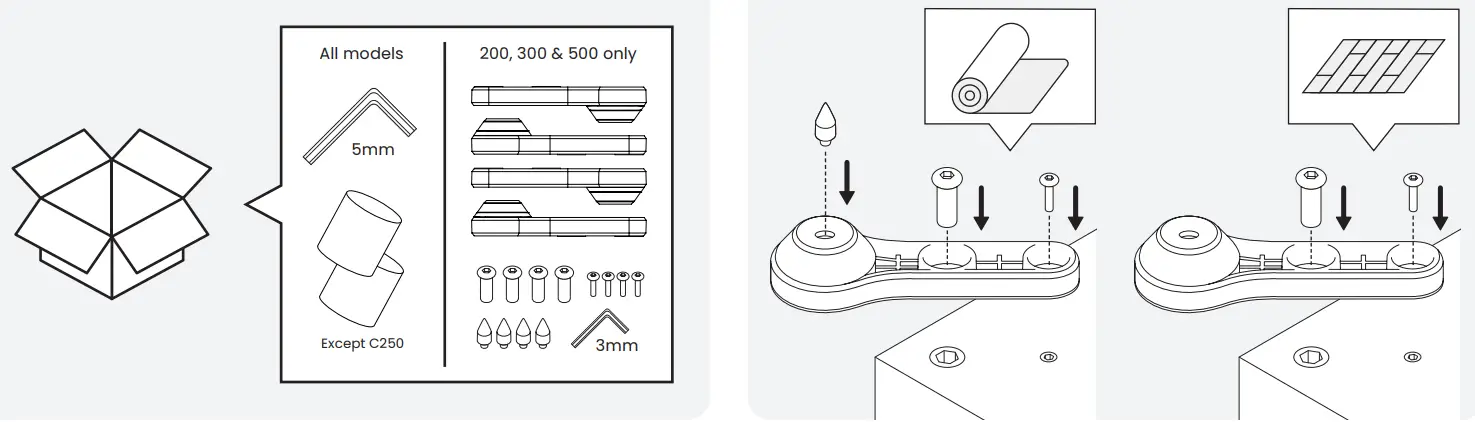

| Unboxing | Assembling Feet (200, 300 & 500 models only) |
 | |

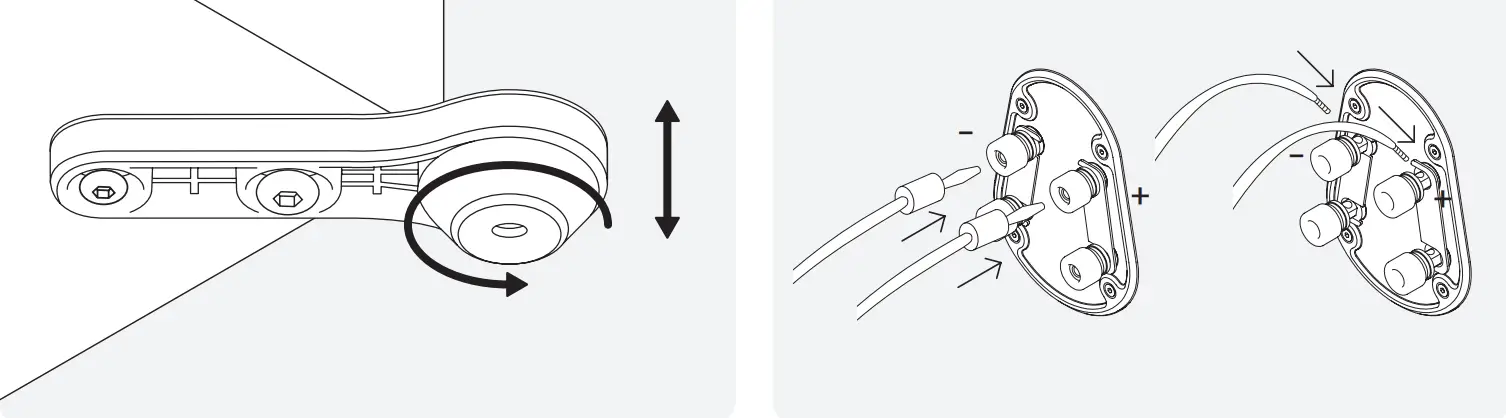

| Leveling feet | Wiring to an amplifier |
 | |

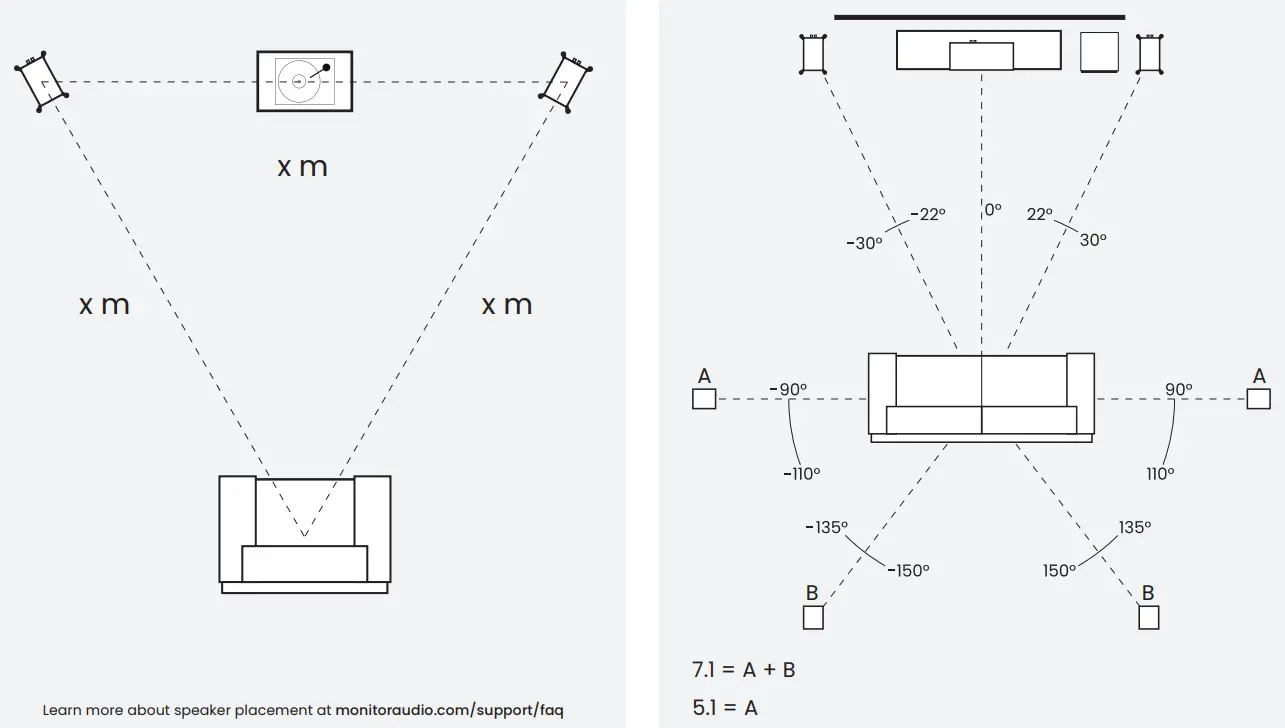

| Positioning speakers for 2 channel stereo (2.0) | Positioning speakers for surround sound (5.1 / 7.1) |
 | |
Learn more about speaker placement at monitoraudio.com/support/faq
