MONITOR AUDIO Silver Series S7GAMSBG AMS 7G Dolby Atmos Enabled Speaker User Guide
Specification
| Frequency Response | Sensitivity (2.83v @ 1m) | Nominal Impedance | Maximum SPL (Single) | Power Handling R.M.S | Recommended Amp Requirements R.M.S | Crossover Frequency | External Dimensions (H x W x D) | Weight | |
| Silver FX | 81 Hz – 30 kHz | 87.5 dB | 8 Ohms | 104 dB | 85 W | 30 – 85 W | 2 kHz | 250 x 311 x 147 mm 9 13/16 x 12 1/4 x 5 13/16 “ | 4.5 Kg 9 lb 15 oz |
| Silver AMS | 76 Hz – 30 kHz | 87 dB | 8 Ohms | 102 dB | 60 W | 10 – 60 W | 2 kHz | 185 x 185 x 312 mm 7 13/16 x 7 5/16 x 12 5/16 ” | 4.0 kg 8 lb 12 oz |
Unboxing

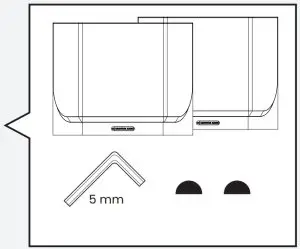

- Silver FX 7G

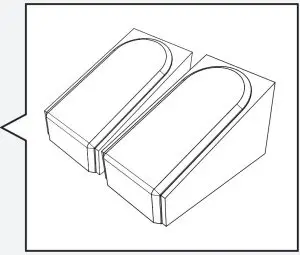

- Silver AMS 7G

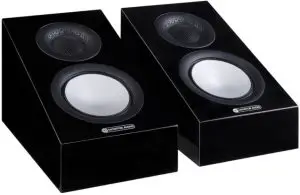

Dolby Atmos® enabled speaker

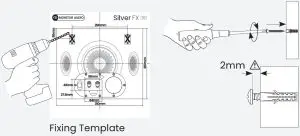

Fixing to a wall

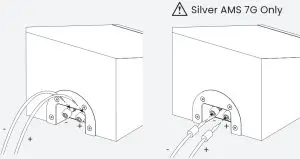

Wiring the speakers

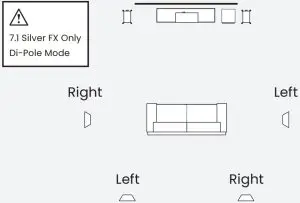

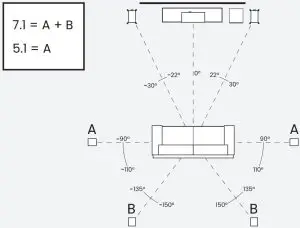

Positioning speakers for surround sound

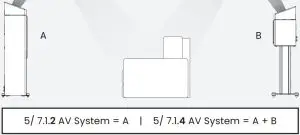

Positioning Silver AMS 7G for Dolby Atmos®

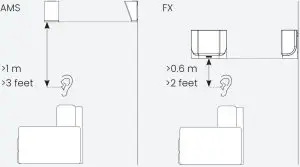

Recommended height for fixing on-wall
