Kwikset Power Bolt 2 Touchpad Keyless Entry User Manual

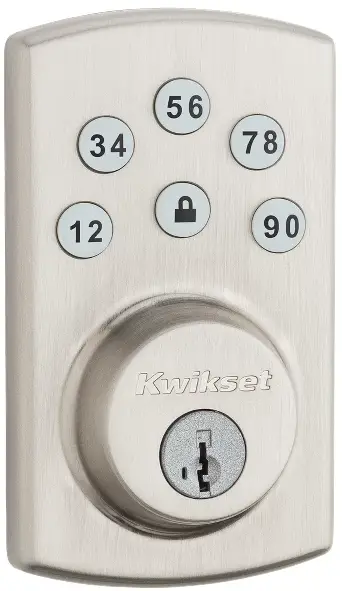

Kwikset power bolt 2 Touchpad keyless entry

Required tools

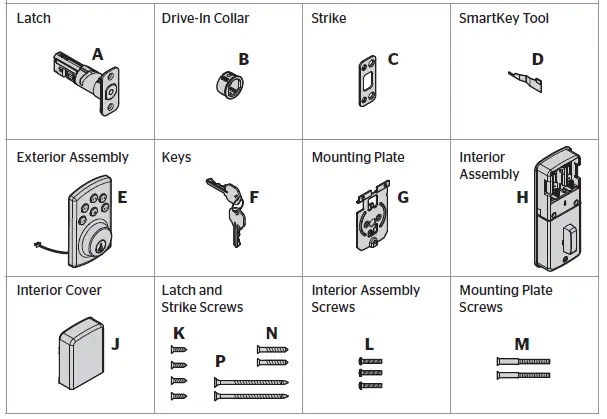

PARTS

Installation

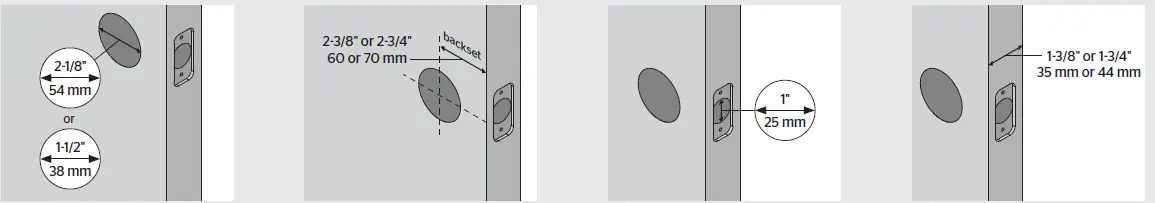

Prepare the door and check dimensions

If drilling a new door, use the supplied template and the complete door drilling instructions available at www.kwikset.com/doorprep

• Measure to confirm that the hole in the door is either 2-1/8″ (54 mm) or 1-1/2″ (38 mm).
• Measure to confirm that the backset is either 2-3/8″ or 2-3/4″ (60 or 70 mm).
• Measure to confirm that the hole in the door edge is 1″ (25 mm).
• Measure to confirm that the door is either 1-3/8″ or 1-3/4″ (35 mm or 44 mm) thick.

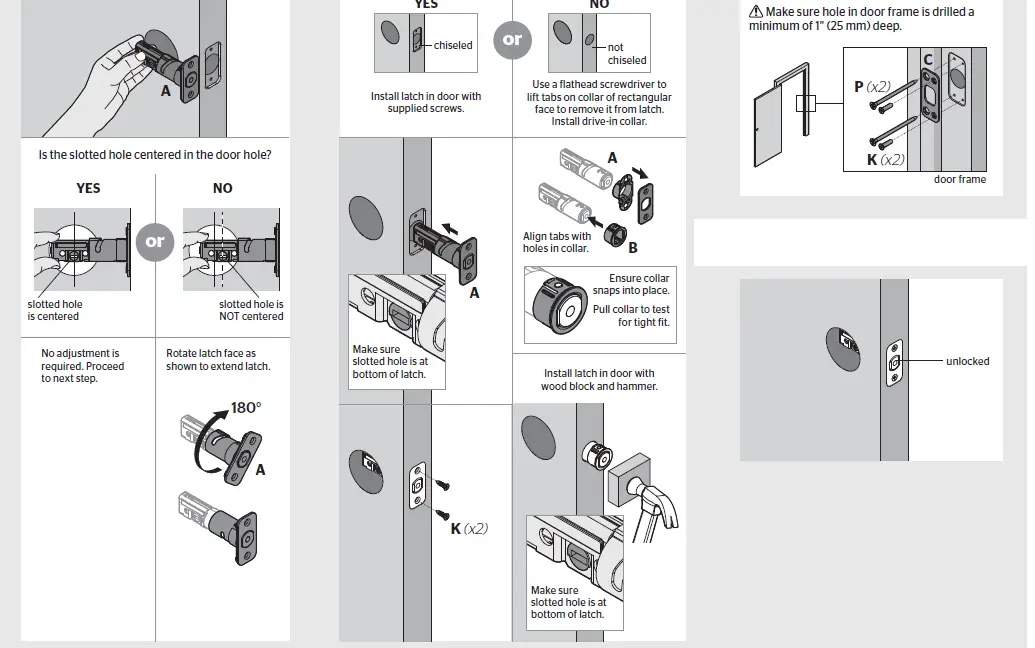

Install the latch and strike

• Hold the latch in front of the door hole, with the latch face flush against the door edge.
• Is the door edge chiseled?
• Install strike on the door frame

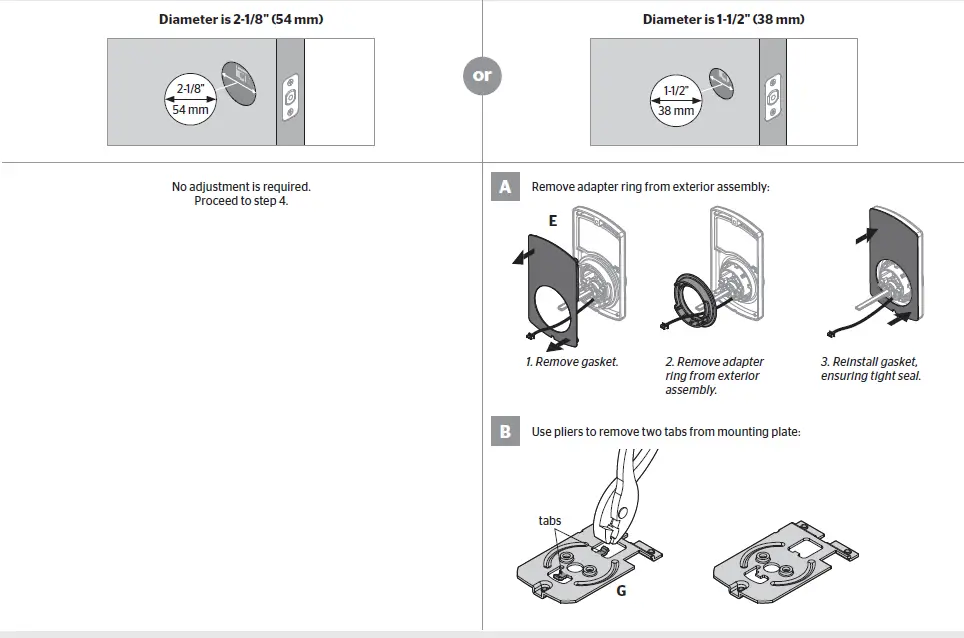

Prepare keypad and mounting plate (only for doors with smaller holes)

Install exterior assembly

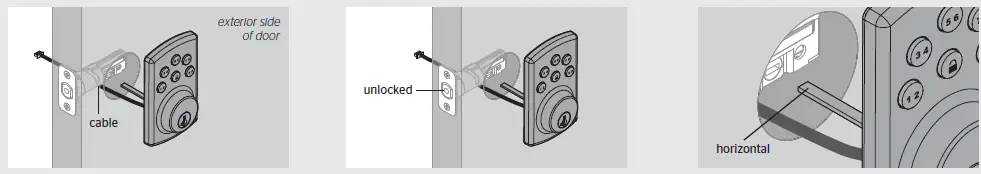

• • Route the cable below the latch.
  • IMPORTANT: Make sure the latch is fully retracted (in the unlocked position).
  • IMPORTANT: Make sure the torque blade is in the horizontal position.

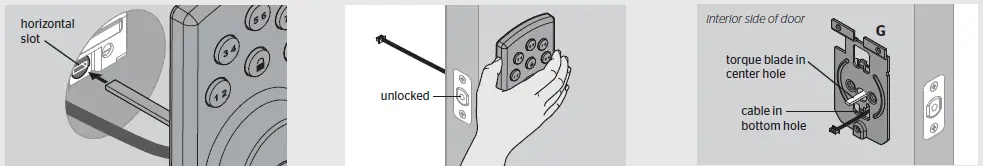

  • Insert the torque blade through the horizontal slot in the latch.
  • IMPORTANT: Hold the exterior assembly on the outside firmly (or have a second pair of hands) for the next steps.
  • Push the torque blade through the center hole in the mounting plate and send the cable through the bottom hole.

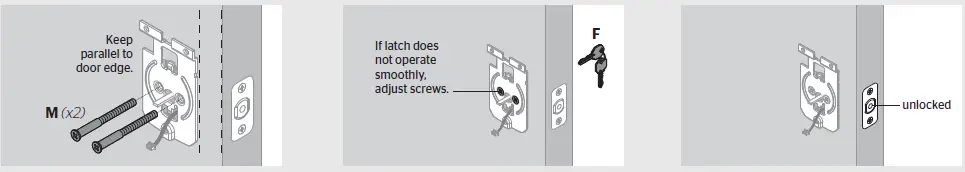

  • Secure the mounting plate with the supplied screws.
  • Insert the key and test the latch for smooth operation.
  • Remove the key and make sure the latch bolt is still in the unlocked position.

Install interior assembly

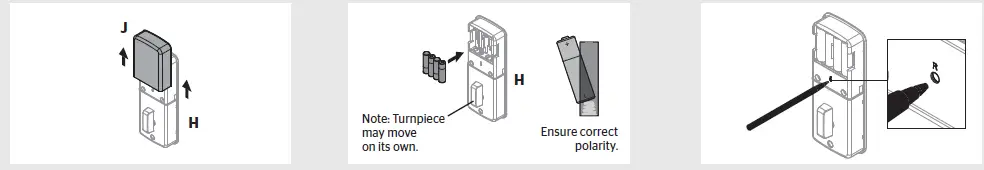

• Remove the battery cover.
• Load 4 AA batteries into the interior assembly. For best results, use new, nonrechargeable Alkaline batteries only.

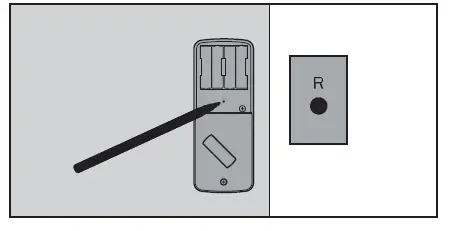

• Press and hold the Reset button on the interior assembly for 5 seconds, until you hear 3 long beeps.

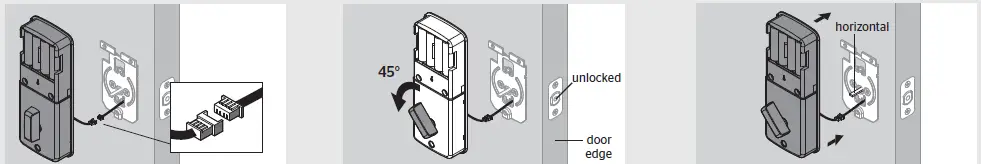

• Align the colored edges of the connectors and ensure a tight cable connection.

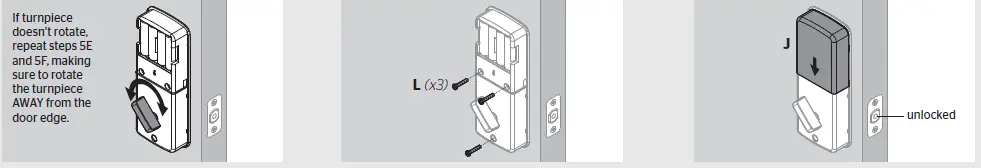

• IMPORTANT: Rotate the turnpiece AWAY from the door edge and make sure the latch is fully retracted (in the unlocked position).
• Make sure the torque blade is still in the horizontal position and install the interior assembly.
• Test the turnpiece for smooth rotation. Secure the interior assembly with the supplied screws.
• Reinstall battery cover and make sure the latch is still in the unlocked position

Set locking and unlocking direction

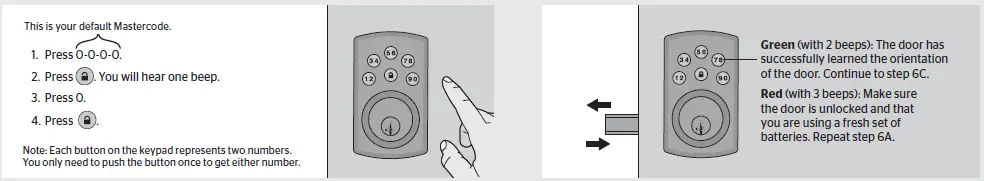

• While the door is OPEN and UNLOCKED, enter the following code to teach the lock the orientation of the door:
• The latch bolt will extend and retract. The lock will beep and the keypad will turn green or red.
• Press the Lock button. The latch bolt will extend to lock.
• Enter the default User Code (1-2-3-4), then press the Lock button. The door will unlock.

Optional: Re-key the lock

If needed, re-key the lock to work with your existing key. See the supplied SmartKey Re-Key instructions for more information.

Quick Setup and Use

How to delete all User Codes

• Make sure the lock is unlocked and the door is open.
• Enter your existing Mastercode – for new install, default is 0-0-0-0.
• Press . You will hear one beep.
• Press 5.
• Press . You will hear two beeps if successful. If you hear three beeps, it was unsuccessful. Repeat from step 1 slowly.

How to add User Codes

• Make sure the lock is unlocked and the door is open.
• Enter your Mastercode – for new install, default is 0-0-0-0.
• Press. You will hear one beep.
• Press 1.
• Press . You will hear one beep.
• Enter a new User Code. It must be 4-10 digits.
• Press . You will hear two beeps if successful. If you hear three beeps, it was unsuccessful. Repeat from step 1 slowly.
• Test the code: While your door is open, lock it. Enter your new User Code, then press . The door should unlock.

How to change your Mastercode

• Make sure the lock is unlocked and the door is open.
• Enter your Mastercode – for new install, default is 0-0-0-0.
• Press . You will hear one beep.
• Press 7.
• Press . You will hear one beep.
• Enter a new Mastercode. It must be between 4 and 10 digits.
• Press . You will hear two beeps if successful. If you hear three beeps, it was unsuccessful. Repeat from step 1 slowly.

Additional Programming Features

How to enable/disable Auto-Lock
The Auto-Lock feature automatically re-locks your door 30 seconds after unlocking. This feature is off by default.

• Make sure the lock is unlocked and the door is open.
• Enter your existing Mastercode.
• Press . You will hear one beep.
• Press 1 – 1.
• Press . You will hear two beeps if successful. If you hear three beeps, it was unsuccessful. Repeat from step 1 slowly

How to enable/disable User Codes

If User Codes are disabled (example: when you go on vacation), the lock can only be operated by the key and turn piece until they are enabled again.

• Make sure the lock is unlocked and the door is open.
•  Enter your existing Mastercode.
• Press . You will hear one beep.
• Press 1 – 7.
• Press . You will hear two beeps if successful. If you hear three beeps, it was unsuccessful. Repeat step 1 slowly.

How to add a one-time User Code

• A one-time user code may be used only once, and then it will be deleted immediately after use.
• Make sure the lock is unlocked and the door is open.
• Enter your existing Mastercode.
• Press . You will hear one beep.
• Press 1 – 9.
• Press . You will hear one beep.
• Enter a new User Code. It must be 4-10 digits.
• Press . You will hear two beeps if successful. If you hear three beeps, it was unsuccessful. Repeat from step 1 slowly.

How to change Auto-Lock time delay

• You can set the Auto-Lock time delay to 10, 20, 30, 40, or 50 seconds.
• Make sure the lock is unlocked and the door is open.
• Enter your existing Mastercode.
• Press. You will hear one beep.
• Press 1 – 3.
• Press. You will hear one beep.
  • For 10 seconds, press 1.
  • For 20 seconds, press 3.
  • For 30 seconds, press 5.
  • For 40 seconds, press 7.
  • For 50 seconds, press 9.
• Press. You will hear two beeps if successful. If you hear three beeps, it was unsuccessful. Repeat from step 1 slowly.

How to delete individual User Codes

• Make sure the lock is unlocked and the door is open.
• Enter your existing Mastercode.
• Press. You will hear one beep.
• Press 3.
• Press. You will hear one beep.
• Enter the User Code you wish to delete.
• Press. You will hear two beeps if successful. If you hear three beeps, it was unsuccessful. Repeat from step 1 slowly.
• Test the code: While your door is open, lock it. Enter the User Code, then press . The door should not unlock.

How to mute/unmute lock

• If the lock is muted, you will not hear beeping during programming, normal operation, low battery indicators, or system alerts.
• Make sure the lock is unlocked and the door is open.
• Enter your Mastercode.
• Press. You will hear one beep.
• Press 1 – 5.
• Press. You will hear two beeps if successful. If you hear three beeps, it was unsuccessful. Repeat from step 1 slowly.

How to restore default settings

• Make sure the door is open and unlocked. Press and hold the
• Reset button for 5 seconds, until you hear 3 long beeps.
• Enter the default Master code (O-O-O-0).
• Press. You will hear one beep.
• Press 0.
• Press. The latch bolt will extend and retract to learn the orientation of the door. If successful, the keypad will flash green and you will hear 2 beeps. If unsuccessful, the keypad will flash red and you will hear 3 beeps (make sure the door is open and unlocked and that you are using a fresh set of batteries).
• Test the lock: With the door open and unlocked, press. Make sure it locks the door.
• Test the default User Code: Enter the default User Code (1-2-3-4), then press. Make sure it unlocks the door.

System Alerts

Troubleshooting

The lock cannot be locked or unlocked by the keypad.
Make sure the lock is programmed with at least one User Code and that the User Codes are not disabled. If needed, restore the lock’s default settings.

The keypad doesn’t respond when touched (no lights are visible and no beeping is heard).
Make sure the cables are properly connected and make sure the batteries are new and installed correctly.

The door can be locked with the Lock button, but the User Code will not unlock the door.
Make sure the User Code is correct and that the Lock button is pushed after entering the User Code. If the door still won’t unlock, use a key to unlock the door. Call technical support for further troubleshooting.

When the door is closed and the Lock button is pressed to lock the door, the lock beeps 3 times. When the door is open and the Lock button is pressed to lock the door, the lock doesn’t beep.
Make sure that the hole in the door frame behind the strike
is drilled at least 1 inch (25 mm) deep. Also make sure the strike plate is aligned with the latch bolt. If needed, reposition the strike.

Important Safeguards

• Read all instructions in their entirety.
• Familiarize yourself with all warning and caution statements.
• Remind all family members of safety precautions.
• Restrict access to your lock’s interior assembly and routinely check your settings to ensure they have not been altered without your knowledge.
• Protect your User Codes and Mastercode.
• Dispose of used batteries according to local laws and regulations.

CAUTION: Prevent unauthorized entry. This lock has a pre-set User Code and Mastercode. Upon installation and set-up, replace both of these codes with your own. Since anyone with access to the interior assembly can reset the lock and change the User Codes, you must restrict access to the interior assembly and routinely check the User Codes to ensure they have not been altered without your knowledge.

WARNING: This Manufacturer advises that no lock can provide complete security by itself. This lock may be defeated by forcible or technical means, or evaded by entry elsewhere on the property. No lock can substitute for caution, awareness of your environment, and common sense. Builder’s hardware is available in multiple performance grades to suit the application. In order to enhance security and reduce risk, you should consult a qualified locksmith or other security professional.
