JMDLVST01-48 W Bathroom Vanities
Instruction Manual

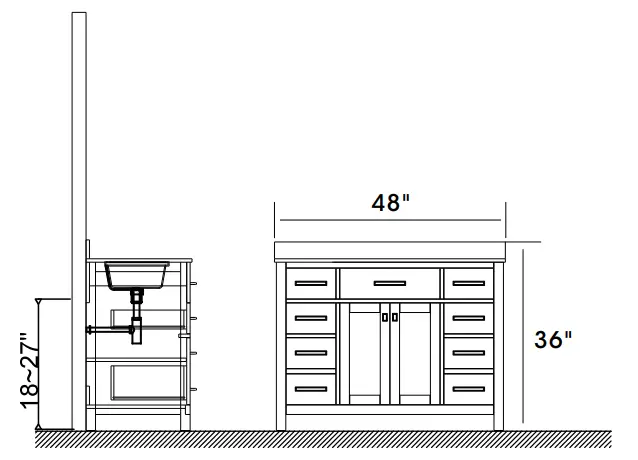

JMDLVST01-48 W Bathroom Vanities
- Carefully read the instructions before starting the Installation.
- This vanity should be installed by an experienced Plumber.
- Drain pipe and drain trap are not supplied. Connect to an existing drain pipe.

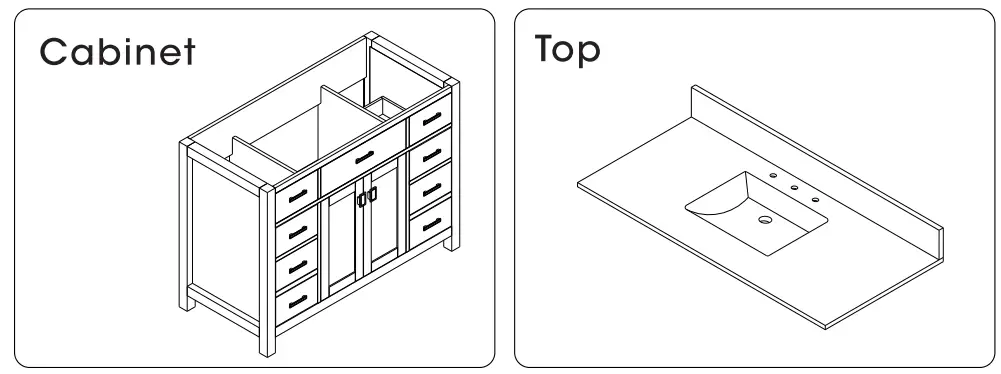

PARTS LIST
Prior to installation, please check the items you have received against the packing list. Report any missing items to your local dealer immediately. Protect all surfaces from sharp objects, high heat sources, direct prolonged sunlight and chemical hazards.
Professional installation is recommended.
REQUITED TOOLS (not supplied)

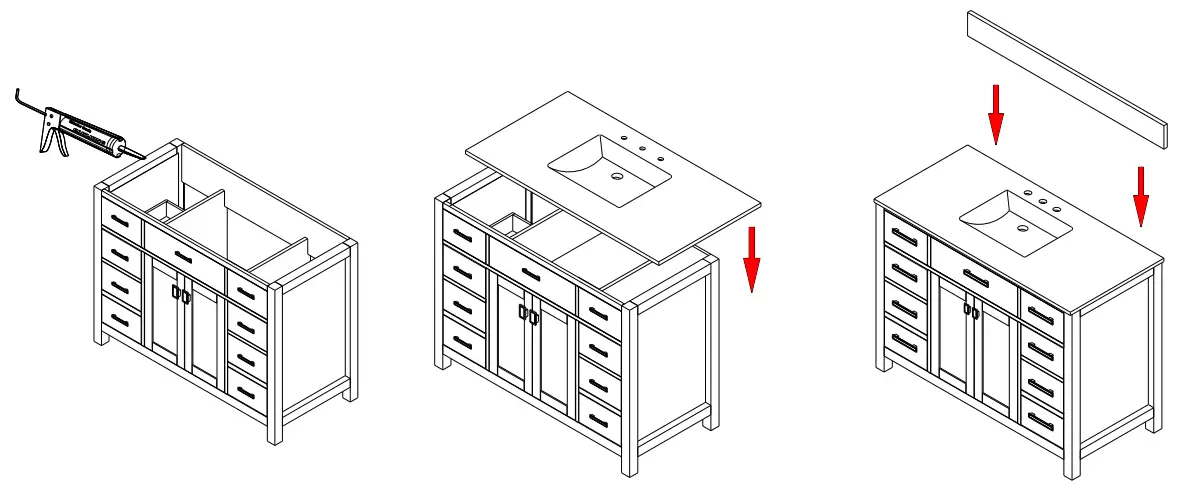

Top installation
 | ||
| Apply adhesive around the top edges of the cabinet | Carefully place the top over the cabinet | Align and center |

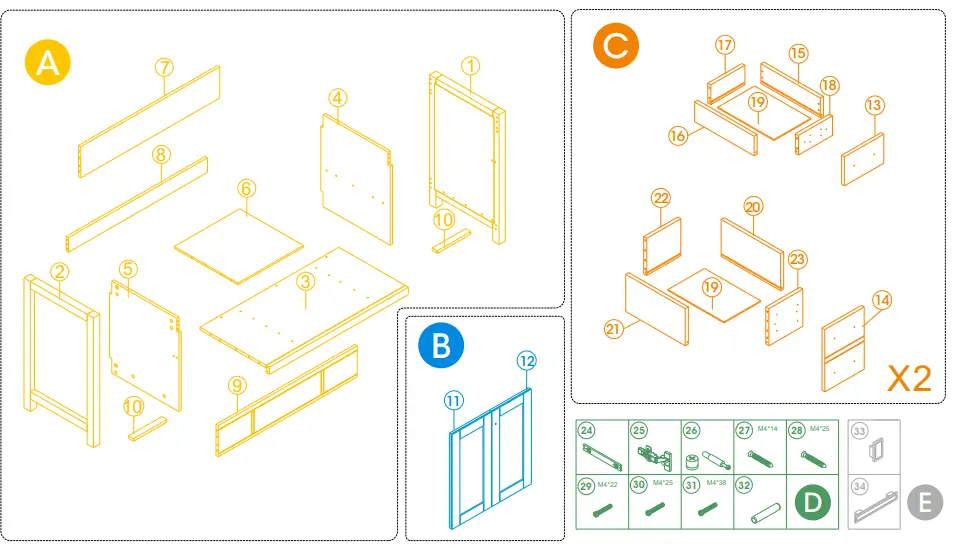

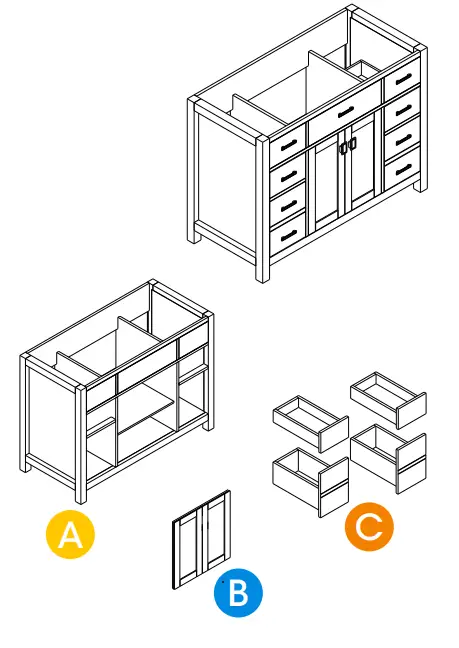

Cabinet
| PART | NO. | Description | Quantity | Size |
| Cabinet Frame A | 1 | Right Side Board | 1 | 35″*21.6″*21.6″ |
| 2 | Left Side Board | 1 | 35″*21.6″*21.6″ | |
| 3 | Bottom Board | 1 | 43.3″*20.6″*21.6″ | |
| 4 | Connect Board 1 | 1 | 25.2″*21.6″*0.7″ | |
| 5 | Connect Board 2 | 1 | 25.2″*21.6″*0.7″ | |
| 6 | Fixed Shelf | 1 | 20.9″*20.9″*0.7″ | |
| 7 | Back Board 1 | 1 | 43.3″*8.4″*0.7″ | |
| 8 | Back Board 2 | 1 | 43.3″*3.9″*0.7″ | |
| 9 | False Drawer | 1 | 43.3″*8.4″*0.7″ | |
| 10 | Connect Board 2 | 2 | 10.2″*2.4″*0.7″ | |
| Door B | 11 | Door(left) | 1 | 21″*10.3″*0.8″ |
| 12 | Door(right) | 1 | 21″*10.3″*0.8″ | |
| Drawer C | 13 | Drawer Front 1 | 2 | 10.3″*6.4″*0.7″ |
| 14 | Drawer Front 2 | 2 | 13.9″*10″*0.7″ | |
| 15 | Right Side Board For Drawer | 2 | 15.7″*3.9″*0.6″ | |
| 16 | Left Side Board For Drawer | 2 | 15.7″*3.9″*0.6″ | |
| 17 | Back Board For Drawer | 2 | 8.2″*3.9″*0.6″ | |
| 18 | Front Board For Drawer | 2 | 8.2″*3.9″*0.6″ | |
| 19 | Bottom Board For Drawer | 4 | 15″*8.5″*0.2″ | |
| 20 | Right Side Board For Drawer | 2 | 15.7″*7″*0.6″ | |
| 21 | Left Side Board For Drawer | 2 | 15.7″*7″*0.6″ | |
| 22 | Back Board For Drawer | 2 | 8.2″*7″*0.6″ | |
| 23 | Front Board For Drawer | 2 | 8.2″*7″*0.6″ | |
| Install Fittings D | 24 | Drawer Glides | 8 | 15.7″*2″*0.5″ |
| 25 | Hinge (door) | 4 | 3.9″*2.4″*1.54″ | |
| 26 | Three-in-one Connector | 81 | Ø0.57″*0.46″ | |
| 27 | Drawer Glide Screws | 80 | M4*14 | |
| 28 | False Drawer Screws | 16 | M4*25 | |
| 29 | Knob Screws | 10 | M4*22 | |
| 30 | Handle Screws | 2 | M4*25 | |
| 31 | Handle Screws | 8 | M4*38 | |
| 32 | Wood Plug | 25 | Ø0.31″*1.26″ | |
| Handle & Knob E | 33 | Knob | 2 | 1.6″*1*0.8″ |
| 34 | Handle | 9 | 5.2″*1″*0.8″ |

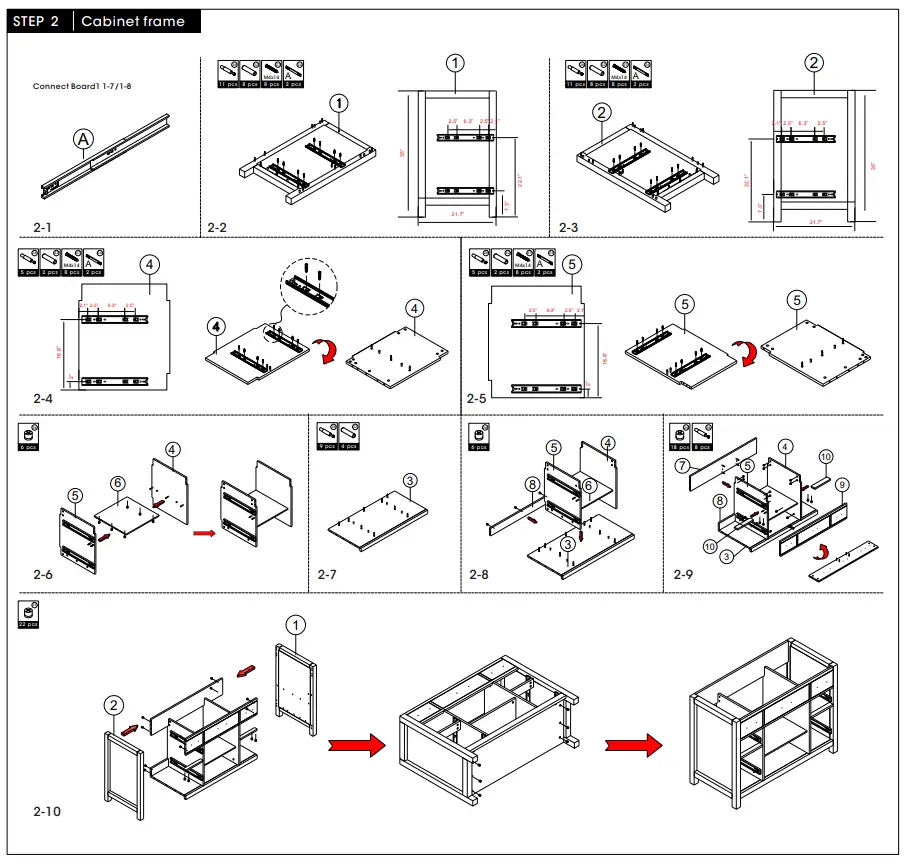

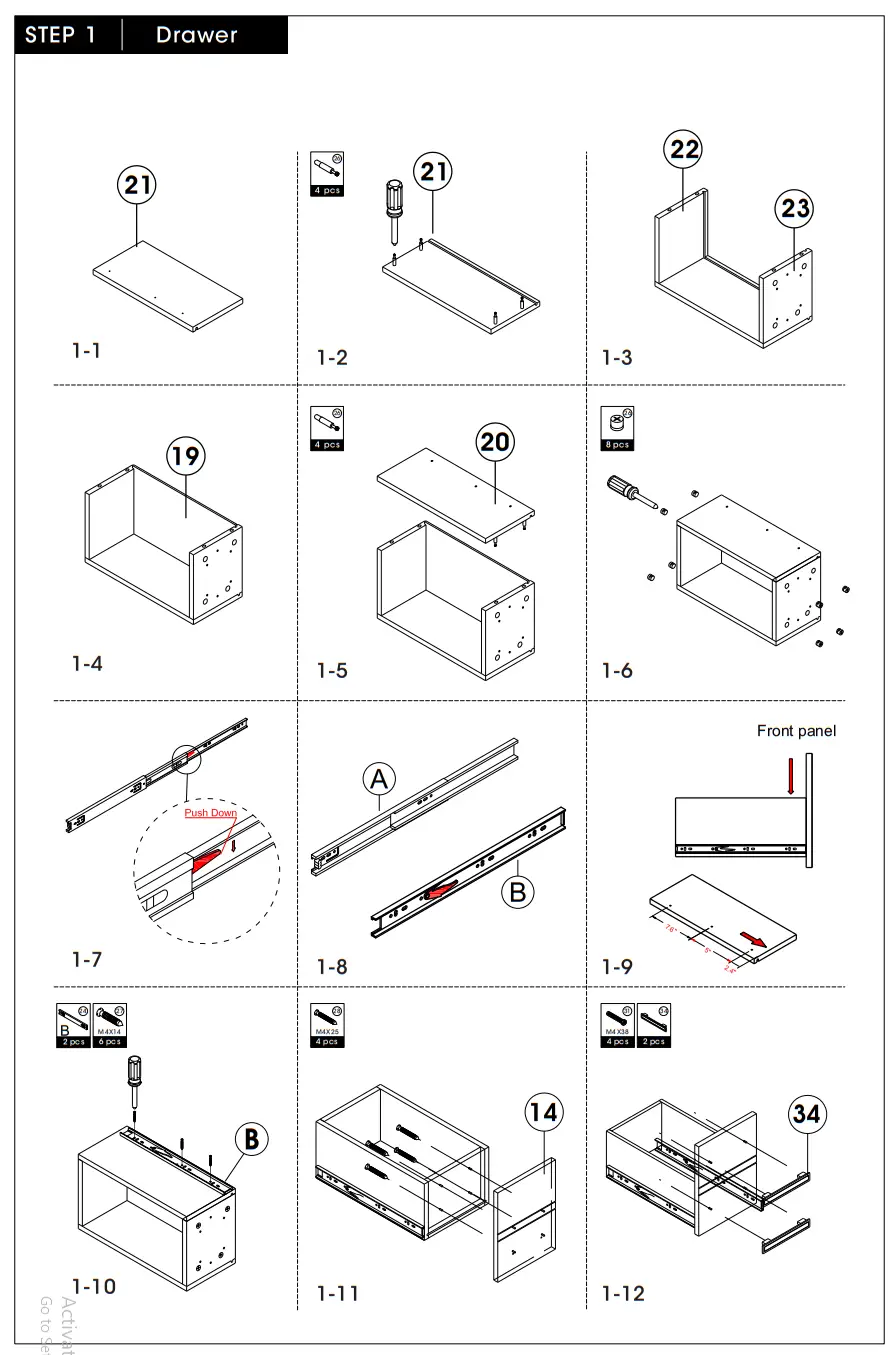

INSTALLATION STEPS
 |  |
 | |
If you are missing any part, please stop and contact us
immediately at:[email protected]
951-433-9027 408-728-6543
