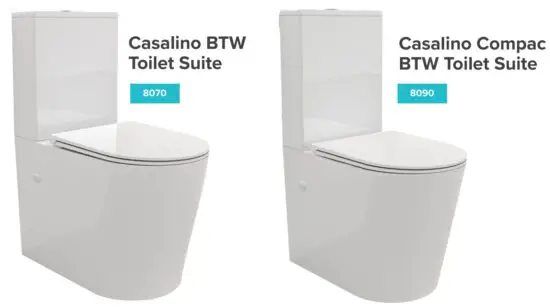

Newtech 8070 Casalino Toilets Instruction Manual

newtech 8070 Casalino Toilets Instruction Manual

0800 728 662
www.newtech.co.nz

STEP 1:
Decide if a “s” trap installation or “p” trap installation is required

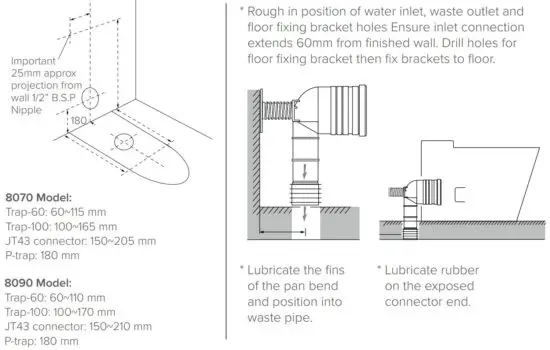

“S” TRAP installation:

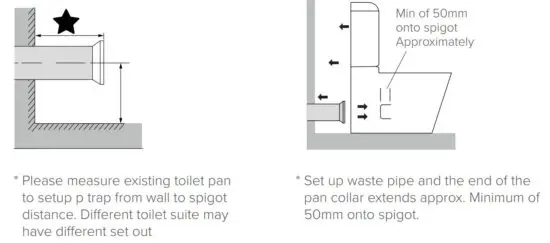

“P” TRAP installation:

STEP 2:

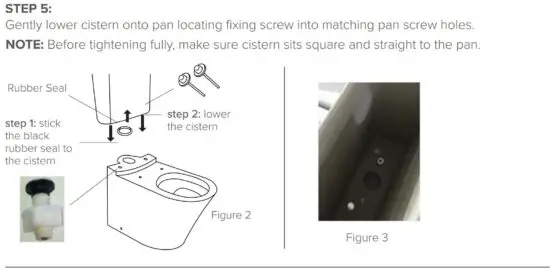

Do the below installation for the cistern fixing.

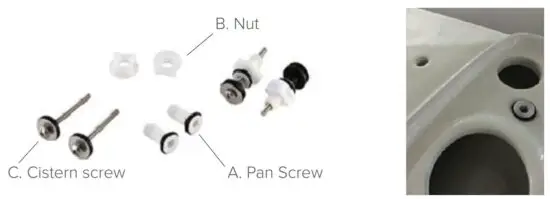

1. Place rubber seal into pan recess (Do not use sealant).
2. Press Pan screw A into the pan screw hole.
3. Use Nut B to tight pan screw A underneath the pan. (refer to Fig 1).
4. Place cistern screw C into holes on the inside of cistern, making sure washers are located correctly.

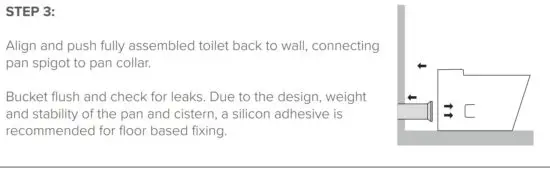

STEP 3:

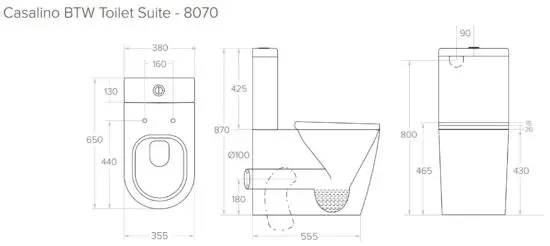

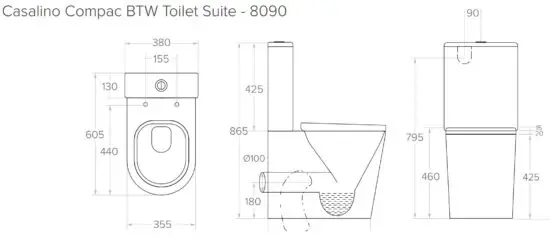

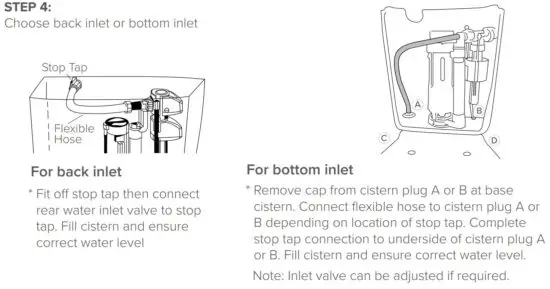

SPECIFICATIONS

0800 728 662
[email protected]
www.newtech.co.nz
