Philips Bgp307 Clearway Gen2 Versatile And Cost-efficient Led Lighting User Manual

BGP307 ClearWay gen2 Versatile and Cost-Efficient LED Lighting
User Manual

ClearWay gen2 Versatile and Cost-Efficient LED Lighting

BGP307- Core	LED25 – LED69	5,25	19 – 52	–	46A/330ps	11/6	75W FP/ 75W SR
	LED84 – LED99	5,35	60 – 72	–	46A/330ps	11/6	75W FP/ 75W SR/ 75 CM
	LED109	5,35	83	–	53A/330ps	11/6	150W FP/ 15W SR/ 150 CM
BGP307- 4S	LED8 – LED30	4,75	6 – 20,5	–	15A/320ps	23	22W FP/ 22W SR
	LED14- LED45	4,75	22 – 34,5		21A/300ps	20/21	40 CM
	LED35 – LED54	4,75	22 – 34,5	–	21A/300ps	20/21	40W FP/ 40W SR
	LED69 – LED120	5,35	41- 74	–	46A/330ps	11/6	75W FP/ 75W SR/ 75 CM
	LED130	5,35	82	–	53A/330ps	11/6	150W FP/ 15W SR/ 150 CM
	LED6 – LED25	4,75	–	5,5 – 21,5	15A/320ps	23	22W FP/ 22W SR
	LED14- LED45	40,75	–	23,5- 36	21A/300ps	20/21	40W CM
	LED30 – LED45	4,75	–	23,5 – 36	21A/300ps	20/21	40W FP/ 40W SR
	LED54 – LED99	5,35	–	39,5 – 77	46A/330ps	11/6	75W FP/ 75W SR/ 75 CM

Printed in Poland
Data subject to change without notice
Keep for future reference: http://www.lighting.philips.com

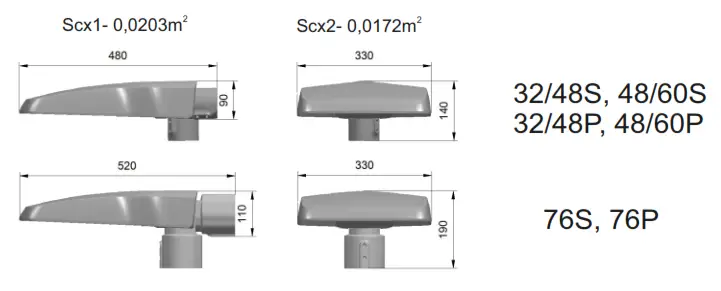

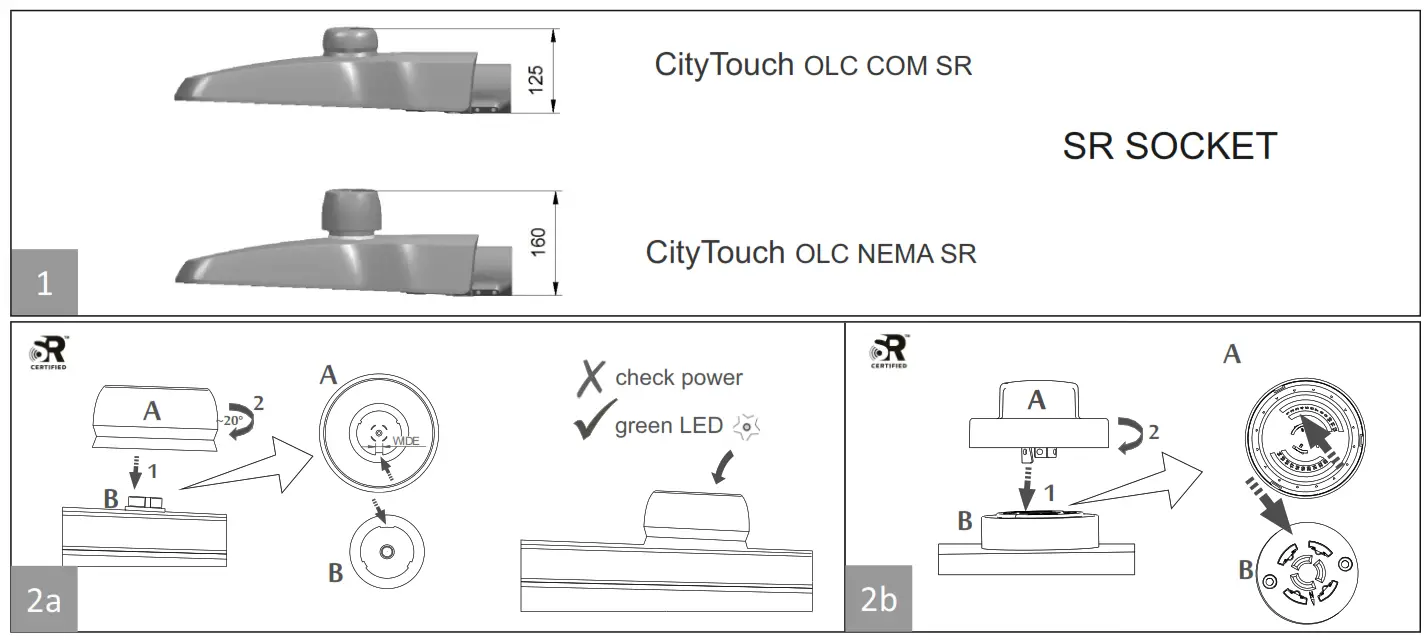

SR compatibility: For SR-based luminaires, only SR Certified components/sensors are to be used (see also:
http://www.lighting.philips.co.uk/oem-emea/products/driving-connected-lighting).
Functional compatibility of 2 (SR certified) components/sensors to be used in combination as well as override the possibility of any line-switch function used in an SR-based luminaire, is to be released by the master component/sensor supplier. For the use of a NEMA 7pin socket on a SR-based luminaire a full system verification is required. Not following this advises can/will cause risk of damage and non-compliance for which Signify cannot take any responsibility.

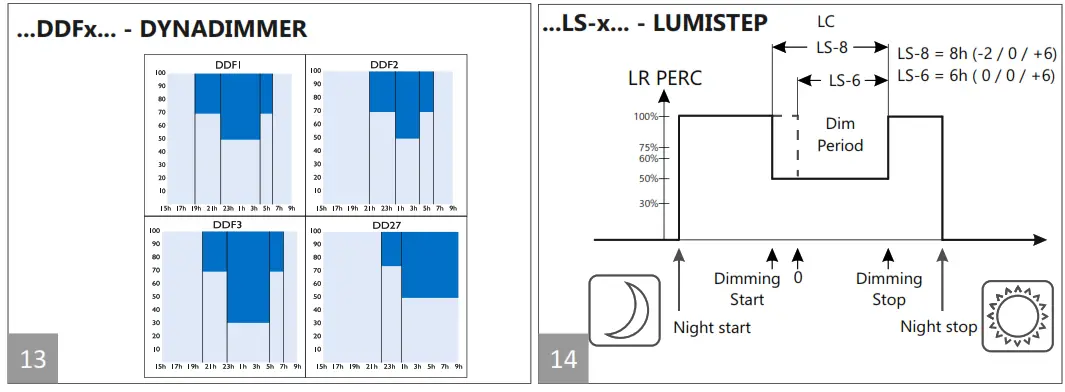

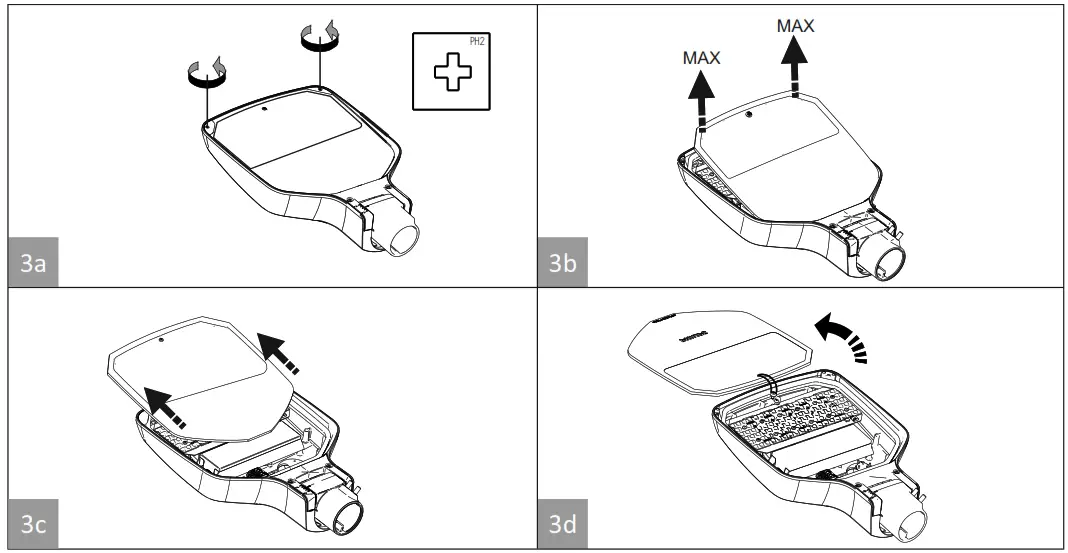

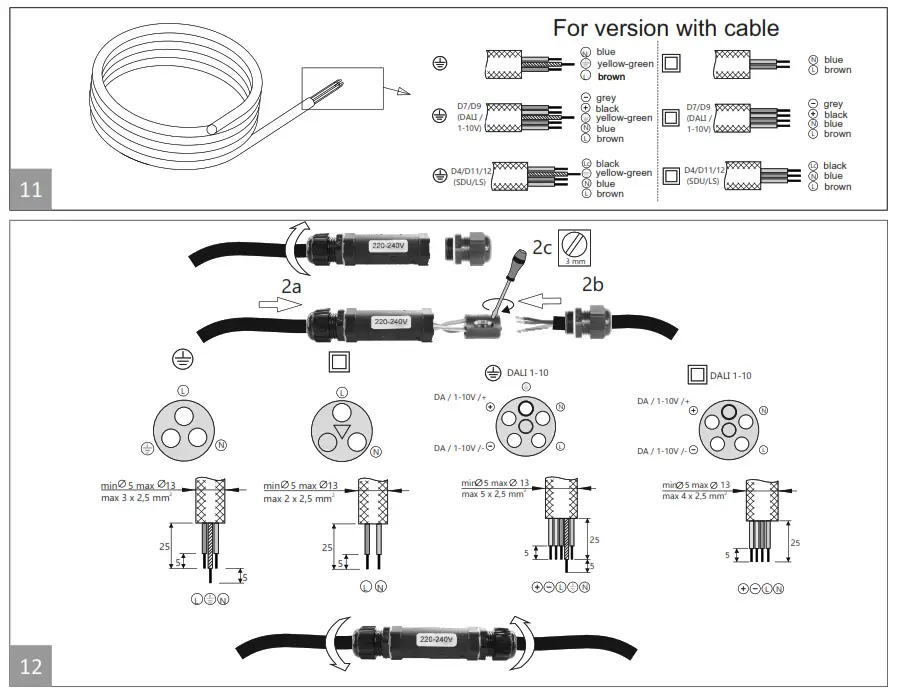

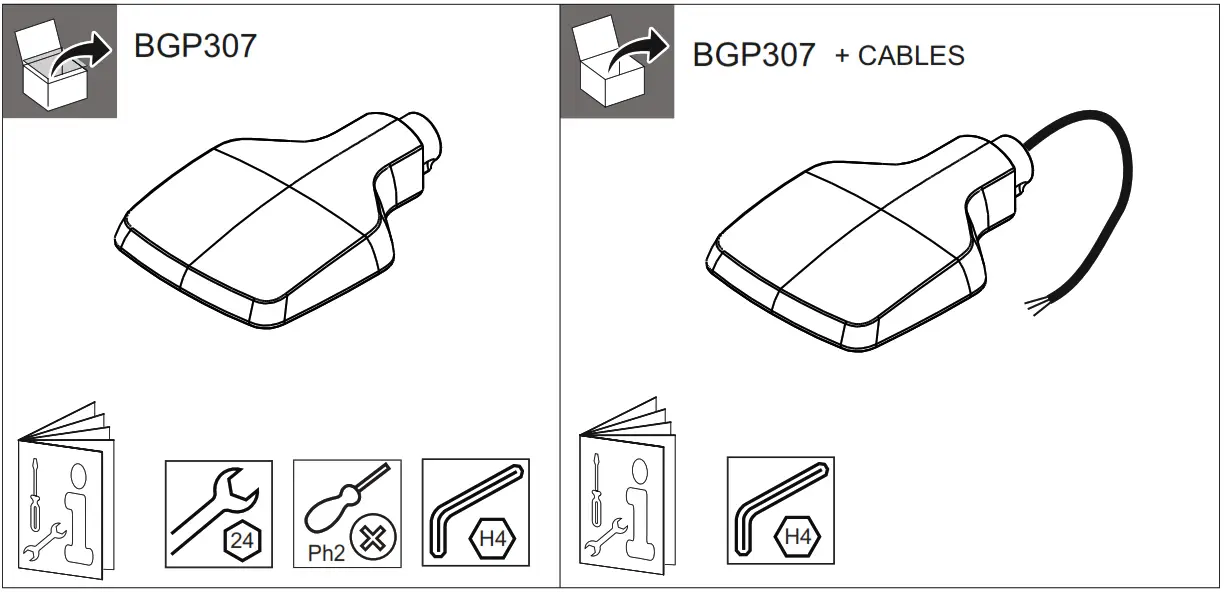

For version without cable

For the version with cable

http://www.lighting.philips.com/main/systems/themes/service-tag.html

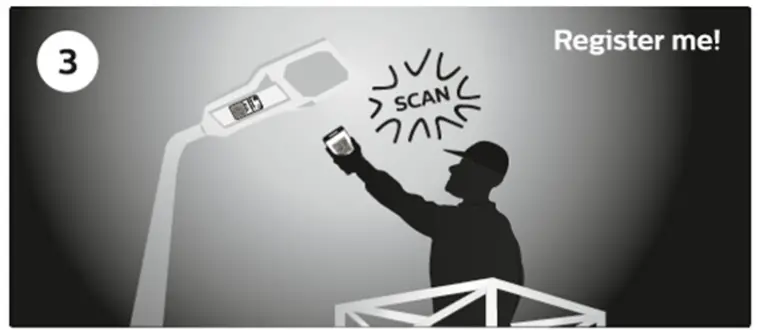

To get an overview of all spare parts for a luminaire, please refer to detailed instructions in the service manual available via the Signify Service tag apps (Android and iOS). To program a spare driver is supported by Signify Service tag (Android only)

https://play.google.com/store/apps/details?id=com.philips.servicetag&hl=en&gl=US

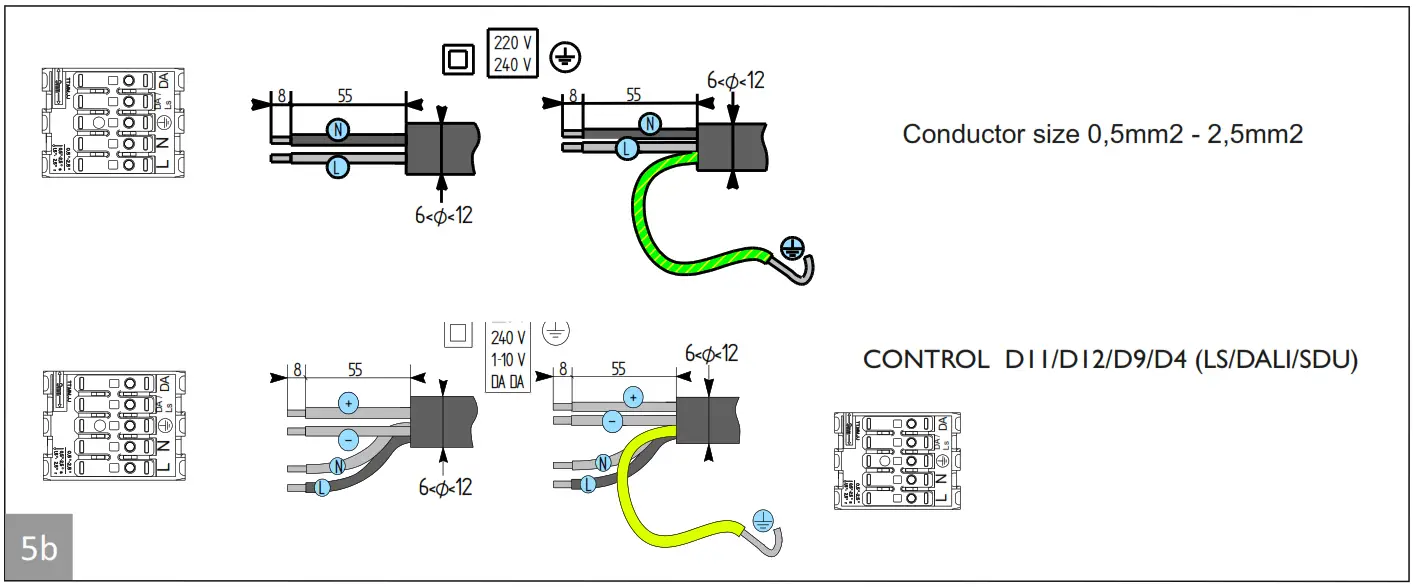

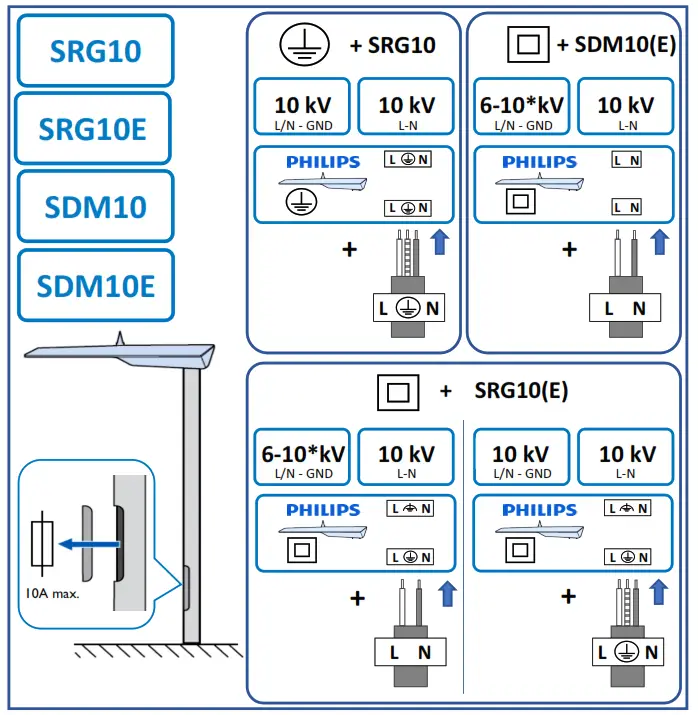

* 10kV for L/N – GND non-conductive connection

 Disconnect before servicing

Luminaire has basic insulation between Low Voltage supply and control conductors.
The light source and/or control gear and/or the external flexible cable contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similarly qualified person.

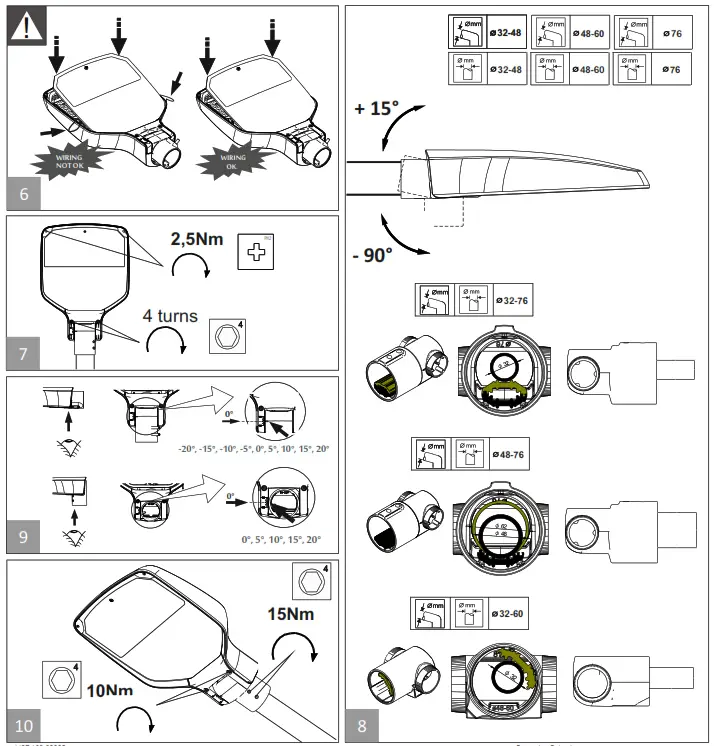

Storage, installation, use, operation, and maintenance of the products need to be performed exactly according to the instructions in this manual and/or other instructions as may be provided by us to guarantee the safe use of the product over its entire lifetime. Failure to adhere to these instructions will invalidate your entitlement to warranty. Bolts with an indication of torque strength on the drawing need to be tightened using a calibrated torque wrench. Pre-assembled bolts need to be retightened again to the required torque specification to assure maximum strength over a lifetime.
This product contains a light source of energy efficiency class: see table or label.

© 2021 Signify Holding
All rights reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.
The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable, and may be changed without notice. No liability will be accepted by the publisher for any consequence of its use.
Publication thereof does not convey nor imply any license under patent- or other industrial or intellectual property rights.
Signify Holding
The Netherlands
4427 103 32395
© 27/06/2022, Philips Lighting Holding B.V. All rights reserved
