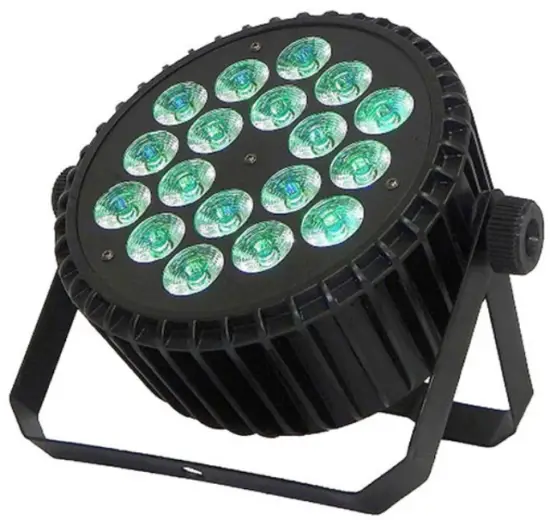

Free Color P1810A RGBW
LED PAR Light
USER MANUAL
Thank you so much to choose this product; it is adopting the most advanced lamps, which is called LED lamps. It conquers a lot of disadvantages such as power wasting, short using life, high temperature, etc. It has advantages of power saving, long life (it can reach 60,000.00 hours in general circs), high brightness, fresh colors…It is the best stage illuminating and various effect decorative products.
DMX512Control : 8 Channel Model(A001)
| CH | Display | Function |
| CH1 | Dimmer | R> G, B, W dimmer: from dark to bright |
| CH2 | R dimmer | R dimmer: from dark to bright |
| CH3 | G dimmer | G dimmer: from dark to bright |
| CH4 | B dimmer | B dimmer: from dark to bright |
| CH5 | W dimmer | W dimmer: from dark to bright |
| CH6 | Strobe | R, G, B, W strobe: from slow to fast |
| CH7 | Function choice | 0-50: DMX 8CH Control. 51-100: Different Colors Output 101-150: Colors Jump Change. 151-200: Colors Gradate. 201-250: Colors Pulse Change. 251-255: Sound-Active |
| CH8 | Function speed | Speed function, from slow to fast |
DMX512Control : 4Channel Model(DOOI)
| Channel | Function | Instruction |
| CH1 | R Dimmer | Dimmer – Dark to Bright |
| CH2 | G Dimmer | Dimmer – Dark to Bright |
| CH3 | B Dimmer | Dimmer – Dark to Bright |
| CH4 | W Dimmer | Dimmer – Dark to Bright |
FUNCTION:
No | Show | Function | Instruction |
| 1 | D00l | DMX Address (001`512) | DMX-512 address set, 4 Channels mode |
| 2 | A001 | DMX Address (001’512) | DMX-512 address set, 8 Channels mode |
| 3 | r255 | Red (000’255) | UP> DOWN Change brightness |
| 4 | G255 | Green (000`255) | UP> DOWN Change brightness |
| 5 | b255 | Blue (000`255) | UP’ DOWN Change brightness |
| 6 | u255 | white (000`255) | UP’ DOWN Change brightness |
| 7 | FH99 | Strobe flash (01`99) | UP’ DOWN Change the speed |
| 8 | CL01 | Different Colors Output (01`08) | UP’ DOWN Change brightness |
| 9 | CC99 | Colors Jump Change (01`99) | UP’ DOWN Change the speed |
| 10 | DE99 | Colors Graduate (01`99) | UP’ DOWN Change the speed |
| 11 | CP99 | Colors Pulse Change (01`99) | UP’ DOWN Change the speed |
| 12 | SU01 | Colors sound-Active (01`99) | UP’ DOWN Change the effects |
Technical:
Voltage: AC110-220V 50/60HZ
Power supply: 180W
Color: R,G,B,W
Channel:8/4CH
Operation: DMX512, Auto, Sound, Master-slave
