H-800, H-1037
BETTER PACK ELECTRONIC 555eS
KRAFT TAPE DISPENSER
1-800-295-5510 – uline.com
Contents hide

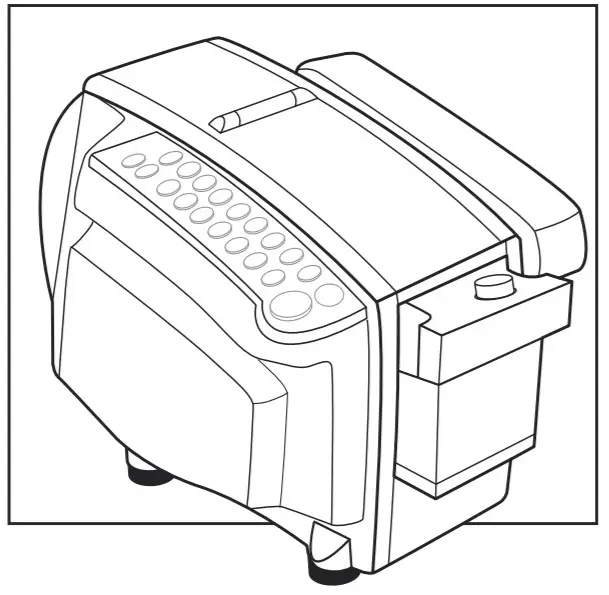

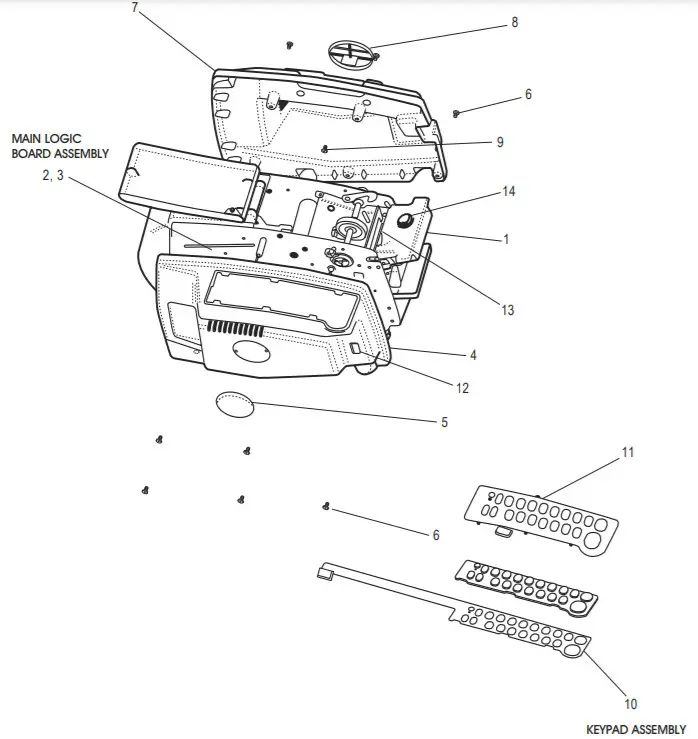

EXTERNAL VIEW
EXTERNAL VIEW PARTS LIST
| # | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
| 1 | Heater Assembly | 1 | H-800H | E555-007-01 |
| 2 | Main Logic Board Assembly (For H-1037) | 1 | H-800-BOARD | E555-001-01 |
| 2 | Main Logic Board Assembly (For H-800) | 1 | H-800MBA | E555-002-01 |
| 2 | Main Logic Board Assembly (For 220V H-800) | 1 | H-800-CBOARD | E555-001-06 |
| 3 | Screw, #6-32 x .5 | 5 | —- | ST-2340 |
| 4 | Left Cover | 1 | H-800-LFTCVR | E555-030-00 |
| 5 | Cover Badge | 1 | H-800-BADGE | E555-055-00 |
| 6 | Screw, #10-24 x .375 | 5 | —- | ST-1949 |
| 7 | Right Cover | 1 | H-800-RSC | E555-031-00 |
| 8 | Bottle Retainer | 1 | H-800-BOTTLE | E555-037-00 |
| 9 | Screw (Self Threading), Type B, #8 x 3/8 | 1 | H-800-ST2339 | ST2339 |
| 10 | Keypad Assembly (For H-800) | 1 | H-800-KEYPAD | E555-003-01 |
| 10 | Keypad Assembly (For H-1037) | 1 | H-1037KEYPAD | E555-003-02 |
| 11 | Bezel, Keypad (For H-800) | 1 | H-800KB | E555-039-01 |
| 11 | Bezel, Keypad (For H-1037) | 1 | H-1037-11 | E555-039-02 |
| 12 | Cable Assembly Power Switch | 1 | H-800PS | E555-071-01 |
| 13 | Cable Assembly 555e Tape Sensor | 1 | H-800-06901 | E555-069-01 |
| 14 | Heater Knob Kit | 1 | H-800H-2929 | ST2929KIT |
| Rubber Keypad (For H-800, Not Shown) | 1 | H-800-003-01 | E555003-01-PAD | |
| EEPROM-Small Micro Chip | 1 | H-800-MCHIP | ST2336-555 |
INTERNAL VIEW
INTERNAL VIEW PARTS LIST
# | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
| 1 | Solenoid & Cutter | 1 | H-800-ASSEMB | E555-043-01 |
| 2 | Vertical Tie Plate Assembly | 1 | —- | E555-019-01 |
| 3 | Basket Assembly | 1 | —- | E555-050-01 |
| 4 | Left Frame Assembly | 1 | H-800-010 | E555-010-01 |
| 5 | Screw, #10-24 x .375 | 26 | H-800-ST1949 | ST-1949 |
| 6 | Nut. 1/4′ – 20 Hex Lock | 5 | H-800-K2218 | K221B |
| 7 | Tape Roller Assembly | 1 | H-800-05101 | E555-051-01 |
| 8 | Impression Roller Assembly | 1 | H-800-02701 | E555-027-01 |
| 9 | Idler Shaft Assembly | 1 | H-800-053 | E555-053-01 |
| 10 | Right Frame Assembly | 1 | H-800-047 | E555-011-01 |
| 11 | Bushing, Wire | 2 | —- | ST-2346 |
| 12 | Tape Plate Assembly | 1 | H-800-LWRTAP | E555-137-01 |
| 13 | Stop Shaft Assembly | 1 | H-800-08401 | E555-082-01 |
| 14 | Cutter Litt Link | 1 | H-800-078 | E555-078-00 |
| 15 | Retaining Washer | 2 | H-800-WK20 | WK20 |
| 16 | Cutter Spring | 1 | H-800-CUTTER | E585C |
| 18 | Felt & Bracket Assembly | 1 | H-800-SA1OX | SA1OX |
| 19 | Pivot Rod | 2 | H-800-PIVOT | E580SA |
| 20 | Solvent Bracket Tension Spring | 1 | H-800-SA13 | SA13 |
| 21 | Shaft, Tape Drive | 1 | H-800-TAPEDR | E555-024-00 |
| 22 | Encoder Disk Assembly | 1 | H-800EDA | E555-150-00 |
| 23a | Metal Feed Wheel (Old Model) | 1 | H-800-PW77X | PW77X |
| 23b | Rubber Feed Wheel (New Model) | 1 | H-800-506500 | E555.065-00 |
| 24 | Feed Wheel Sprocket | 1 | H-800-ND114A | ND114A |
| 25 | Set Screw | 1 | H-800-BM172 | BM172 |
| 26 | Motor Chain | 1 | H-1037-26 | ND116 |
| 27 | Motor Assembly | 1 | H-800MOTOR | E555-044-01 |
| 28 | Rubber Washer | 6 | —- | ND125 |
| 29 | Washer | 6 | —- | E637 |
| 30 | Cable Assembly – 555e Tape Length | 1 | H-800-06801 | E555-068-01 |
| 31 | Screw, #4-40 x 1/4 Phillips Pan Head | 2 | —- | ST-2440 |
| 32 | Top Heater Assembly | 1 | H-800H | E555-007-01 |
| 33 | Shear Guide Roller 3′ | 2 | H-800-GUIDE | FM18 |
| 34 | Pivot Rod Retainer | 1 | H-800-ROD | E580RA |
| 35 | Magnetic Proximity Switch Assembly | 1 | H-800E555MPS | E555-075-01 |
| 36 | Retaining Ring | 1 | 11-800-ST2345 | ST-2345 |
| 37 | Connector Plate Assembly | 1 | —- | E555-023-01 |
| 38 | Fuse. 4 Amp. 5mm x 20mm | 1 | 1+800-ST2341 | ST-2341 |
| 39 | Access Plate | 1 | H-800-39 | E555-235-0 |
| 40 | Lower Heater Plate | 1 | H-800-13600 | E555-136-00 |
| Stationary Shear Assembly (Not Shown) | 1 | H-800-FM21X | FM21X | |
| Top & Rear Cover Assembly (Not Shown) | 1 | H-800-TPRCVR | E555-045-01 | |
| Rear Cover Pivot Pin (Not Shown) | 1 | H-800-06000 | E555-060-00 | |
| E-Ring (Not Shown) | 2 | —- | 023-376-0 |

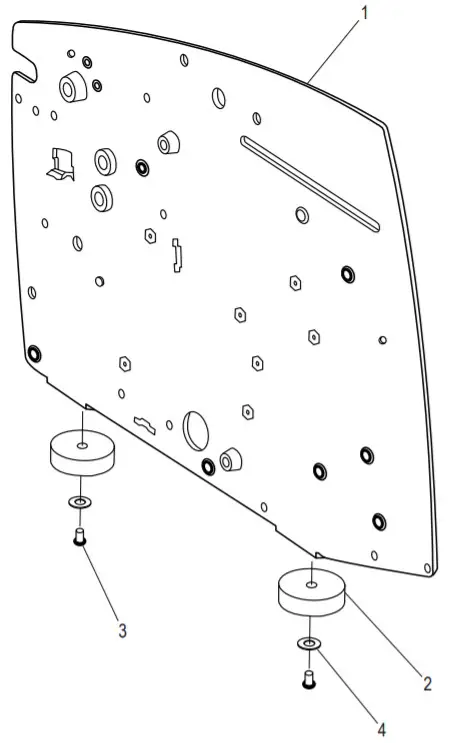

LEFT FRAME
LEFT FRAME PARTS LIST
| # | DESCRIPTION | QTY. | MINE PART NO. | MFG. PART NO. |
| 1 | Left Frame | 1 | H-800-010 | E555-010-01 |
| 2 | Fool | 2 | 11-800-FT | E555-054-00 |
| 3 | Screw | 2 | 11-800-511949 | ST1949 |
| 4 | Flat Washer. #10 | 2 | H-800-BW | BW1/4 THIN |

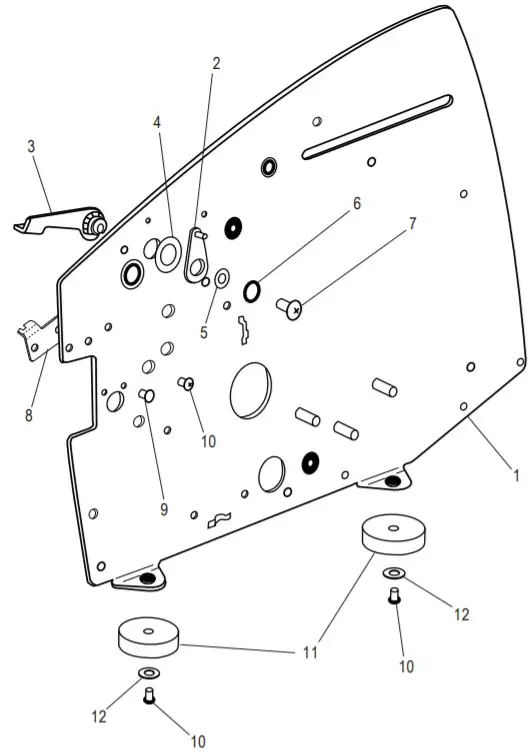

RIGHT FRAME
RIGHT FRAME PARTS LIST
| # | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
| 1 | Right Frame | 1 | H-800-074 | E555-011-01 |
| 2 | Link Cutter lift | 1 | SI-800-085-01 | E555-085-01 |
| 3 | Cutter Lift Lever | 1 | H-800-079-01 | (555-079-01 |
| 4 | Thick Washer | 1 | H-800-K35A | K35A1/32 |
| 5 | Washer | 1 | 14-800-BW | 8W1/4 THIN |
| 6 | Lock Washer | 1 | — | 1214 |
| 7 | Screw | 1 | 11-35-10256 | 10256 |
| 8 | Stationary Blade Adjuster | 1 | — | (555-061-01 |
| 9 | Rivet | 1 | — | FM90 |
| 10 | Screw | 3 | I-1-800-ST1949 | ST1949 |
| 11 | Foot | 2 | — | E555-054-00 |
| 12 | Flat Washer. #10 | 2 | 14-800-BW | 8W1/4 THIN |

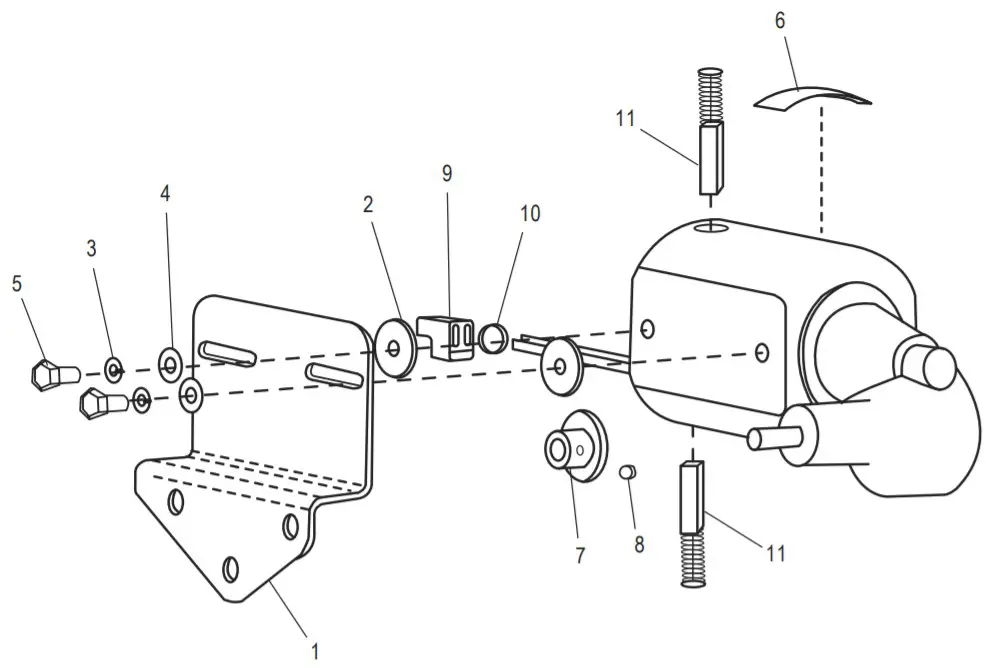

MOTOR
MOTOR PARTS LIST
| # | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
| 1 | Motor Mount Bracket | 1 | — | ND121 |
| 2 | Space | 2 | — | ND122A |
| 3 | Lock Washer | 2 | — | ND130 |
| 4 | Washer | 2 | — | 8S40 |
| 5 | Screw Motor Mounting | 2 | — | (639 |
| 6 | Motor label | 1 | — | ND105L |
| 7 | Sprocket, Motor | 1 | — | ND114 |
| 8 | Set Screw | 1 | 11-800-M172 | 9M172 |
| 9 | Connector | 1 | — | ST2291 |
| 10 | Plastic re | 1 | — | ST190 |
| 11 | Motor Brush Kit | 1 | H-800-M8555S | ND1058XK |
| Motor Assembly (Not Shown) | 1 | H-800MOTOR | (555-044-01 |

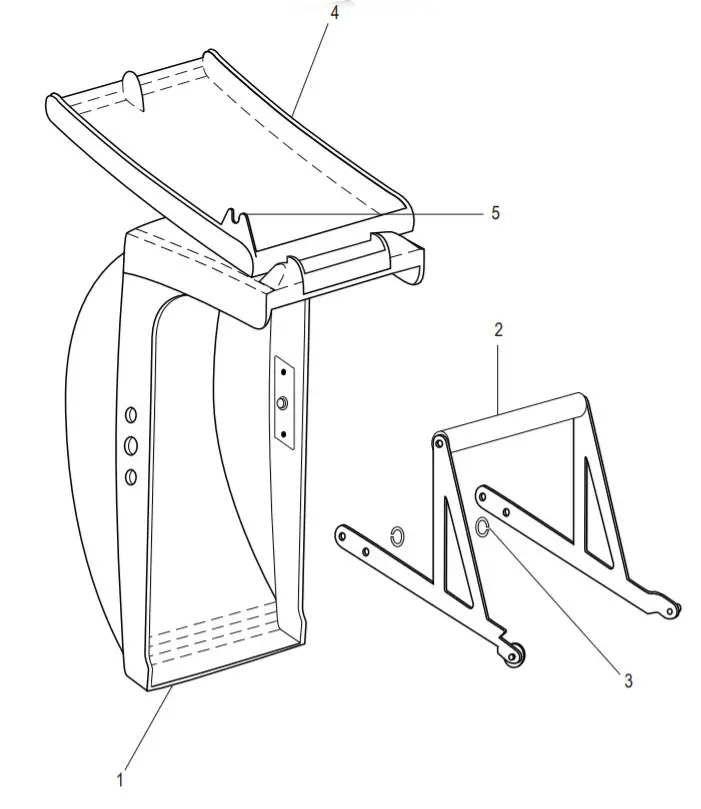

TOP AND REAR COVER
TOP AND REAR COVER PARTS LIST
| # | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
| 1 | Rear Cover Assembly | 1 | H-800REARCVR | (555-034-01 |
| 2 | Assembly Litt Roller Bracket | 1 | H-800LRBRCKT | E555-098-01 |
| 3 | (-Ring | 2 | 11-800-ST2337 | ST2337 |
| 4 | Top Cover Assembly | 1 | 11-800TOPCVR | E555-035-01 |
| 5 | Magnet | 1 | 11-800-MAGNET | 5T-2344 |
| Top and Rear Covers Assembly (Not Shown) | 1 | H-800-TPRCYR | E555-045-01 |

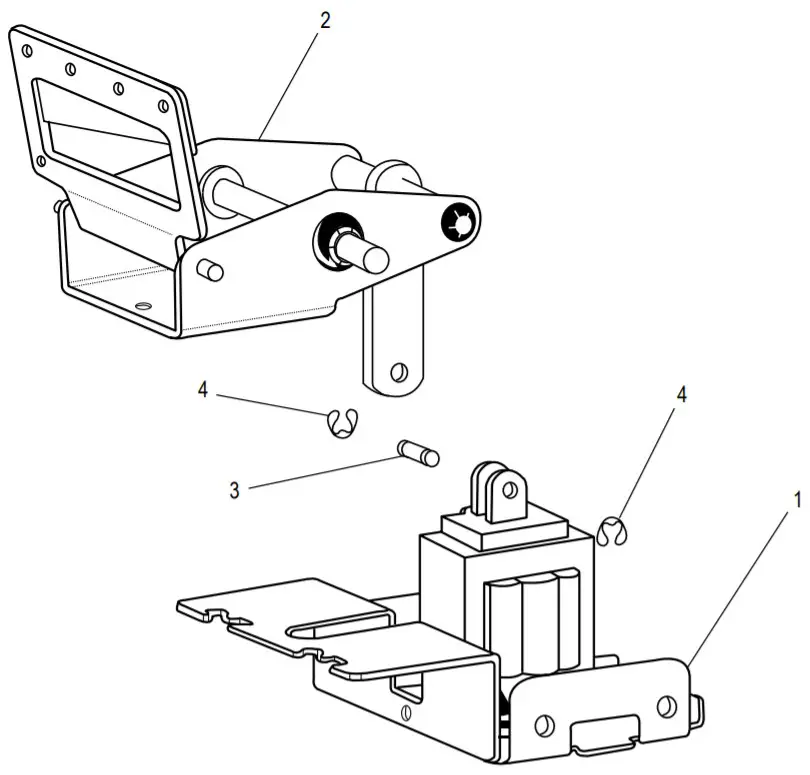

SOLENOID AND CUTTER
SOLENOID AND CUTTER PARTS LIST
| # | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
| 1 | Solenoid Shell Assembly. 115 Volt | 1 | H-800-SELLA | E555-048-01 |
| 2 | Cutter Yoke Assembly | 1 | H-800-YOKE | E555-049-01 |
| 3 | Solenoid Clevis Pin | 1 | — | E555-096-00 |
| 4 | E-Ring. .187 Diameter Shaft | 2 | H-800-512337 | ST-2337 |
| Solenoid and Cutter Assembly (Not Shown) | 1 | — | E555-042-01 |

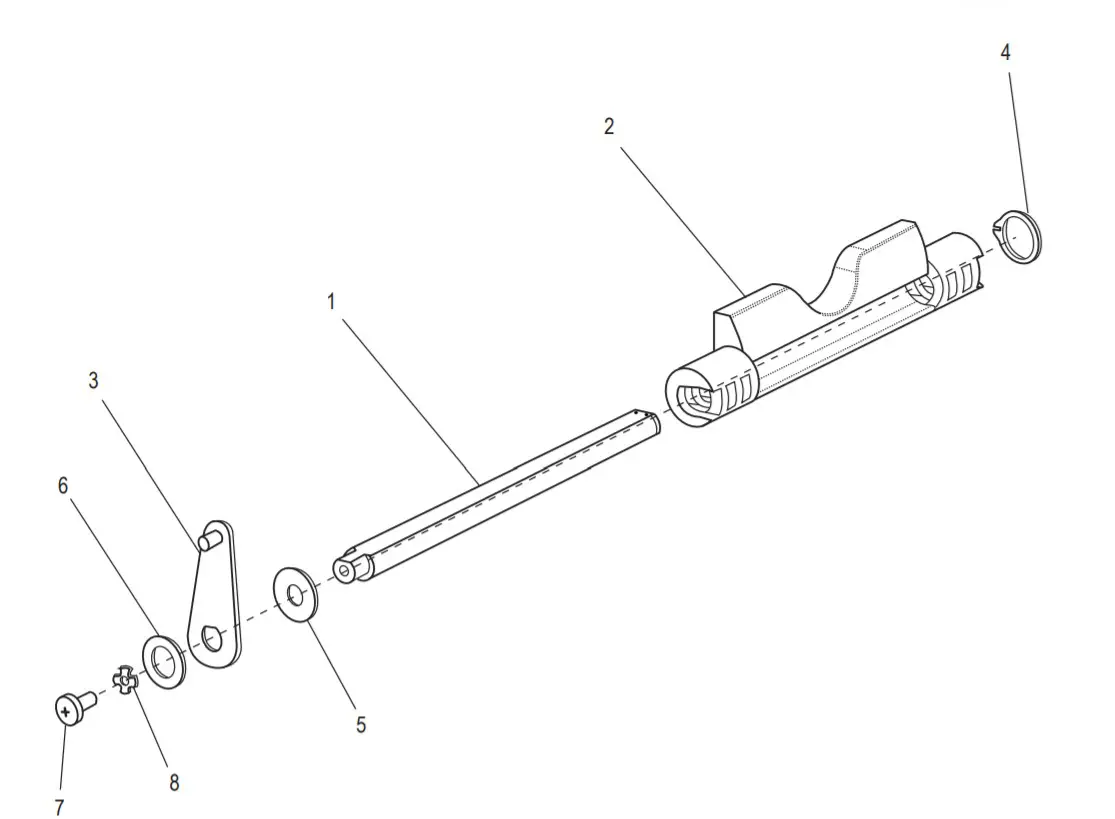

STOP SHAFT
STOP SHAFT PARTS LIST
| # | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
| 1 | Stop Shaft | 1 | — | E555-082-00 |
| 2 | Cutter Lift Cam | 1 | 14-800-1.1FT | E555-077-00 |
| 3 | Cutter Lift Lever Assembly | 1 | 14-800-08401 | E555-084-01 |
| 4 | Retaining Ring | 1 | 14-35-WK2 | WK2 |
| 5 | Washer | 1 | — | FF91 |
| 6 | Washer | 1 | — | SX49A |
| 7 | Screw | 1 | — | ST-2340 |
| 8 | External Tooth Lock Washer | 1 | 1106 | |
| Stop Shaft Assembly (Not Shown) | 1 | — | E555-082-01 |

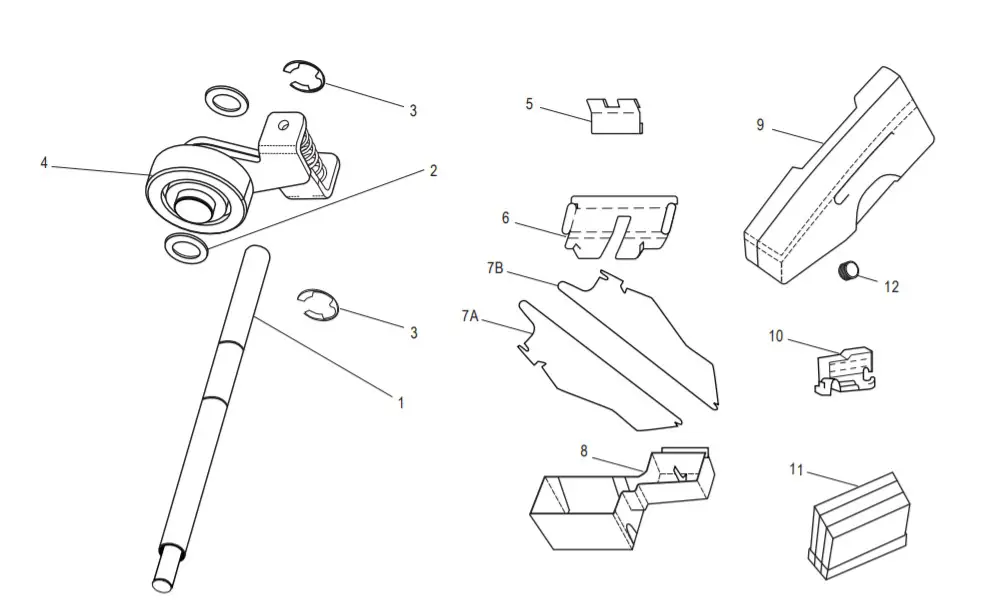

IDLER SHAFT AND ACCESSORIES
IDLER SHAFT AND ACCESSORIES PARTS LIST
| # | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
| 1 | Pivot Shaft. Idler | 1 | — | E555-053.00 |
| 2 | Washer | 1 | — | SX49A |
| 3 | E-Clip | 2 | H-800-ECLIP | FM94 |
| 4 | Idler Assembly | 1 | H-8001DIER | E626XX |
| 5 | Brush Retainer | 1 | H-800BR | F555.017-00 |
| 6 | Upper Tape Guide | 1 | 1-1-800-UPPER | G555.018-00 |
| 7A | Left Side Guide | 2 | H-800LSG | E555-064.00 |
| 7B | Right Side Guide | 2 | H-800RSG | E-555-064.00 |
| 8 | Water Tank | 1 | 1i-800-TANN | E555.033-01 |
| 9 | Water Bottle | 1 | H-800W9 | E555-264.01 |
| 10 | Water Level Adjuster | 1 | 1-1-800WLE | F555-038.00 |
| 11 | Brush Assembly | 1 | H-800B | f555.132.01 |
| Line Cord. Color: Black (Not Shown) | 1 | H-800LCB | ST-0484 | |
| Label. Heat (Not Shown) | 1 | — | 900-349-0 | |
| Idler Shaft Assembly (Not Shown) | 1 | — | E555.053-01 | |
| 12 | Bottle Cap Assembly | 1 | H-800.16001 | E555-160.01 |
