H-1036

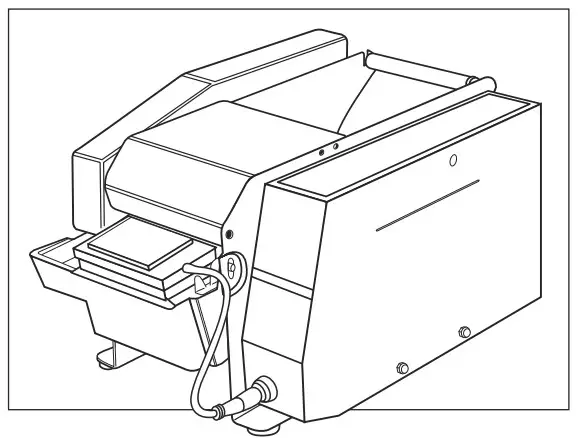

ELECTRONIC KRAFT TAPE DISPENSER
1-800-295-5510
uline.com
| DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. | |
| 1 | Brush | 1 | I-1-72513 | 21005507 |
| 2 | Water Reservoir• | 1 | H-725-WR | 74003632 |
| 3 | Locking Pin* | 1 | I-1-725-SHAFT | 23210011 |
| 4 | Washer – 6* | 2 | ………….. | 23210022 |
| 5 | Circlip – 5 !flax• | 2 | H-725-CLIP | 23103215 |
| 6 | Cover Plate, Lower Part• | 1 | 1-1-725-1) | 74003631 |
| 10 | Lefthand Side Cover | 1 | ………….. | 74005357 |
| 11 | Bearing Block | 1 | I-1-725-11 | 74005348 |
| 12 | Bottle Holders (Includes Front and Rear Mount) | H-725-BEHOLD | 74005586 | |
| 13 | Wafer Tank | 1 | H-725WB | 21000013 |
| 15 | Rubber Feed Ring | 1 | H-1036-FEED | 23300281 |
| 16 | Feed Wheel | 1 | H-1036.16 | 23300292 |
| 17 | Traction Shaft | 1 | H-1036-TSHFT | 74007131 |
| 18 | Circlip | 1 | H-1036-18 | 22000231 |
| 19 | Free Wheel | 2 | H-1036-FRWHL | 74007163 |
| 21 | Cam | 1 | H-1036.21 | 74007137 |
| 22 | Shaft | 1 | H-1036.22 | 74005384 |
| 27 | Shear Blade Frame | 1 | H-1036-SBFRM | 74002314 |
| 28 | Tension Spring | 1 | H-725-BSPRNG | 23300156 |
| 29 | Bearing | 1 | H-725-BEAR | 23300383 |
| 30 | Shaft | 1 | H-1036.30 | 74005509 |
| 31 | Shaft | 1 | H-1036.31 | 74002315 |
| 32 | Shaft | 1 | H-1036.32 | 23210260 |
| 33 | Bearing Bush | 2 | ………….. | 23300509 |
| 34 | Pressure Roll | 1 | H-725-PRSRL | 74005510 |
| 35 | Washer Diam. 6 | 1 | ………….. | 23113933 |
| 36 | Tension Spring Diam, 4 | 1 | H-725-KHOLD | 23300601 |
| 37 | Spring Washer | 5 | ………….. | 21008759 |
| 38 | Hexagon Nut | 5 | ………….. | 21008691 |
| 39 | Screw | 3 | ………….. | 21008500 |
| 40 | Upper Shear Blade | 1 | H-725-119 | 23210271 |
| 41 | Upper Shear Blade Frame | 1 | H-1036-41 | 23300667 |
| 42 | Cover with Hinge | 1 | H-1036-COVER | 74007159 |
| 43 | Upper Paper Guide | 1 | I-1-725-UPG | 74005386 |
| 44 | Screw | 2 | ………….. | 74002676 |
| 45 | Rear Wall | 1 | I-1-725.44 | 74002254 |
| 46 | Sheet Metal Screw | 4 | ………….. | 74002847 |
| 47 | Guide Plate | 2 | H-725-GUIDE | 74005347 |
| # | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
| 48 | Bottom Plate | 1 | H-103613IMPLT | 74005346 |
| 50 | Righthand Side Cover | 1 | ………….. | 74007161 |
| 51 | Cover | 1 | H-725.50 | 74005349 |
| 58 | Rubber Foot | 4 | H-725-FEET | 74005355 |
| 63 | Lower Shear Blade | 1 | H-725-LB | 22000300 |

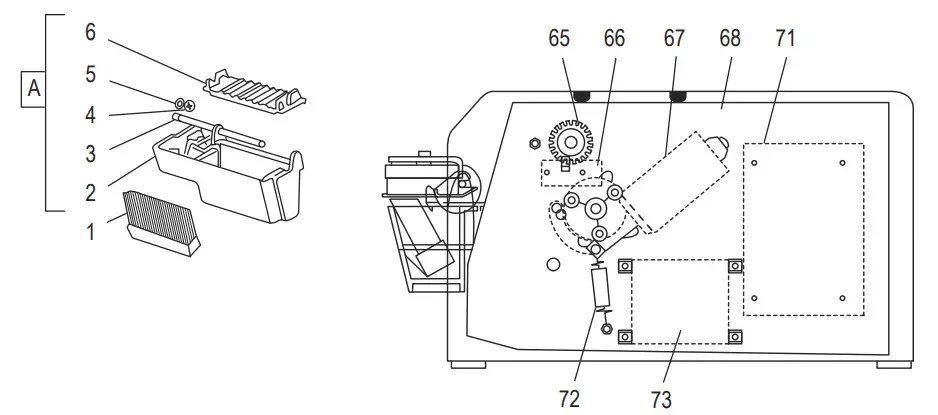

| 65 | Encoder | 1 | 1-1-1036.65 | 74002697 |
| 66 | Reader | 1 | H-1036.7166 | 74007166 |
| 67 | Motor | 1 | 1-1-1036.67 | 74007153 |
| 68 | Side Cover with Keyboard Inches | 1 | 14-1036-SIDE | 74008746 |
| 71 | PC Board | 1 | 14-1036-PC8RD | 74008747 |
| 72 | Spring Kit | 1 | H-1036-SPRNG | 74008721 |
| 73 | Transformer 115v | 1 | H-10364115V | 74002065 |
| A |
| 1 | H-725-WR | 74003632 |
| E | Roller | H-1036-RUS | 74005359 | |
| F | Feed Unit Including #15.19 and #21 | H-1036-CSHFT | 74007164 | |
| Heater (Optional. Not Shown) | 1 | H-1036-HEATF2 | 74008709 | |
| Power Cord (Not Shown) | 1 | H-1036PWRCRD | 10010058 | |
| Side Cover with Keyboard (Not Shown) | 1 | ………….. | 74002074 | |
| Two Pole Connector with Fuse Holder (Not Shown) | 1 | H-1036.2POLE | 74002069 | |
| Adapter White Connector (Not Shown) | 1 | 1-1-1036-2191 | 74002191 | |
| Adapter Green Connector (Not Shown) | 1 | H-1036-2192 | 74002192 | |
| Adapter for Tape Reader (Not Shown) | 1 | 1-1-1036.2194 | 74002194 |
