H-1359
MANUAL TAPE DISPENSER WITH HEATER
1-800-295-5510
uline.com
PAGE 1 OF 27 0521 PH-1359

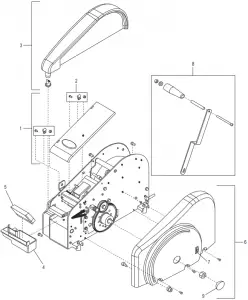

| # | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
| 1 | Top Cover Assembly | 1 | H-1358-TPCVR | RP40310 |
| 2 | Top Cover Hinge with Screw Includes: · Hinge (2) · Nut (2) · Screw (2) | 1 | H-1360-40311 | RP40311 |
| 3 | Water Bottle with Valve Includes: · Bottle (1) · Duckbill Valve (1) · Tank (1) | 1 | H-1358WB | RP40401 |
| 4 | Brush Tank | 1 | H-1358-BRTNK | RP40405 |
| 5 | Moistening Brush | 1 | H-1358B | RP40407 |
| 6 | Right Side Cover Assembly Includes: · Side Cover (1) · Screw (6) · Hole Plug (1) · Stop Assembly (1) | 1 | H-1359-SDCVR | RP41301H |
| 7 | Power Switch | 1 | H-1359-PWRSW | RP150536 |
| 8 | Handle Includes: · Handle Arm (1) · Handle (1) · Handle Insert (1) · Washer (1) · Screw (1) · Nut (1) | 1 | H-1358-HNDL | RP41257 |
| 9 | Handle Hole Plug | 1 | ——— | RP43102 |
| Inch Measuring Strip (Not Shown) | 1 | ——— | RP41260 | |
| Metric Measuring Strip (Not Shown) | 1 | ——— | RP41262 | |
| Stop Bolt (Not Shown) | 1 | H-1358-KNOB | RP41290 |
PAGE 2 OF 27
PAGE 3 OF 27

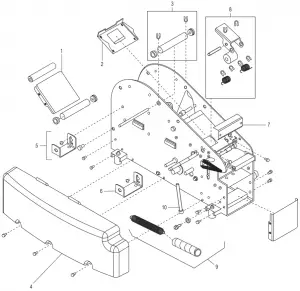

| # | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
| 1 | Ramp | 1 | ——– | RP40315 |
| 2 | Pressure Plate | 1 | H-1358-PLATE | RP40505 |
| 3 | Top and Free Roller Assembly Includes: · Roller (1) · E-Clip (2) · Side Cover (1) | 1 | ——– | RP40522 |
| 4 | Left Side Cover | 1 | H-1358-LCVR | RP-40305 |
| 5 | Rear Water Bottle Bracket | 1 | H-1358-WBBKT | RP40404 |
| 6 | Front Water Bottle Bracket | 1 | H-1358WBB | RP40403 |
| 7 | Cutter Guard | 1 | H-1358-CUTTR | RP40325 |
| 8 | Pinch Roll Assembly Includes: · Pin (1) · Spring (2) · E-Clip (6) · Shaft (1) · Holder (1) · Roll (1) | 1 | H-1358-40540 | RP40540 |
| 9 | Cutter Return Spring Assembly Includes: · Spring (1) · Damper (1) · Screw (1) · Nut (2) · S-Hook (1) | 1 | H-1358-SPRIN | RP41905 |
| 10 | 10 Cutter Slide Bolt | 1 | H-1358-41904 | RP41904 |
| Fixed Blade Stop (Not Shown) | 1 | ——– | RP40825 |
PAGE 4 OF 27
PAGE 5 OF 27

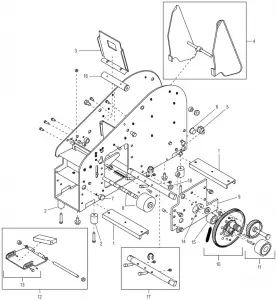

| # | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
| 1 | Foot Channel | 1 | ——– | RP40110 |
| 2 | Rubber Foot | 1 | ——– | RP40115 |
| 3 | Tape Channel Plate | 1 | H-1358-TCP | RP40515 |
| 4 | Tape Guide Assembly Includes: · Turnbuckle (1) · Guide RHS (1) · Guide LHS (1) | 1 | ——– | RP40550 |
| 5 | 90° Strain Relief | 1 | ——– | RP42956 |
| 6 | Dome Plug | 1 | ——– | RP42957 |
| 7 | SPlit Bushing | 1 | ——– | RP42958 |
| 8 | Urethane Feed Wheel w/ Shaft | 1 | H-1360-40235 | RP40235 |
| 9 | Gearbox Motor Mount Frame | 1 | ——– | RP41101 |
| 10 | Drive Gear With Springs Includes: · Drive Gear (1) · Spring (1) | 1 | H-1359-GEAR | RP5065X |
| 11 | Clutch Roller Assembly Includes: · Clutch (1) · Pin (1) | 1 | H-362-CLUTCH | RP5063X |
| 12 | Brush Tank Cover with Rod & Bushing Includes: · Weighted Tank Cover (1) · Screw (2) · Brass Bushing (1) · Rod (1) | 1 | H-1360-BTCRB | RP40516 |
| 13 | Tape Weight with Screw Includes: · Weighted Tank Cover (1) · Screw (1) · Pin (1) | 1 | H-1358-TPWGT | RP40517 |
| 14 | 3/8 Bearing | 1 | ——– | RP40231 |
| 15 | 1/2 Bearing | 1 | ——– | RP41221 |
| 16 | Dead Roller | 1 | H-1360-40560 | RP40560 |
| 17 | Handle Shaft Assembly Includes: · Shaft (1) · Screw (4) · E-Clip (1) | 1 | H-1358-41220 | RP41220 |
| 18 | Washer | 1 | ——– | RP16172 |
PAGE 6 OF 27
PAGE 7 OF 27
| # | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
| 1 | Tape Basket/Motor Cover | 1 | ——– | RP40320 |
| 2 | Cover Actuating Arm Assebmly Includes: · Arm (2) · Spring (2) · E-Clip (6) · Shaft (1) · Screw #16 (2) · Nut (2) | 1 | H-1358-41258 | RP41258 |
| 3 | Cutter Replacement Arm Includes: · Cutter Blade Holder (1) · Cutter Blade Movable (1) · Fixed Blade (1) · Spring (4) · Fixed Blade Shoe (1) · Set Screw (1) · Screw (4) · Bushing (4) · Cutter Guide (2) | 1 | H-1360-BLREP | RP40703 |
| 4 | Cutter Blade Movable Includes: · Cutter Blade Movable (1) · Screw (2) · Set Screw (1) | 1 | H-1358-BLADE | RP40710 |
| 5 | Cutter Blade Fixed Includes: · Fixed Blade (1) · Spring (4) · Fixed Blade Shoe (1) · Screws (2) | 1 | H-1358-FIXED | RP40715 |
| 6 | Cutter Spring Fixed Blade | 1 | H-1360-40740 | RP40740 |
| 7 | Heater/Thermostat Assembly 110V Includes: · Water Tank Holder (1) · Thermostat 110V (1) · Screw (9) · Nut (2) · Heater 110V (1) · Wire (1) · Wire Connection (4) | 1 | H-1360-42978 | RP42978 |
| 7 | Heater/Thermostat Assembly 200V Includes: · Water Tank Holder (1) · Thermostat 110V (1) · Screw (9) · Nut (2) · Heater 110V (1) · Wire (1) · Wire Connection (4) | 1 | ——– | RP42810 |
PAGE 8 OF 27
| # | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
| 8 | Thermostat Assembly 110V Includes: · Thermostat 110V (1) · Screw (2) · Nut (2) · Wire #16 (1) · Wire Connection (1) | 1 | ——– | RP43977 |
| 9 | 3/8 Bearing | 1 | ——– | RP40231 |
| 10 | 1/2 Bearing | 1 | ——– | RP41221 |
| 11 | Cutter Guard Clip | 1 | H-1360-40236 | RP40236 |
| 12 | Stop Bolt and Nut | 1 | H-1358-KNOB | RP41290 |
| 13 | Water Tank Holder | 1 | H-1358-40352 | RP40352 |
PAGE 9 OF 27
