ULINE H-3534 BOSTITCH Pneumatic .”A” Pneumatic .STICK Stapler User Guide

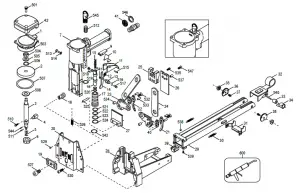

ULINE H-3534 BOSTITCH Pneumatic .”A” Pneumatic .STICK Stapler
| # | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
| 1 | Cylinder Head | 1 | ————– | A01200110 |
| 2 | Piston | 1 | ————– | A02800201 |
| 3 | Rod-Piston | 1 | ————– | A02800301 |
| 4 | Cam Pin | 1 | ————– | A00100401 |
| 5 | Spring | 1 | ————– | A00100501 |
| 6 | Nut-Adjustable | 1 | ————– | A00100601 |
| # | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
| 7 | Body Unit | 1 | ————– | ADCS-P31 |
| 9 | Rocker | 1 | ————– | A00100902 |
| 10 | Spring | 1 | ————– | A00101001 |
| 11 | Trigger | 1 | ————– | A00101101 |
| 12 | Spring | 1 | ————– | A00101201 |
| 13 | Pin – Adjustable | 1 | ————– | A00101301 |
| 14 | Lever – Cycle | 1 | ————– | A00101402 |
| 15 | Spring | 1 | ————– | A00101501 |
| 16 | Valve Stem | 1 | ————– | A00101601 |
| 17 | Valve Body | 1 | ————– | A00101702 |
| 18 | Pin-Pivot | 1 | ————– | A00101801 |
| 19 | Plate-Adjustable | 1 | ————– | A00101901 |
| 20 | Bracket-Front | 1 | ————– | A01102501 |
| 21 | Right Clincher (22mm) | 1 | ————– | A01200501 |
| 21 | Right Clincher | 1 | ————– | A00102102 |
| 22 | Left Clincher (22mm) | 1 | ————– | A01200601 |
| 22 | Left Clincher | 1 | ————– | A00102202 |
| 23 | Clincher Lever | 1 | H-3534-LEVER | A00102301 |
| 24 | Link | 1 | ————– | A00102401 |
| 25 | Block | 1 | ————– | A00102502 |
| 26 | Driver | 1 | ————– | A01102605 |
| 27 | Cover Unit | 1 | ————– | A00102703A |
| 28 | Magazine Seat | 1 | ————– | A02100407A |
| 29 | Magazine | 1 | ————– | HAA-9040-P7-SD |
| 30 | Spring | 1 | ————– | A01102403 |
| 31 | Bracket | 1 | ————– | A01102201 |
| 32 | Pusher Set | 1 | ————– | A00103715A |
| 33 | Roller | 1 | ————– | A00103501 |
| 34 | Spring | 1 | H-3534-34SPR | A00103401 |
| 35 | Nut | 1 | ————– | A00607101 |
| 36 | Right Pusher Guide | 1 | ————– | A00103903A |
| 37 | Rod | 1 | ————– | A00103203 |
| 38 | Left Pusher Guide | 1 | ————– | A00103904A |
| 39 | Bracket | 1 | ————– | A00105601 |
| 40 | Spacer | 1 | ————– | A00105001 |
| 41 | Silencer | 1 | ————– | BAI1401 |
| 42 | Cover | 1 | ————– | 9R189951 |
| 501 | Bolt | 4 | ————– | 9R189952 |
| 501 | Screw-Hex Socket Head | 4 | ————– | BAC0404102 |
| 503 | O-Ring | 1 | ————– | BAB017537 |
| # | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
| 504 | Hex Nut | 1 | ————– | BAD02061 |
| 505 | Washer | 1 | ————– | BAE06094 |
| 506 | O-Ring | 1 | ————– | BAB017076 |
| 507 | O-Ring | 1 | ————– | BAB057476 |
| 508 | Washer | 1 | ————– | A00104101 |
| 509 | Spring Washer (Not Shown) | 1 | ————– | BAE01042 |
| 510 | Screw – Hex Socket Head | 1 | ————– | BAC0404102 |
| 511 | Spring Pin | 1 | ————– | BAA025014 |
| 512 | Hex Socket Headless Bolt | 1 | ————– | BAC0312122 |
| 513 | Screw – Trigger | 1 | ————– | A00104401 |
| 514 | Spring Washer | 1 | ————– | BAE01042 |
| 515 | Pin – Spring | 1 | ————– | BAA030020 |
| 516 | Washer – Lock Tooth | 1 | ————– | BAE02042 |
| 517 | Screw – Hex Socket Head | 1 | ————– | BAC0404102 |
| 518 | Spring Pin | 1 | ————– | BAA030010 |
| 519 | O-Ring | 1 | ————– | BAB017124 |
| 520 | O-Ring | 1 | ————– | BAB017076 |
| 521 | O-Ring | 1 | ————– | BAB016145 |
| 522 | O-Ring | 1 | ————– | BAB016150 |
| 523 | O-Ring | 1 | ————– | BAB016155 |
| 524 | O-Ring | 1 | ————– | BAB016160 |
| 526 | Hex Socket Headless Bolt | 1 | ————– | BAC0306142 |
| 527 | Hex Head Screw | 1 | ————– | BAC0608162 |
| 529 | Spring Pin | 1 | ————– | BAA030010 |
| 530 | Screw – Hex Socket Head | 1 | ————– | BAC0605142 |
| 532 | Hex Socket Flat Counter | 1 | ————– | BAC0205122 |
| 533 | Pin | 1 | ————– | A00104501 |
| 534 | Pin | 1 | ————– | A00104602 |
| 535 | Hex Socket Head Bolt | 1 | ————– | BAC0604102 |
| 538 | Locknut | 1 | ————– | BAD01041 |
| 539 | Hex Socket Head Bolt | 1 | ————– | BAC0404202 |
| 540 | Spring Pin | 1 | ————– | BAA040016 |
| 541 | Ring – Retaining (Not Shown) | 1 | ————– | BAF10252 |
| 542 | Ring – Retainer | 1 | ————– | BAF22002 |
| 544 | Plastic Pin | 1 | ————– | A00104901 |
| 546 | Ring – Retainer | 1 | ————– | BAF22002 |
| 547 | Hex Socket Flat Countersunk | 1 | ————– | BAC0204062 |
| 800 | Lube (2CC) | 1 | ————– | 100653 |
| 800 | Lube (1Lb. Can) | 1 | ————– | 100679 |
