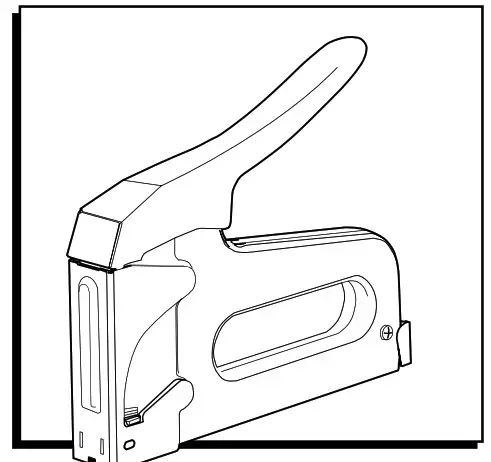

Uline H-2019 Manual Staple Gun User Guide

H-2019
MANUAL STAPLE GUN
1-800-295-5510 uline.com

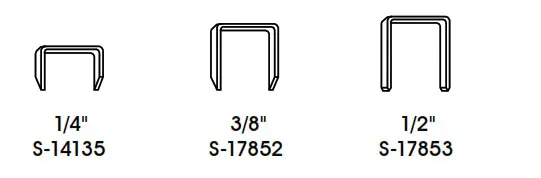

COMPATIBLE STAPLES

consulter les pages 5-6

LOADING

TO LOAD

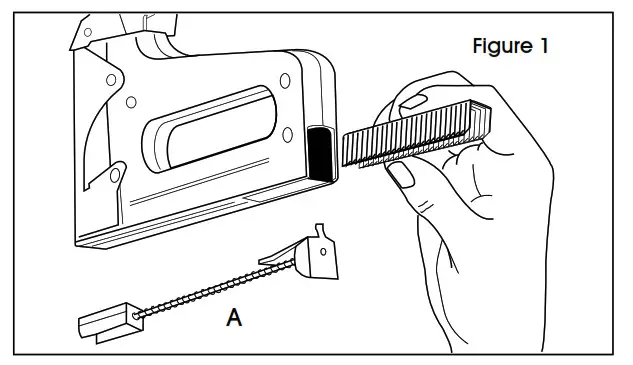

1. Remove pusher rod (A) from the machine. (See Figure 1)
2. Insert strip of
3. Replace pusher rod (A). (See Figure 1)


TO CLEAN STAPLE CHANNEL

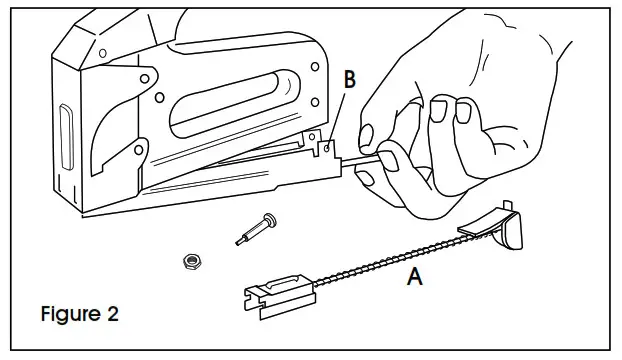

1. Remove pusher rod (A). (See Figure 2)
2. Remove screw and nut from the hole (B). (See Figure 2)
3. Pull down the entire inside frame for complete (See Figure 2)


TO DETERMINE STAPLE SHORTAGE FOR REFILL

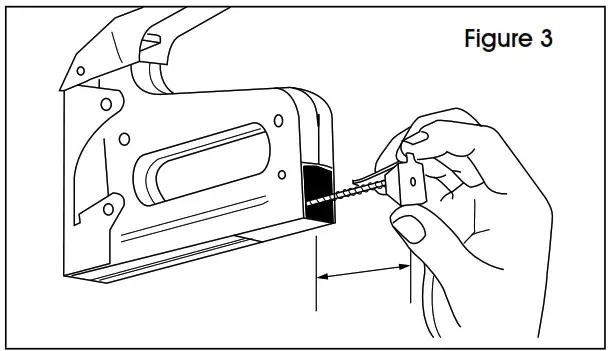

1. Press latch to release pusher
2. Lightly push the rod forward until it stops. The visible projected part of the rod indicates the number of staples remaining in (See Figure 3)


STAPLING

HOW TO DETERMINE PROPER STAPLE LEG SIZE

To choose the proper staple leg length for a job, there are two factors to consider:

1. The thickness of material to be
2. Hardness of the

As a general rule, approximately 3/16″ to 1/4″ penetration into hardwood is sufficient. For softwood, up to 3/8″ should be sufficient.

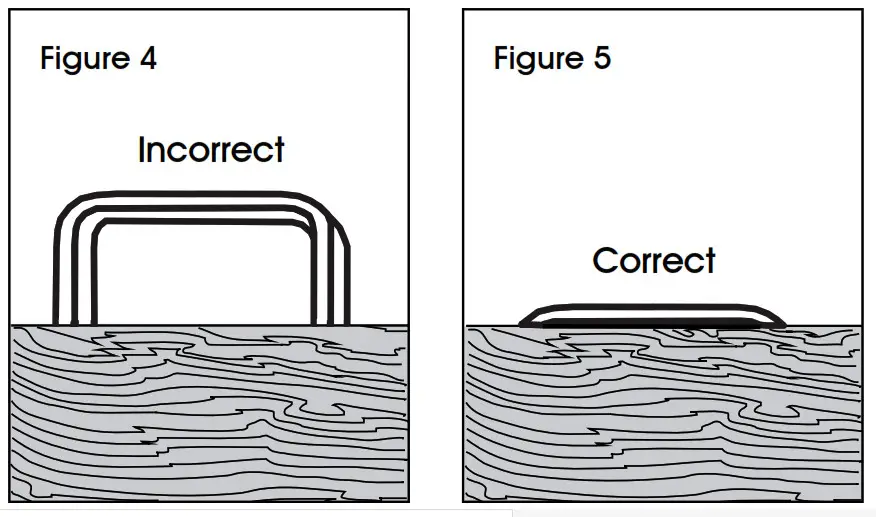

NOTE: If the staple used “stands away” from the work (See Figure 4), this means that too long a leg length has been used. In that case, we recommend the next shorter leg length for desired results. (See Figure 5)

STAPLE PENETRATION

For best penetration with the manual staple gun, raise the rear of the gun slightly off the work and bear down on the front end to prevent recoil when operating. The power spring on the staple gun will drive well into all ordinary woods.
